Description

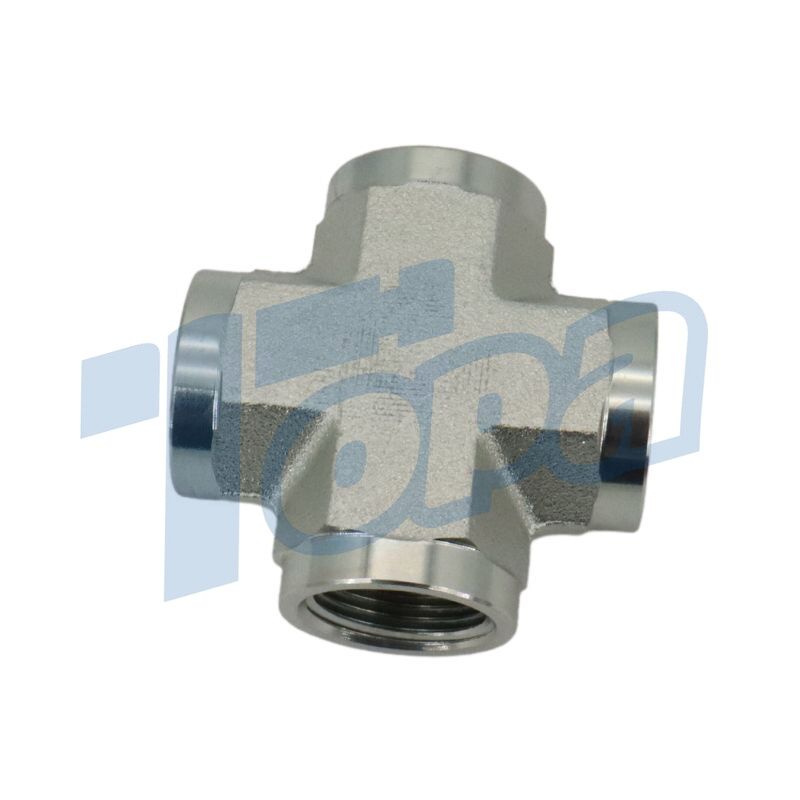

NPT Hydraulic Female Fittting

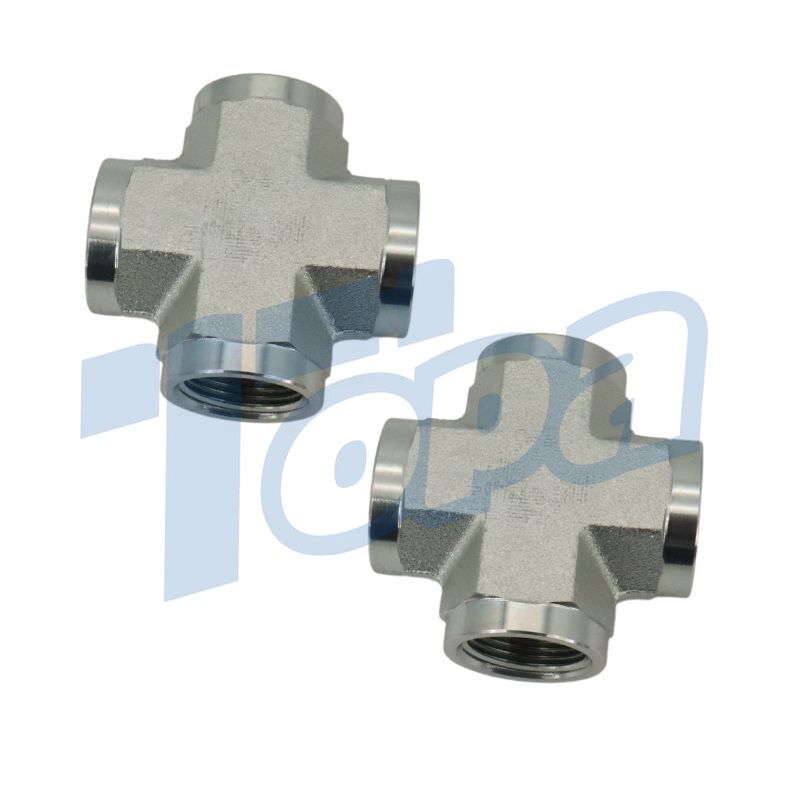

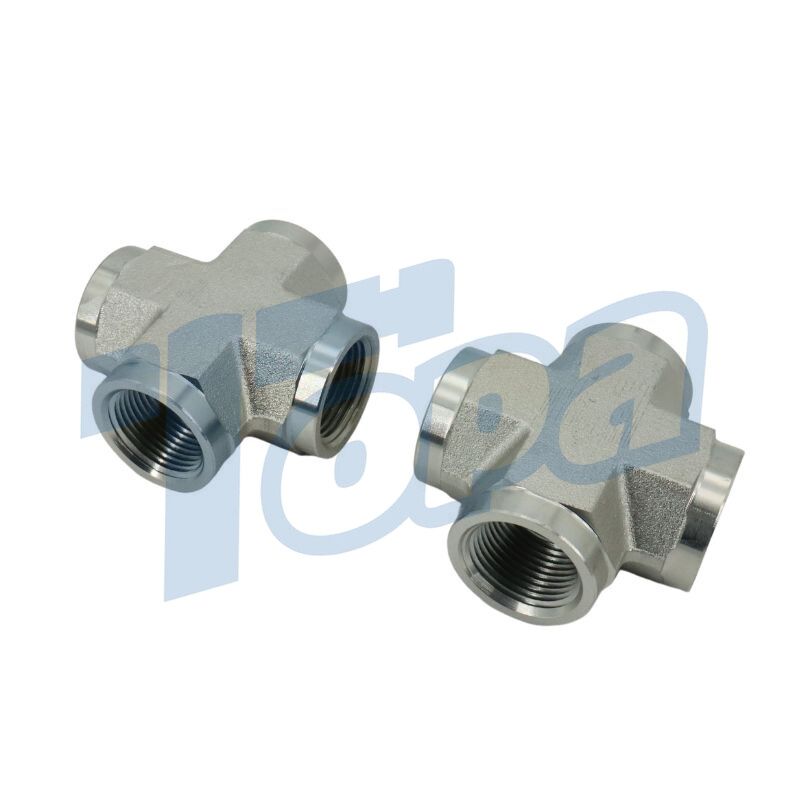

5652 NPT cross adapters have four female NPT threads on both ends. And they are used to connect hydraulic pipes and tubes. Those fittings are made of high-quality metal materials, durable and versatile. So if you have any problems with NPT female hydraulic connection, please contact us!

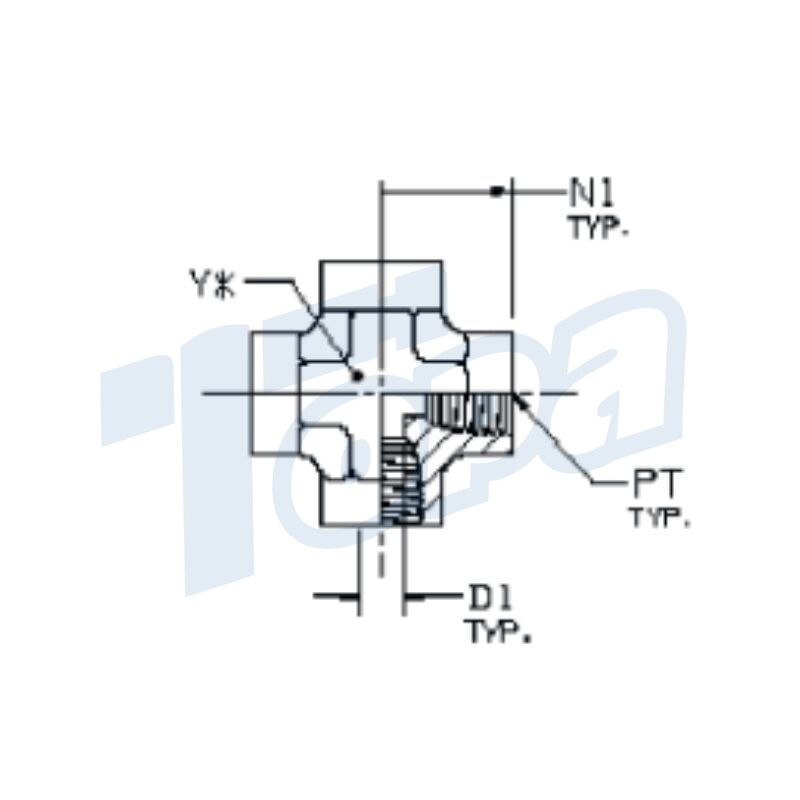

Dimensional Drawings:
TUBE PART # | PT PORT THD NPTF | D1 (inch) | N (inch) | Y (inch) |
5652-2-2-2-2 | 1/8-27 | 0.328 | 0.66 | 9/16 |
5652-4-4-4-4 | 1/4-18 | 0.422 | 0.88 | 3/4 |
5652-6-6-6-6 | 3/8-18 | 0.563 | 1.02 | 7/8 |
5652-8-8-8-8 | 1/2-14 | 0.688 | 1.23 | 11/16 |
5652-12-12-12-12 | 3/4-14 | 0.891 | 1.36 | 15/16 |
5652-16-16-16-16 | 1-11 1/2 | 1.125 | 1.63 | 1 5/8 |
5652 NPT Hydraulic Female Fitting Video
As the best Chinese hydraulic male adapters manufacturer, Topa can provide hydraulic fittings in a variety of sizes. Our products can be used in a wide range of hydraulic fluid environments and are resistant to high pressures and temperatures.
Topa has multiple CNC machines and professional staff, so we can process fittings to your exact specifications. Our staff will strictly inspect the quality of the fittings to ensure that the product meets your usage requirements.
If you want more information about npt hydraulic female fittings, please contact us!
