Straight JIC Hydraulic Bulkhead Fittings

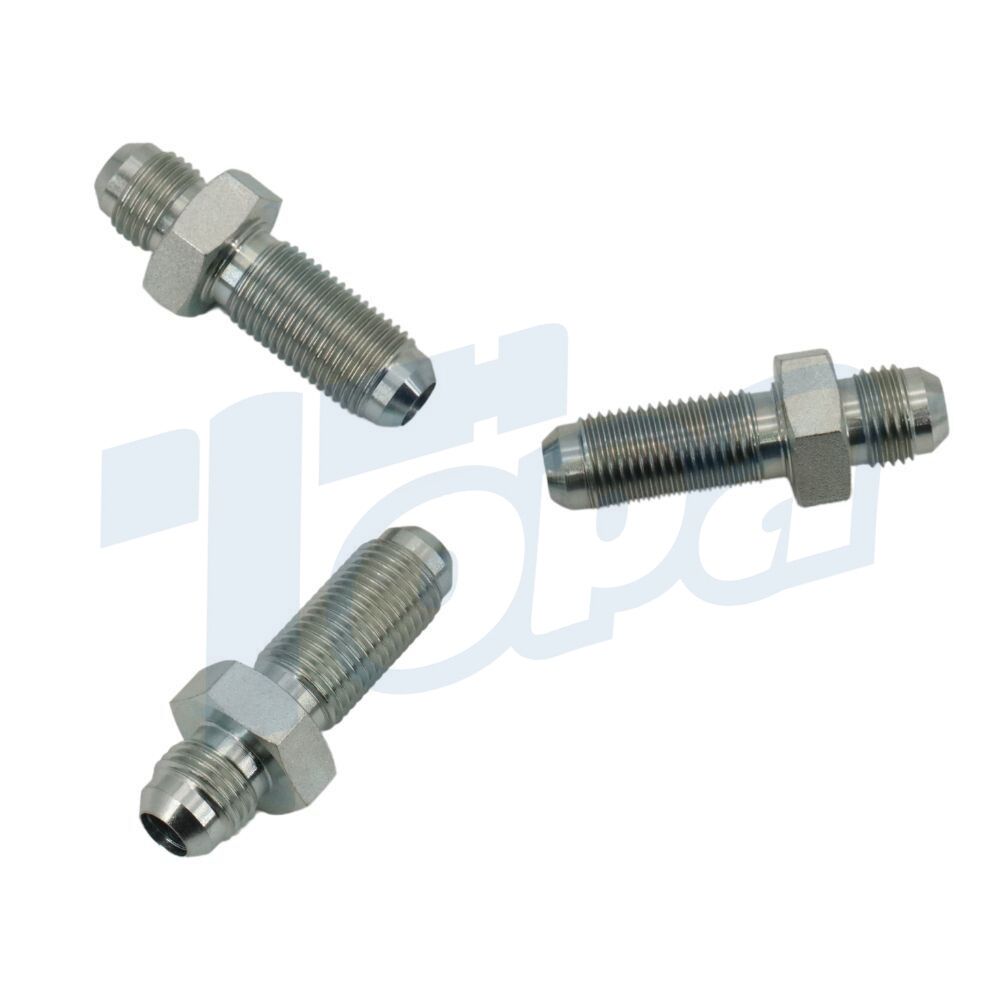

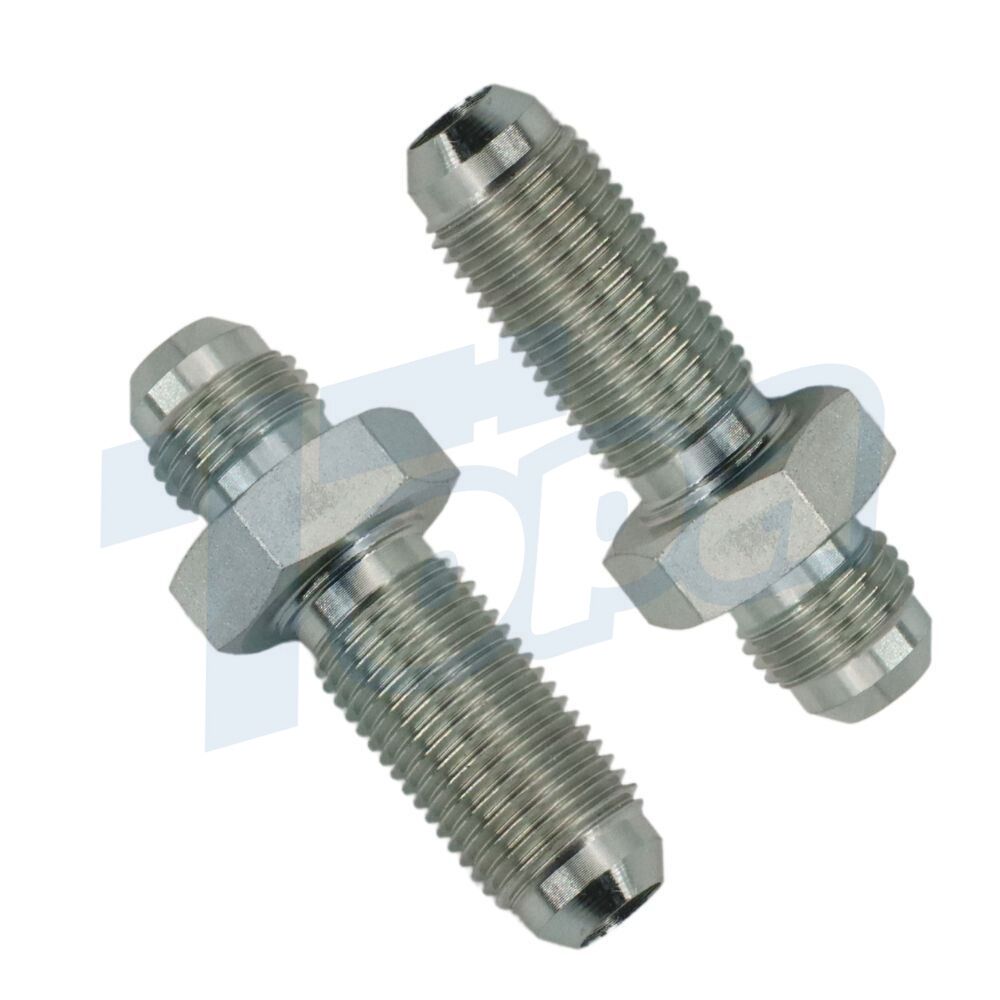

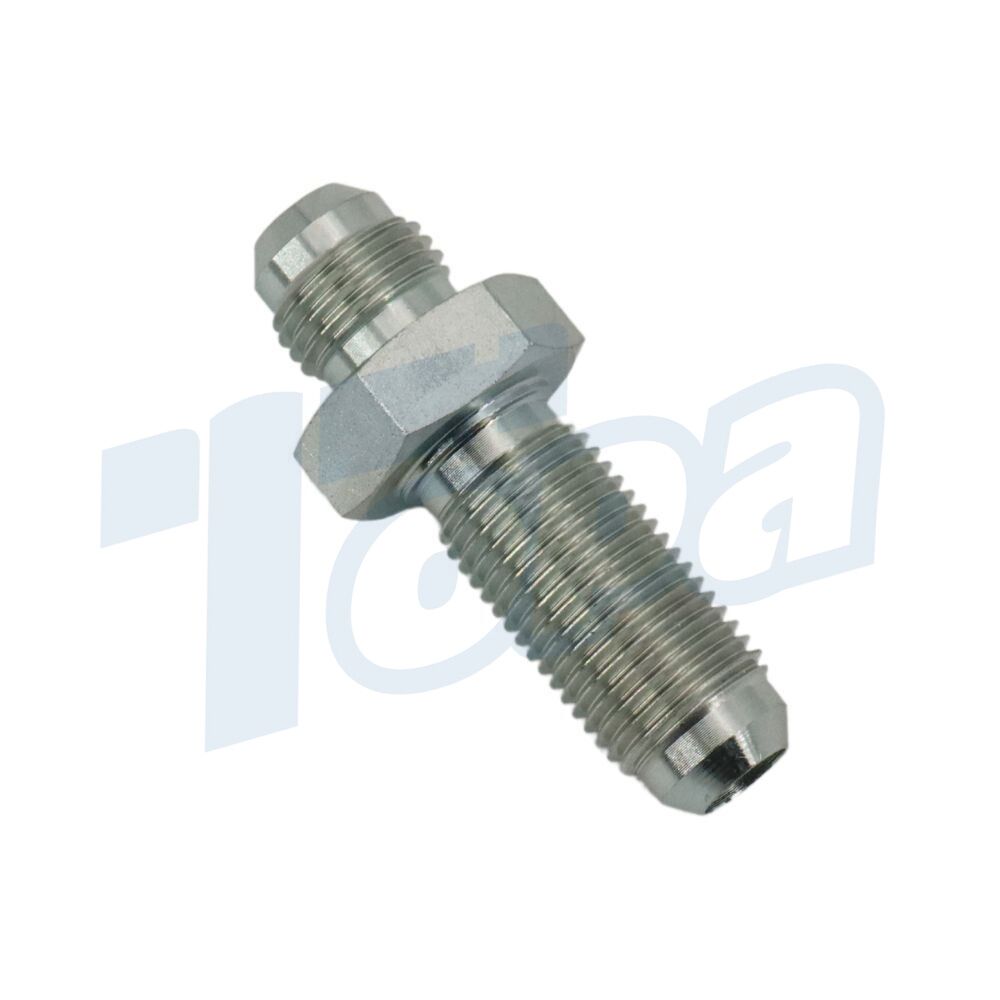

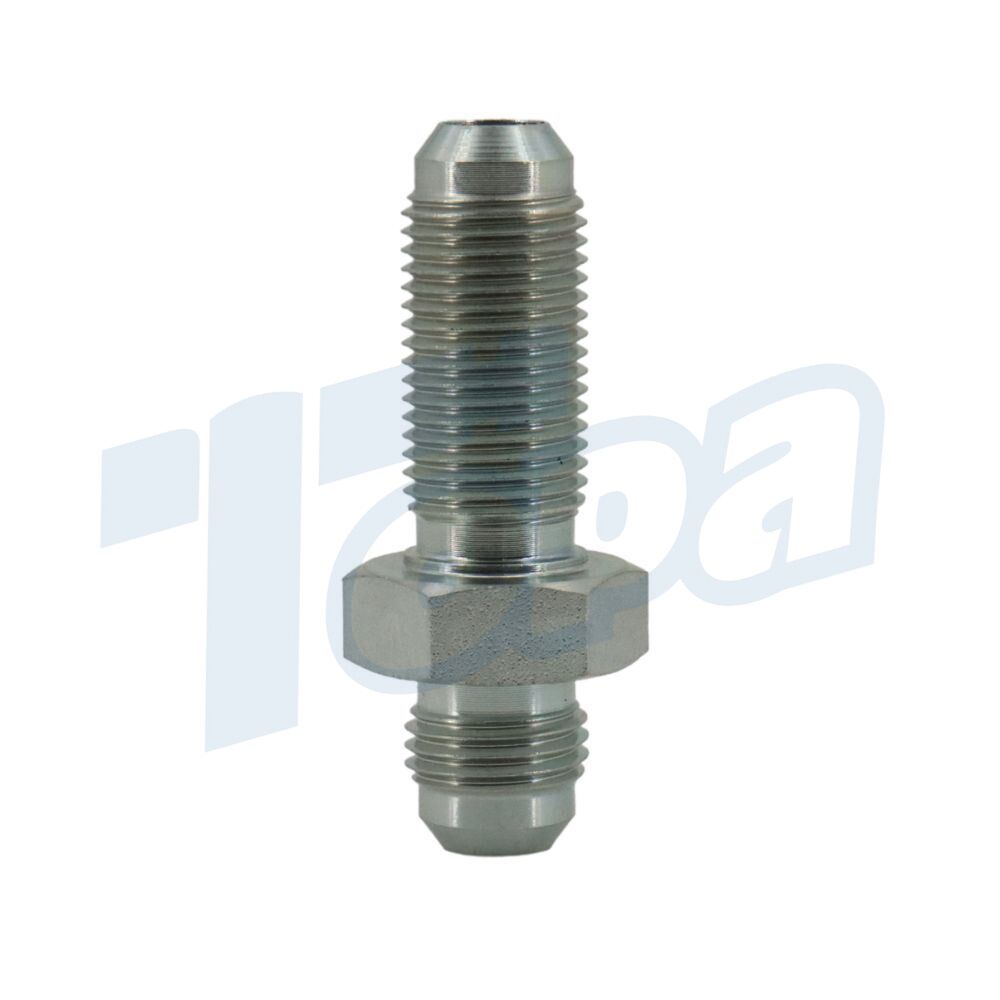

2700 JIC hydraulic bulkhead fittings with male 37° flare on the ends. They are made of high-quality metal materials, durable and high-pressure resistance. Topa can provide all sizes and materials of JIC hydraulic bulkhead adapter, please contact us for more information!

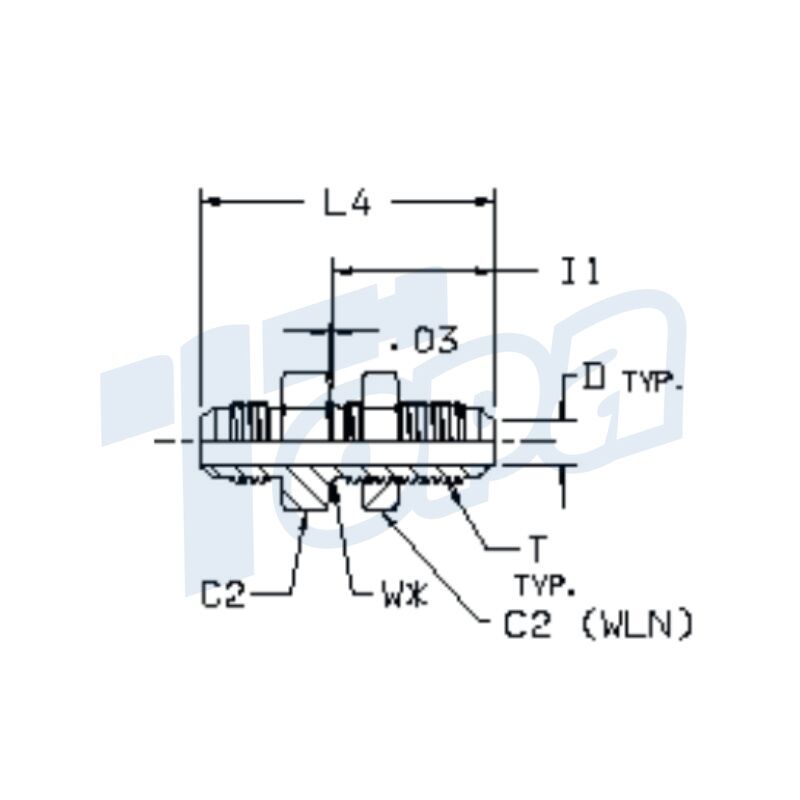

Dimensional Drawings:
TUBE FITTING PART # | TUBE O.D. (inch) | T TUBE END UN/UNF-2A | C2 HEX (inch) | DRILL (inch) | I1 | L4 (inch) | W DIA (inch) |
2700-3-3 | 3/16 | 3/8-24 | 5/8 | 0.125 | 1.11 | 1.91 | 0.38 |
2700-4-4 | 1/4 | 7/16-20 | 11/16 | 0.172 | 1.20 | 2.08 | 0.44 |
2700-5-5 | 5/16 | 1/2-20 | 3/4 | 0.234 | 1.20 | 2.08 | 0.50 |
2700-6-6 | 3/8 | 9/16-18 | 13/16 | 0.297 | 1.28 | 2.19 | 0.56 |
2700-8-8 | 1/2 | 3/4-16 | 1 | 0.391 | 1.44 | 2.44 | 0.75 |
2700-10-10 | 5/8 | 7/8-14 | 1 1/8 | 0.484 | 1.58 | 2.75 | 0.88 |
2700-12-12 | 3/4 | 11/16-12 | 1 3/8 | 0.609 | 1.75 | 3.09 | 1.06 |
2700-14-14 | 7/8 | 13/16-12 | 1 1/2 | 0.718 | 1.75 | 3.13 | 1.19 |
2700-16-16 | 1 | 15/16-12 | 1 5/8 | 0.844 | 1.75 | 3.14 | 1.31 |
2700-20-20 | 1 1/4 | 1 5/8-12 | 1 7/8 | 1.078 | 1.80 | 3.31 | 1.63 |
2700-24-24 | 1 1/2 | 1 7/8-12 | 2 1/8 | 1.312 | 1.81 | 3.52 | 1.88 |
2700-32-32 | 2 | 2 1/2-12 | 2 3/4 | 1.781 | 2.09 | 4.20 | 2.50 |
2700 JIC Hydraulic Bulkhead Fittings Video
As a hydraulic adapters factory, Topa can supply hydraulic fittings in various sizes. Our products can be used in multiple hydraulic fluid environments, and are resistant to high pressure and temperature.
Topa’s factory has several CNC machines to produce fittings strictly according to your data. Our JIC hydraulic bulkhead fittings will undergo strict quality inspection to ensure the product meets your usage requirements.
If you want more information about hydraulic hose and fittings, please contact us!
