Hydraulic Tee Fittings

Description:

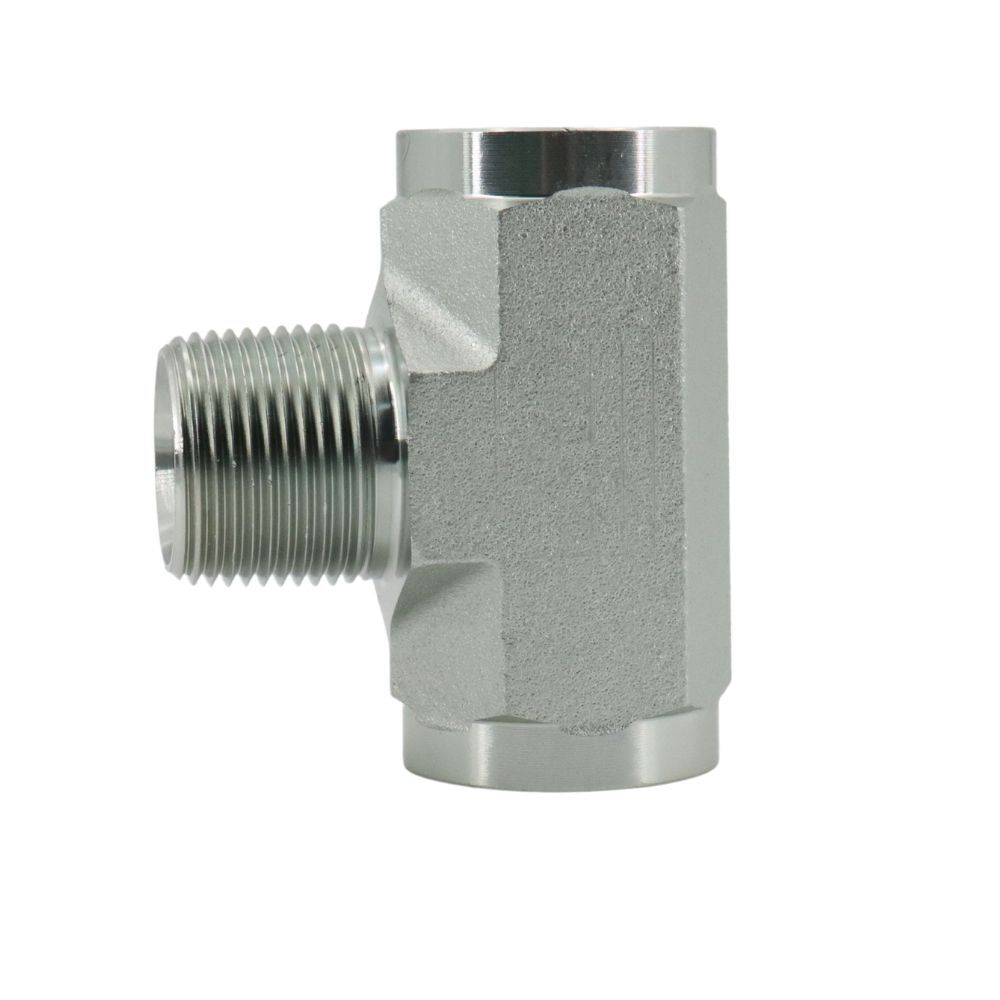

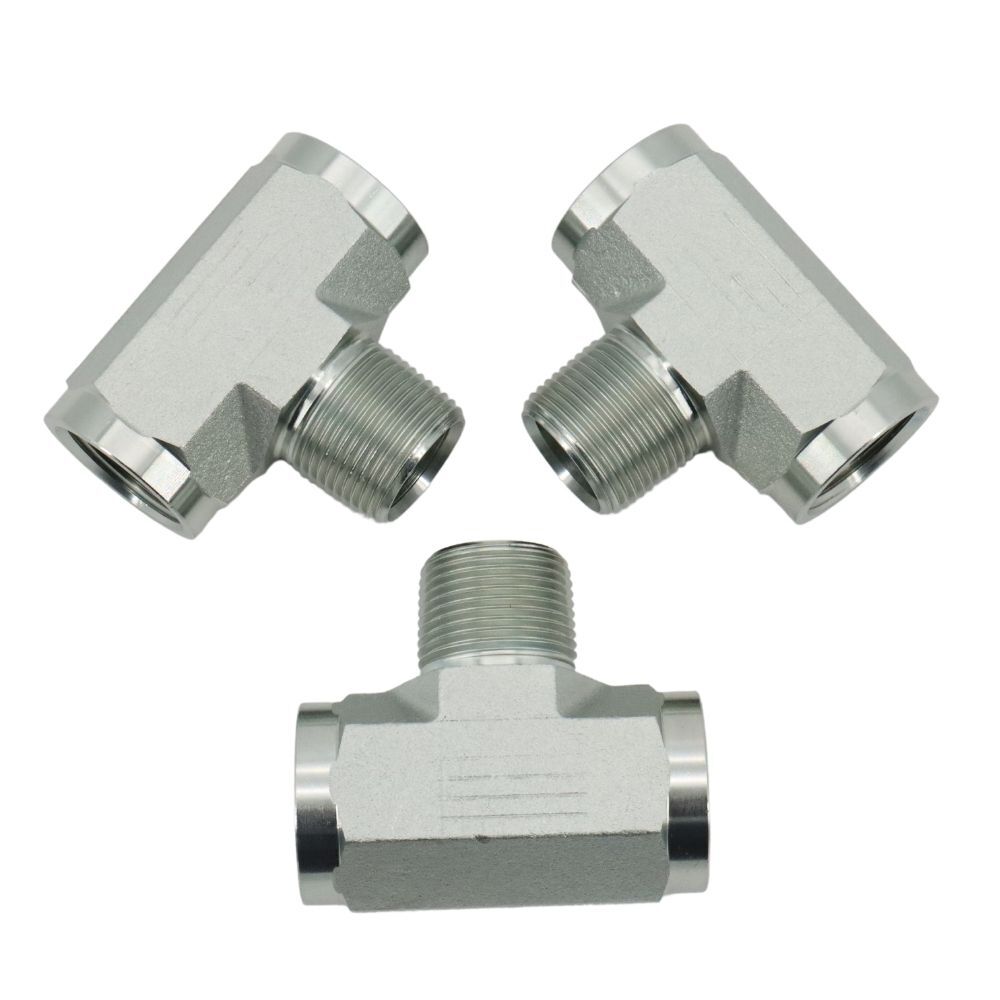

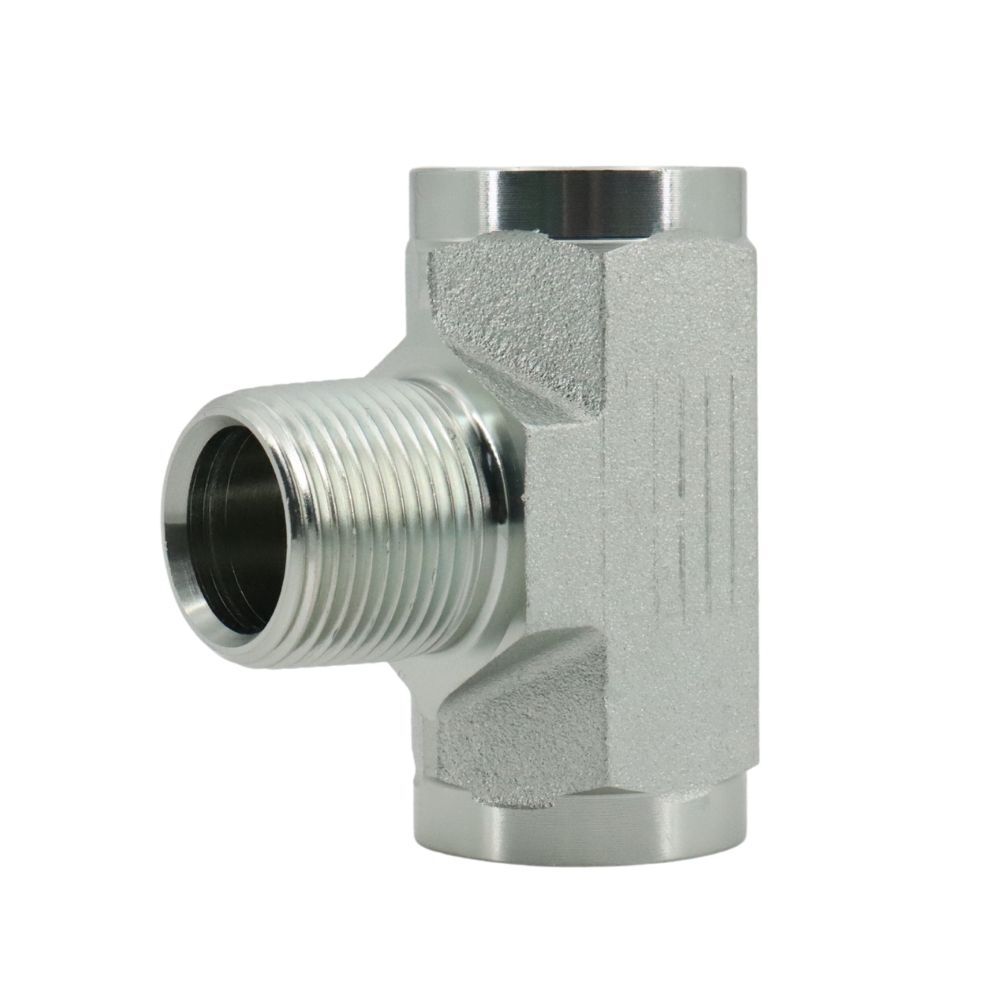

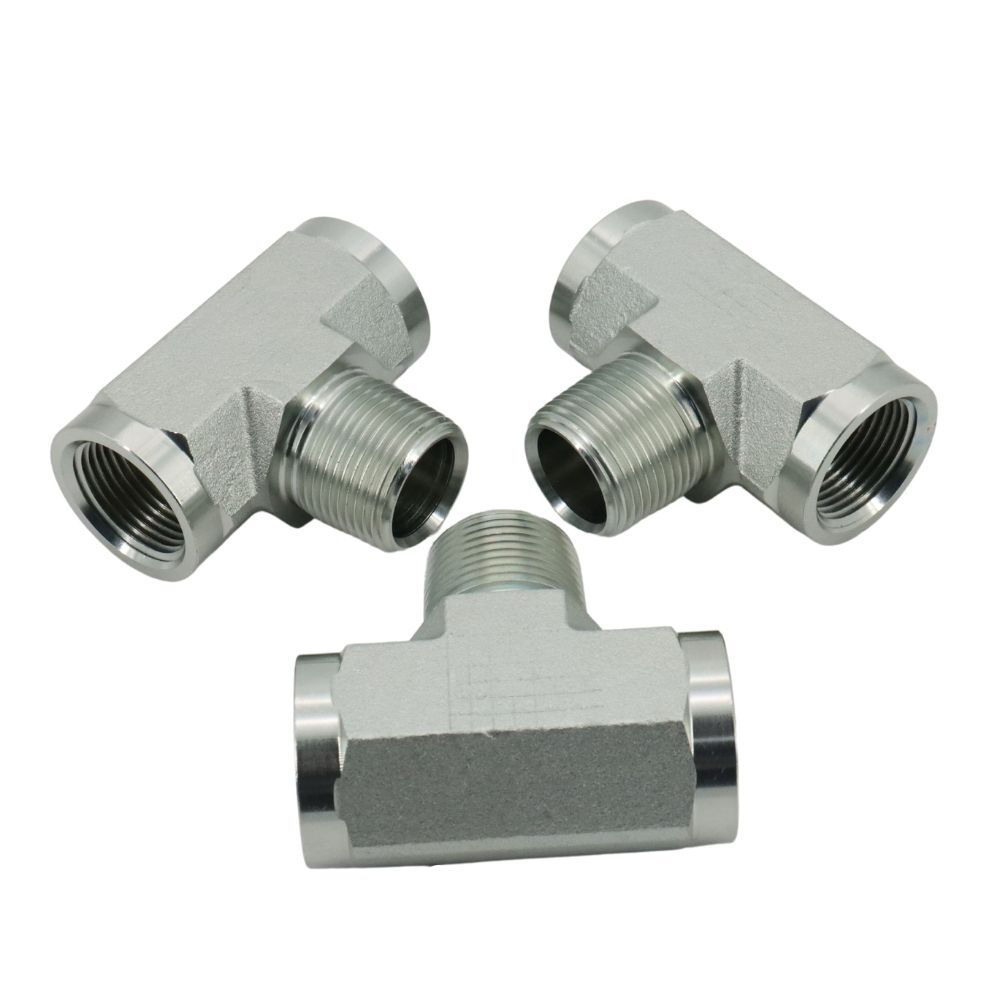

JN NPTF hydraulic fitting is a female branch tee fitting, which is a pipe fitting used to connect and branch pipe or tubing sections in a fluid system. It has three openings and forms the shape of the letter “T.”

NPTF threads are similar to NPT (National Pipe Taper) threads but have been designed to create a more secure, leak-free seal without the need for additional sealing materials.

If you want free samples or customized services of the hydraulic tee, please contact us.

Features and Benefits:

• Leak-tight
• Reliable
• Free samples
• Customize

Description

PART NO	THREAD			DIMENSIONS

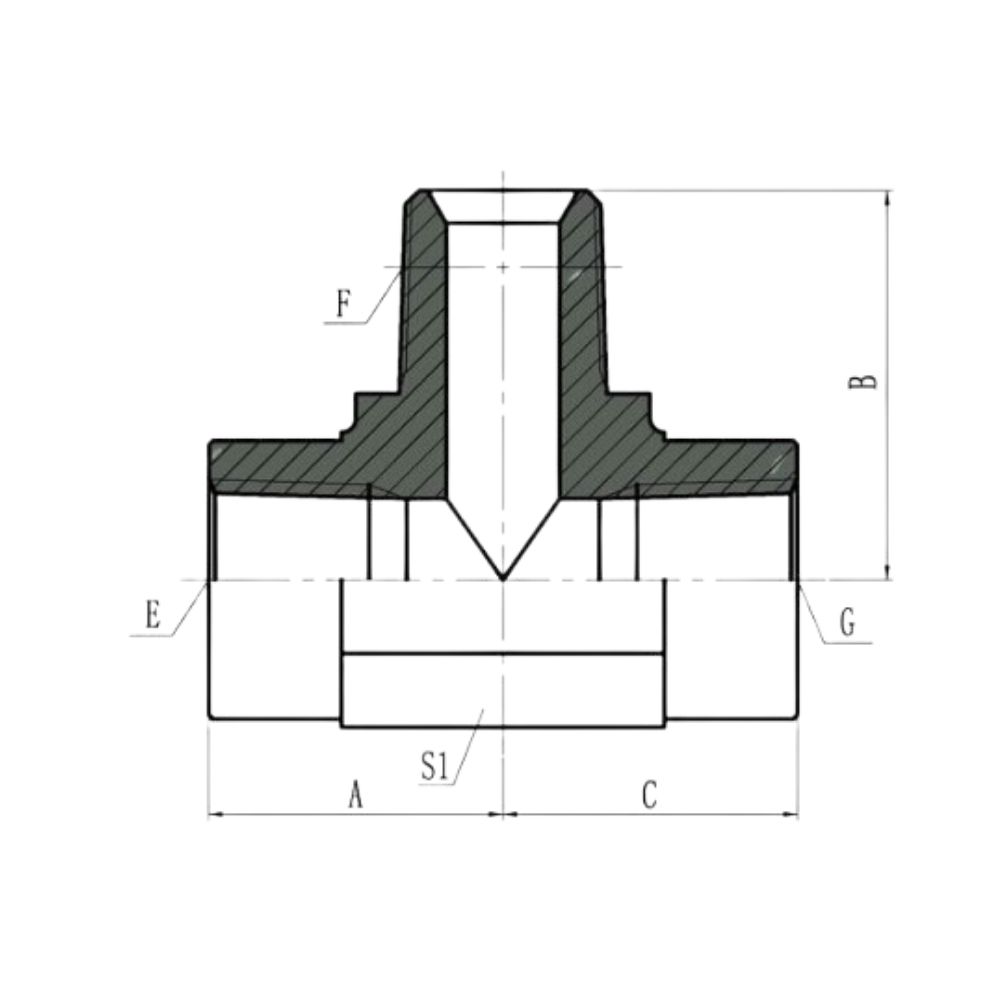

PART NO	E	F	G	A	B	C	S1
JN-02	Z1/8”*27	Z1/8”*27	Z1/8”*27	17.8	24.5	17.8	14
JN-04	Z1/4”*18	Z1/4”*18	Z1/4″*18	22.4	28	22.4	19
JN-06	Z3/8”*18	Z3/8”*18	Z3/8”*18	25	33.5	25	24
JN-08	Z1/2”*14	Z1/2”*14	Z1/2”*14	31.2	41.2	31.2	30
JN-12	Z3/4”*14	Z3/4”*14	Z3/4”*14	34.5	45.2	34.5	33
JN-16	Z1”*11.5	Z1”*11.5	Z1”*11.5	41.1	54.5	41.1	41

JN NPTF Hydraulic Tee Fittings Video

This video shows information about JN NPTF hydraulic tee fitting.

Typically, NPTF hydraulic tee fittings are versatile components that provide leak-free connections in a wide range of fluid systems, such as peneumatic system, transporation, and chemical systems.

If you have any questions about hydraulic tees, please contact us.
