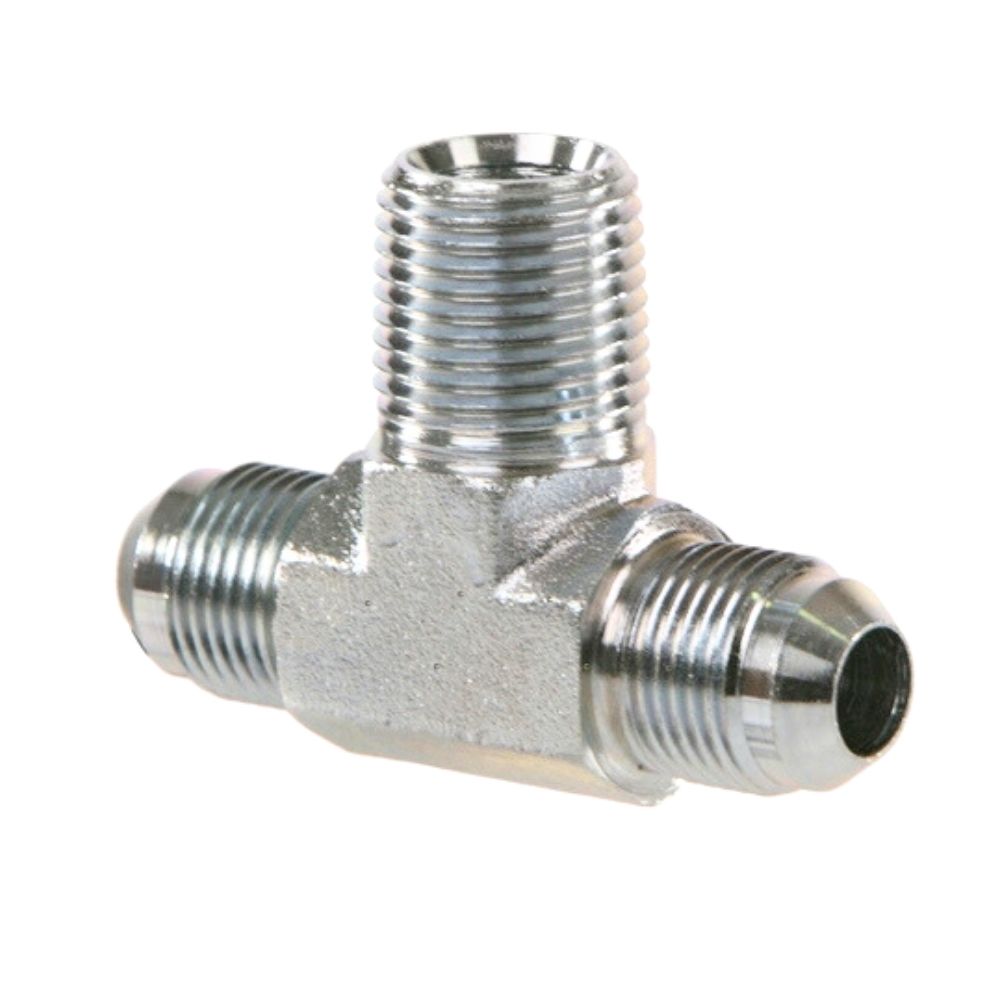

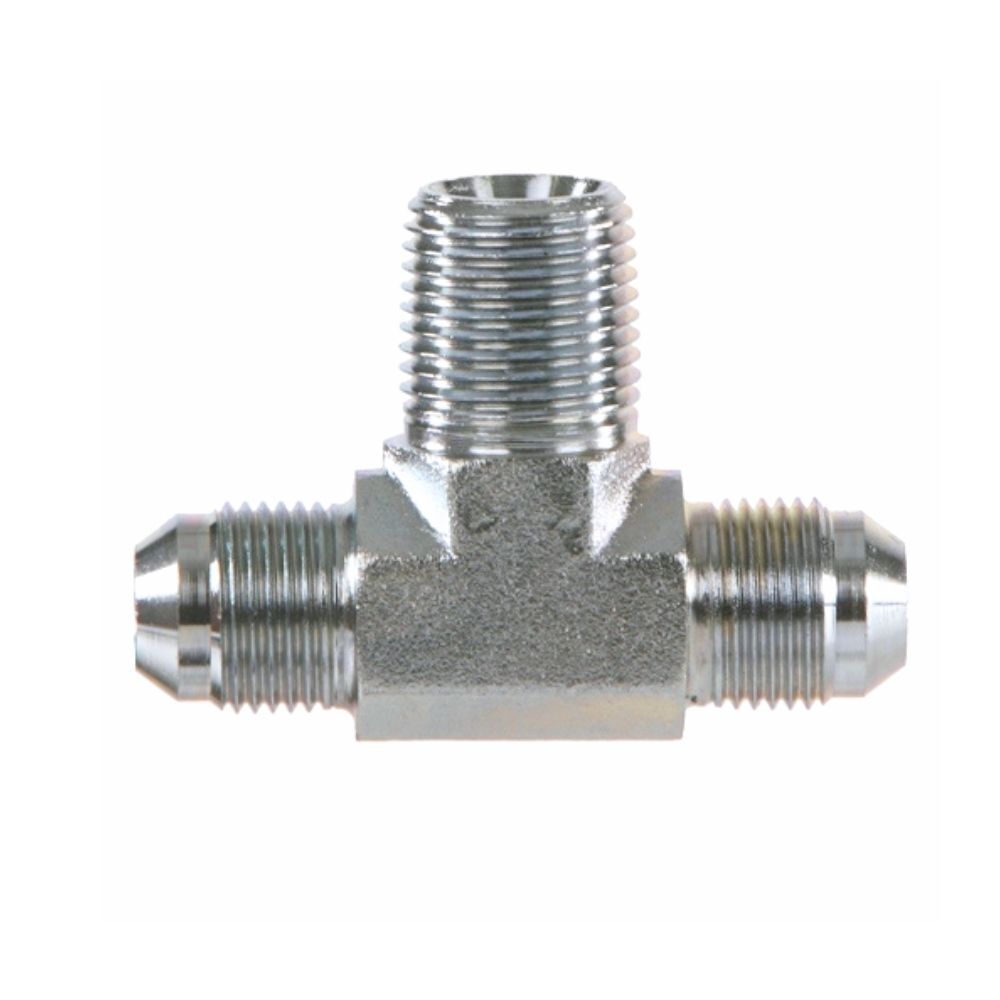

Description

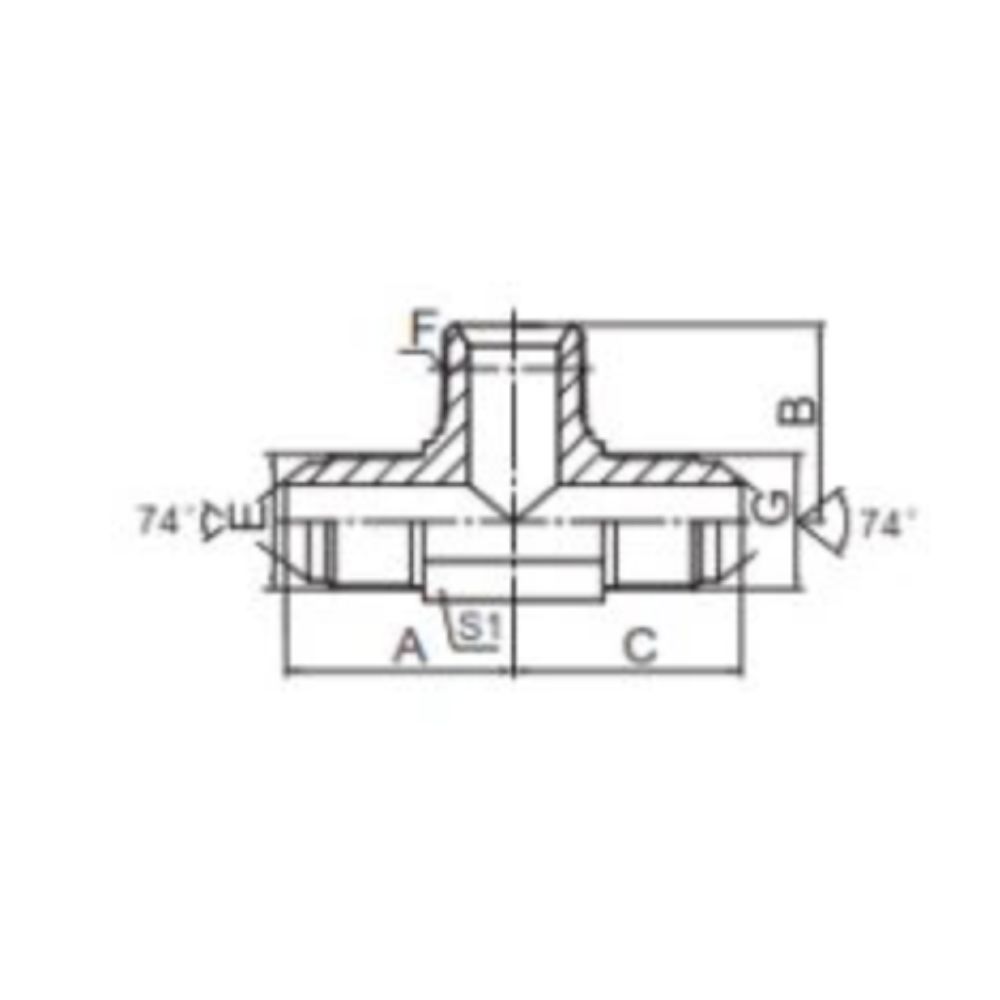

PART NO | THREAD | DIMENSIONS | |||||
E | F | G | A | B | C | S1 | |
AJNJ-02 | 5/16″X24 | Z1/8″X27 | 5/16″X24 | 21 | 21 | 21 | 11 |
AJNJ-03-02-03 | 3/8″X24 | Z1/8″X27 | 3/8″X24 | 22 | 21 | 22 | 11 |
AJJNJ-04 | 7/16“X20 | Z1/4″X18 | 7/16″X20 | 26.6 | 25.5 | 26.6 | 14 |
AJNJ-04-02-04 | 7/16″X20 | Z1/8″×27 | 7/16″X20 | 24.5 | 21 | 24.5 | 11 |
AJNJ-05-02-05 | 1/2″X20 | Z1/8″X27 | 1/2″×20 | 26.6 | 23.5 | 26.6 | 14 |
AJNJ-05-04-05 | 1/2″X20 | Z1/4″X18 | 1/2″X20 | 26.6 | 25.5 | 26.6 | 14 |
AJNJ-06 | 9/16″×18 | Z3/8“X18 | 9/16″X18 | 30 | 31 | 30 | 19 |
AJNJ-06-04-06 | 9/16″×18 | Z1/4″×18 | 9/16″X18 | 26.9 | 25.5 | 26.9 | 14 |
AJNJ-06-08-06 | 9/16″X18 | Z1/2″X14 | 9/16″X18 | 32 | 36.7 | 32 | 22 |
AJNJ-08 | 3/4″X16 | Z1/2“X14 | 3/4″X16 | 34.8 | 37.3 | 34.8 | 22 |
AJNJ-08-06-08 | 3/4″X16 | Z3/8″X18 | 3/4″X16 | 32 | 31 | 32 | 19 |
AJNJ-10-08-10 | 7/8″X14 | Z1/2″X14 | 7/8″X14 | 37.8 | 36.7 | 37.8 | 22 |
AJNJ-12 | 1.1/16“X12 | Z3/4″X14 | 1.1/16“×12 | 44.2 | 44 | 44.2 | 27 |
AJNJ-16 | 1.5/16“×12 | Z1″X11.5 | 1.5/16“X12 | 49 | 50 | 49 | 33 |
AJNJ-20 | 1.5/8*“X12 | Z1.1/4″X11.5 | 1.5/8″X12 | 55.5 | 54.5 | 55.5 | 41 |
AJNJ-24 | 1.7/8″X12 | Z1.1/2“X11.5 | 1.7/8″X12 | 62.5 | 63 | 62.5 | 48 |
AJNJ JIC to NPT Hydraulic Tees Video
This video shows information about AJNJ JIC to NPT hydraulic tee fitting.
Typically, hydraulic tees are commonly used in hydraulic applications such as in marine machinery, construction equipment, and hydraulic systems.
If you have any questions about hydraulic tees, please contact us.
