Description

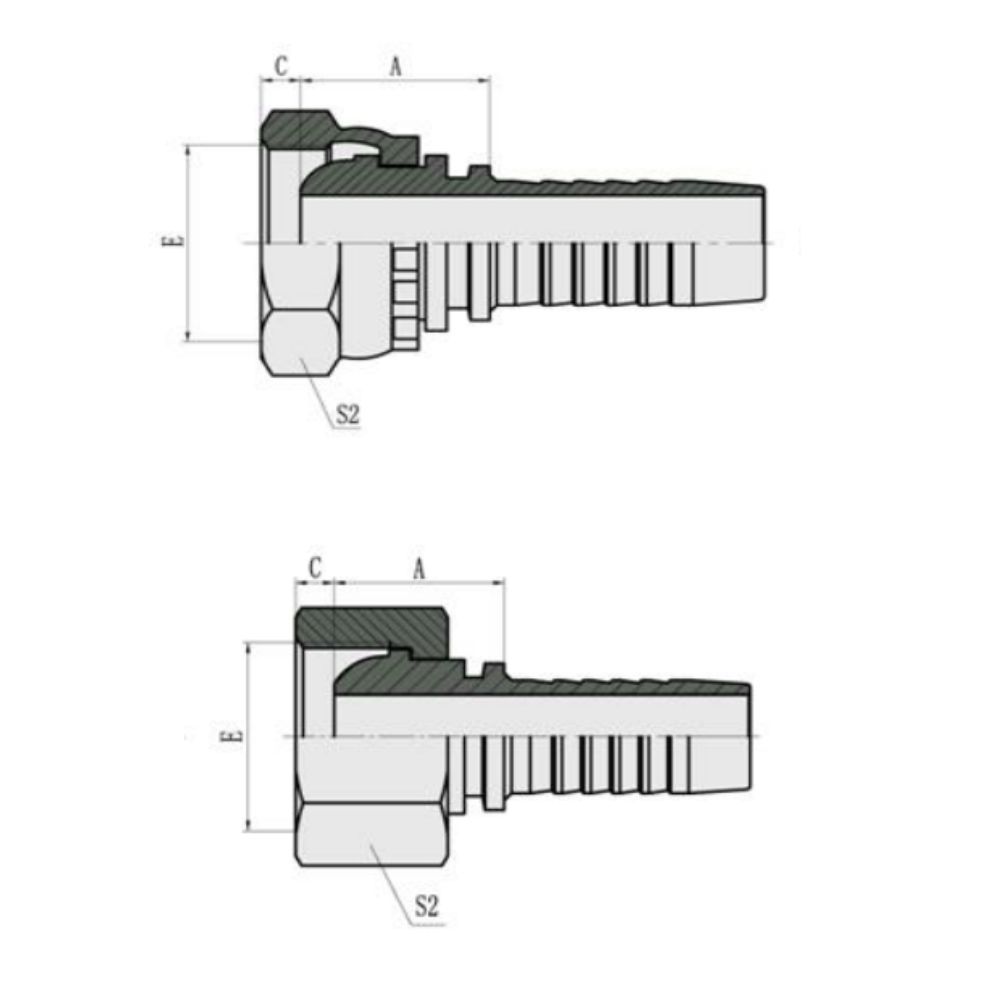

Use the table together with the dimensioned drawing to identify the required fitting. Thread E specifies the female metric connection, while DN and dash size identify the hose bore.
PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
DN | DASH | A | C | S2 | ||
20111-10-04 | M10*1 | 6 | 04 | 18 | 2.5 | 14 |
20111-12-04 | M12*1.5 | 6 | 04 | 18.5 | 4 | 17 |
20111-12-05 | M12*1.5 | 8 | 05 | 18.5 | 4 | 17 |
20111-14-04 | M14*1.5 | 6 | 04 | 19.5 | 4.5 | 19 |
20111-14-05 | M14*1.5 | 8 | 05 | 19.5 | 4.5 | 19 |
20111-16-04 | M16*1.5 | 6 | 04 | 19.5 | 4.5 | 22 |
20111-16-05 | M16*1.5 | 8 | 05 | 20 | 4.5 | 22 |
20111-16-06 | M16*1.5 | 10 | 06 | 20 | 4.5 | 22 |
20111-18-05T | M18*1.5 | 8 | 05 | 21.5 | 4 | 24 |
20111-18-06 | M18*1.5 | 10 | 06 | 21.5 | 4 | 24 |
20111-18-08 | M18*1.5 | 12 | 08 | 22 | 4 | 24 |
20111-20-06T | M20*1.5 | 10 | 06 | 20.5 | 5.5 | 24 |
20111-20-08 | M20*1.5 | 12 | 08 | 23 | 5.5 | 27 |
20111-22-06T | M22*1.5 | 10 | 06 | 23 | 5 | 27 |
20111-22-08 | M22*1.5 | 12 | 08 | 23.5 | 5 | 27 |
20111-22-10 | M22*1.5 | 16 | 10 | 24.5 | 5 | 27 |
20111-24-08T | M24*1.5 | 12 | 08 | 22 | 5.5 | 30 |
20111-24-10 | M24*1.6 | 16 | 10 | 26 | 5 | 30 |
20111-27-08DT | M27*1.5 | 12 | 08 | 23 | 5.5 | 32 |
20111-27-12D | M27*1.5 | 20 | 12 | 26 | 5.5 | 32 |
20111-27-10T | M27*2 | 16 | 10 | 23.5 | 7 | 32 |
20111-30-12D | M30*1.5 | 20 | 12 | 26.5 | 6 | 36 |
20111-36-12T | M36*2 | 20 | 12 | 26 | 7 | 41 |
20111-36-14T | M36*2 | 22 | 14 | 26 | 7 | 41 |
20111-42-16T | M42*2 | 25 | 16 | 30 | 8.5 | 50 |
20111-45-20T | M45*2 | 32 | 20 | 31.5 | 8.5 | 55 |
20111-52-20T | M52*2 | 32 | 20 | 33 | 9 | 60 |
20111 Multiseal metric female fitting Video

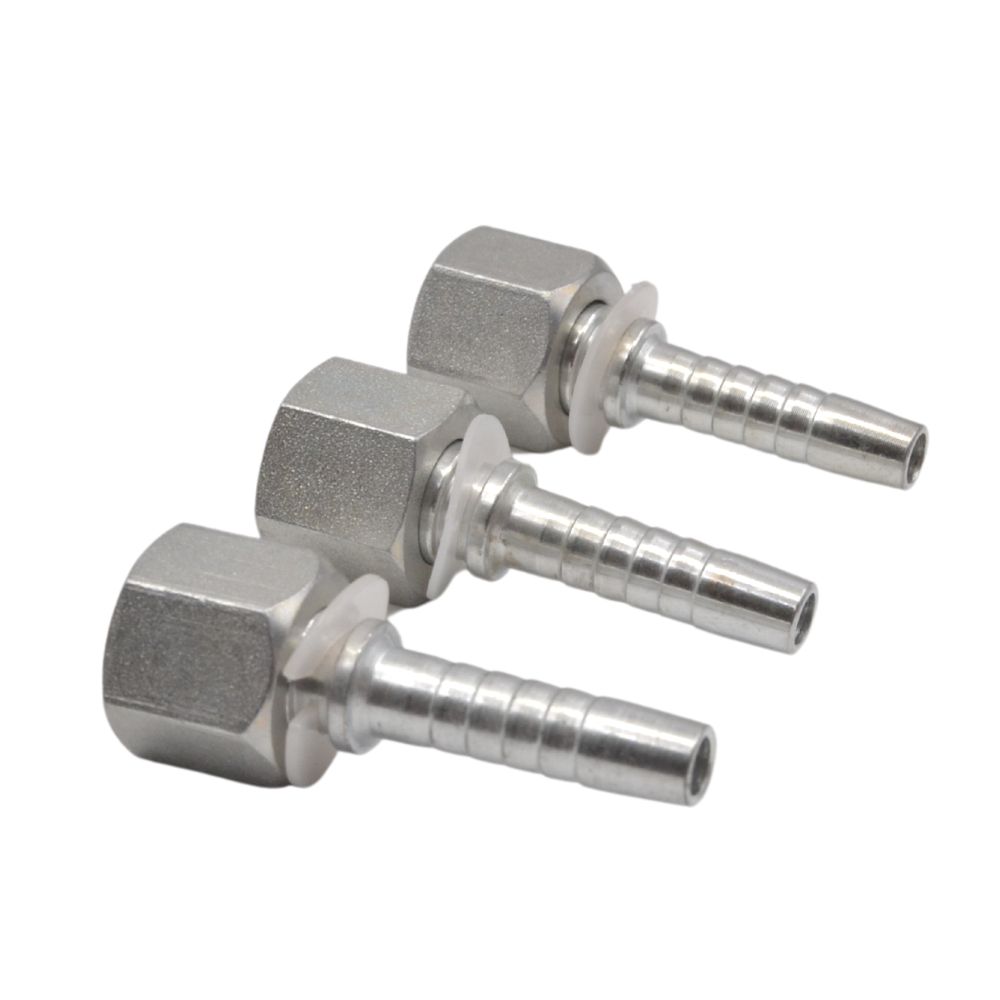

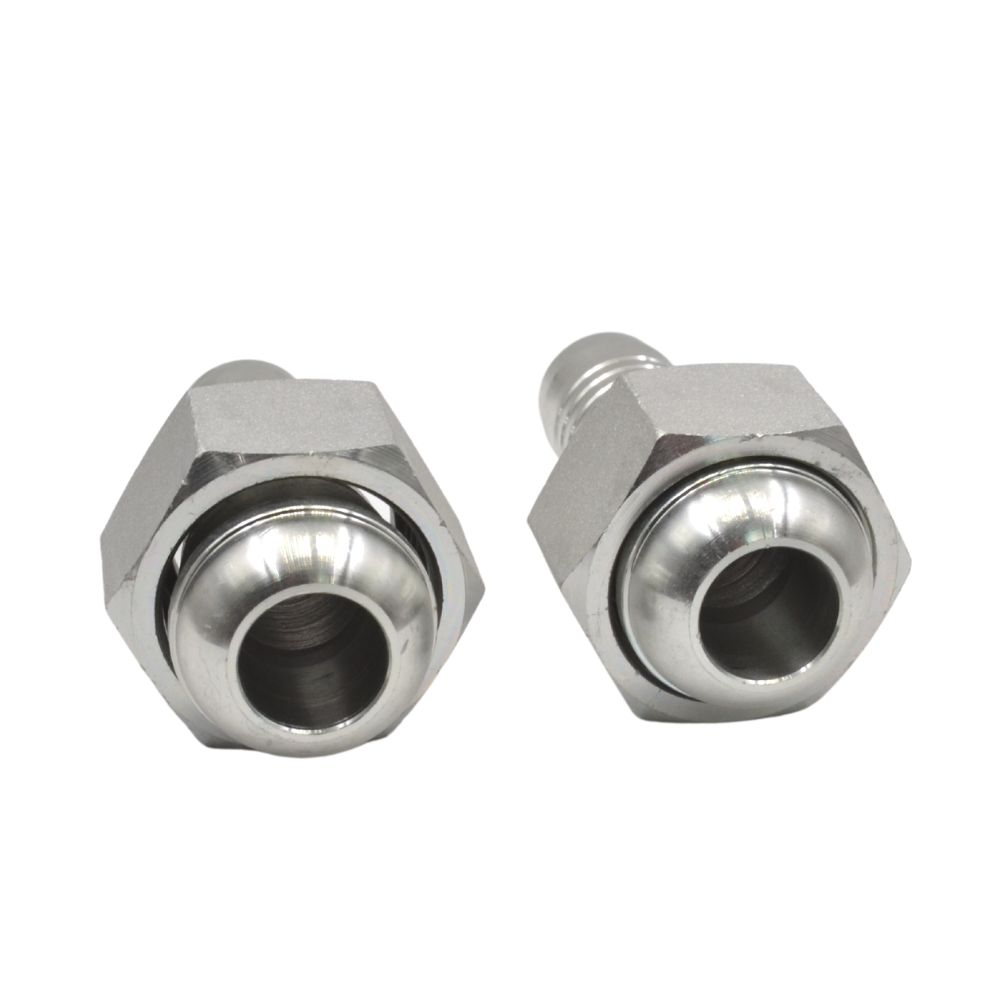

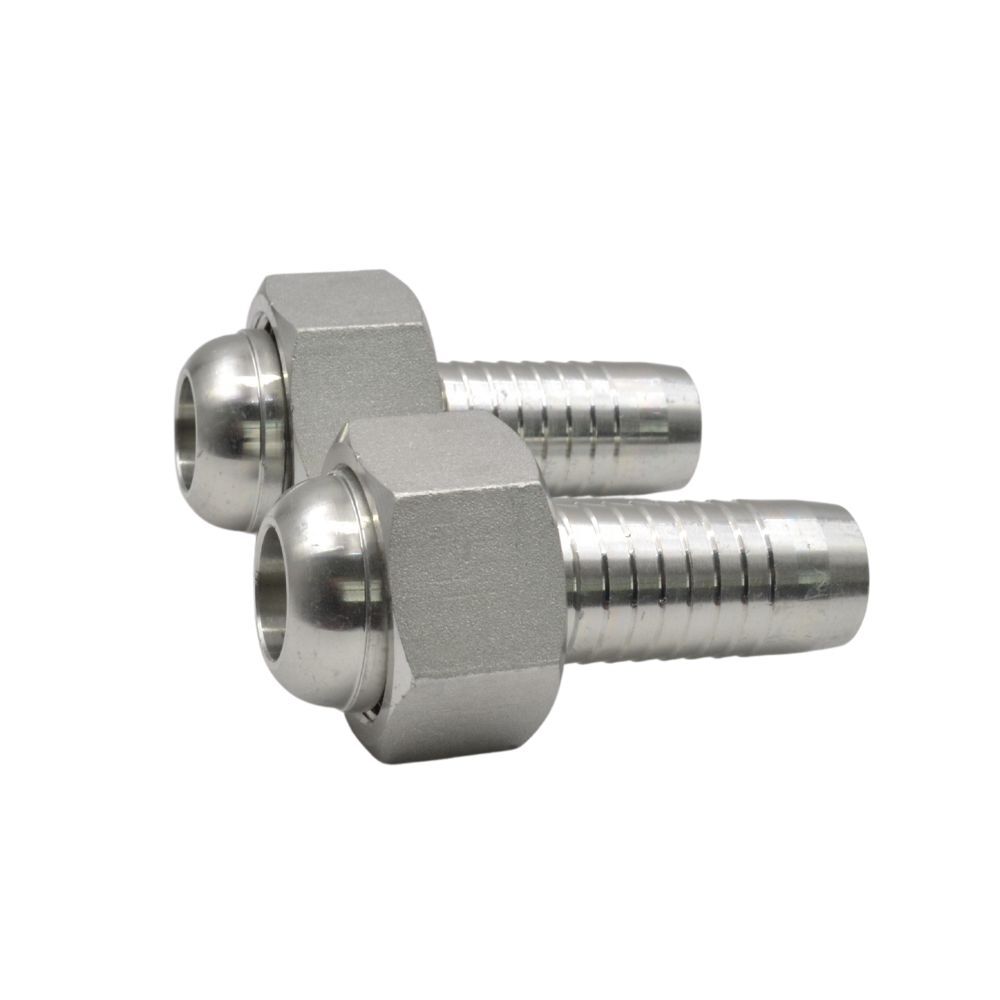

Watch the product video for a closer look at the 20111 metric female multiseal hose fitting. View it alongside the product photos and dimension table to review the straight configuration and the connection features that need to match your hydraulic assembly.
When comparing the fitting with an existing part, check the female thread diameter and pitch, sealing profile, hose stem, and installation dimensions. Also confirm the complete part number, including any suffix that identifies a different version. The video supports visual identification, while the drawing and measured dimensions establish the required specification.
Click to watch the video and explore the product in more detail. Send Topa your fitting list, hose specifications, and quantities per size for quotation.
Hot Sales

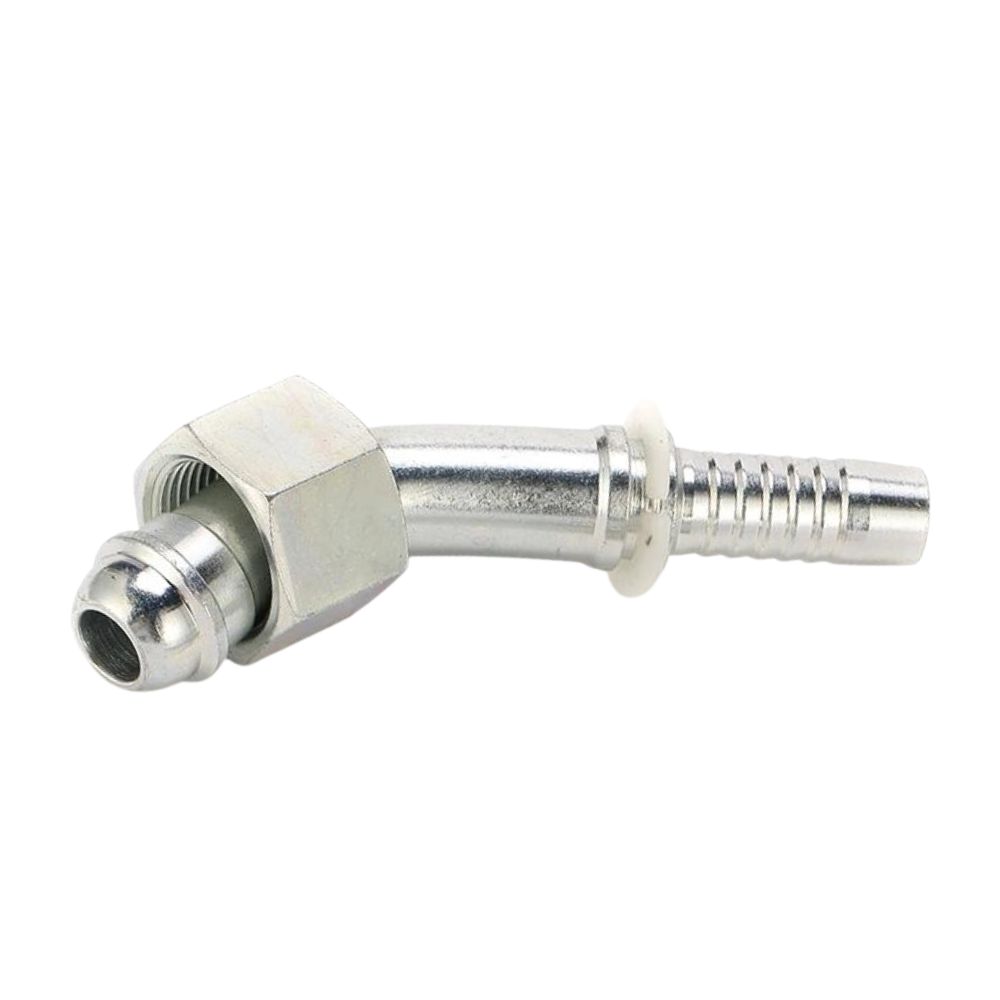

Review the straight, 45°, and 90° configurations according to the space available and the required hose exit direction. Confirm the thread, sealing interface, dimensions, and hose assembly requirements for each selected part.
