Description

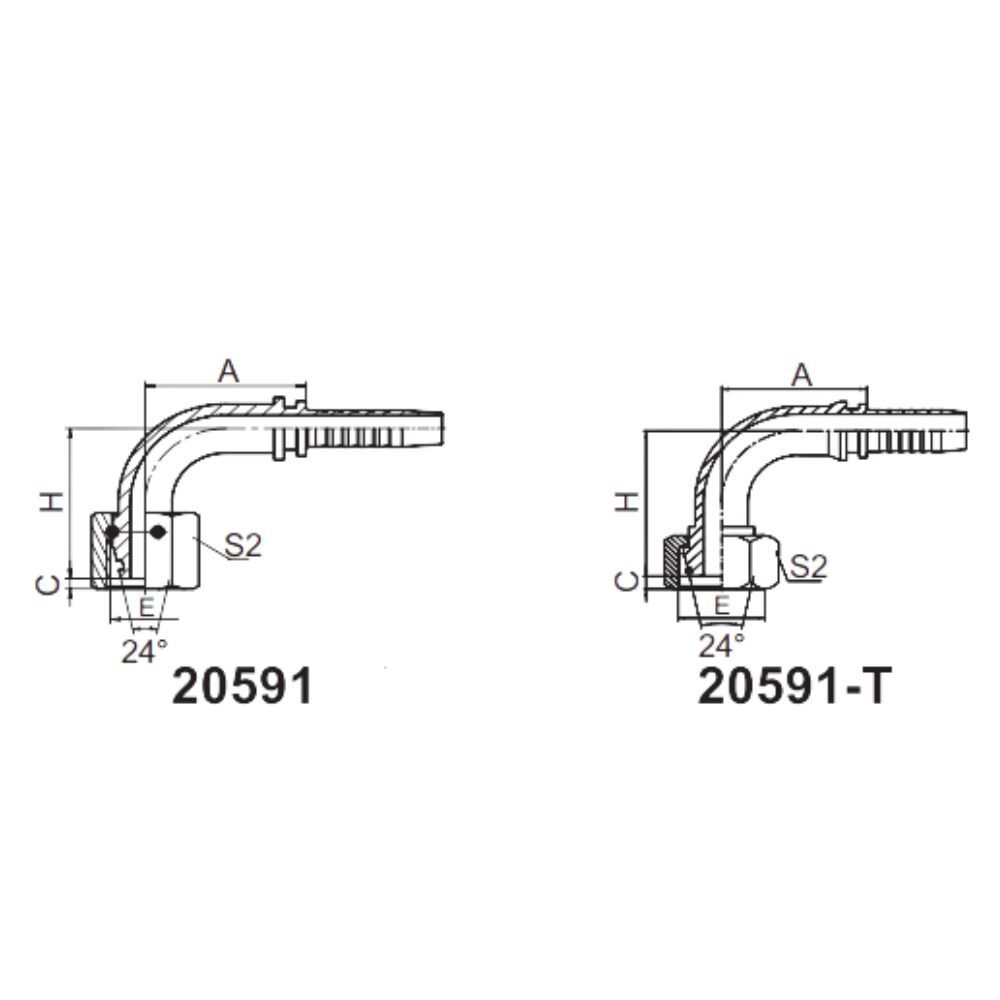

Use the table to identify the required thread and hose-size combination, then check the corresponding dimensional drawing. Hose bore identifies the hose side of the fitting. Tube O.D. identifies the corresponding tube size of the metric connection system; it is not the hose outside diameter.
Confirm all dimensions for the selected part number before approving it for production or repeat purchasing. Part-number suffixes must be interpreted using the applicable product drawing.
|
|
HOSE BORE |
|
DIMENSIONS |
||||
|
PART NO. |
THREAD E |
DN |
DASH |
TUBE O.D. |
C |
H |
S |
|
20591-14-04 |
M14X1.5 |
6 |
04 |
6 |
1.1 |
28 |
19 |
|
20591-16-04 |
M16X1.5 |
6 |
04 |
8 |
1.5 |
28.3 |
22 |
|
20591-16-05 |
M16X1.5 |
8 |
05 |
8 |
1.5 |
28.9 |
22 |
|
20591-20-08 |
M20X1.5 |
12 |
08 |
12 |
2.5 |
32.8 |
27 |
|
20591-18-06 |
M18X1.5 |
10 |
06 |
10 |
2 |
29.6 |
24 |
|
20591-18-04T |
M18X1.5 |
6 |
04 |
10 |
2 |
22 |
39.5 |
|
20591-20-04T |
M20X1.5 |
6 |
04 |
12 |
2.5 |
24 |
41 |
|
20591-20-05T |
M20X1.5 |
8 |
05 |
12 |
2.5 |
24 |
44 |
|
20591-20-06T |
M20X1.5 |
10 |
06 |
12 |
2.5 |
24 |
46.3 |
|
20591-22-08 |
M22X1.5 |
12 |
08 |
14 |
2.5 |
33.2 |
27 |
|
20591-24-10 |
M24X1.5 |
16 |
10 |
16 |
2.5 |
35.9 |
30 |
|
20591-24-08T |
M24X1.5 |
12 |
08 |
16 |
3 |
30 |
53 |
|
20591-30-10T |
M30X2 |
16 |
10 |
20 |
3 |
36 |
60.5 |
|
20591-30-12 |
M30X2 |
20 |
12 |
20 |
3 |
42.4 |
36 |
|
20591-42-16T |
M42X2 |
25 |
16 |
30 |
5 |
50 |
77.5 |
|
20591-52-20T |
M52X2 |
32 |
20 |
38 |
6.5 |
60 |
89 |
20591 90° Female 24°cone H.T. Metric Hydraulic Hose Fittings Video
This video shows information about 20591 24° cone seat H.T. hydraulic metric hose fitting.
The metric hydraulic fittings are commonly applied in a variety of hydraulic fluid systems, including automotive systems, industrial machinery, and construction equipment.
If you have any questions about metric o’ring fitting, please contact us.
