10511 Hydraulic Metric Hose Fitting-Male 24° Cone Seat H.T.

Hydraulic Metric Hose Fitting

10511 Metric Hose Fittings

Description:

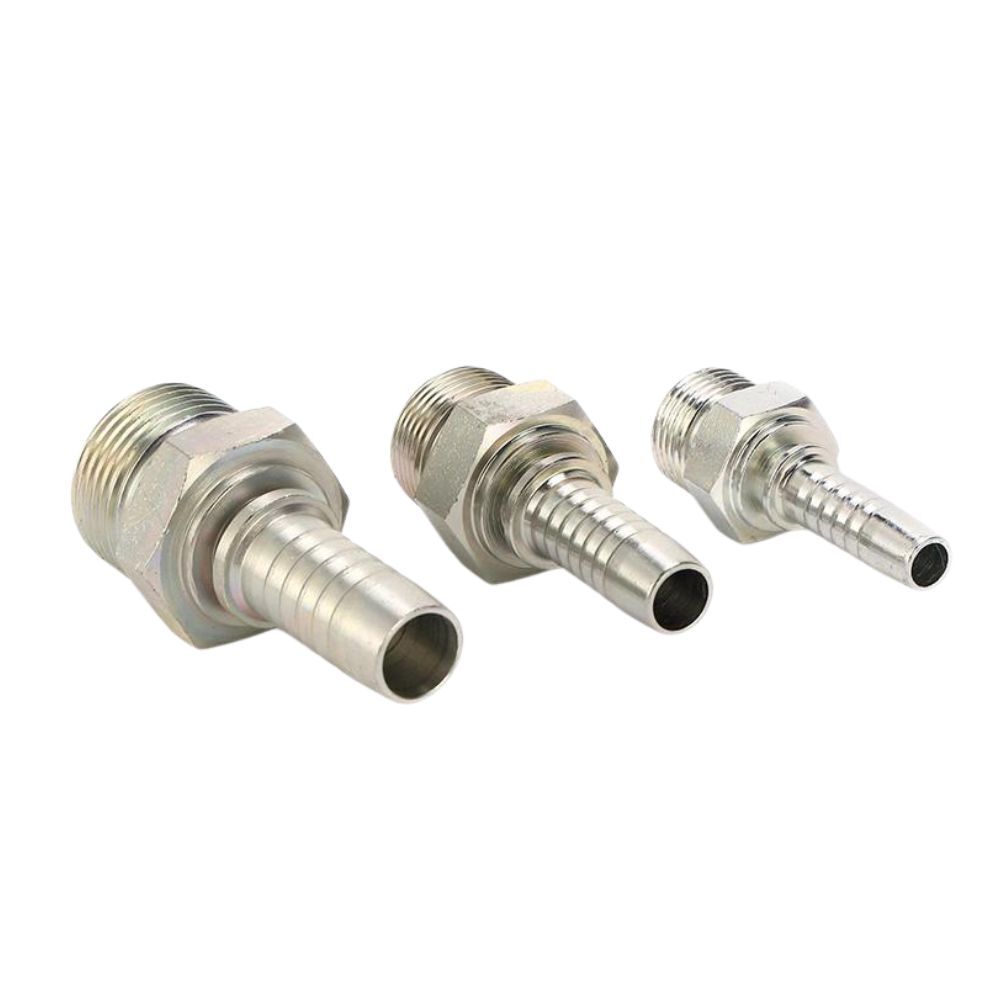

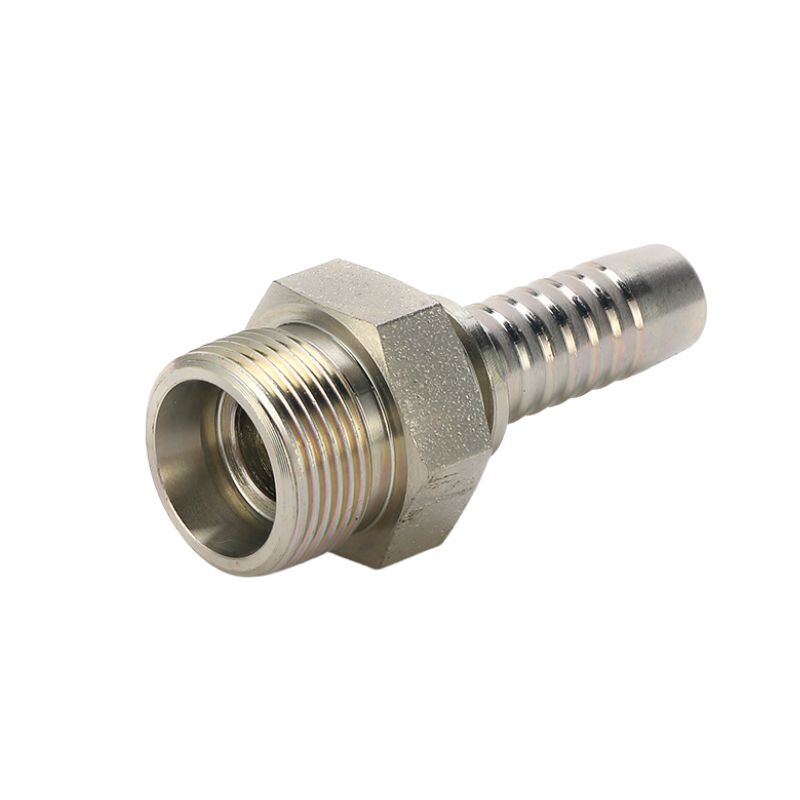

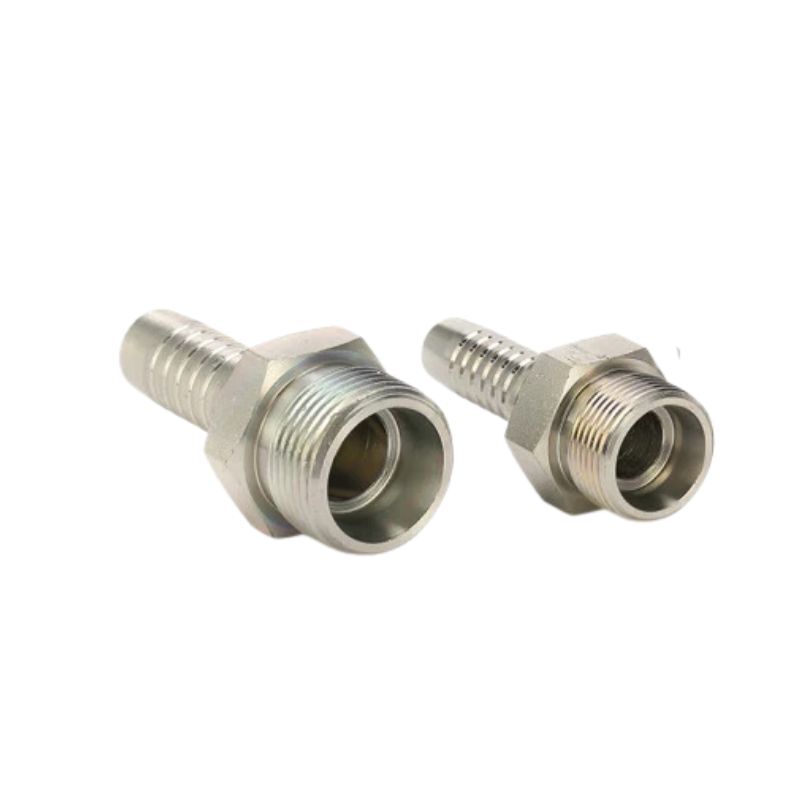

10511 male 24-degree cone H.T. hydraulic hose fitting has a male metric thread and an o-ring seal, which can create a strong seal between hoses and tubes.

The 10511 fittings are commonly used in medium or high-pressure hydraulic fluid systems, and it typically seals using an o-ring or sealing washer.

When used with a matching female 24° cone fitting with an O-ring, the O-ring is carried on the mating female cone. The male thread provides the clamping force; it is not the sealing surface. Confirm the complete connection rather than choosing a mating part by thread size alone.

On the hose side, confirm the hose series, bore size, ferrule, and applicable crimp specifications. Working pressure must be checked for the selected size and complete hose assembly.

Feel free to ask if you have any questions about the hydraulic metric hose barb fitting.

Features and Benefits:

Metric male connection: Identify the connection by its thread diameter and pitch.
24° cone seat: Match the sealing interface with the specified mating component.
Heavy-series configuration: Confirm the connection series and tube-size designation together.
Straight body: Check the installed length and wrench clearance against the assembly layout.

Description

Select the part number by checking the metric thread and hose bore separately. The “Tube O.D.” column identifies the corresponding tube-size designation of the metric connection; it does not represent the hydraulic hose outside diameter.

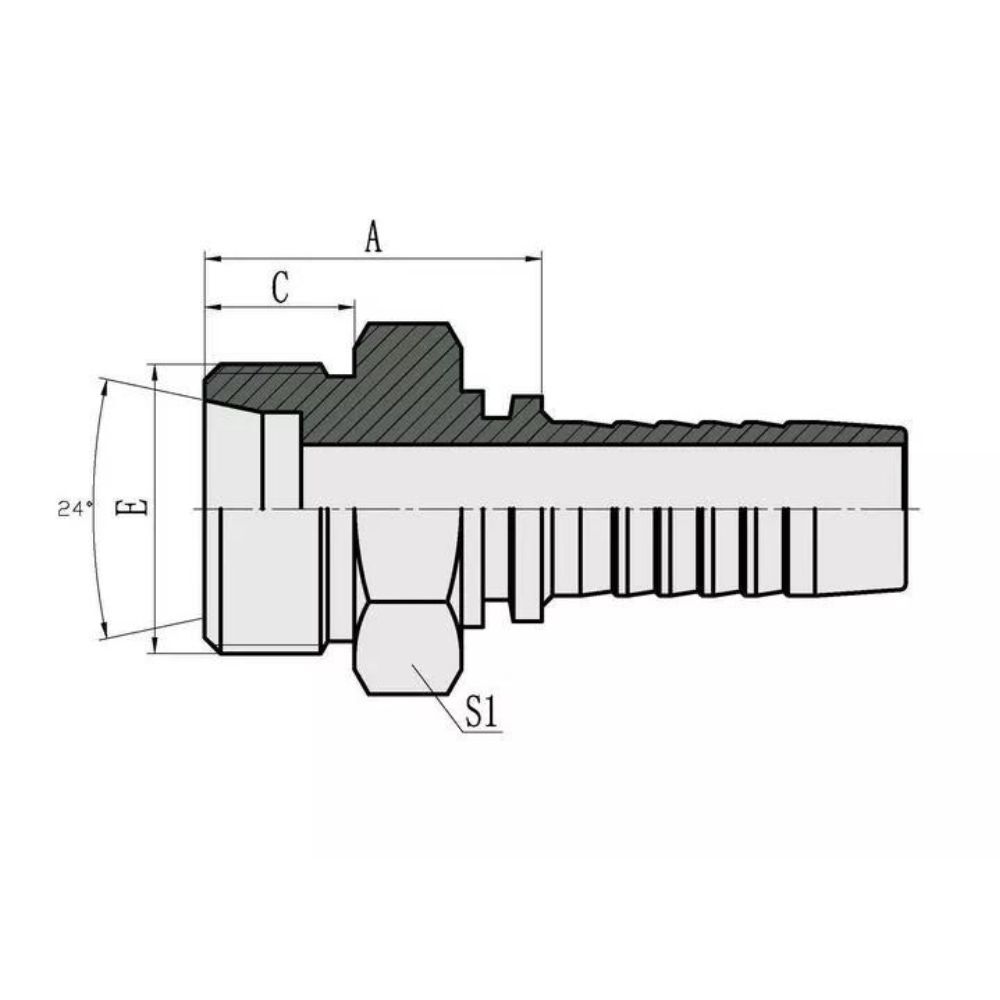

	E	HOSE BORE			DIMENSIONS
PART NO	THREAD E	DN	DASH	TUBE O.D.	C	S
10511-14-04	M14X1.5	6	04	6	13.5	17
10511-16-04	M16X1.5	6	04	8	13.5	17
10511-18-04	M18X1.5	6	04	10	13.5	19
10511-20-05	M20X1.5	8	05	12	13.5	22
10511-20-06	M20X1.5	10	06	12	13.5	22
10511-22-05	M22X1.5	8	05	14	14	24
10511-22-06	M22X1.5	10	06	14	14	24
10511-24-08	M24X1.5	12	08	16	14	27
10511-30-10	M30X2	16	10	20	19	32
10511-30-12	M30X2	20	12	20	19	32
10511-36-12	M36X2	20	12	25	20	38
10511-36-16	M36X2	25	16	25	20	38
10511-42-16	M42X2	25	16	30	20	46
10511-42-20	M42X2	32	20	30	20	46
10511-52-20	M52X2	32	20	38	22	55

10511 Male 24° Cone Seat H.T. Hydraulic Metric Hose Fitting Video

This video shows information about 10511 24° cone seat H.T. hydraulic metric hose fitting.

The metric hydraulic fittings are commonly applied in a variety of hydraulic fluid systems, including automotive systems,industrial machinery, and construction equipment.

If you have any questions about hydraulic metric barb fittings, please contact us.

Hot Sales

Compare the related fittings below by connection type, series, angle, and hose size. Check each item’s specification individually; products shown together are not automatically suitable mating parts or interchangeable alternatives.
