Metric Fitting

20411 Metric Hose Fitting

Description:

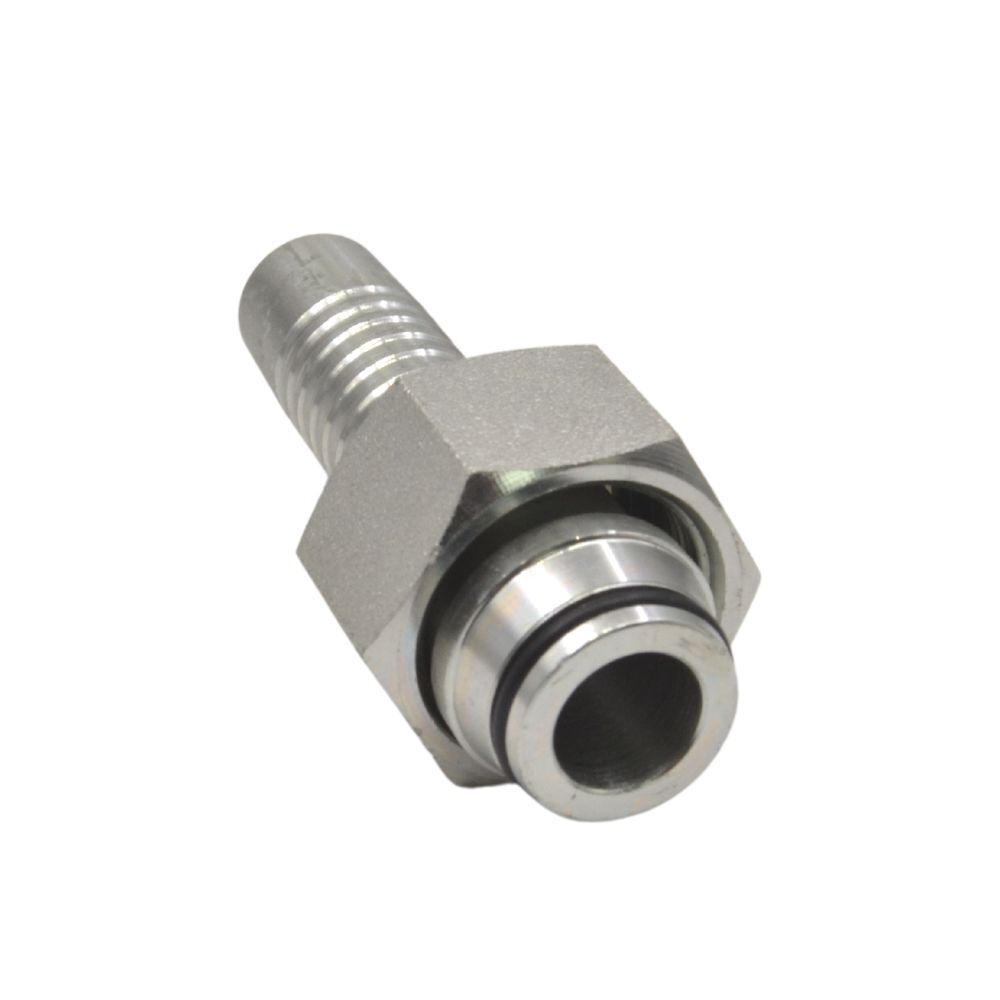

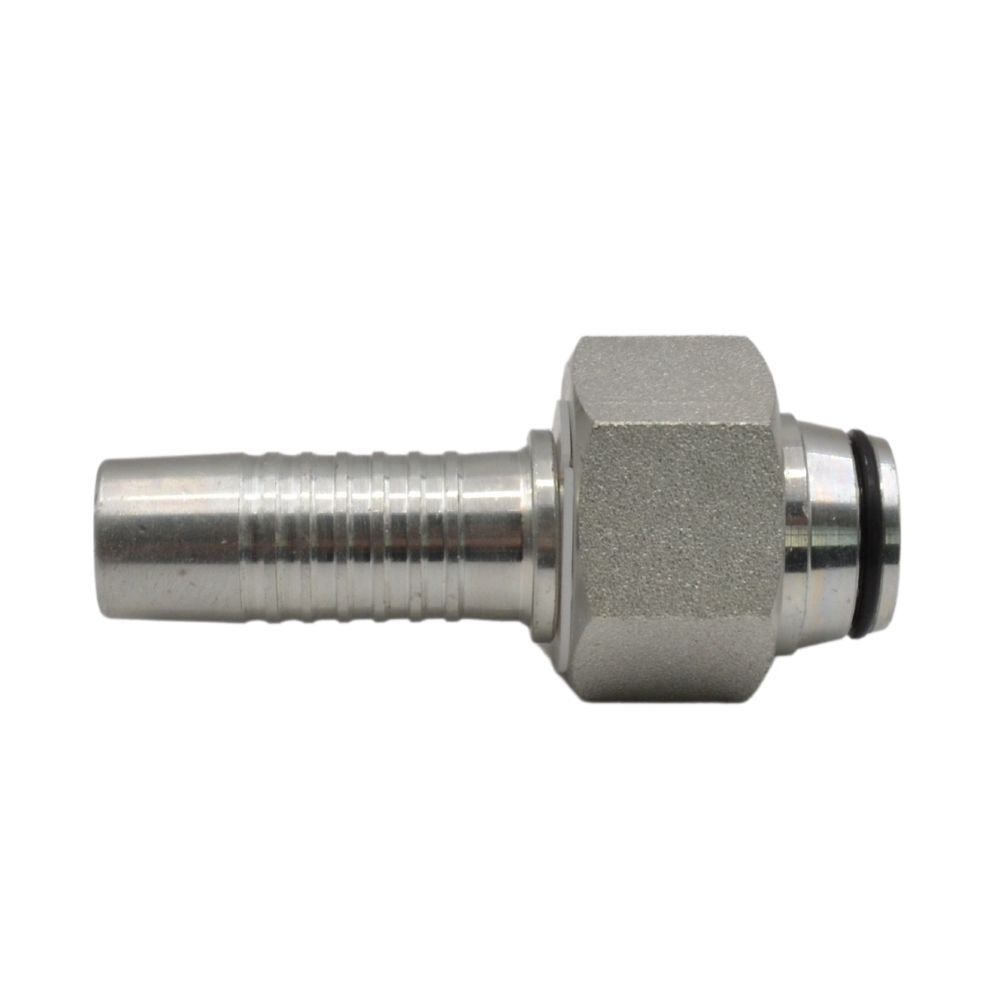

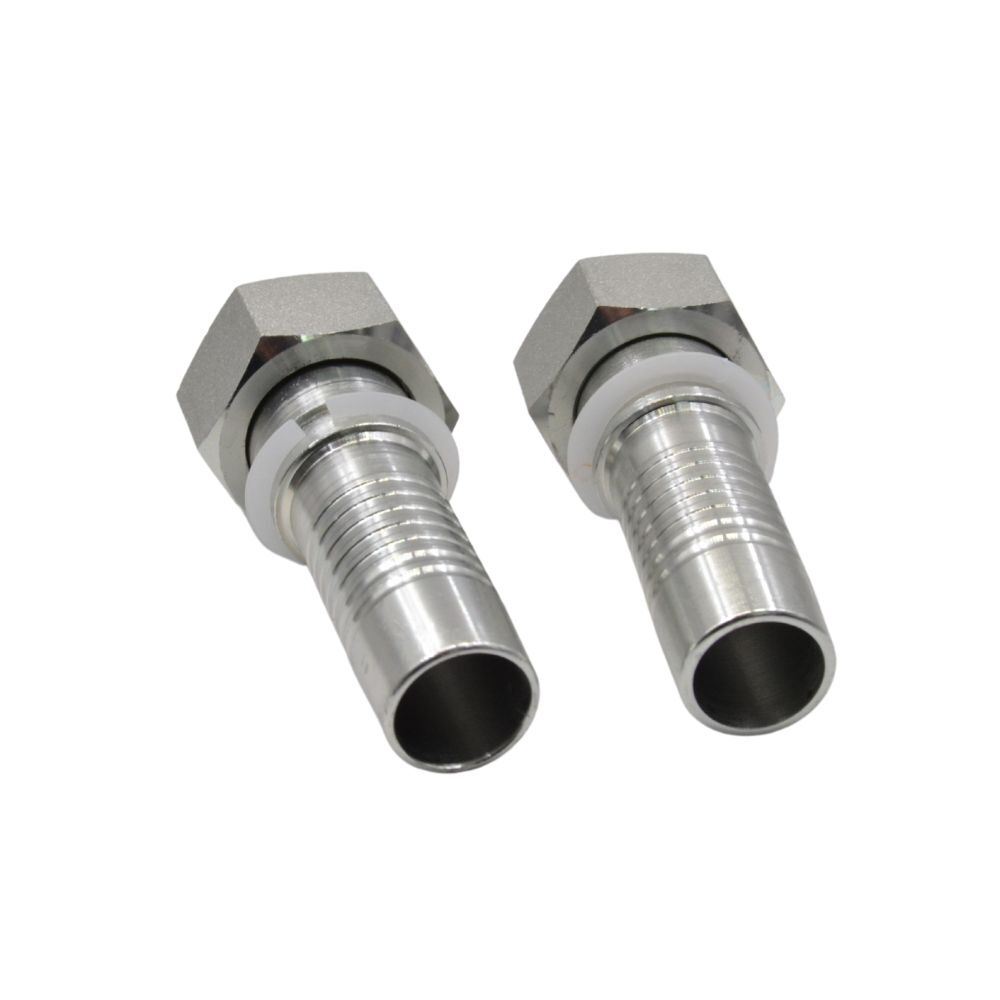

20411 female 24-degree cone L.T. hydraulic hose fitting has a female metric thread and an o-ring seal, which can create a strong seal between hoses and tubes.

The 20411 fittings are commonly used in medium or high-pressure hydraulic fluid systems, and they typically seal using an o-ring or sealing washer.

Feel free to ask if you have any questions about the hydraulic metric flare fitting.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize

Description

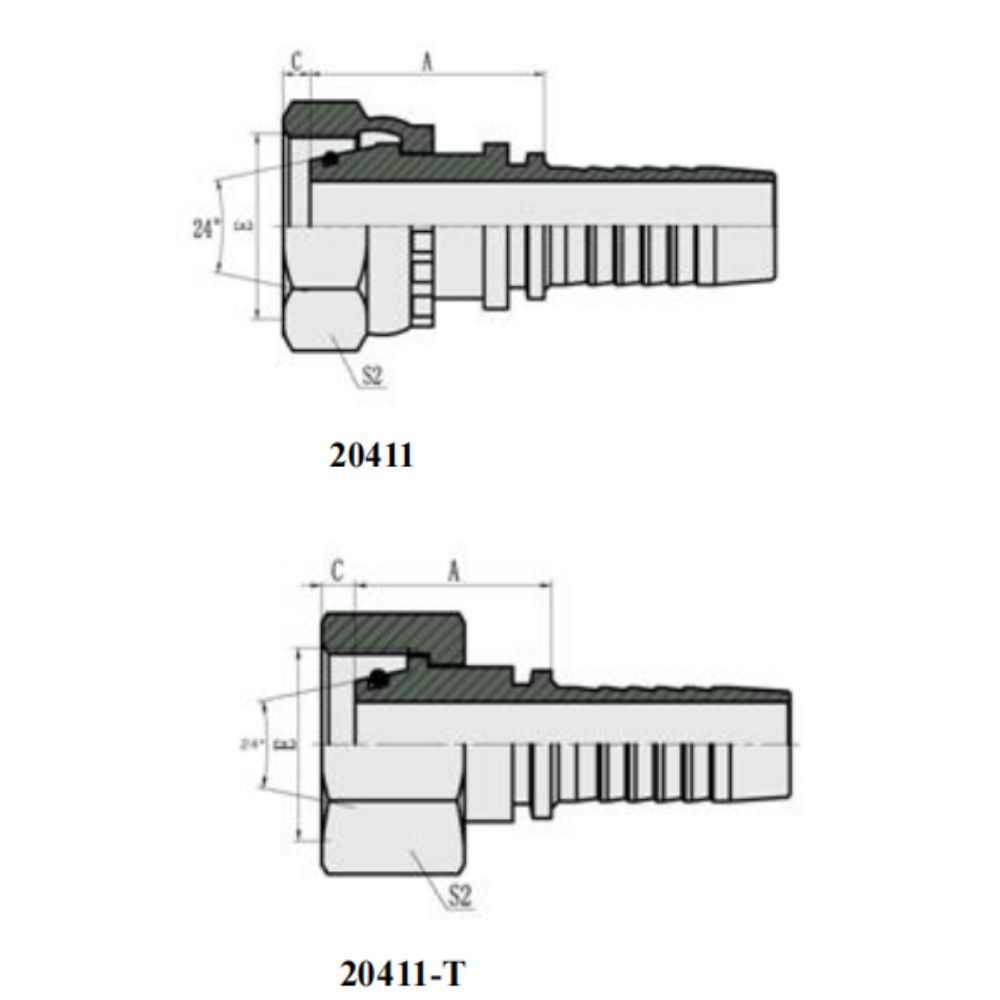

PART NO.	THREAD E	HOSE BORE		TUBE O.D.	O RING	DIMENSIONS
PART NO.	THREAD E	DN	DASH	TUBE O.D.	O RING	A	C	S2
20411-12-04	M12*1.5	6	04	6	O04.5*1.5	26	1	17
20411-14-04	M14*1.5	6	04	8	O06.5*1.5	27.5	2	19
20411-14-06	M14*1.5	10	06	8	O06.5*1.5	27.5	2	19
20411-16-04	M16*1.5	6	04	10	O08.0*1.5	28	2	22
20411-16-05	M16*1.5	8	05	10	O08.0*1.5	28	2	22
20411-16-06	M16*1.5	10	06	10	O08.0*1.5	28	2	22
20411-18-05T	M18*1.5	8	05	12	O10.0*2.0	27.5	1.8	22
20411-18-06	M18*1.5	10	06	12	O10.0*2.0	29	2.5	24
20411-18-08	M18*1.5	12	08	12	O10.0*2.0	29.5	2.5	24
20411-22-05T	M22*1.5	8	05	15	O12.0*2.0	29.5	2.1	27
20411-22-06T	M22*1.5	10	06	15	O12.0*2.0	29	2.5	27
20411-22-08	M22*1.5	12	08	15	O12.0*2.0	32	2.5	27
20411-26-10	M26*1.5	16	10	18	O15.0*2.0	35	2.5	32
20411-26-12	M26*1.5	20	12	18	O15.0*2.0	35	2.5	32
20411-27-10T	M27*1.5	16	10	18	O15.0*2.0	28	2.5	32
20411-27-12	M27*1.5	20	12	18	O15.0*2.0	35	2.5	32
20411-30-10T	M30*2	16	10	22	O20.0*2.0	35	4	36
20411-30-12	M30*2	20	12	22	O20.0*2.0	38	4	36
20411-36-12T	M36*2	20	12	28	O26.0*2.0	35	4	41
20411-36-14T	M36*2	22	14	28	O26.0*2.0	36	4	41
20411-45-16T	M45*2	25	16	35	O32.0*2.5	41	5	55
20411-45-20T	M45*2	32	20	35	O32.0*2.5	42	5	55
20411-52-20T	M52*2	32	20	42	O38.0*2.5	44	5.5	60
20411-52-24T	M52*2	40	24	42	O38.0*2.5	44	5.5	60

20411 Female 24°Cone O-ring L.T. Metric Fitting Video

This video shows information about 20411 24° cone seat L.T. metric fittings.

The metric hydraulic fittings are commonly applied in a variety of hydraulic fluid systems, including automotive systems,industrial machinery, and construction equipment.

If you have any questions about hydraulic metric hose fittings, please contact us.
