Metric Hose Fitting

20441 Metric Hose Fitting

Description:

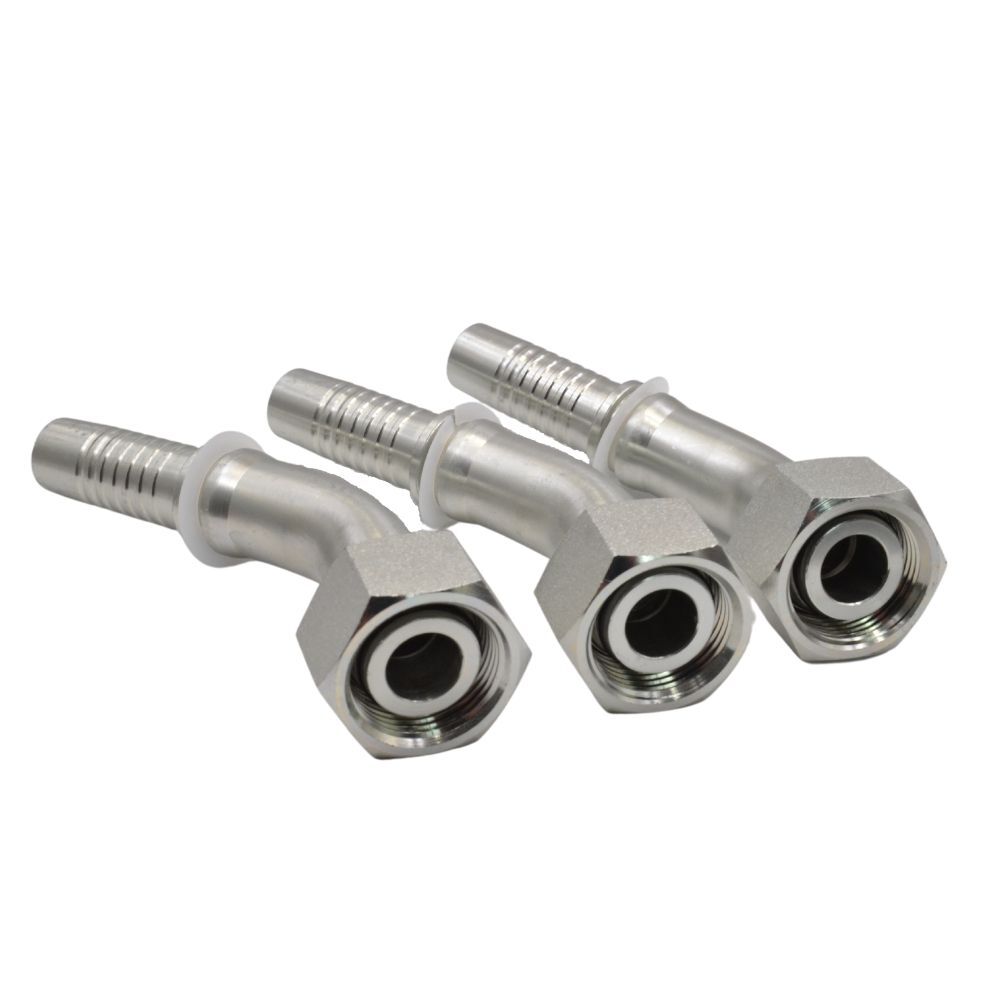

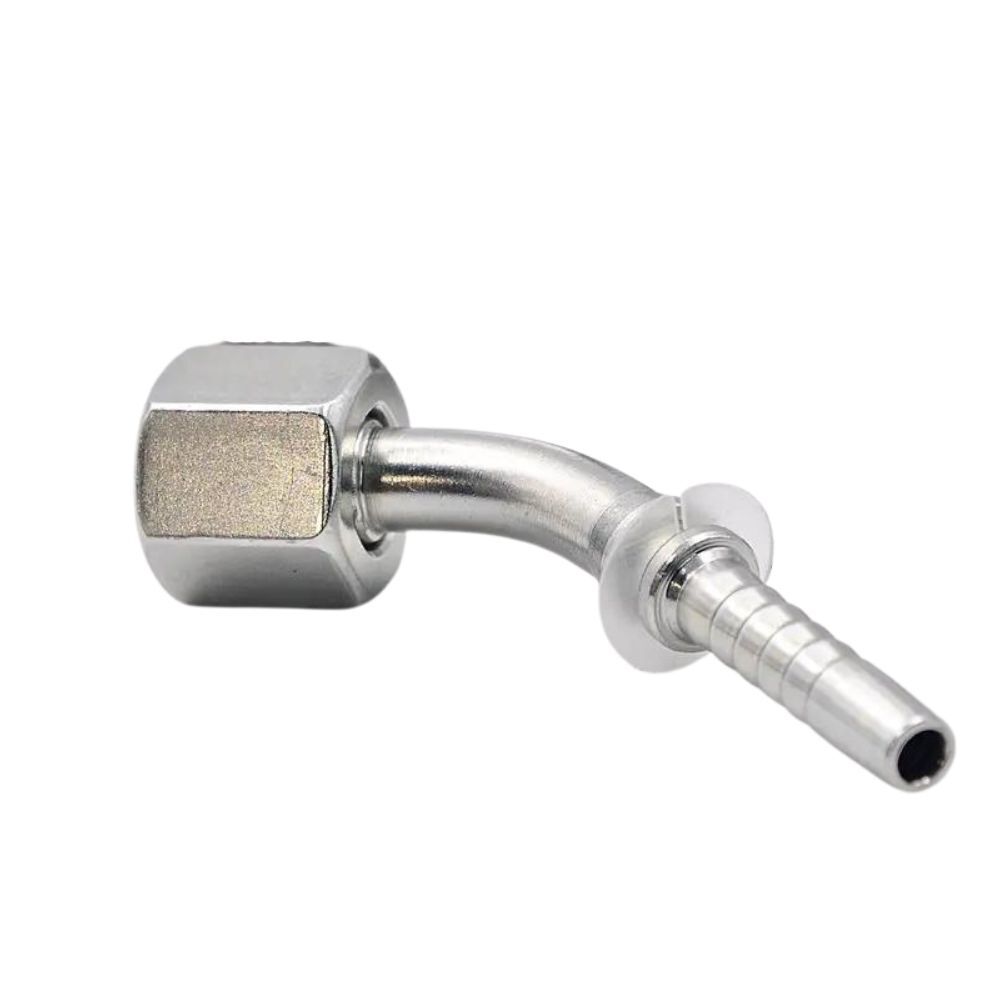

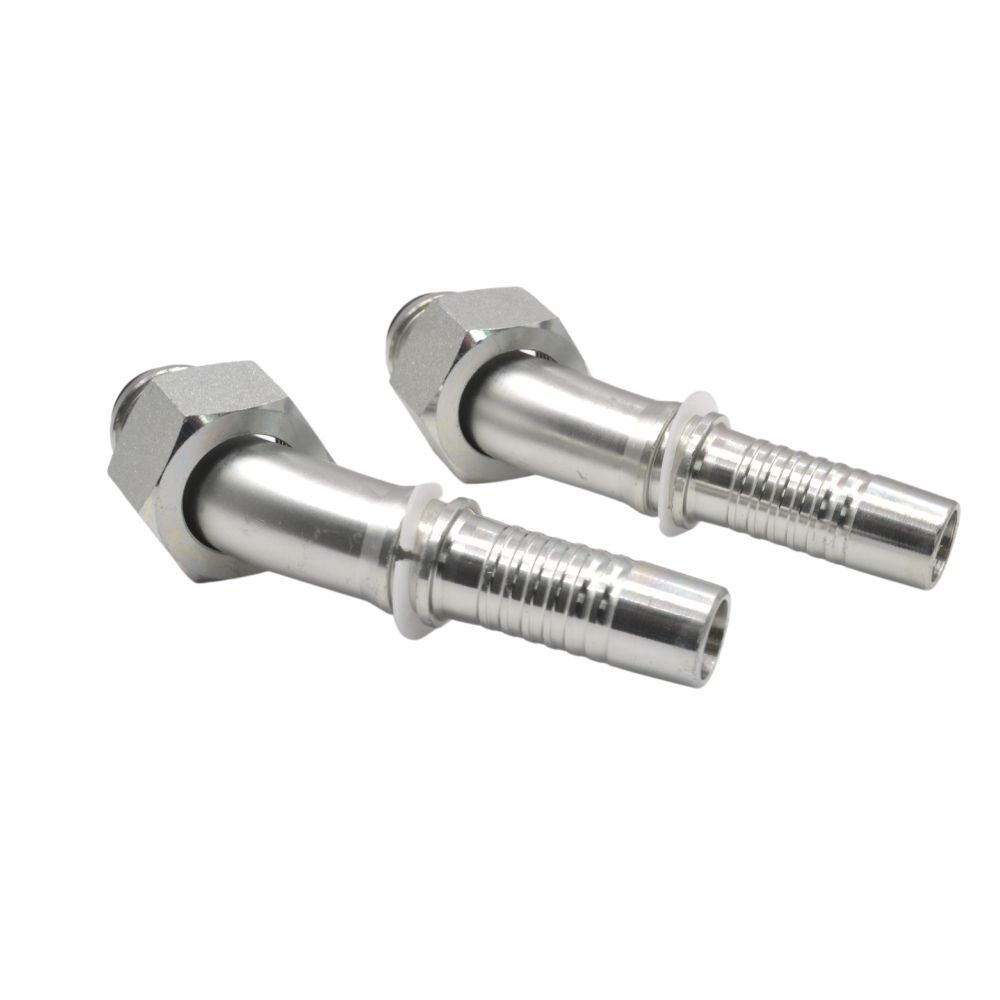

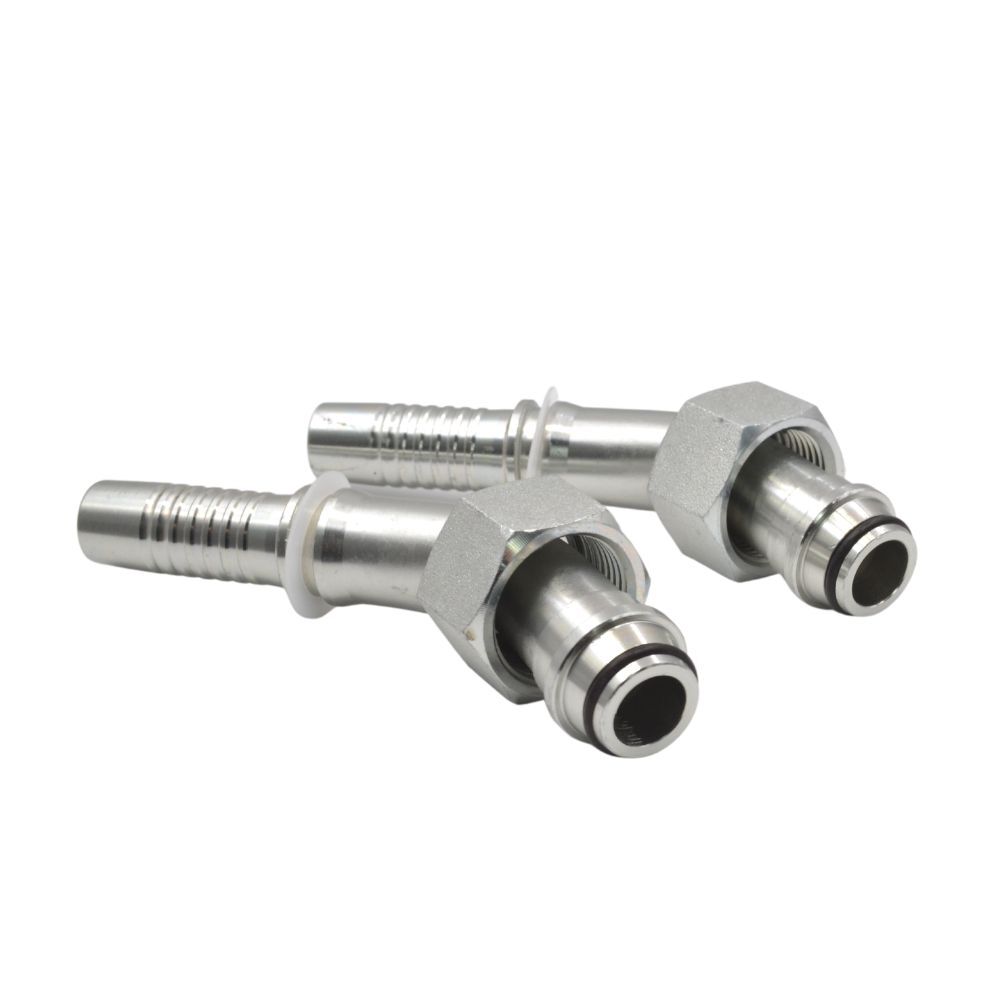

20441 45-degree female 24-degree cone L.T. hydraulic hose fitting has a female metric thread and an o-ring seal, which can create a strong seal between hoses and tubes.

The 20441 metric fittings are commonly used in medium or high-pressure hydraulic fluid systems, and they typically seal using an o-ring or sealing washer.

Feel free to ask if you have any questions about the hydraulic metric flare fittings.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize

Description

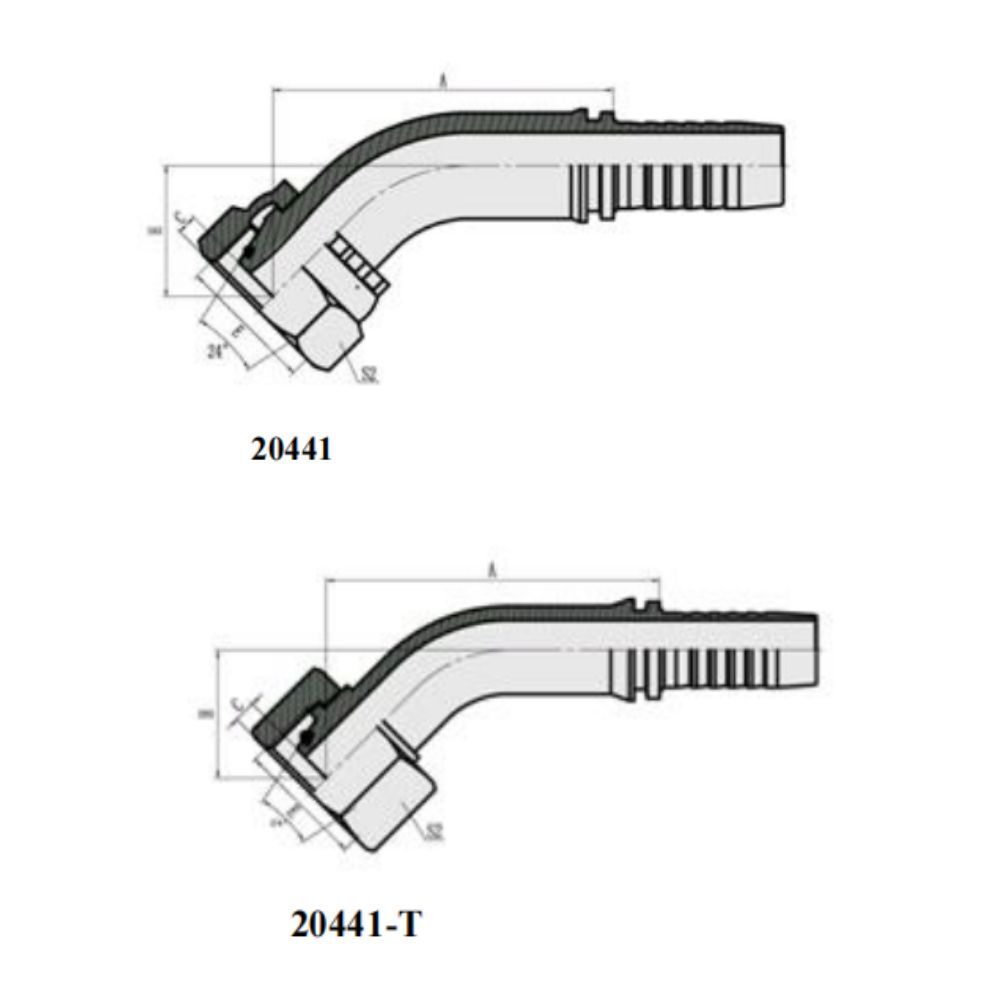

PART NO.	THREAD E	HOSE BORE		TUBE O.D.	O RING	DIMENSIONS
PART NO.	THREAD E	DN	DASH	TUBE O.D.	O RING	A	C	H	S2
20441-14-04	M14*1.5	6	04	8	O06.5*1.5	49	2	27	19
20441-16-05	M16*1.5	8	05	10	O08.0*1.5	51.5	2	28.2	22
20441-16-06	M16*1.5	10	06	10	O08.0*1.5	53.4	2	29.2	22
20441-18-05T	M18*1.5	8	05	12	O10.0*2.0	46.2	2.5	22.9	22
20441-18-06	M18*1.5	10	06	12	O10.0*2.0	54.2	2.5	29.9	24
20441-22-05T	M22*1.5	8	05	15	O12.0*2.0	48.3	2.5	25	27
20441-22-06T	M22*1.5	10	06	15	O12.0*2.0	50.4	2.5	25.7	27
20441-22-08	M22*1.5	12	08	15	O12.0*2.0	68.1	2.5	33.2	27
20441-26-08T	M26*1.5	12	08	18	O15.0*2.0	62	2.5	26.1	32
20441-26-10	M26*1.5	16	10	18	O15.0*2.0	80.7	2.5	35.9	32
20441-26-12	M26*1.5	20	12	18	O15.0*2.0	86.9	2.5	39.5	32
20441-27-10T	M27*1.5	16	10	18	O15.0*2.0	72	2.5	27.7	32
20441-27-12	M27*1.5	20	12	18	O15.0*2.0	86.9	2.5	39.5	32
20441-30-10T	M30*2	16	10	22	O20.0*2.0	75.1	4	30.3	36
20441-30-12	M30*2	20	12	22	O20.0*2.0	89.1	4	41.7	36
20441-36-12T	M36*2	20	12	28	O26.0*2.0	82	4	33.9	41
20441-36-14T	M36*2	22	14	28	O26.0*2.0	83.7	4	33.3	41
20441-45-20T	M45*2	32	20	35	O32.0*2.5	99.6	5	40.8	55
20441-52-20T	M52*2	32	20	42	O38.0*2.5	103	5.5	41.9	60
20441-52-24T	M52*2	40	24	42	O38.0*2.5	117	5.5	45.8	60

20441 45° Female 24° Cone L.T. Metric Hose Fitting Video

This video shows information about 20441 24° cone seat L.T. metric hose fitting.

The metric hose fittings are commonly applied in a variety of hydraulic fluid systems, including automotive systems,industrial machinery, and construction equipment.

If you have any questions about hydraulic metric hose fitting, please contact us.
