1E Metric Male-to-Male O-Ring Seal Adapter

Description:

1E metric o-ring pipe adapter has two male metric threads and the o-ring sealing, which can create a strong seal between two components.

The male adapter has external threads that match the internal threads of the female adapter, and the o-rings are placed in grooves on each fitting to create a seal.

Select the required thread size and pitch from the table below. The mating connection must also match the adapter’s sealing geometry; thread dimensions alone are not sufficient to confirm compatibility.

Features and Benefits:

Dual Male Metric Threads: Connects matching female interfaces at both ends.
O-Ring Sealing: Uses O-rings at the designated sealing interfaces.
Straight Configuration: Provides an inline connection between compatible components.
Hexagonal Body: Provides a wrenching surface for installation.
Listed Size Options: Thread and dimension data help identify the required specification.

Description

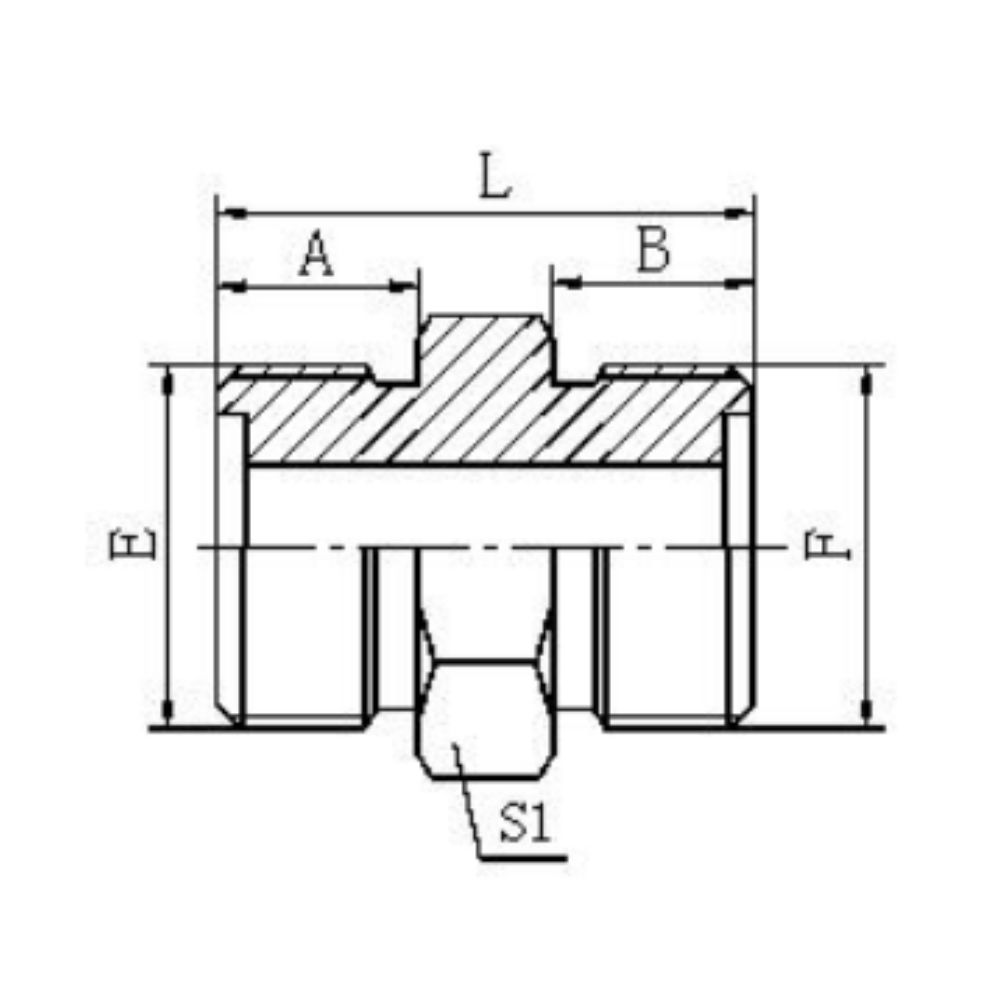

	THREAD		O-RING		DIMENSIONS
PART NO.	E	F	E	F	A	B	L	S1
1E-12	M12X1.25	M12X1.25	8X1.9	8X1.9	11	11	28	14
1E-14	M14X1.5	M14X1.5	10X1.9	10X1.9	11	11	28	17
1E-16	M16X1.5	M16X1.5	11X1.9	11X1.9	11	11	28	17
1E-18	M18X1.5	M18X1.5	13X1.9	13X1.9	11	11	28	19
1E-22	M22X1.5	M22X1.5	16X2.4	16X2.4	12	12	32	24
1E-27	M27X1.5	M27X1.5	20X2.4	20X2.4	13	13	36	30
1E-30	M30X1.5	M30X1.5	24X2.4	24X2.4	14	14	39	32
1E-36	M36X2	M36X2	30X3.1	30X3.1	16	16	43	38
1E-39	M39X2	M39X2	32X3.1	32X3.1	18	18	49	41
1E-42	M42X2	M42X2	35X3.1	35X3.1	20	20	53	46
1E-45	M45X2	M45X2	38X3.1	38X3.1	21	21	55	46
1E-52	M52X2	M52X2	40X3.1	40X3.1	22	22	59	55
1E-60	M60X2	M60X2	45X3.1	45X3.1	24	24	65	65
1E-64	M64X2	M64X2	50X3.1	50X3.1	27	27	71	70

1E Male O-ring Seal Metric Pipe Fitting Video

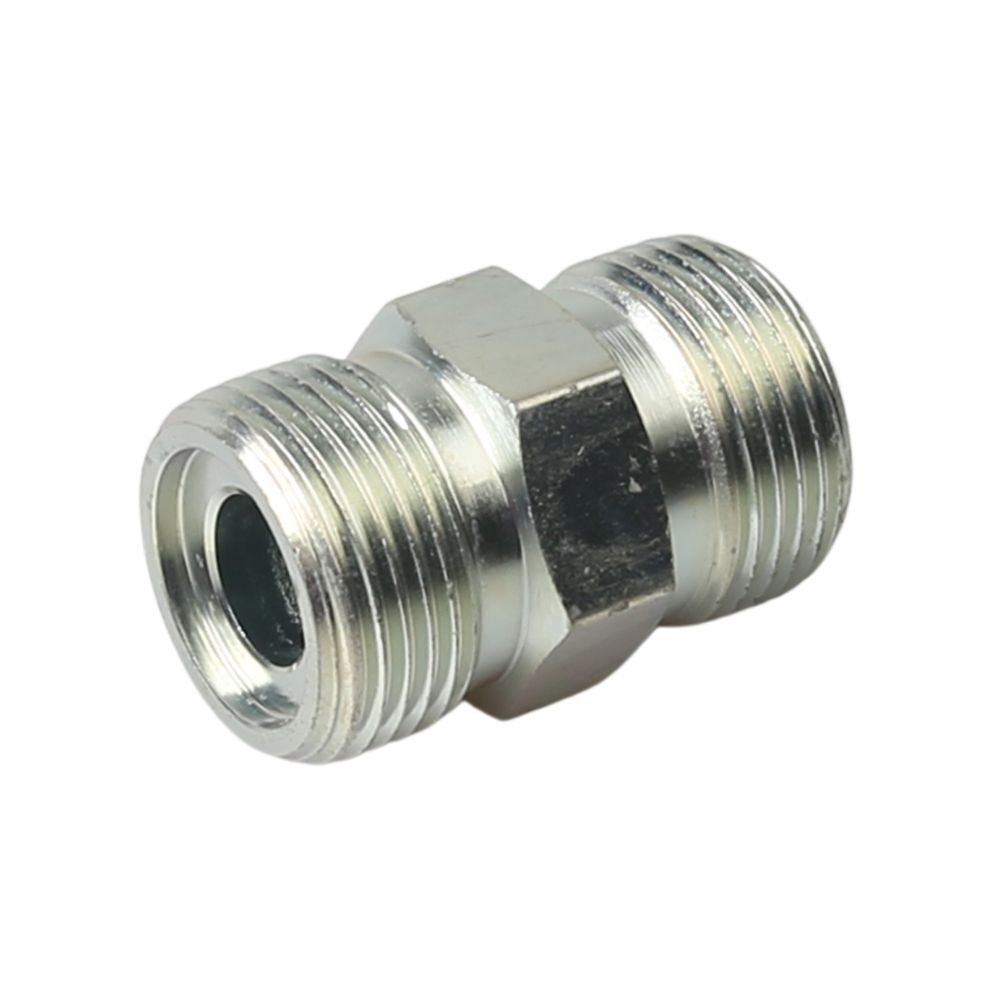

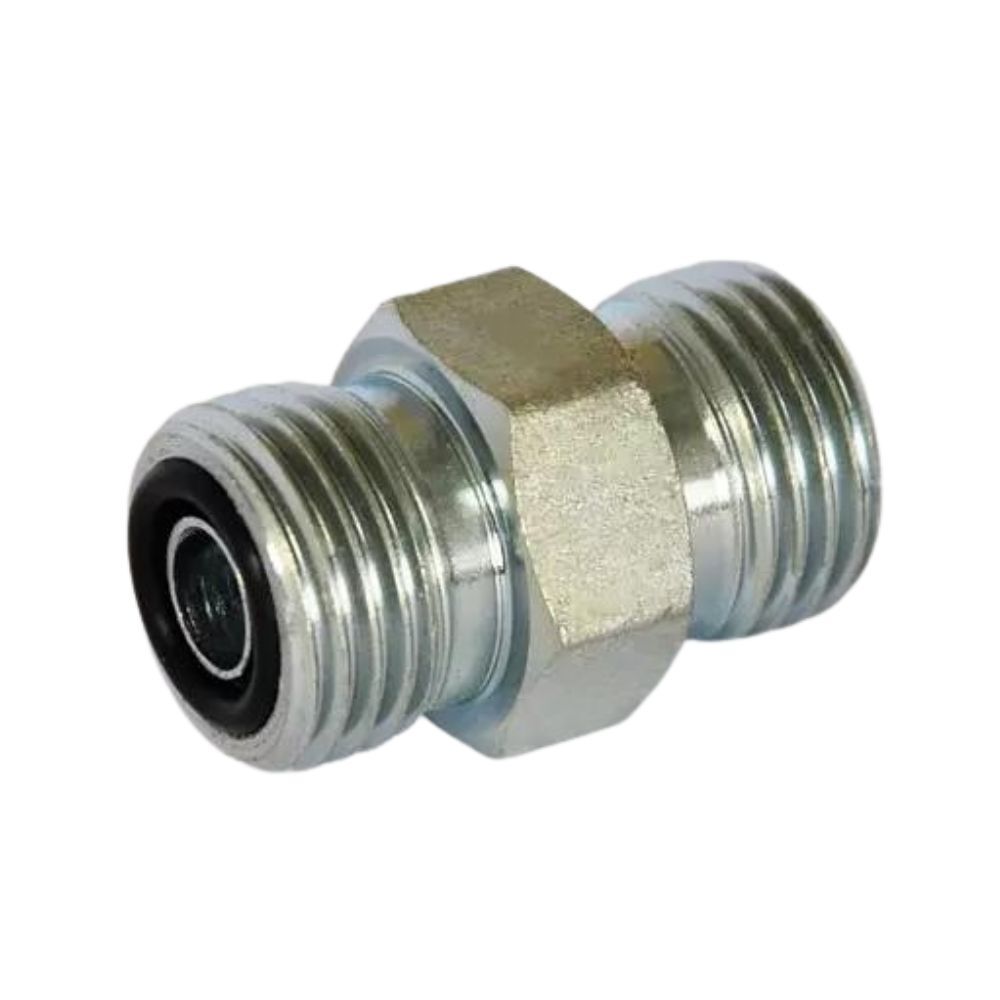

This video takes a closer look at the 1E metric O-ring seal adapter, highlighting its straight body, two male threaded ends, and central hex. These details help you understand the product’s connection layout and overall shape.

When selecting this adapter, confirm the thread size and pitch at both ends, along with the mating sealing surfaces and O-ring requirements. Matching these details is essential for proper fit and reliable sealing.

Watch the video to explore the product details. Send Topa your part numbers, drawings, or required quantities for selection support and a quotation.
