Description

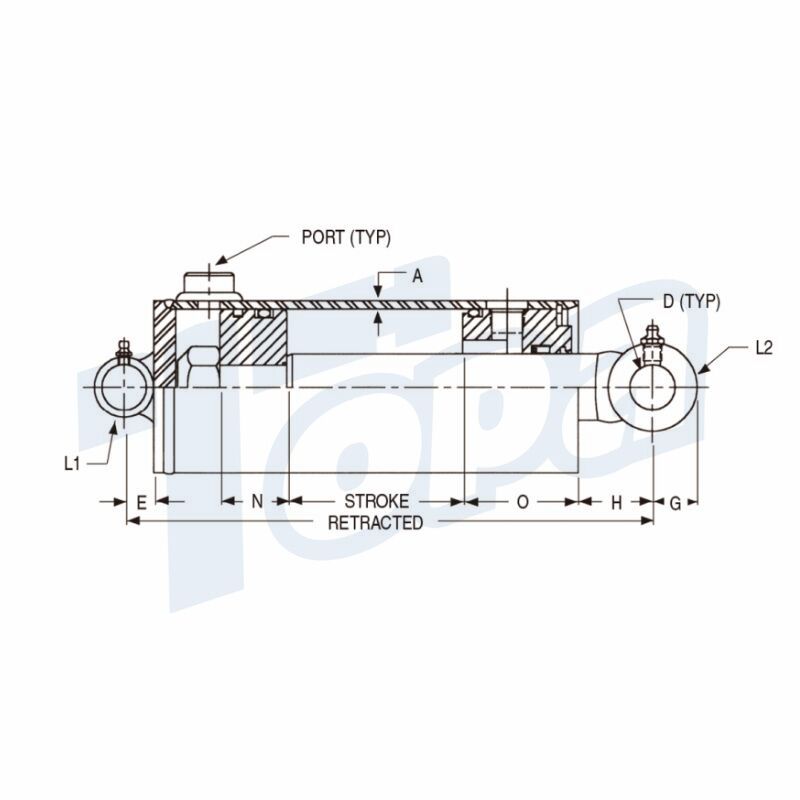

MWH | MFGR. NO. | BORE | STROKE | ROD DIA. | RETRACT. DIMEN. | PORT SIZE | A | D | E | G | H | L1 | L2 | N |
MWH-2508 | 5408 | 2 1/2 | 8 | 1 3/8 | 16 | 3/8 NPTF | 3/16 | 0.760 | 9/16 | 3/4 | 2 9/16 | 3 | 1 3/8 | 1 1/4 |
MWH-2512 | 5412 | 2 1/2 | 12 | 1 3/8 | 20 | 3/8 NPTF | 3/16 | 0.760 | 9/16 | 3/4 | 2 9/16 | 3 | 1 3/8 | 1 1/4 |
MWH-2516 | 5416 | 21/2 | 16 | 1 3/8 | 24 | 3/8 NPTF | 3/16 | 0.760 | 9/16 | 3/4 | 2 9/16 | 3 | 1 3/8 | 1 1/4 |
MWH-2520 | 5420 | 2 1/2 | 20 | 1 3/8 | 28 | 3/8 NPTF | 3/16 | 0.760 | 9/16 | 3/4 | 2 9/16 | 3 | 1 3/8 | 1 1/4 |
MWH-2524 | 5424 | 2 1/2 | 24 | 1 3/8 | 32 | 3/8 NPTF | 3/16 | 0.760 | 9/16 | 3/4 | 2 9/16 | 3 | 1 3/8 | 1 1/4 |
MWH-2530 | 5430 | 2 1/2 | 30 | 1 3/8 | 38 | 3/8 NPTF | 3/16 | 0.760 | 9/16 | 3/4 | 2 9/16 | 3 | 1 3/8 | 1 1/4 |
MWH-2532 | 5432 | 2 1/2 | 32 | 1 3/8 | 40 | 3/8 NPTF | 3/16 | 0.760 | 9/16 | 3/4 | 2 9/16 | 3 | 1 3/8 | 1 1/4 |
MWH-2536 | 5436 | 21/2 | 36 | 1 3/8 | 44 | 3/8 NPTF | 3/16 | 0.760 | 9/16 | 3/4 | 2 9/16 | 3 | 1 3/8 | 1 1/4 |
MWH-2542 | 5442 | 21/2 | 42 | 1 3/8 | 50 | 3/8 NPTF | 3/16 | 0.760 | 9/16 | 3/4 | 2 9/16 | 3 | 1 3/8 | 1 1/4 |
MWH-3008 | 8308 | 3 | 8 | 1 1/2 | 16 | 1/2 NPTF | 3/16 | 1.015 | 11/16 | 1 | 2 5/16 | 31/2 | 1 1/2 | 1 1/4 |
MWH-3012 | 8312 | 3 | 12 | 1 1/2 | 20 | 1/2 NPTF | 3/16 | 1.015 | 11/16 | 1 | 2 5/16 | 31/2 | 1 1/2 | 1 1/4 |
MWH-3016 | 8316 | 3 | 16 | 1 1/2 | 24 | 1/2 NPTF | 3/16 | 1.015 | 11/16 | 1 | 2 5/16 | 31/2 | 1 1/2 | 1 1/4 |
MWH-3020 | 8320 | 3 | 20 | 1 1/2 | 28 | 1/2 NPTF | 3/16 | 1.015 | 11/16 | 1 | 2 5/16 | 31/2 | 1 1/2 | 1 1/4 |
MWH-3024 | 8324 | 3 | 24 | 1 1/2 | 32 | 1/2 NPTF | 3/16 | 1.015 | 11/16 | 1 | 2 5/16 | 31/2 | 1 1/2 | 1 1/4 |
MWH-3030 | 8330 | 3 | 30 | 1 1/2 | 38 | 1/2 NPTF | 3/16 | 1.015 | 11/16 | 1 | 2 5/16 | 31/2 | 1 1/2 | 1 1/4 |
MWH-3032 | 8332 | 3 | 32 | 1 1/2 | 40 | 1/2 NPTF | 3/16 | 1.015 | 11/16 | 1 | 2 5/16 | 31/2 | 1 1/2 | 1 1/4 |
MWH-3036 | 8336 | 3 | 36 | 1 1/2 | 44 | 1/2 NPTF | 3/16 | 1.015 | 11/16 | 1 | 2 5/16 | 31/2 | 1 1/2 | 1 1/4 |
MWH-3040 | 8340 | 3 | 40 | 1 1/2 | 48 | 1/2 NPTF | 3/16 | 1.015 | 11/16 | 1 | 2 5/16 | 31/2 | 1 1/2 | 1 1/4 |
MWH-3042 | 8342 | 3 | 42 | 1 1/2 | 50 | 1/2 NPTF | 3/16 | 1.015 | 11/16 | 1 | 2 5/16 | 31/2 | 1 1/2 | 1 1/4 |
To cater to various applications, this hydraulic cylinder is available in a wide range of sizes. You can select the bore size, rod diameter, and stroke length that best suits your specific equipment and projects.

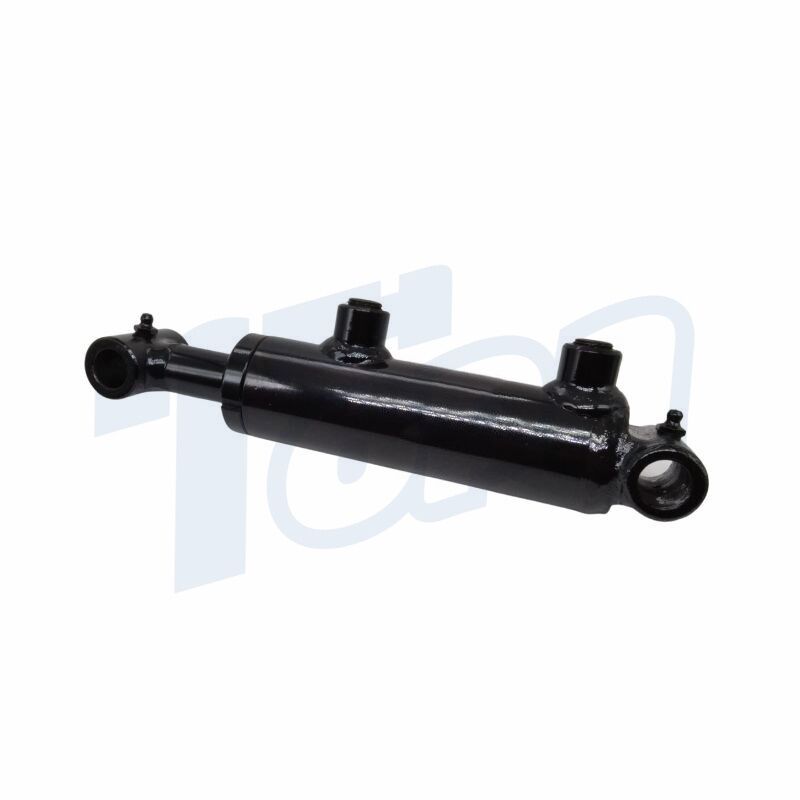

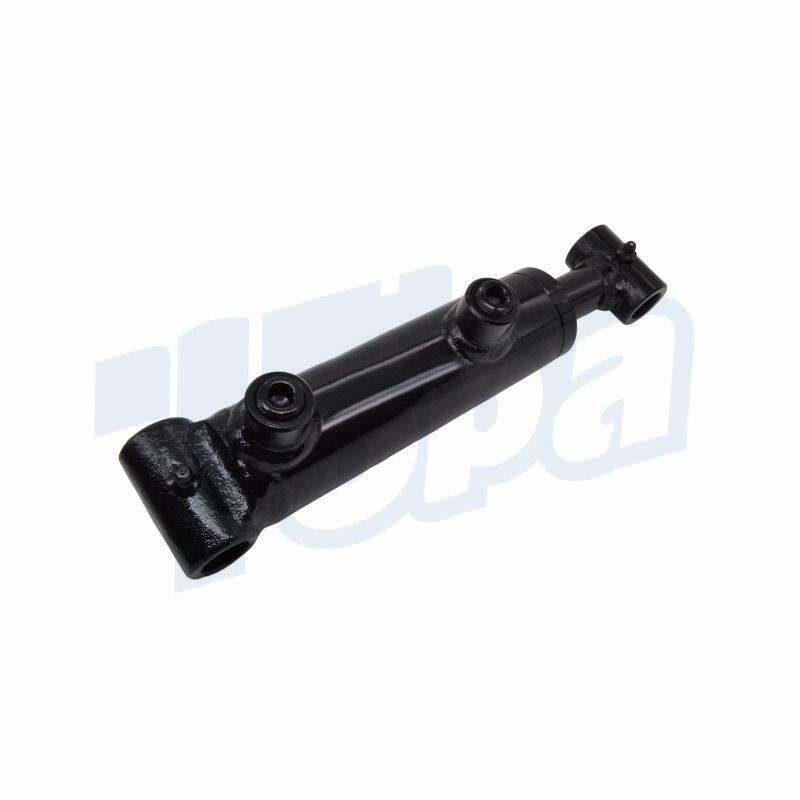

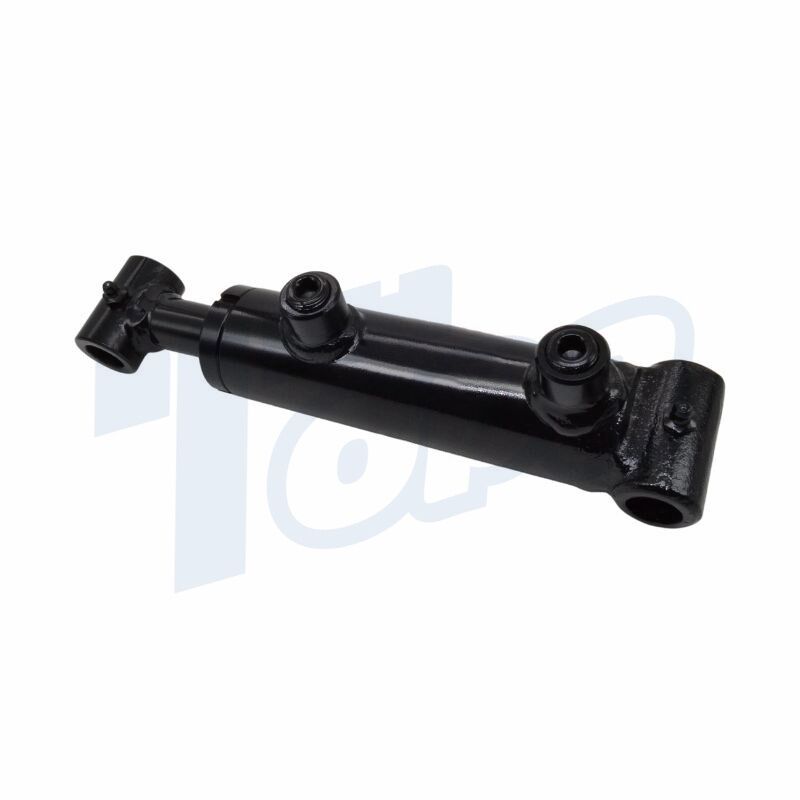

MWH - Heavy Duty Welded Hydraulic Cylinders
The Heavy-Duty welded hydraulic cylinder are engineered with a robust and rugged design, making it an ideal choice for the toughest tasks in heavy industries. It can withstand high loads and harsh operating conditions with ease.
Designed to thrive in challenging environments, the Heavy-Duty Cylinder is resistant to wear, corrosion, and extreme temperatures. It ensures durability and longevity even in the harshest conditions.
Every component of the heavy hydraulic cylinder undergoes precision engineering to guarantee a perfect fit and minimal leakage. This precision ensures consistent and reliable performance.
Advantages of Hydraulic Cylinders From Topa

Expertise in Heavy-Duty Solutions: Topa brings years of expertise in heavy-duty hydraulic solutions. We understand the unique demands of heavy industries and cater to them effectively.
Customization for Your Needs: One of our key strengths is our ability to custom Hydraulic Cylinders to match your specific requirements. You can select the size, stroke length, and mounting style that perfectly suits your equipment and applications.
Global Presence and Accessibility: Topa Hydraulic’s global reach ensures that no matter where your operations are located, you can access our Heavy-Duty Cylinders. We serve clients worldwide, providing accessibility and support in various regions.
Competitive Pricing: We offer competitive pricing without compromising on quality. Our large industrial hydraulic cylinders provide exceptional value, helping you stay within your budgetary constraints.
