71 Series Hydraulic Hose Crimp Fittings Manufacturer

Product Lists

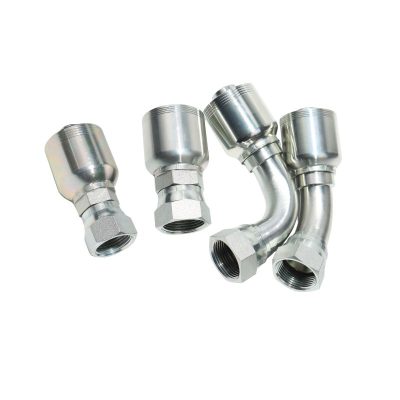

Topa’s 71 Series fittings are designed as permanent, one-piece "bite-the-wire" crimp fittings. They offer fast, reliable assembly and support a wide range of hydraulic applications.

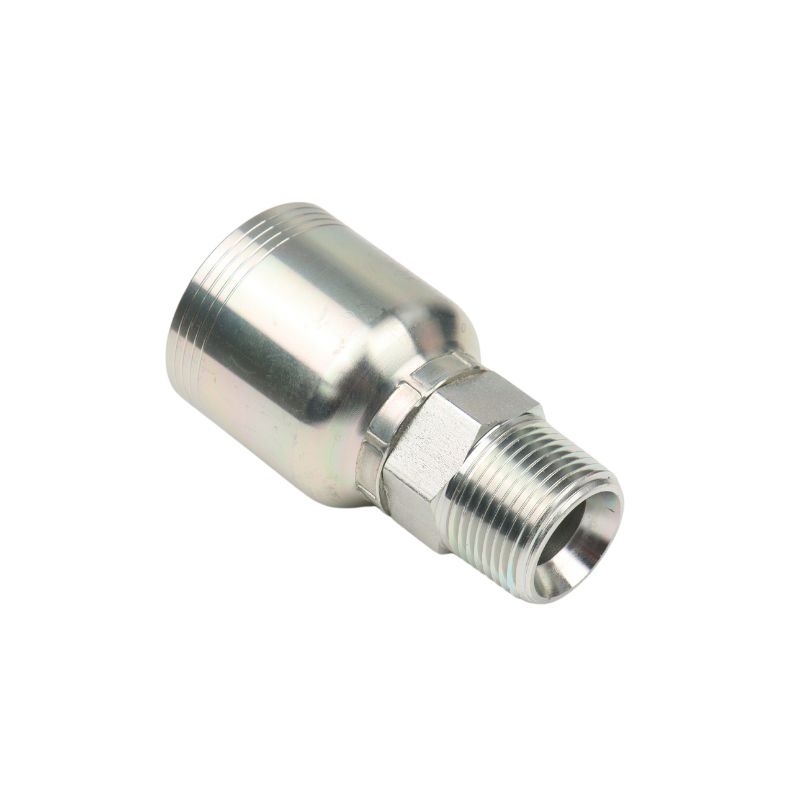

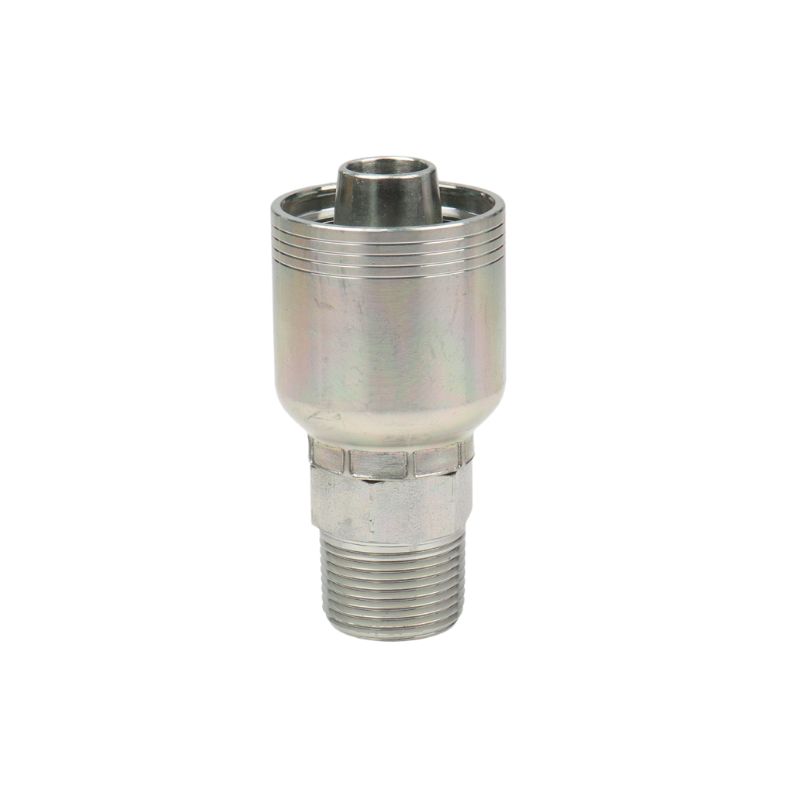

10171

Male NPTF Pipe - Rigid

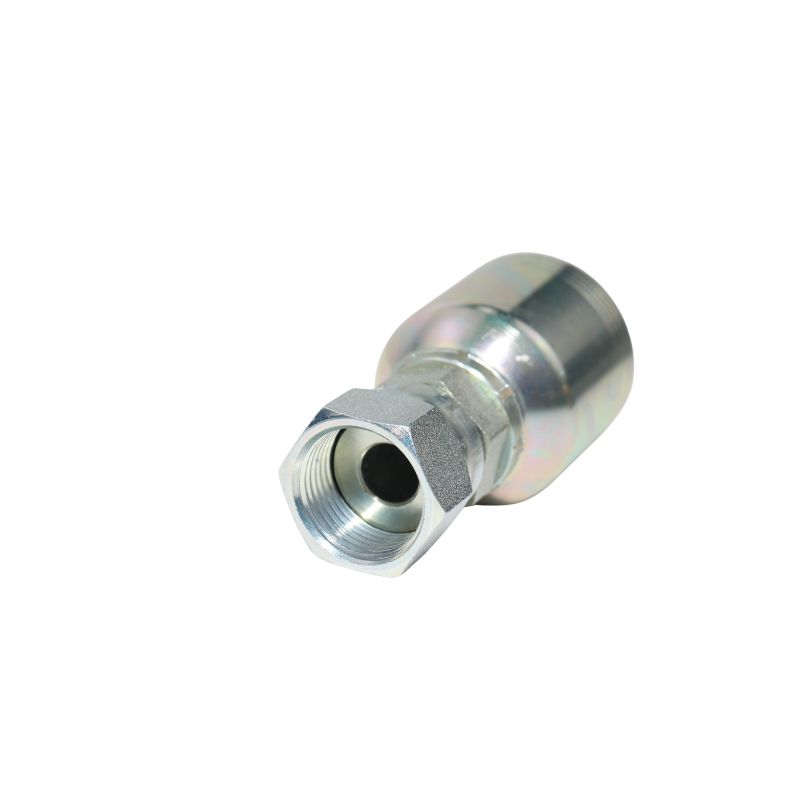

10671

Female JIC 37° - Swive

11571

SAE Code 61 Flange Head

11971

SAE Code 61 Flange Head - 90° Elbow

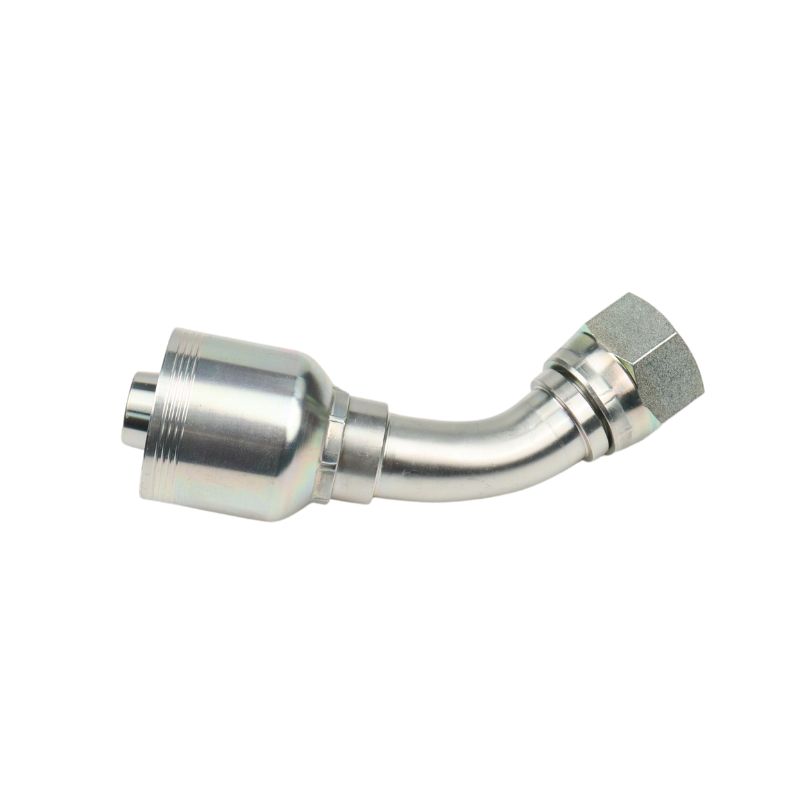

13771

Female JIC 37° - Swivel - 45° Elbow - Short Drop

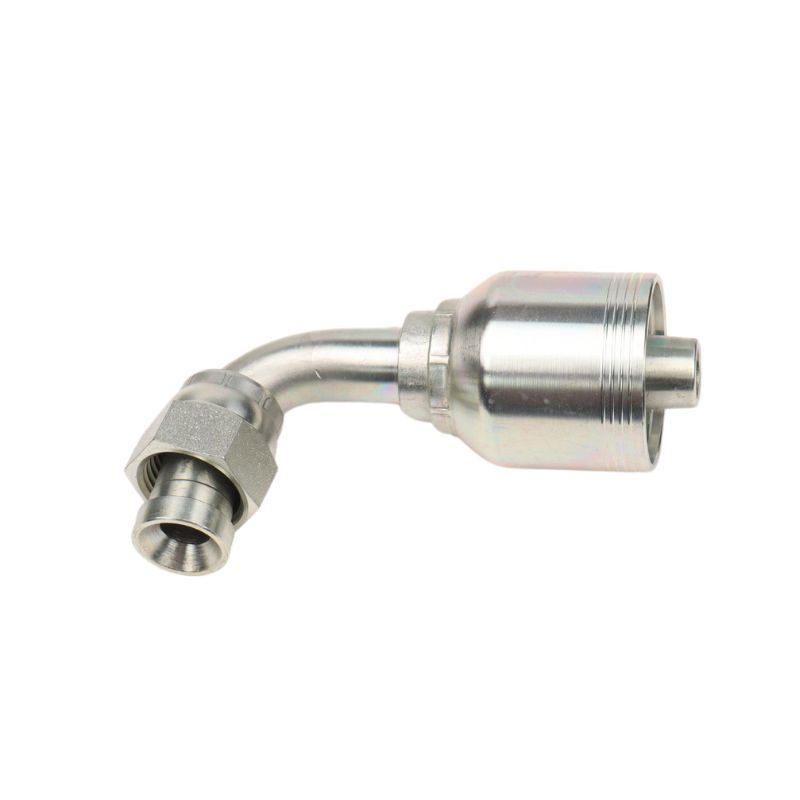

13971

Female JIC 37° - Swivel - 90° Elbow - Short Drop

1J971

Female Seal-Lok™ - Swivel - 90° Elbow - Short Drop

1JS71

Female Seal-Lok™ - Swivel - Long

Key Features of 71 Series Hydraulic Crimp Fittings

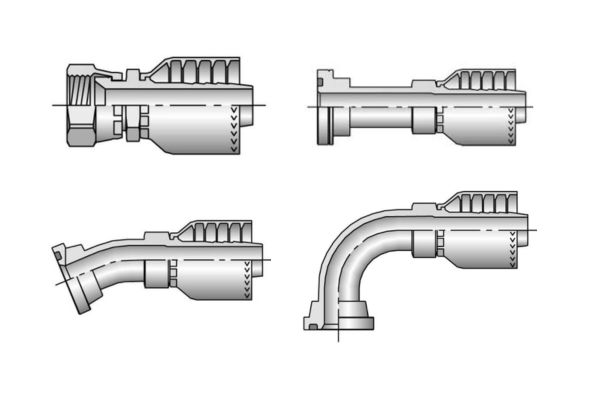

The 71 Series hydraulic crimp fitting consists of two primary parts — the fitting body and the ferrule. The fitting body forms the connection interface with the hydraulic port, while the ferrule is crimped onto the hose to create a secure and permanent connection.

One-Piece Design

Integrated fitting and ferrule construction reduces part count, simplifies assembly, and lowers inventory requirements.

No-Skive Technology

Works with No-Skive hoses, eliminating the need to remove the hose cover before crimping — saving time and avoiding assembly errors.

Bite-the-Wire Connection

Special crimp profile “bites” into the hose reinforcement for a secure, permanent, leak-free connection under pressure.

Versatile Configurations

Offered in straight, 45°, 60°, 90°, and 110° elbows, flanges, and threaded options to suit different routing and system designs.

High Compatibility

The 71 Series hydraulic crimp fittings are designed for high-pressure applications and are compatible with 4-spiral hoses.

Category	Details
Design	No-skive, bite-the-wire crimp profile
Compatible Hose Types	4-spiral hoses
Hose Sizes	From 3/8″ (-6) up to 2″ (-32)
End Configurations	Straight, 45°, 60°, 90°, and 110° elbows; SAE and ISO flanges; male/female threaded ends; ORFS and JIC connections
Working Pressure	Up to 6000 psi (depending on hose type and size)
Temperature Range	–40 °C to +100 °C (–40 °F to +212 °F) for standard hoses

Applications

The 71 Series hydraulic crimp fittings are suitable for a wide range of high-pressure hydraulic systems, including:

Construction Machinery

Construction sites demand hydraulic systems that can endure extreme pressure, shock loads, and continuous operation. Machines like excavators, loaders, bulldozers, and cranes require fittings capable of handling rugged environments while ensuring safe, leak-free connections.

Agricultural Machinery

In modern agriculture, equipment such as tractors, harvesters, and sprayers relies heavily on hydraulic power for lifting, steering, and precision control. The 71 Series Crimp Fittings, when paired with durable , provide reliable fluid transfer that can withstand constant vibration, exposure to dust, and varying weather conditions.

Mining & Quarrying

Why Topa Might Value the 71 Series

As Topa develops and promotes similar one-piece hydraulic fitting solutions, the 71 Series highlights several advantages that align with customer expectations and market trends:

Competitive Pricing

The one-piece, no-skive construction reduces both production and assembly time. This efficiency translates into lower overall costs, making the fittings highly competitive in price-sensitive markets while maintaining reliable performance.

Simplified Inventory

By combining the ferrule and fitting body into a single unit, the 71 Series minimizes part numbers and reduces SKU complexity. This streamlined inventory management helps distributors and end-users lower storage costs and simplify logistics.

Cross-Market Usage

The versatility of the 71 Series allows it to serve a wide range of industries, including agriculture, construction, mining, and automation. Its broad compatibility ensures that Topa can meet the demands of different customers with a single product line.

OEM & End-User Friendly

Easy installation and dependable sealing make the fittings attractive to both equipment manufacturers and maintenance professionals. This reliability strengthens customer trust and encourages repeat business.

FAQ

What type of hoses are compatible with 71 Series fittings?

The 71 Series is designed for high-pressure hydraulic hoses, including 4-spiral hoses.

Do I need to skive the hose before crimping?

No. The 71 Series is a no-skive fitting, which means you don’t need to strip or skive the hose cover before crimping. This makes assembly faster and reduces errors.

What sizes are available?

The fittings cover hose sizes from 3/8" (-6) up to 2" (-32), with a wide variety of end connections including straight, elbow, flange, ORFS, and JIC types.

What is the pressure rating of 71 Series fittings?

Pressure ratings vary by hose size and type, but the series supports applications up to 6000 psi when used with the correct spiral hoses.

What materials are they made of?

Standard versions are made from carbon steel with protective plating, while stainless steel options are available for corrosive or marine environments.

What industries use the 71 Series most often?

Common industries include agriculture, construction, mining, quarrying, industrial hydraulics, metallurgy, and oilfield/offshore equipment.
