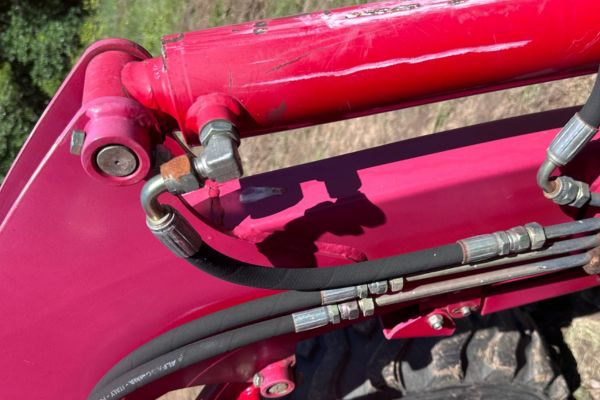

How Do Installation Mistakes Damage Excavator Hoses?

Hydraulic hoses are the lifelines of an excavator’s power system, carrying pressurized fluid to every moving part. But even the best-manufactured hose assembly can fail if installed incorrectly. Small errors—like a twist in the line, an overtightened fitting, or a few grains of dirt—can lead to costly downtime, system failure, or even safety hazards.

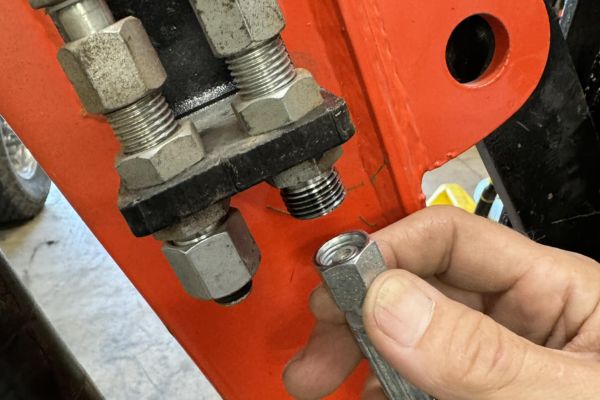

How Installation Errors Destroy a Perfect Hose Assembly

A factory-perfect hose assembly can be ruined in minutes by simple installation mistakes. This guide highlights the most common errors—from twisting to incorrect torque—and provides professional methods to prevent them. Following these techniques ensures maximum safety and long service life on your excavator.

The Cardinal Sin: Twisting a Hose During Installation

Twisting a hydraulic hose during installation is the leading cause of premature failure. This error places structural stress on the reinforcement layers—something the hose was never designed to withstand. Even a small twist can reduce the pressure capacity by up to 30%.

How Torsion Destroys a Hose from the Inside Out

Hydraulic hoses are reinforced with multiple layers of high-tensile steel wire. These layers are braided or spiral-wound to bear internal pressure.

When a hose is twisted, these reinforcement wires are forced to unwind and misalign, weakening the structure. This distortion leads to:

• Separation of inner and outer layers
• Loss of pressure capacity
• Accelerated fatigue cracking
• Early leakage or burst failure

Degree of Twist	Effect on Pressure Rating	Typical Consequence
0° (no twist)	100% (optimal)	Full-rated performance
15° twist	↓ 10–15%	Slight internal stress
45° twist	↓ 30–40%	Hose deformation
90° twist	↓ 50%+	Rapid failure or burst

The Layline is Your Visual Guide

Every hydraulic hose features a layline—a continuous printed line of text running along its length. This is not just for identification; it’s also your alignment indicator.

After installation:

• The layline should appear straight and parallel to the hose axis.
• If it spirals like a candy cane, the hose is twisted and must be reinstalled.

Tip: Always check the layline before pressurizing the system.

The Two-Wrench Technique: Simple but Effective

To avoid twisting during tightening:

• Hold the hose steady with one wrench (the backup wrench).
• Tighten the nut with the second wrench on the swivel end.
• Keep both wrenches aligned to isolate torque and prevent the hose body from turning.

Tool	Function	Purpose
Backup wrench	Holds hose fitting steady	Prevents hose rotation
Torque wrench	Applies precise torque	Avoids over-tightening
Soft jaws (optional)	Protects fitting surface	Maintains plating integrity

Poor Routing: Creating Stress and Abrasion

The routing of a hydraulic hose is not random. The path determines how the hose behaves under motion, vibration, and pressure. Poor routing introduces stress, promotes abrasion, and accelerates failure — often long before the hose reaches its rated service life.

Violating the Minimum Bend Radius

Each hose type has a minimum bend radius, specified by the manufacturer. Bending tighter than this radius — especially near the fitting — crushes the hose tube, restricts flow, and weakens the wire reinforcement. This leads to localized fatigue, internal cracks, and eventual bursting.

Hose Type	Typical Bend Radius	Consequence if Exceeded
SAE 100R1 (1-wire braid)	100–125 mm	Internal tube collapse, reduced flow
SAE 100R2 (2-wire braid)	130–180 mm	Wire fatigue, early leakage
4SP / 4SH (spiral)	200–300 mm	Reinforcement fracture, hose burst
Thermoplastic hose	50–100 mm	Kinking, plastic deformation-

Tip: Always measure bends using the hose centerline, not the inner edge.

Tension vs. Slack: Finding the Sweet Spot

Correct hose length is a balance.

• A hose too short creates constant tension, pulling on the fittings and causing them to loosen or crack under pressure.
• A hose too long droops, snags, or rubs against moving parts — leading to chafing and cover wear.

Allow for proper movement compensation by checking the full motion range of the excavator boom or arm before final tightening.

Condition	Symptom	Corrective Action
Too short	Hose stretched or tight at full extension	Increase hose length slightly
Too long	Hose loops or rubs on other parts	Shorten or re-route
Correct	Hose moves freely with no tension	Secure with proper clamps

The Danger of Abrasion

Abrasion is one of the most common causes of external hose failure. When the outer cover rubs against the machine’s frame or another component, it wears through quickly — exposing the steel reinforcement beneath. Once exposed, rust begins, followed by rapid structural failure.

Prevention Techniques:

• Use abrasion sleeves (textile or spring guard).
• Install clamps or guides to maintain routing distance.
• Avoid tight corners or metal edges; use radius blocks where possible.
• Periodically inspect for wear marks and reposition as needed.

Abrasion Level	Visible Condition	Recommended Action
Light (surface scuffing)	Cover dull or lightly scraped	Add sleeve or reposition
Moderate	Outer cover worn, braid faintly visible	Replace hose soon
Severe	Wire reinforcement exposed	Immediate replacement

The Invisible Killer: Contamination

A hydraulic system operates like a circulatory system of precision—every component depends on clean fluid to function properly. During hose assembly and installation, even a few microscopic particles of dirt, metal shavings, or lint can start a chain reaction of wear and failure. Contamination doesn’t announce itself with noise or vibration—it destroys quietly from within.

How Dirt Destroys Precision Components

A hydraulic pump’s internal clearances are often just 2–5 microns—smaller than a human hair. When foreign particles enter this environment, they act like abrasive sandpaper circulating through the system.

• A grain of sand can score a valve spool, causing internal leakage.
• Metal filings from cutting or grinding can erode pump gears or cylinder barrels.
• Fibers or lint can block small orifices, sticking valves or causing erratic movement.

Over time, this microscopic damage compounds, leading to pressure loss, sluggish performance, and full system failure.

Note: Even if a particle is invisible to the naked eye, it can still cause measurable damage.

The Importance of Caps and Plugs

Leaving hoses or ports open—even for a few minutes—invites contamination. Dust, water, and metal fragments from nearby work can easily enter.

Best Practices for Protection:

• Immediately install plastic caps or plugs on every open port.
• Keep new hoses sealed until just before installation.
• Use color-coded caps (red for pressure lines, blue for returns) for quick identification.
• If a hose is dropped or the cap is compromised, flush it before installation.

Component	Protective Action	Purpose
Hose ends	Cap with clean plastic plugs	Prevent dust and moisture entry
Cylinder ports	Plug immediately after removal	Protect internal surfaces
Valves / Pumps	Keep ports sealed during service	Avoid metal or grit ingress

Pro Tip: Never use tape, rags, or makeshift covers—they can shed fibers or adhesive residues into the hydraulic system.

Cleanliness During Assembly

Hydraulic assembly areas should be treated like a surgical zone. Every hose, fitting, and tool that contacts the hydraulic circuit must be clean and dry.

Recommended Assembly Procedures:

• Wipe all fittings and hose ends with a lint-free, non-fiber cloth (e.g., microfiber or cleanroom wipes).
• Inspect visually for burrs, rust flakes, or seal debris.
• Avoid using compressed air unless it’s filtered and oil-free.
• Keep tools organized in a clean tray—never place fittings on the floor or dirty surfaces.
• Gloves should be clean and non-powdered to avoid residue contamination.

Contamination Source	Example	Preventive Action
Shop rags	Metal dust or fibers	Use lint-free wipes only
Dirty gloves	Oil, rust, dirt	Use clean nitrile gloves
Tools	Cutting debris	Wipe and inspect before use
Airborne dust	Open work area	Cover components until use

A Mismatch Made in Hell: Incorrect Components

Not all hydraulic fittings are created equal. Using the wrong type of fitting, seal, or mixing components from different manufacturers is a recipe for persistent leaks and potential blow-offs.

The “Matched System” is Not a Suggestion

For crimp-on fittings, the hose and fittings must come from the same manufacturer. Each brand engineers their components to work together. Mixing brands results in an unreliable crimp that can fail under pressure.

Thread Identification is Non-Negotiable

Many threads look similar but are incompatible. Forcing a BSPP (British) fitting into a JIC (American) port will damage the threads and will never seal properly. Use calipers and thread ID gauges to be absolutely certain of what you are working with.

Seals Are Not One-Size-Fits-All

An O-ring designed for an ORFS (O-Ring Face Seal) fitting will not work in an ORB (O-Ring Boss) port. Furthermore, the material of the seal (Buna-N, Viton, etc.) must be compatible with the system’s hydraulic fluid and temperature.

The Feel vs. Real: Improper Torque

The final tightening step often determines whether your hose assembly performs reliably or fails under pressure. Many technicians rely on feel, but “tight enough” isn’t always correct. Both under-tightening and over-tightening can compromise the seal, leading to leaks, cracks, or even catastrophic fitting failure.

The Consequences of Under-Tightening

An under-tightened connection lacks sufficient clamping force to hold against system pressure. The seal may hold at low pressure but will weep or leak under high pressure or vibration. Over time, micro-movement between surfaces worsens the leak and damages sealing faces.

Typical symptoms:

• Slow weeping at the joint
• Oil film buildup around threads or flares
• Fittings loosening during operation

Condition	Cause	Result	Recommended Fix
Under-tightened	Insufficient torque	Seal weeping, leaks	Re-tighten to spec or FFWR method
Reused fitting	Damaged seat or O-ring	Persistent leak	Replace fitting and seal
Vibration exposure	Thread relaxation	Gradual leakage	Add clamps or supports

The Damage of Over-Tightening

Over-tightening is more destructive and often permanent. Each fitting type fails in its own way:

Fitting Type	What Happens When Over-Tightened	Typical Result
JIC (37° flare)	Flare cone distorts or cracks	Metal-to-metal seal lost, leaks form
ORFS (O-Ring Face Seal)	O-ring extrusion or cutting	Immediate or delayed leakage
BSPP / BSPT	Thread galling or port cracking	Irreparable damage to port
NPT / NPTF	Thread deformation	Difficult disassembly, sealant failure

Once metal surfaces or O-rings are damaged, the only fix is replacement, not re-torqueing.

Using Flats as a Torque Guide (FFWR Method)

When a torque wrench is unavailable, the “Flats From Wrench Resistance” (FFWR) method offers a practical field solution.

Procedure:

• Hand-tighten the nut until wrench resistance is first felt.
• From that point, turn the nut the specified number of flats (1 flat = 1/6 turn).
• Stop—do not exceed the recommended flats.

The Two-Wrench Principle

To ensure accurate torque and prevent twisting:

• Use a backup wrench to hold the stationary fitting.
• Use the torque or working wrench on the nut being tightened.
• Maintain alignment to isolate torque on the sealing interface, not the hose.

Pro Tip: Mark the fitting and nut with a paint line after tightening — an easy visual reference to spot loosening later.

A reliable hydraulic system depends on precise installation, not just quality parts. Twisting, poor routing, contamination, or over-torquing can all shorten hose life. Following correct assembly practices ensures every connection holds pressure, operates safely, and performs like a true factory-built system.
