Description

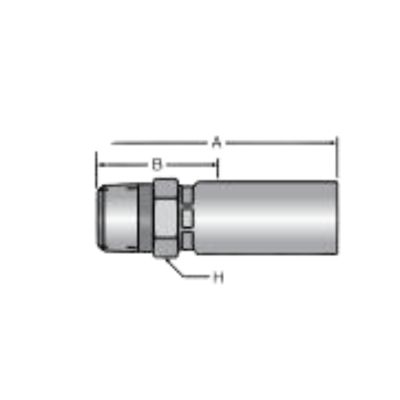

| Part Number | Thread Size | Hose I.D. | A | Cutoff Allow. B | H Hex | |||
| inch | mm | inch | mm | inch | mm | inch | ||
| 10158-2-4 | 1/8-27 | 1/4 | 6 | 2.13 | 54 | 1 | 25 | 5/8 |
| 10158-4-4 | 1/4-18 | 1/4 | 6 | 2.31 | 59 | 1-3/16 | 30 | 11/16 |
| 10158-4-6 | 1/4-18 | 3/8 | 10 | 2.66 | 68 | 1-5/16 | 33 | 3/4 |
| 10158-6-4 | 3/8-18 | 1/4 | 6 | 2.41 | 61 | 1-5/16 | 33 | 3/4 |
| 10158-6-6 | 3/8-18 | 3/8 | 10 | 2.66 | 68 | 1-5/16 | 33 | 3/4 |
| 10158-6-8 | 3/8-18 | 1/2 | 13 | 2.85 | 72 | 1-5/16 | 33 | 7/8 |
| 10158-8-6 | 1/2-14 | 3/8 | 10 | 2.91 | 74 | 1-9/16 | 40 | 15/16 |
| 10158-8-8 | 1/2-14 | 1/2 | 13 | 3.09 | 78 | 1-9/16 | 40 | 15/16 |
| 10158-8-10 | 1/2-14 | 5/8 | 16 | 3.20 | 81 | 1-1/2 | 38 | 1 |
| 10158-12-12 | 3/4-14 | 3/4 | 19 | 3.29 | 84 | 1-9/16 | 40 | 1-1/8 |
| 10158-16-16 | 1-11-1/2 | 1 | 25 | 3.97 | 101 | 1-3/4 | 44 | 1-3/8 |

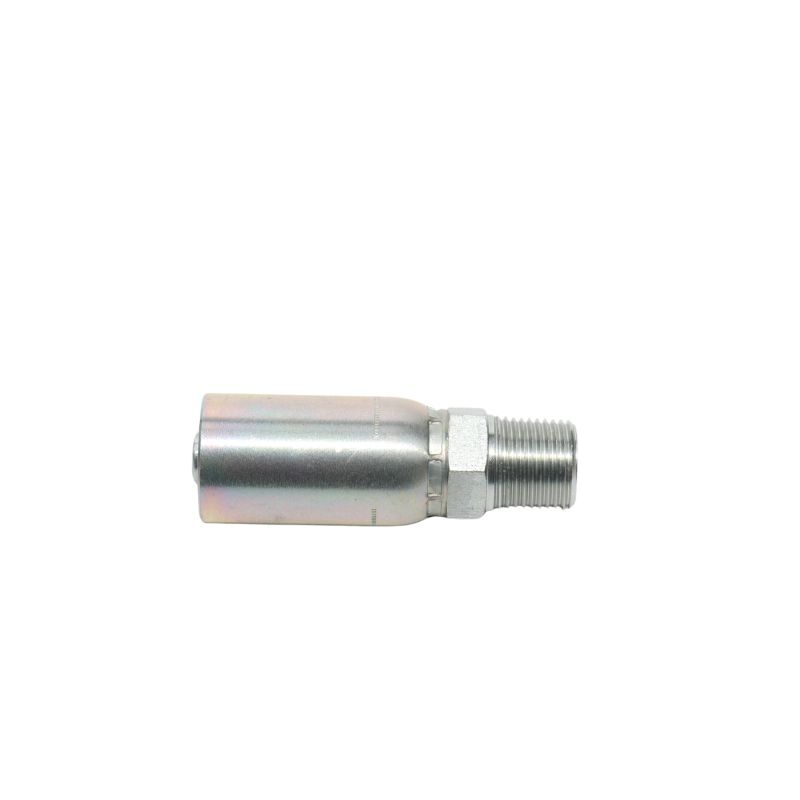

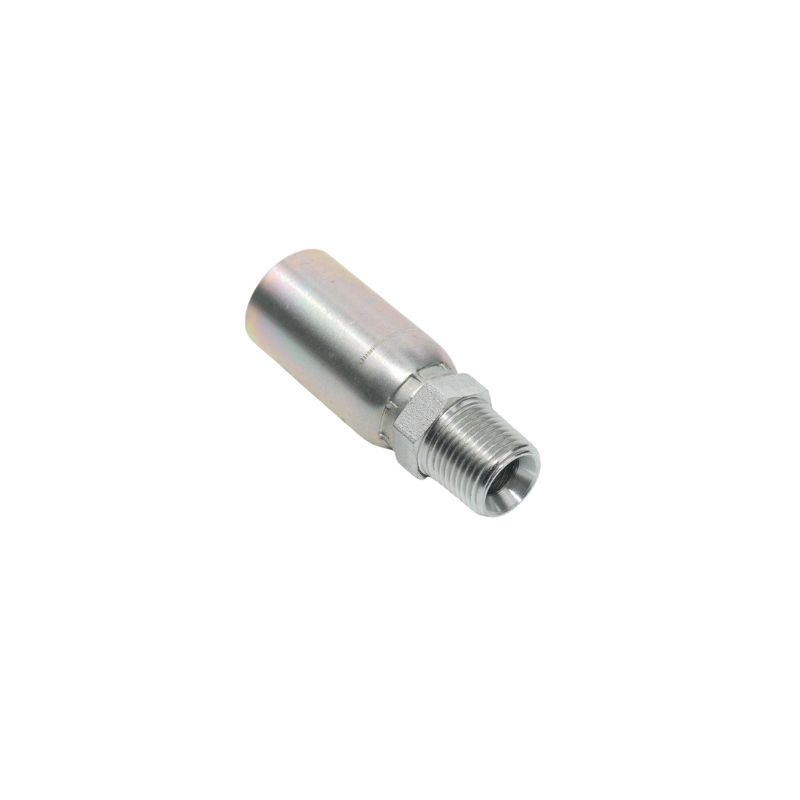

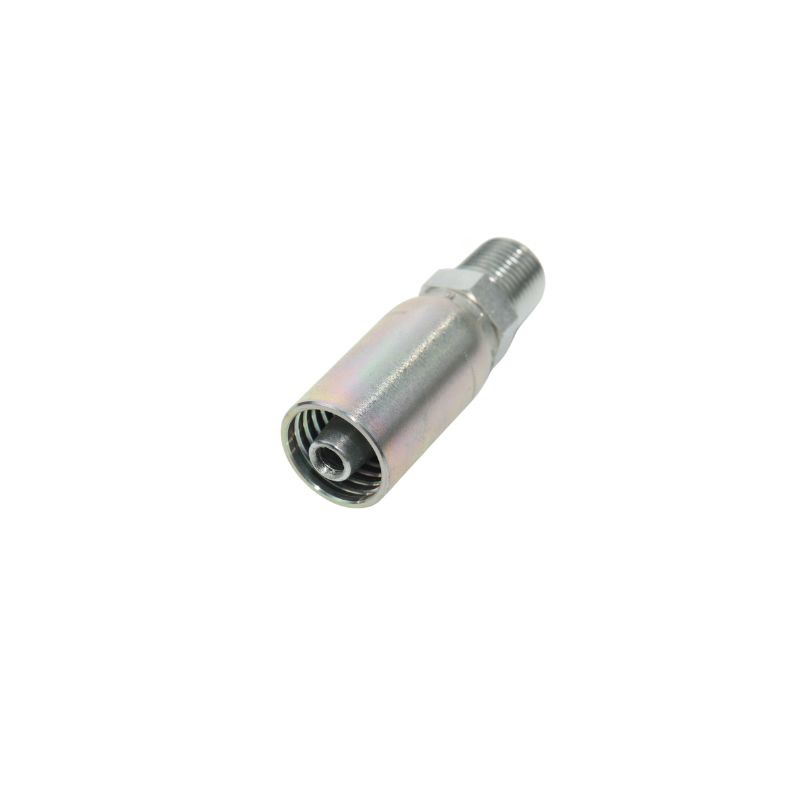

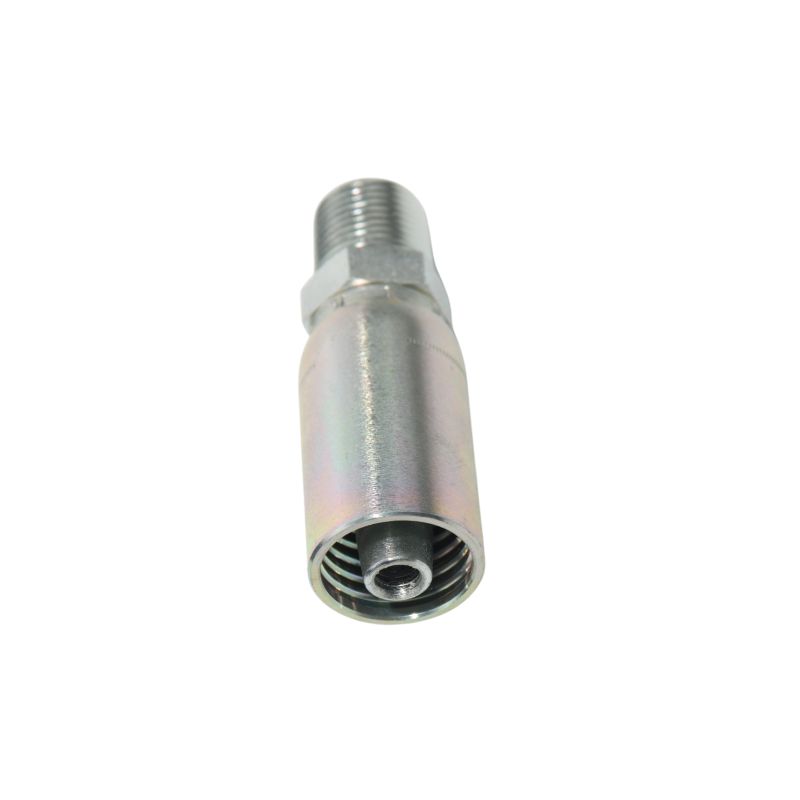

10158 Crimp style Hydraulic Hose Fitting Video
Discover the appearance and performance of the Topa 10158 crimp style hydraulic hose fitting in this video.
The fitting is manufactured from premium carbon steel with stainless steel options available, ensuring both strength and corrosion resistance. Its precise design guarantees secure, leak-free connections, making it a trusted choice for demanding hydraulic systems.
Topa’s hydraulic crimp fittings are already relied upon by customers worldwide for their durability, compatibility, and efficiency. Watch the video to see why Topa is the right partner for your hydraulic needs—and contact us today to request a quick quote or place your order.
Hot Sales
10191N Crimp Hydraulic Fittings
10691N
One Piece Fittings
14191N Hydraulic Hose Fittings

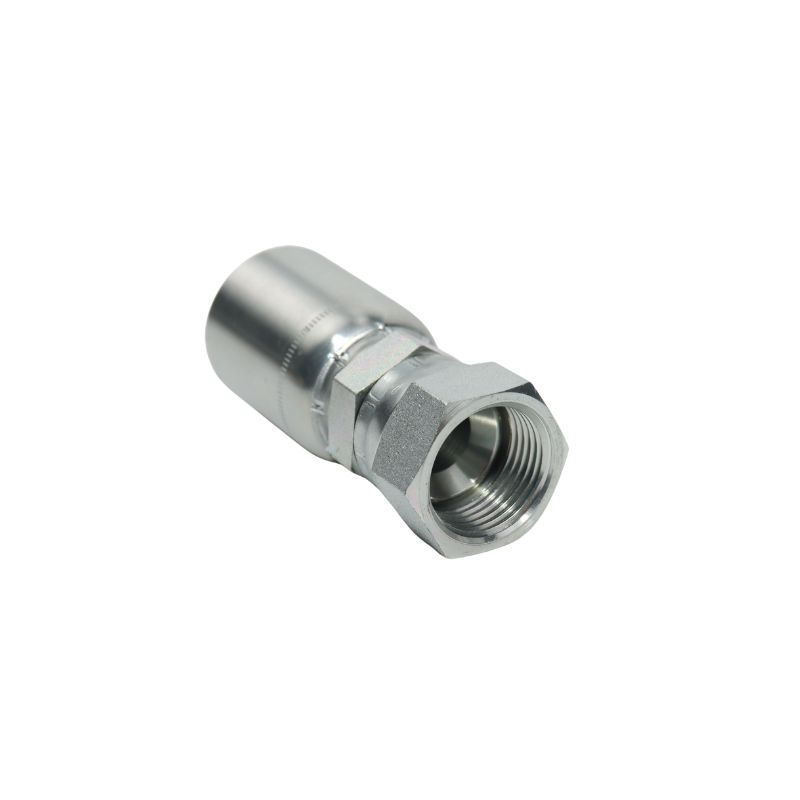

106HY Crimp on Hydraulic Fittings
