11578 One Piece Fittings Manufacturer

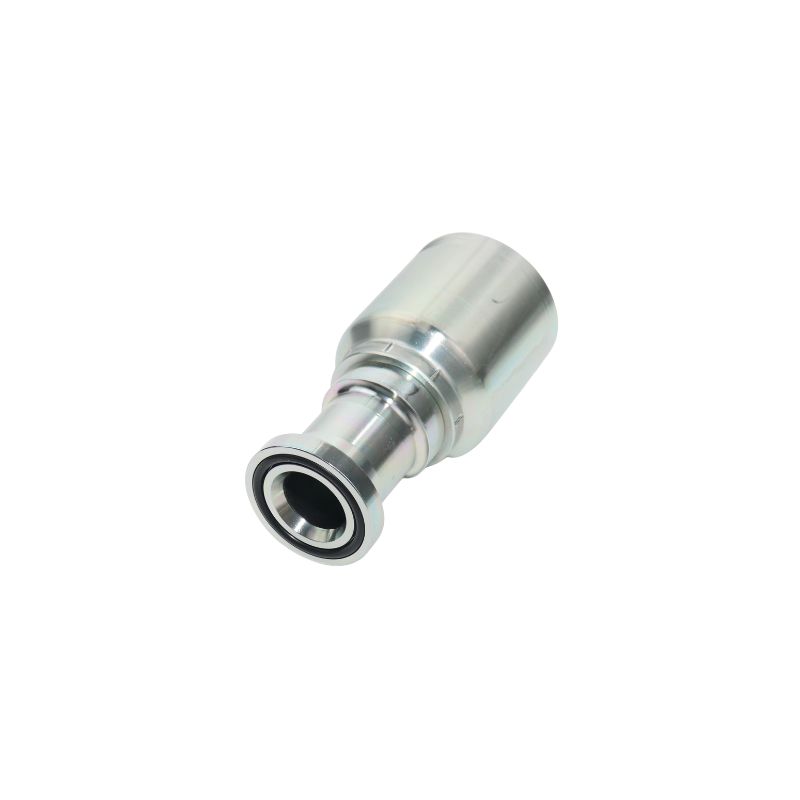

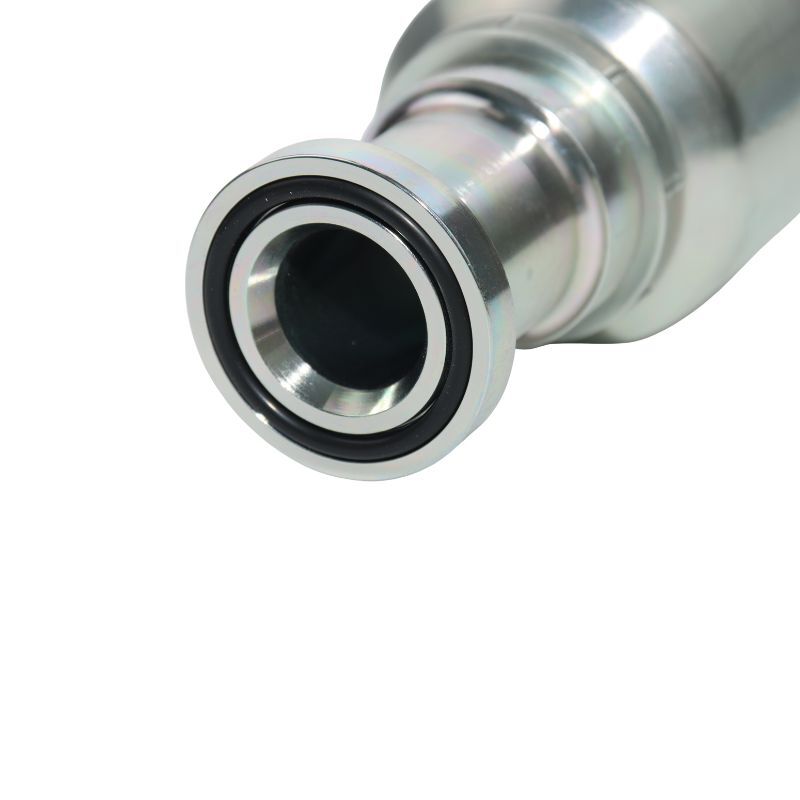

11578 One Piece Fittings

Topa 11578 one piece fittings are carbon steel hydraulic hose fitting with Flange thread, ensuring accurate fit and reliable connection in hydraulic systems.

Check the construction details below:

Connection 1: SAE Code 61 Flange Head

Connection 2: Hose End – Designed for 6-spiral hoses

Material selection: Carbon steel; Stainless steel

Shape: Straight

Product types: Crimp Fittings – Skive or No-Skive

Applications: Construction; Agriculture; Industry; Heavy Machine; Oil and Gas;

Looking for trusted hydraulic fittings? Topa offers precision-made crimp solutions, standard or customized. Quote today!

Description

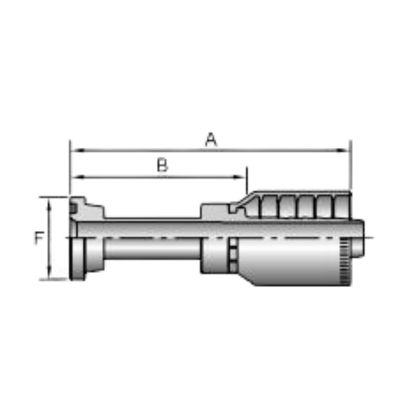

Part Number	Flange inch	Hose I.D. inch	A		F inch	B
Part Number	Flange inch	Hose I.D. inch	inch	mm	F inch	inch	mm
11578-12-12	3/4	3/4	4.34	110	1-1/2	2.58	66
11578-16-16	1	1	4.59	117	1-3/4	2.74	70

11578 One Piece Fittings Video

This video provides a detailed look at the Topa 11578 one piece fittings.

It highlights the product’s construction, including the high-quality carbon steel and stainless steel materials used, and the precise machining process that guarantees accurate dimensions. You will also see the surface finish and design features that ensure strong, leak-free connections in demanding hydraulic applications.

Topa’s one union hydraulic fittings are built for durability and consistent performance under high pressure and vibration. Watch the full video to understand our technical expertise—and contact Topa today to request your inquiry or order.
