16A78 Hydraulic Hose Crimp Fittings Supplier

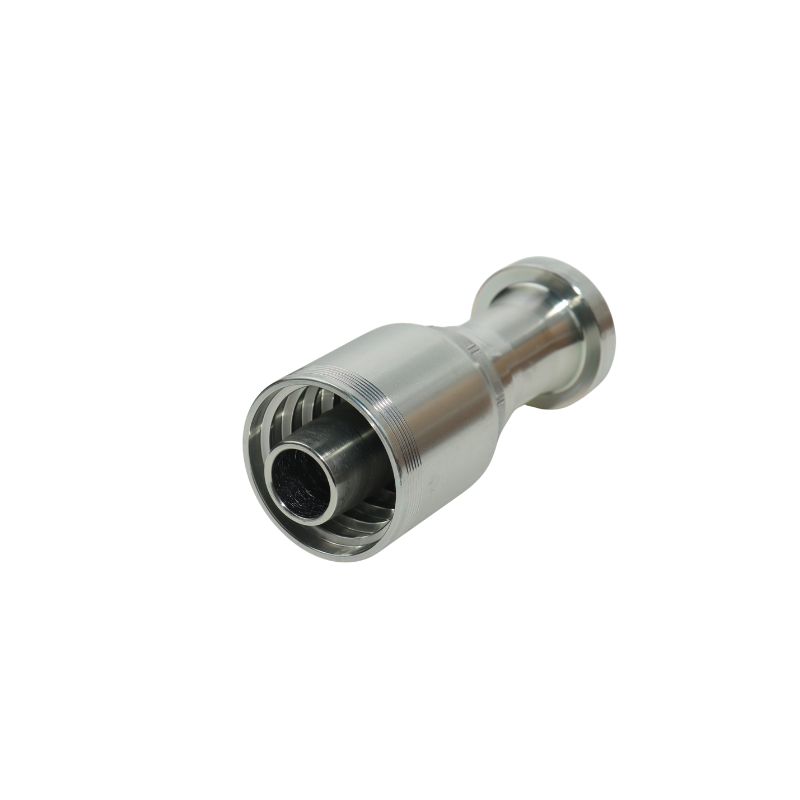

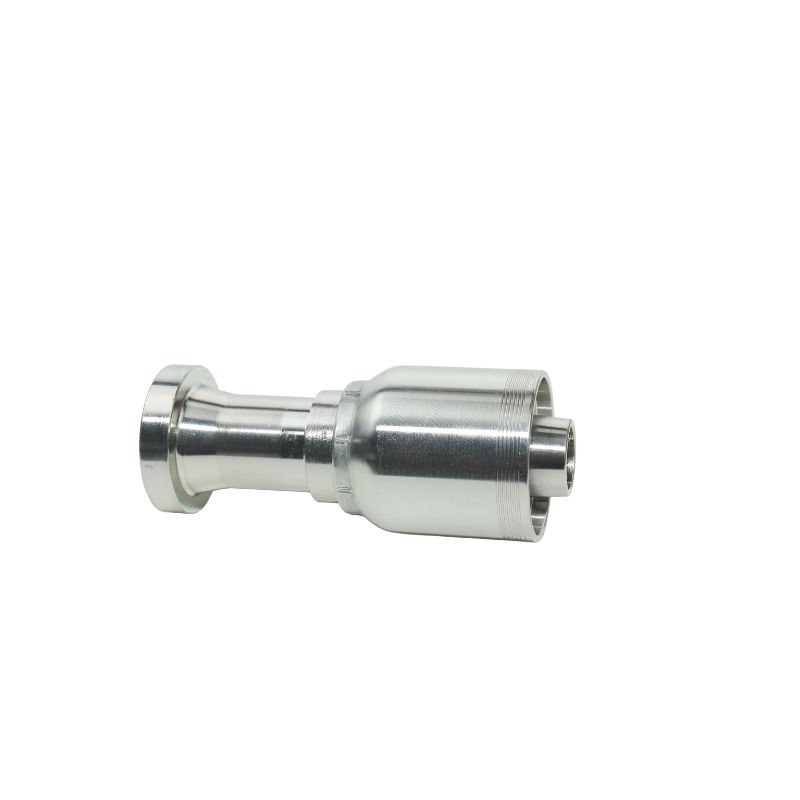

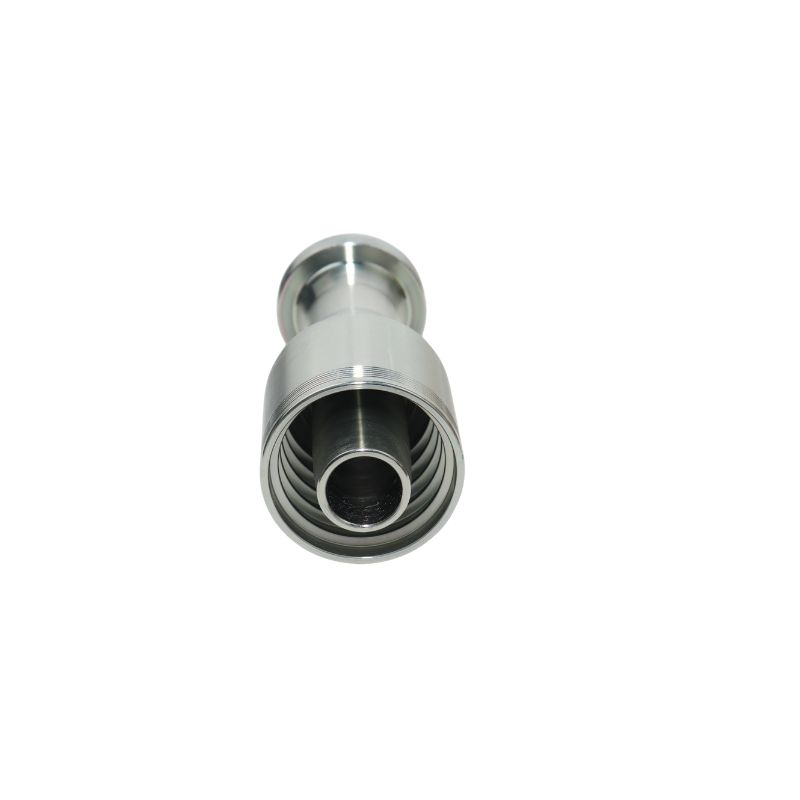

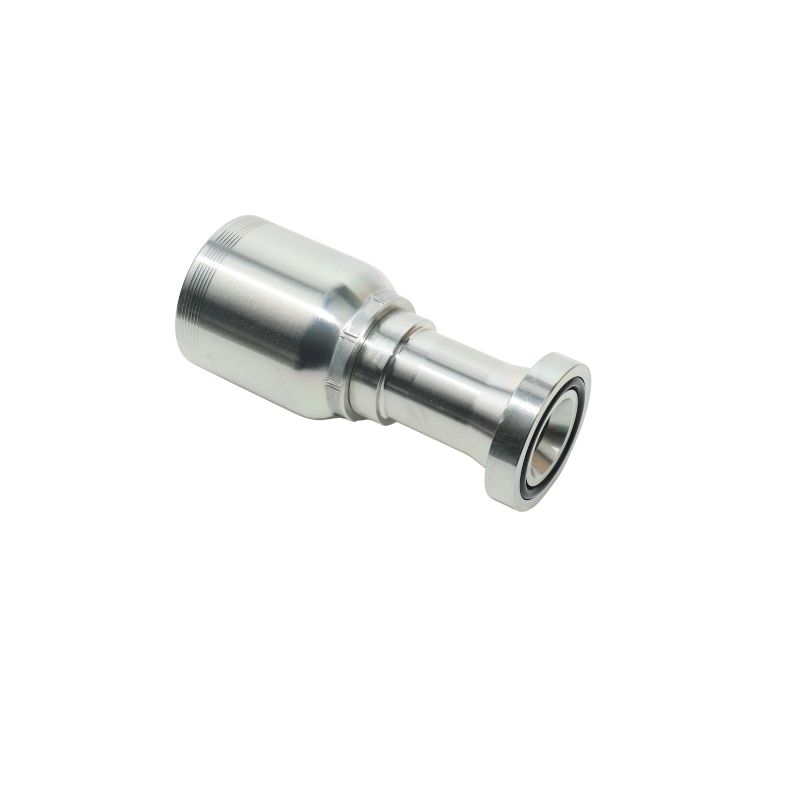

16A78 Hydraulic Hose Crimp Fittings

Topa 16A78 hydraulic hose crimp fittings provide durable Flange connection for hydraulic hoses, delivering secure, leak-free performance across diverse applications.

Explore the product’s construction details below:

Connection 1: SAE Code 62 Flange Head

Connection 2: Hose End – Designed for 6-spiral hoses

Material selection: Carbon steel; Stainless steel

Shape: Straight

Product types: Crimp Fittings – Skive or No-Skive

Applications: Construction; Agriculture; Marine; Industry; Heavy Machine;

Topa delivers reliable one-piece crimp fittings, engineered for performance, global delivery!

Description

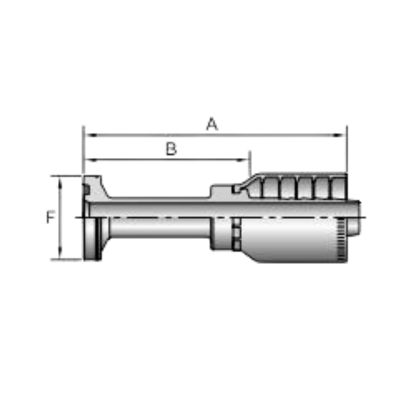

Part Number	Flange inch	Hose I.D. inch	A		F inch	B
Part Number	Flange inch	Hose I.D. inch	inch	mm	F inch	inch	mm
16A78-12-12	3/4	3/4	4.60	117	1-5/8	2.84	72
16A78-16-12	1	3/4	3.57	91	1-7/8	1.81	46
16A78-16-16	1	1	5.16	131	1-7/8	3.31	84
16A78-20-16	1-1/4	1	3.95	100	2-1/8	2.10	53
16A78-20-20	1-1/4	1-1/4	5.85	149	2-1/8	3.46	88
16A78-24-20	1-1/2	1-1/4	4.77	121	2-1/2	2.38	60
16A78-24-24	1-1/2	1-1/2	6.54	166	2-1/2	4.33	110
16A78-32-24	2	1-1/2	5.07	129	3-1/8	2.86	73

16A78 Hydraulic Hose Crimp Fittings Video

This video provides a detailed look at the Topa 16A78 hydraulic hose crimp fittings.

It highlights the product’s construction, including the high-quality carbon steel and stainless steel materials used, and the precise machining process that guarantees accurate dimensions. You will also see the surface finish and design features that ensure strong, leak-free connections in demanding hydraulic applications.

Topa’s one union hydraulic fittings are built for durability and consistent performance under high pressure and vibration. Watch the full video to understand our technical expertise—and contact Topa today to request your inquiry or order.
