1J777 Hydraulic Crimp Fitting Manufacturer

1J777 Hydraulic Crimp Fitting

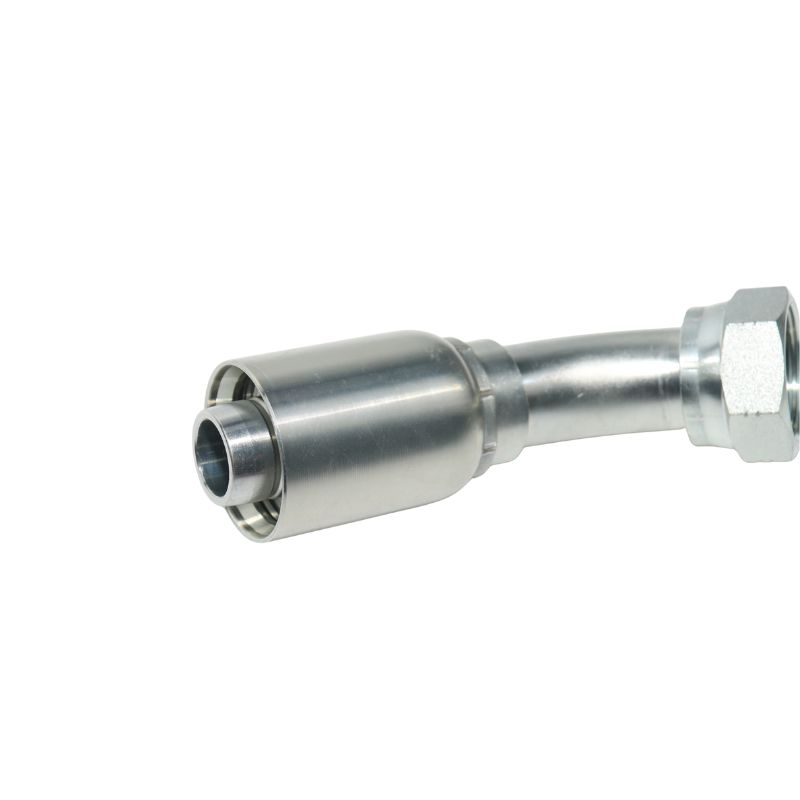

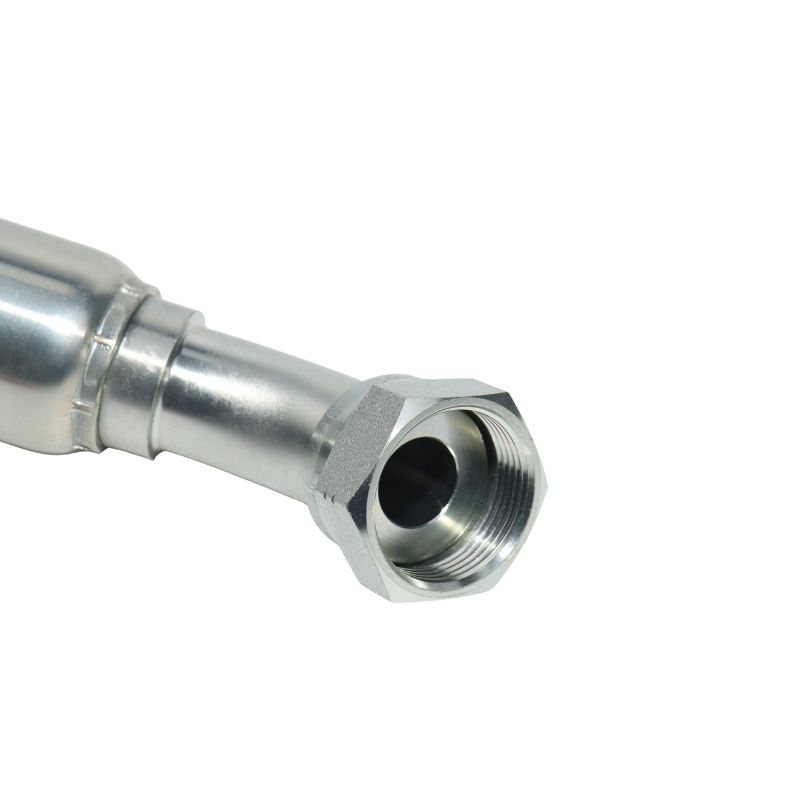

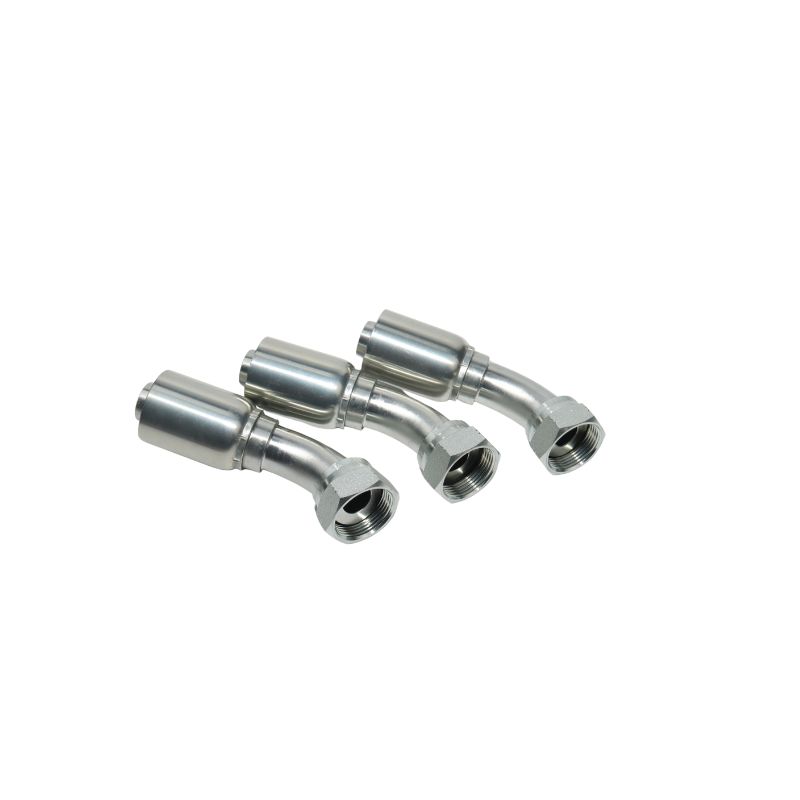

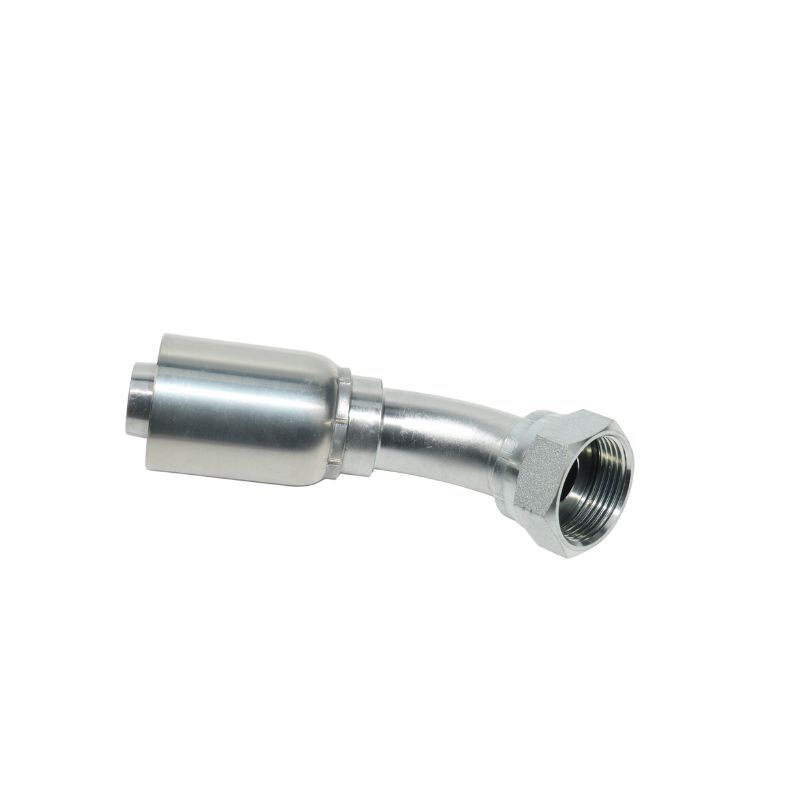

Topa 1J777 hydraulic crimp fitting provides a durable ORFS connection for hydraulic hoses, delivering secure, leak-free performance across diverse applications. Explore the product’s construction details below:

Connection 1: Female ORFS – Swivel

Connection 2: Hose End – Designed for 4-spiral hoses

Material selection: Carbon steel; Stainless steel

Shape: Elbow 45°

Product types: Crimp Fittings No-Skive

Applications: Construction；Agriculture；Marine；Industry；Heavy Machine

Topa delivers reliable one-piece crimp fittings, engineered for performance, global delivery!

Description

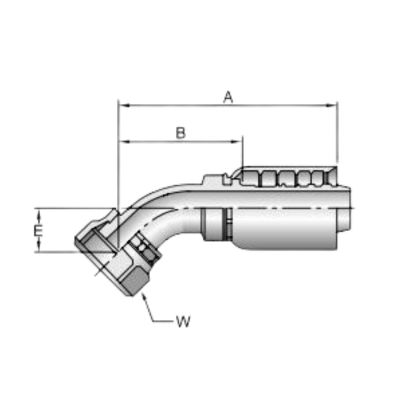

Part Number	Thread inch		Hose I.D. inch	A		E		W mm	B
Part Number	Thread inch		Hose I.D. inch	inch	mm	inch	mm	W mm	inch	mm
1J777-8-8	1/2	13/16×16	1/2	2.86	727	0.59	15	24	1.64	418
1J777-10-8	5/8	1×14	1/2	2.97	755	0.63	16	30	1.75	446
1J777-10-10	5/8	1×14	5/8	3.28	833	0.63	16	30	1.93	490
1J777-12-12	3/4	1-3/16×12	3/4	4.39	1,114	0.83	21	36	2.75	699
1J777-16-16	1	1-7/16×12	1	4.79	1,217	0.94	24	41	2.84	722
1J777-20-20	1-1/4	1-11/16×12	1-1/4	5.69	1,446	0.98	25	50	3.42	868
1J777-24-20	1-1/2	2×12	1-1/4	5.80	147,3	1.06	27	60	3.53	89,6
1J777-24-24	1-1/2	2×12	1-1/2	6.91	175,5	1.64	42	60	4.52	114,8

1J777 Hydraulic Crimp Fitting Video

This video provides a detailed look at the Topa 1J777 hydraulic crimp fitting.

It highlights the product’s construction, including the high-quality carbon steel and stainless steel materials used, and the precise machining process that guarantees accurate dimensions. You will also see the surface finish and design features that ensure strong, leak-free connections in demanding hydraulic applications.

Topa’s hydraulic crimp fittings are built for durability and consistent performance under high pressure and vibration. Watch the full video to understand our technical expertise—and contact Topa today to request your inquiry or order.
