10C77 One Piece Fittings

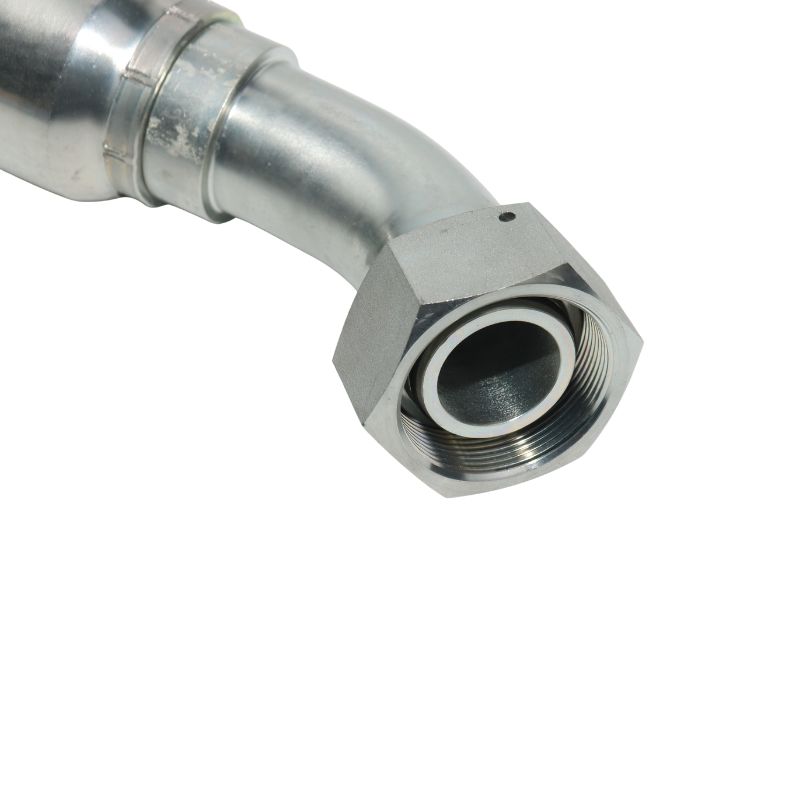

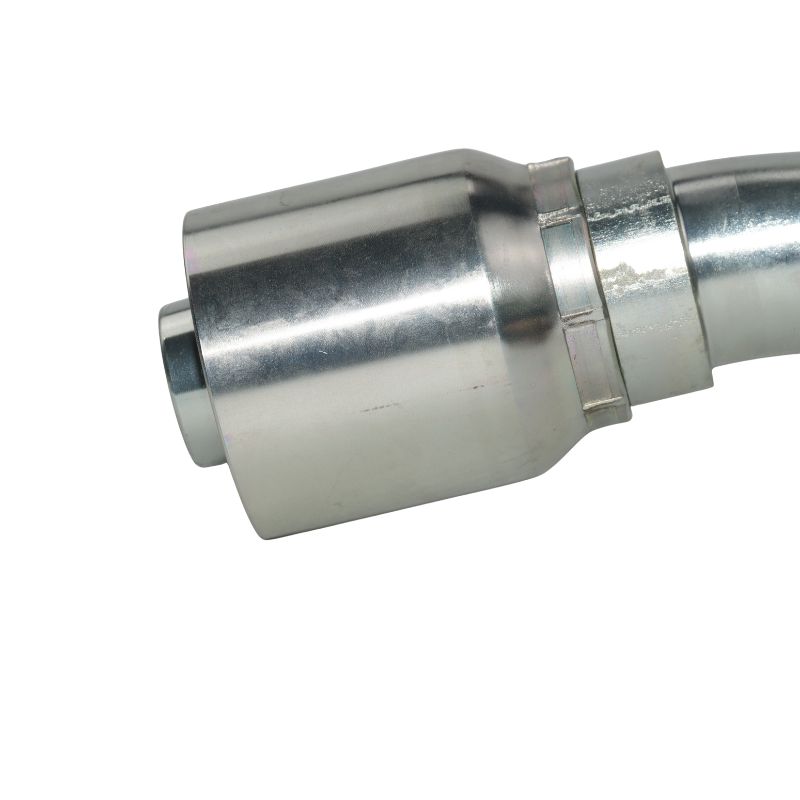

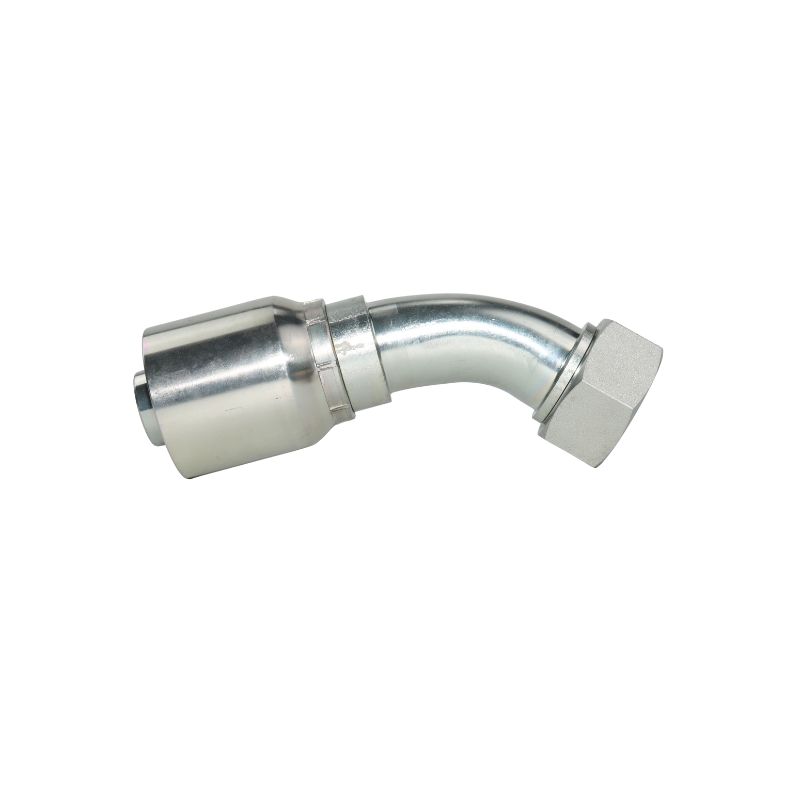

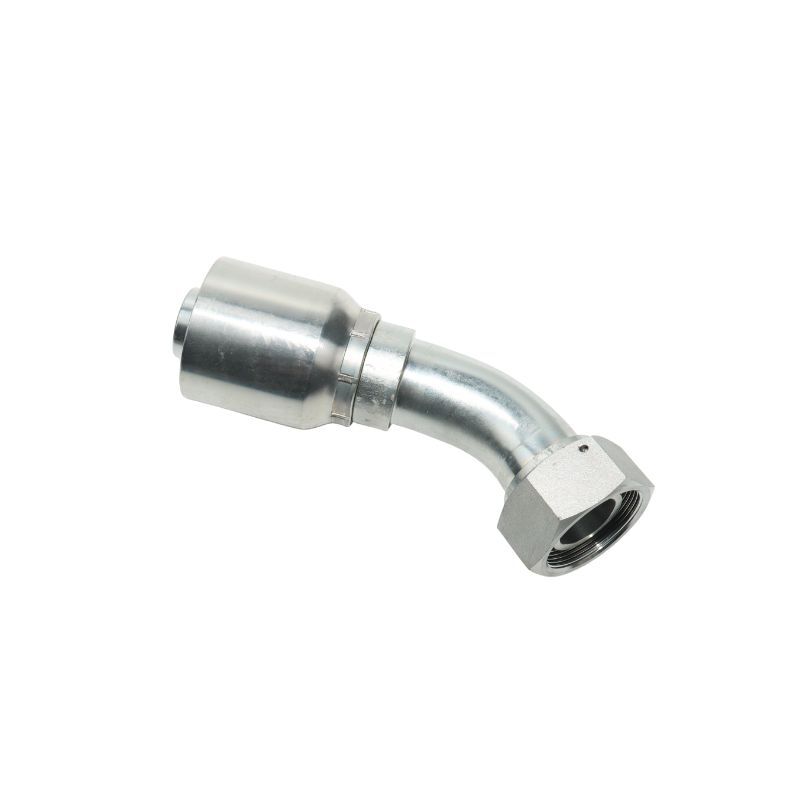

Topa 10C77 one piece fittings provide durable Metric connection for hydraulic hoses, delivering secure, leak-free performance across diverse applications. Explore the product’s construction details below:

Connection 1: Female Metric S – Swivel (24° Cone with O-Ring)

Connection 2: Hose End – Designed for 4-spiral hoses

Material selection: Carbon steel; Stainless steel

Shape: Elbow 45°

Product types: Crimp Fittings No-Skive

Applications: Marine；Industry；Heavy Machine；Oil and Gas

Power your hydraulic systems with Topa fittings—durable, precise. Request a fast quote and experience Topa service!

Description

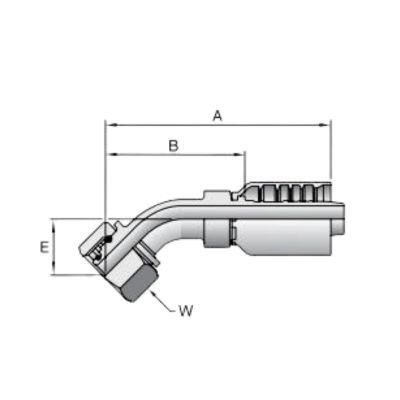

Part Number	Thread mm		Hose I.D. inch	A		E		W mm	B
Part Number	Thread mm		Hose I.D. inch	inch	mm	inch	mm	W mm	inch	mm
10C77-16-8	16	M24x1,5	1/2	3.26	829	0.93	235	30	2.04	519
10C77-20-10	20	M30x2	5/8	4.21	1,069	1.10	280	36	2.86	727
10C77-20-12	20	M30x2	3/4	4.73	1,201	1.18	300	36	3.09	786
10C77-25-12	25	M36x2	3/4	4.69	1,190	1.14	290	46	3.05	776
10C77-30-16	30	M42x2	1	5.59	1,420	1.30	330	50	3.64	925
10C77-38-20	38	M52x2	1-1/4	6.33	1,608	1.44	365	60	4.06	1,031
10C77-38-24	38	M52x2	1-1/2	7.33	1,862	1.93	490	60	4.94	1,255

10C77 One Piece Fittings Video

Discover the appearance and performance of the Topa 10C77 one piece fittings in this video.

The fitting is manufactured from premium carbon steel with stainless steel options available, ensuring both strength and corrosion resistance. Its precise design guarantees secure, leak-free connections, making it a trusted choice for demanding hydraulic systems.

Topa’s one-piece crimp fittings are already relied upon by customers worldwide for their durability, compatibility, and efficiency. Watch the video to see why Topa is the right partner for your hydraulic needs—and contact us today to request a quick quote or place your order.
