10C43 Hydraulic Crimp Fitting Manufacturer

10C43 Hydraulic Crimp Fitting

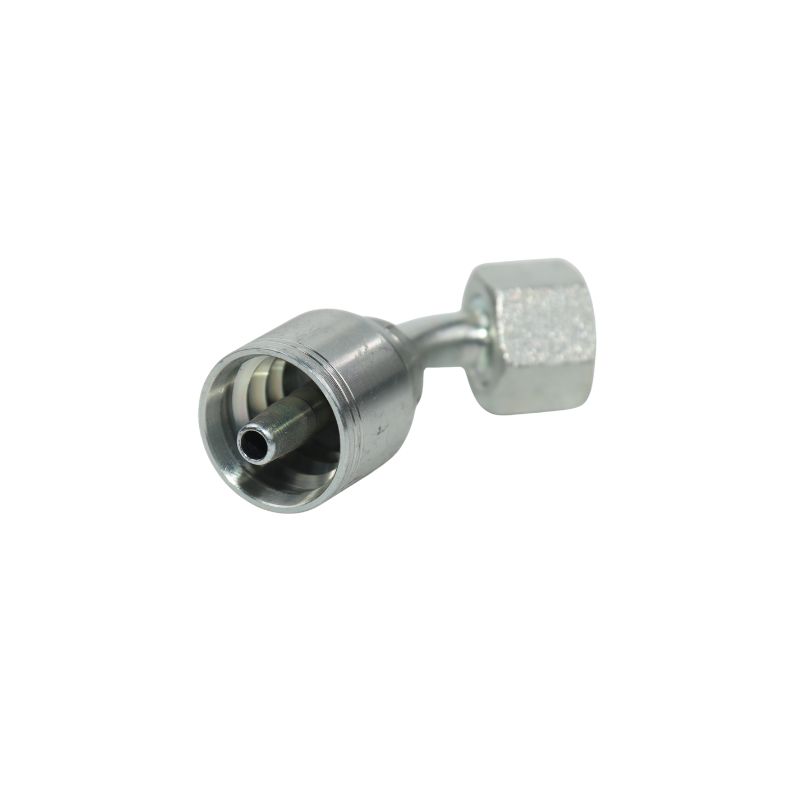

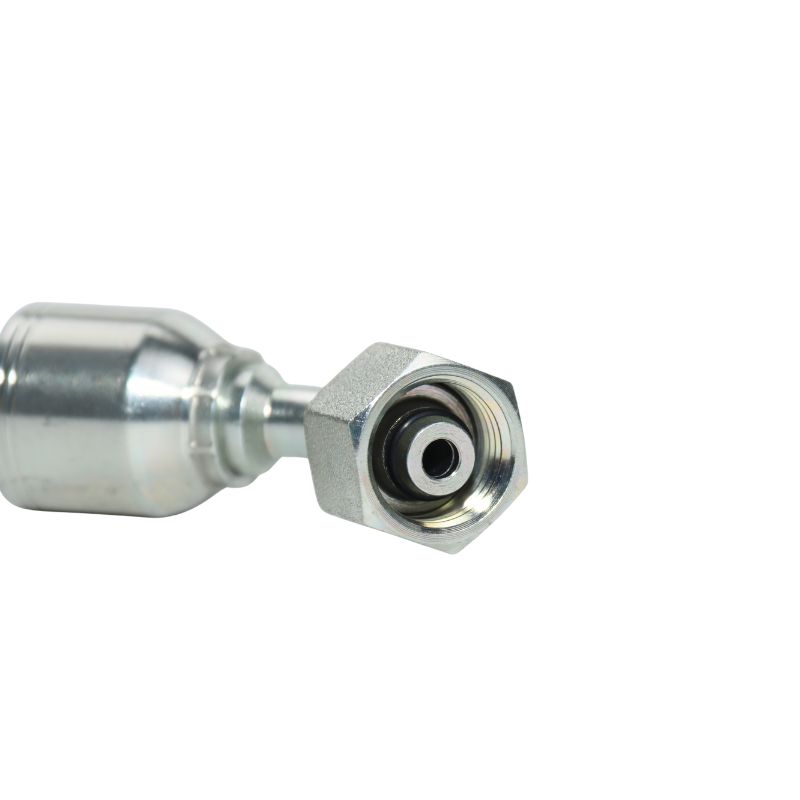

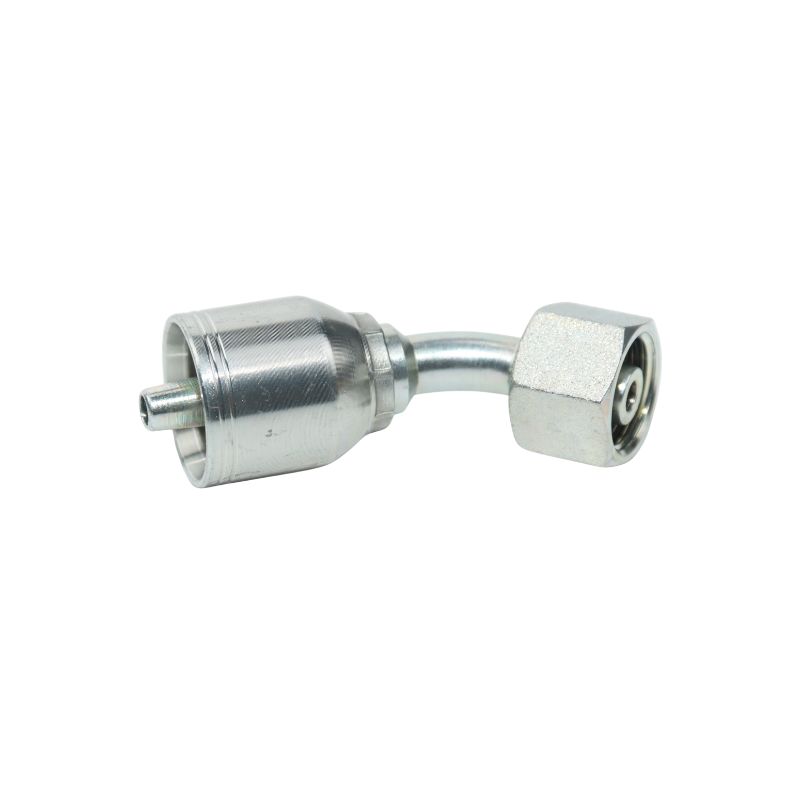

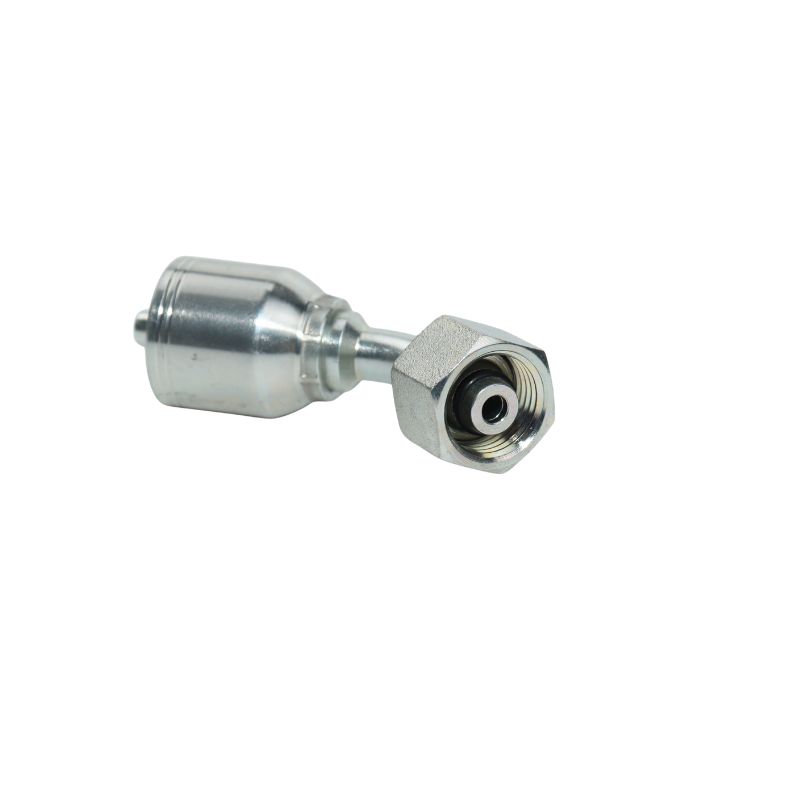

Topa 10C43 hydraulic crimp fitting is a carbon steel hydraulic hose fitting with Metric thread, ensuring accurate fit and reliable connection in hydraulic systems.

Check the construction details below:

Connection 1: Female, Metric S, Swivel, 24° Cone (with O-Ring)

Connection 2: Hose End – Designed for 1-wire/2-wire braided hydraulic hoses

Material selection: Carbon steel; Stainless steel

Shape: 45° Elbow

Product types: Crimp Fittings – Skive or No-Skive

Applications: Construction; Agriculture; Marine; Industry; Oil and Gas;

Power your hydraulic systems with Topa fittings—durable, precise. Request a fast quote and experience Topa service!

Description

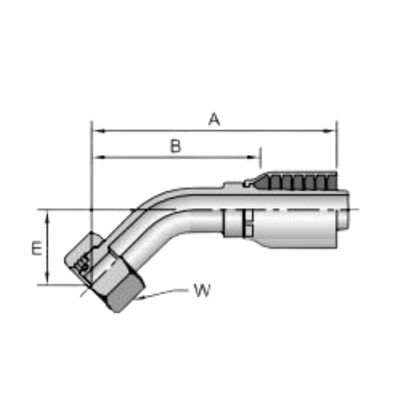

Part Number	Thread mm		Hose I.D. inch	A		E		W	B
Part Number	Thread mm		Hose I.D. inch	inch	mm	inch	mm	mm	inch	mm
10C43-8-4	8	M16x1,5	1/4	2.32	59	0.63	16	19	1.38	35
10C43-12-5	12	M20x1,5	5/16	2.80	71	0.67	17	24	1.85	47
10C43-12-6	12	M20x1,5	3/8	2.72	69	0.79	20	24	1.57	40
10C43-16-8	16	M24x1,5	1/2	3.23	82	0.94	24	30	1.89	48
10C43-20-10	20	M30x2	5/8	3.58	91	0.98	25	36	2.05	52
10C43-20-12	20	M30x2	3/4	3.94	100	1.14	29	36	2.36	60
10C43-25-12	25	M36x2	3/4	3.97	101	1.18	30	46	2.40	61
10C43-30-16	30	M42x2	1	4.96	126	1.42	36	50	3.11	79
10C43-38-20^^	38	M52x2	1-1/4	5.59	142	1.50	38	60	3.74	95

10C43 Hydraulic Crimp Fitting Video

Discover the appearance and performance of the Topa 10C43 hydraulic crimp fitting in this video.

The fitting is manufactured from premium carbon steel with stainless steel options available, ensuring both strength and corrosion resistance. Its precise design guarantees secure, leak-free connections, making it a trusted choice for demanding hydraulic systems.

Topa’s hydraulic crimp fittings are already relied upon by customers worldwide for their durability, compatibility, and efficiency. Watch the video to see why Topa is the right partner for your hydraulic needs—and contact us today to request a quick quote or place your order.
