1MU43 Crimp Style Hydraulic Hose Fitting Factory

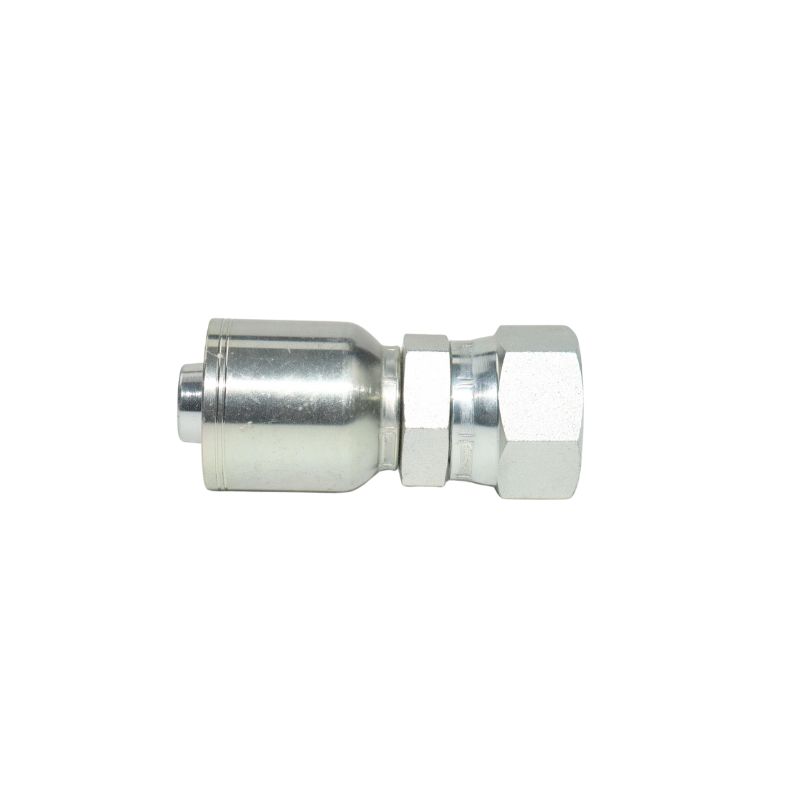

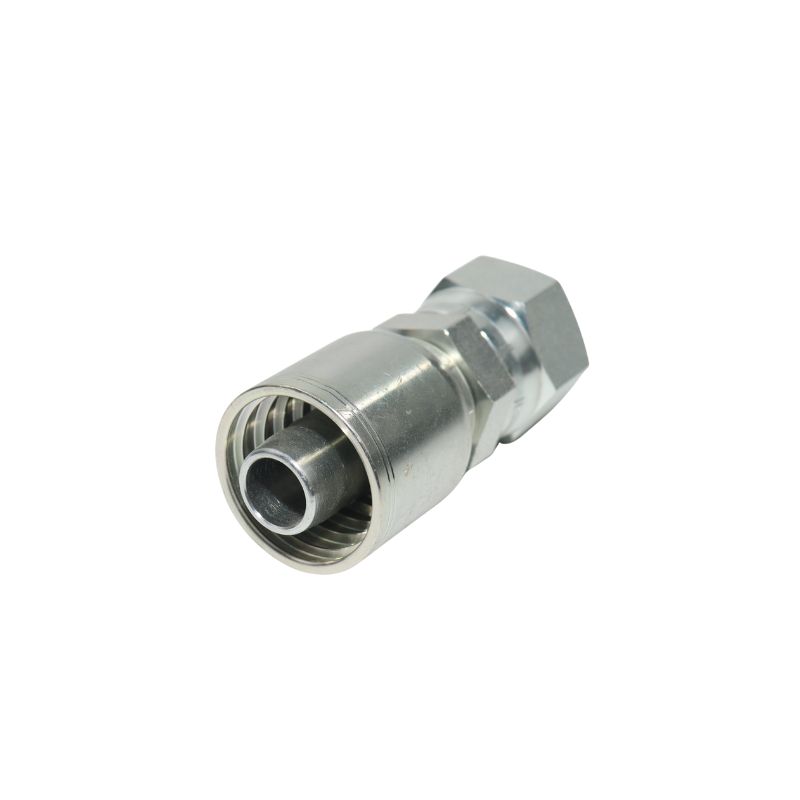

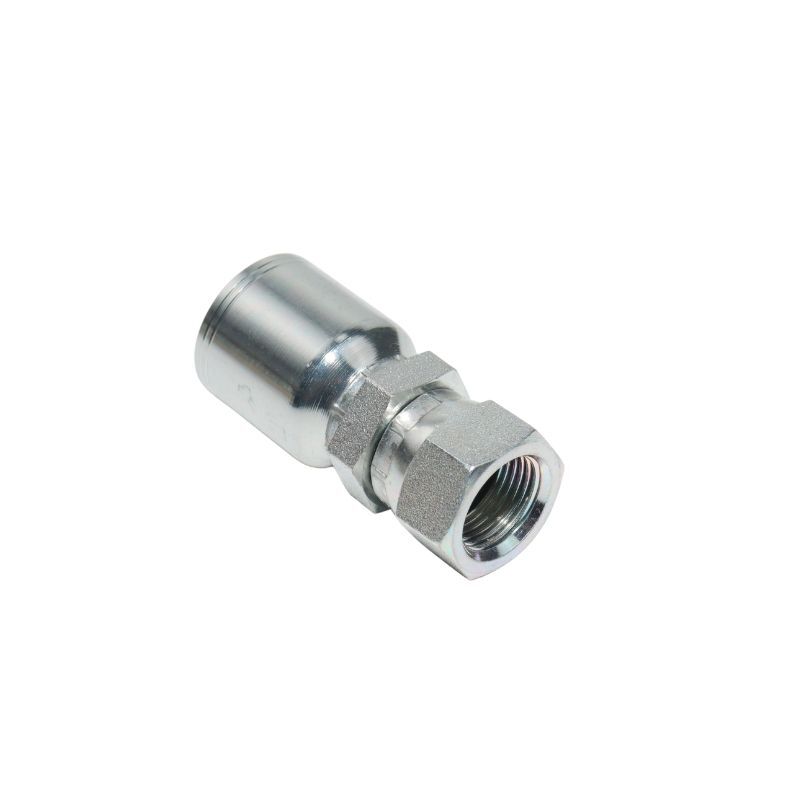

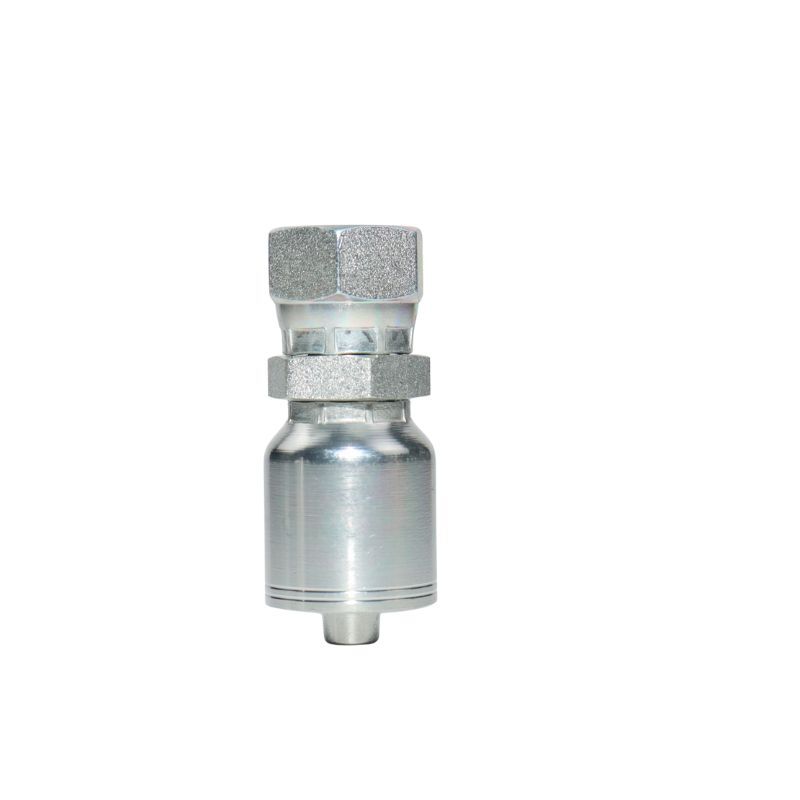

1MU43 Crimp Style Hydraulic Hose Fitting

Topa 1MU43 crimp style hydraulic hose fitting provides a durable Metric connection for hydraulic hoses, delivering secure, leak-free performance across diverse applications.

Explore the product’s construction details below:

Connection 1: Female Metric Swivel – (30° Flare)

Connection 2: Hose End – Designed for 1-wire/2-wire braided hydraulic hoses

Material selection: Carbon steel; Stainless steel

Shape: Straight

Product types: Crimp Fittings – Skive or No-Skive

Applications: Agriculture; Marine; Industry; Heavy Machine; Oil and Gas;

Looking for trusted hydraulic fittings? Topa offers precision-made crimp solutions, standard or customized. Quote today!

Description

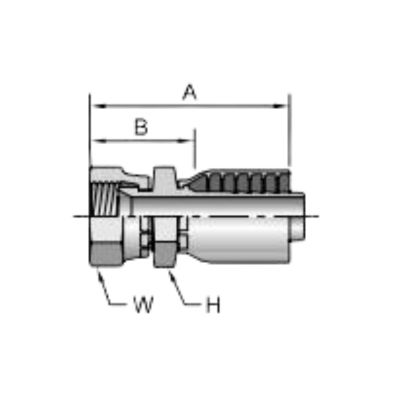

Part Number	Thread mm	Hose I.D. inch	A		H	W	B
Part Number	Thread mm	Hose I.D. inch	inch	mm	mm	mm	inch	mm
1MU43-4-4	M14x1,5	1/4	2.07	53	19	19	1.32	34
1MU43-6-4	M18x1,5	1/4	2.18	55	24	24	1.43	36
1MU43-6-6	M18x1,5	3/8	2.45	62	24	24	1.42	36
1MU43-8-8	M22x1,5	1/2	2.84	72	27	27	1.58	40

1MU43 Crimp Style Hydraulic Hose Fitting Video

See the Topa 1MU43 crimp style hydraulic hose fitting up close in this short video.

The video gives you a clear view of its structure, thread type, and material quality, allowing you to quickly understand the product’s design and function. Both carbon steel and stainless steel options are available, ensuring reliable performance in different environments.

Topa’s crimp style hydraulic hose fittings are built for secure, leak-free connections and proven durability in hydraulic systems. Watch now to see the details for yourself, and request a quick quote from Topa today to get the right fittings for your business.
