1UT43 One Piece Fittings Manufacturer-Topa

1UT43 One Piece Fittings

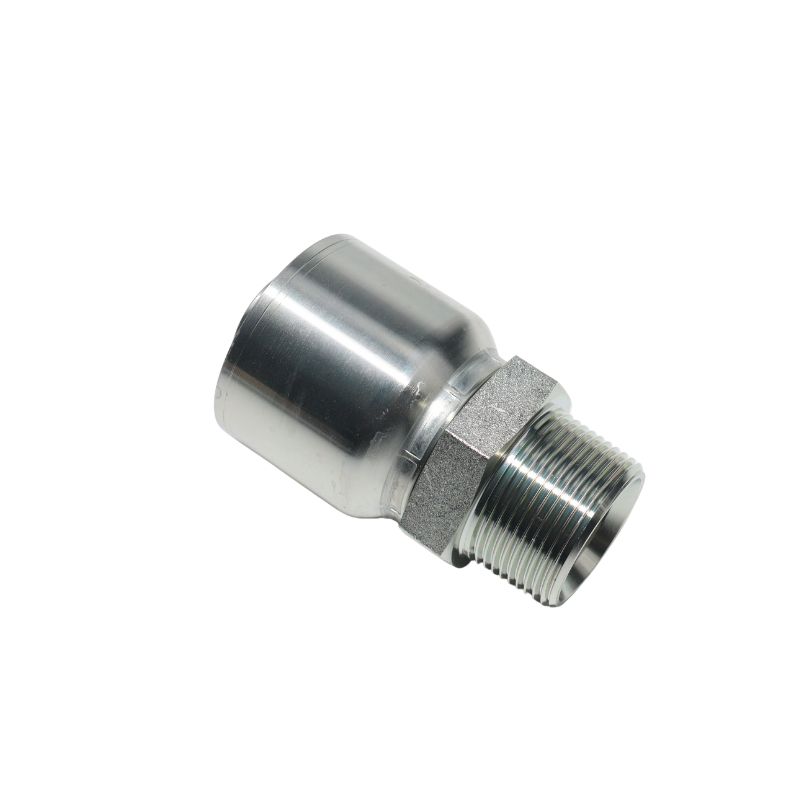

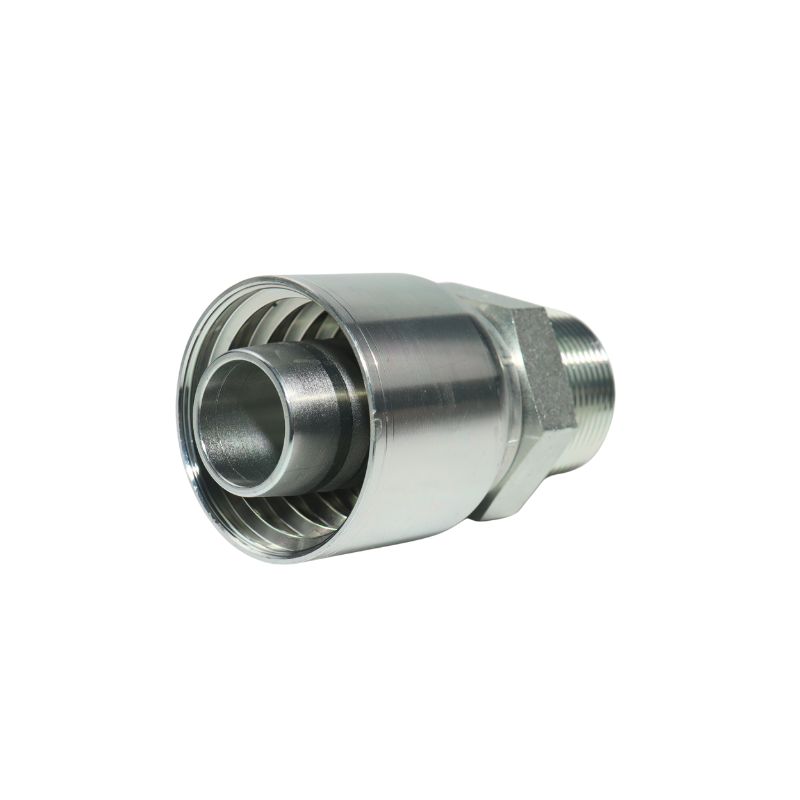

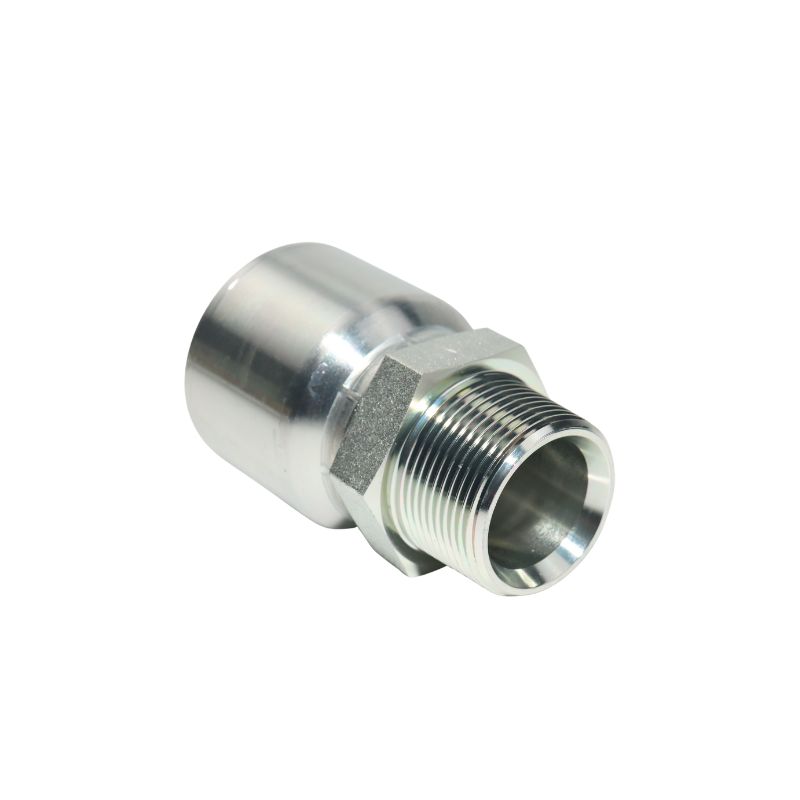

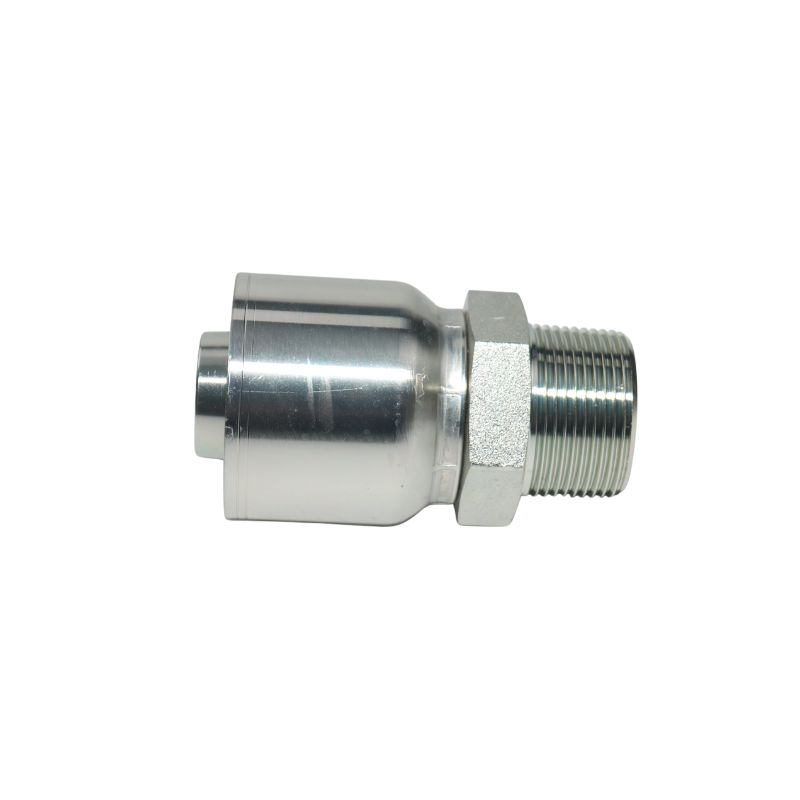

Topa 1UT43 BSP one piece fittings are carbon steel hydraulic hose fitting with BSP thread, ensuring accurate fit and reliable connection in hydraulic systems. Check the construction details below:

Connection 1: Male BSP Taper Pipe – Rigid – (60° Cone)

Connection 2: Hose End – Designed for 2-wire braid hoses

Material selection: Carbon steel; Stainless steel

Shape: Straight

Product types: Crimp Fittings No-Skive

Applications: Agriculture, Construction,Oil and Gas, Mining

Power your hydraulic systems with Topa fittings—durable, precise. Request a fast quote and experience Topa service!

Description

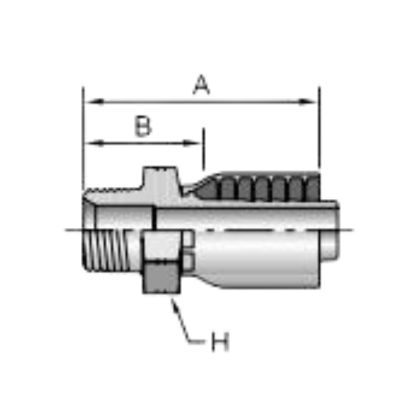

Part Number	Thread inch	Hose I.D. inch	A		H	B
Part Number	Thread inch	Hose I.D. inch	inch	mm	mm	inch	mm
1UT43-4-4	1/4×19	1/4	1.92	49	19	1.17	30
1UT43-6-6	3/8×19	3/8	2.25	57	22	1.22	31
1UT43-8-8	1/2×14	1/2	2.68	68	27	1.42	36
1UT43-12-12	3/4×14	3/4	2.96	75	36	1.53	39
1UT43-16-16	1×11	1	3.48	88	41	1.86	47
1UT43-20-20	1-1/4×11	1-1/4	3.75	95	50	2.10	53

1UT43 One Piece Fittings Video

This video provides a detailed look at the Topa 1UT43 one piece fittings.

It highlights the product’s construction, including the high-quality carbon steel and stainless steel materials used, and the precise machining process that guarantees accurate dimensions. You will also see the surface finish and design features that ensure strong, leak-free connections in demanding hydraulic applications.

Topa’s hydraulic crimp fittings are built for durability and consistent performance under high pressure and vibration. Watch the full video to understand our technical expertise—and contact Topa today to request your inquiry or order.
