1B243 Hydraulic Crimp Fittings

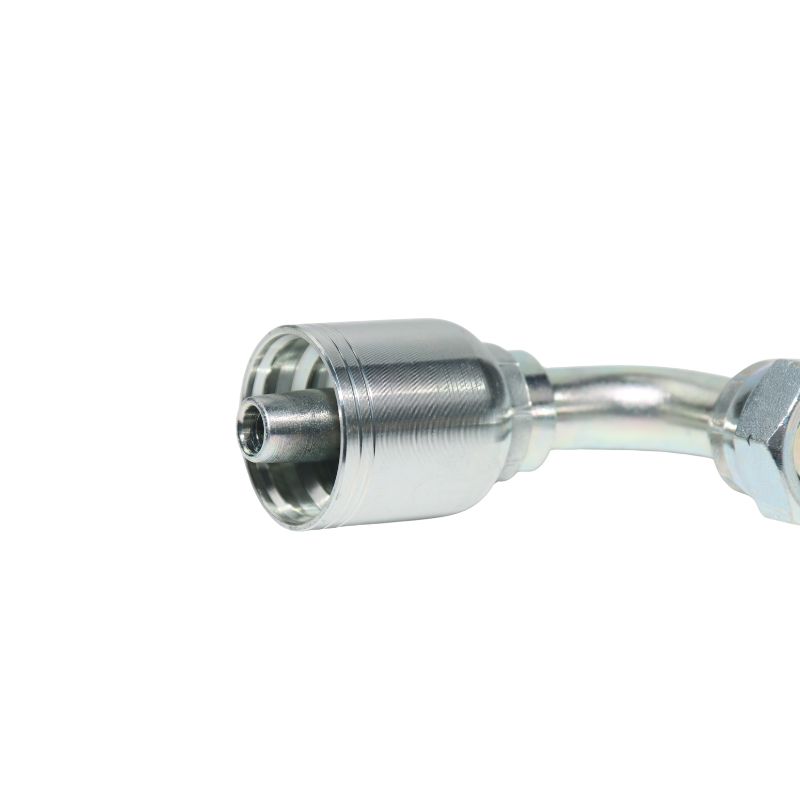

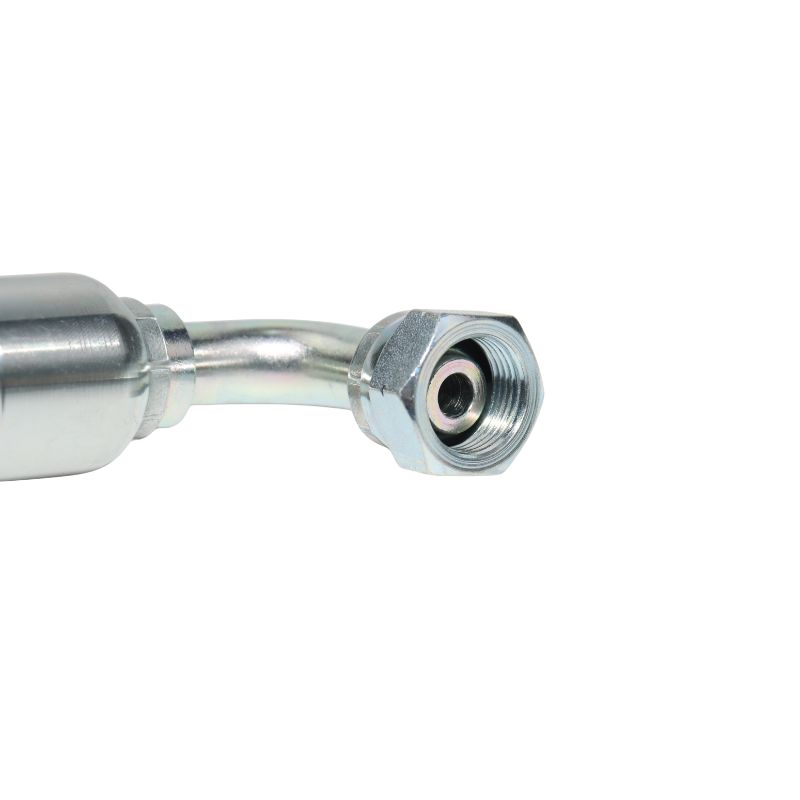

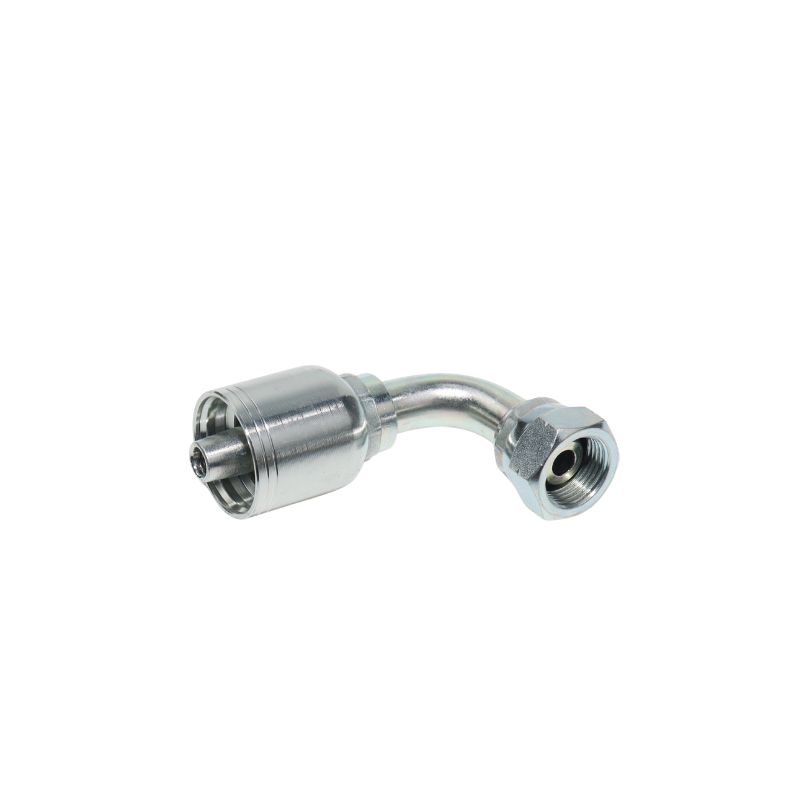

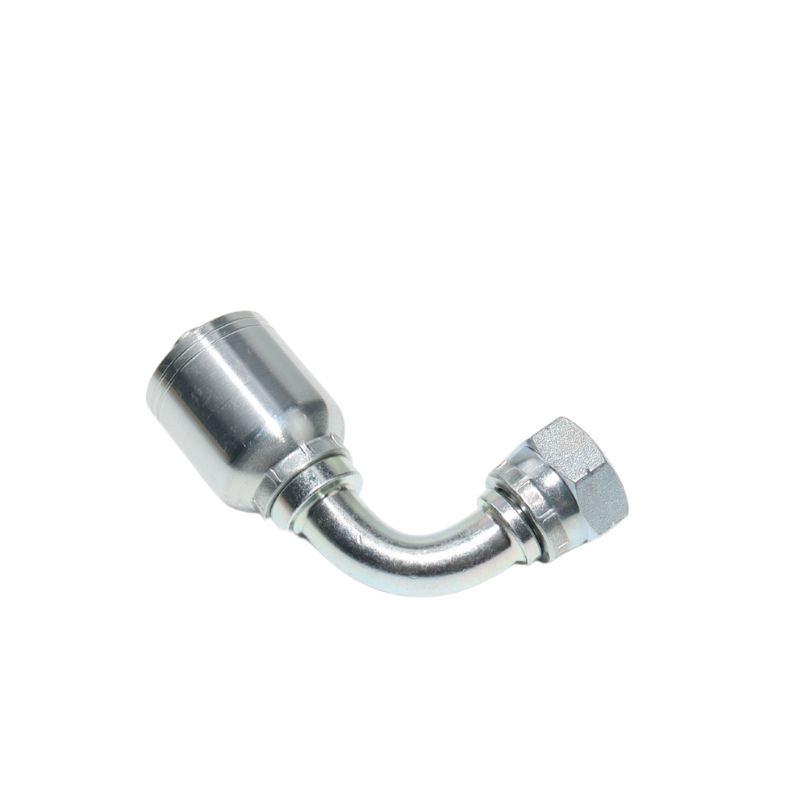

Topa 1B243 BSP hydraulic crimp fittings are carbon steel hydraulic hose fitting with BSP thread, ensuring accurate fit and reliable connection in hydraulic systems. Check the construction details below:

Connection 1: Female BSP Parallel Pipe – Swivel (60° Cone)

Connection 2: Hose End – Designed for 2-wire braid hoses

Material selection: Carbon steel; Stainless steel

Shape: Elbow 90°

Product types: Crimp Fittings No-Skive

Applications: Agriculture, Construction, Industrial Machinery, Oil & Gas

Topa delivers reliable one-piece crimp fittings, engineered for performance, global delivery!

Description

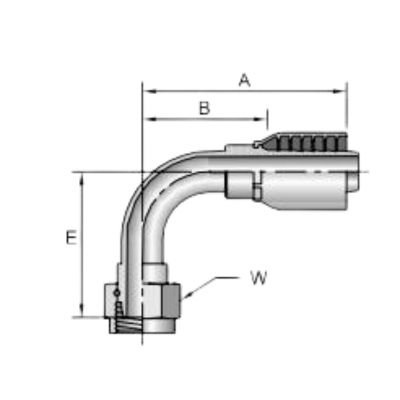

Part Number	Thread inch	Hose I.D. inch	A		E		W	B
Part Number	Thread inch	Hose I.D. inch	inch	mm	inch	mm	mm	inch	mm
1B243-2-4	1/8×28	1/4	1.97	50	1.10	28	14	1.02	26
1B243-4-4	1/4×19	1/4	1.83	46	1.12	28	19	1.08	27
1B243-6-6	3/8×19	3/8	2.32	59	1.46	37	22	1.32	34
1B243-8-6	1/2×14	3/8	2.60	66	1.38	35	27	1.46	37
1B243-8-8	1/2×14	1/2	2.95	75	1.57	40	27	1.57	40
1B243-10-8	5/8×14	1/2	2.91	74	1.57	40	30	1.54	39
1B243-10-10	5/8×14	5/8	3.13	80	1.57	40	30	1.72	44
1B243-12-10	3/4×14	5/8	3.62	92	2.32	59	32	2.05	52
1B243-12-12	3/4×14	3/4	3.58	91	2.32	59	32	2.00	51
1B243-16-16	1×11	1	4.33	110	2.48	63	41	2.56	65
1B243-20-20	1-1/4×11	1-1/4	4.72	120	2.99	76	50	2.87	73

1B243 Hydraulic Crimp Fittings Video

Discover the appearance and performance of the Topa 1B243 BSP hydraulic crimp fitting in this video.

The fitting is manufactured from premium carbon steel with stainless steel options available, ensuring both strength and corrosion resistance. Its precise design guarantees secure, leak-free connections, making it a trusted choice for demanding hydraulic systems.

Topa’s one union crimp fittings are already relied upon by customers worldwide for their durability, compatibility, and efficiency. Watch the video to see why Topa is the right partner for your hydraulic needs—and contact us today to request a quick quote or place your order.
