1D243 Crimp on Hydraulic Fittings Manufacturer

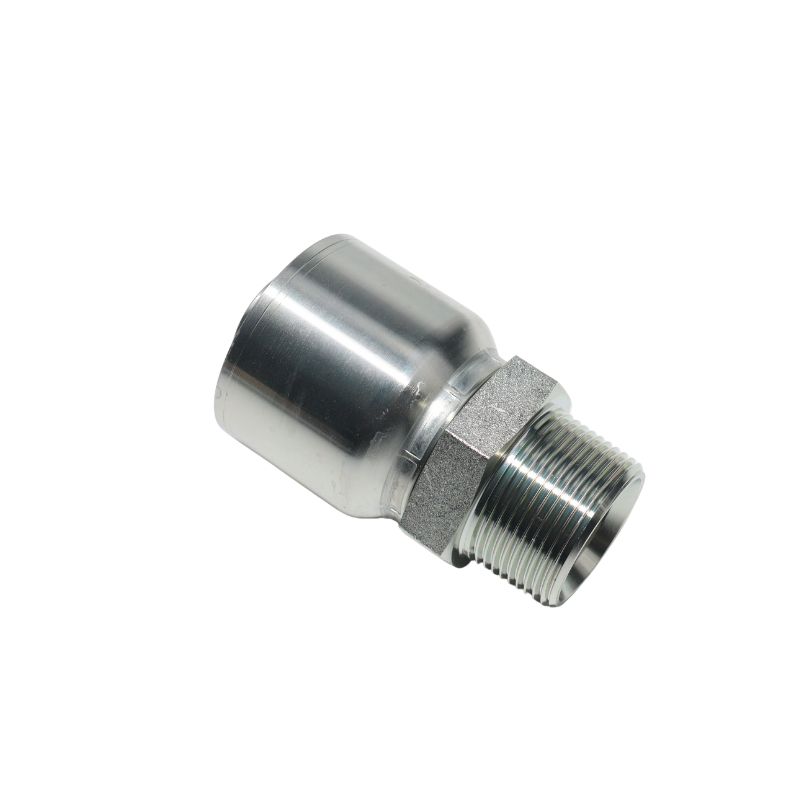

1D243 Crimp on Hydraulic Fittings

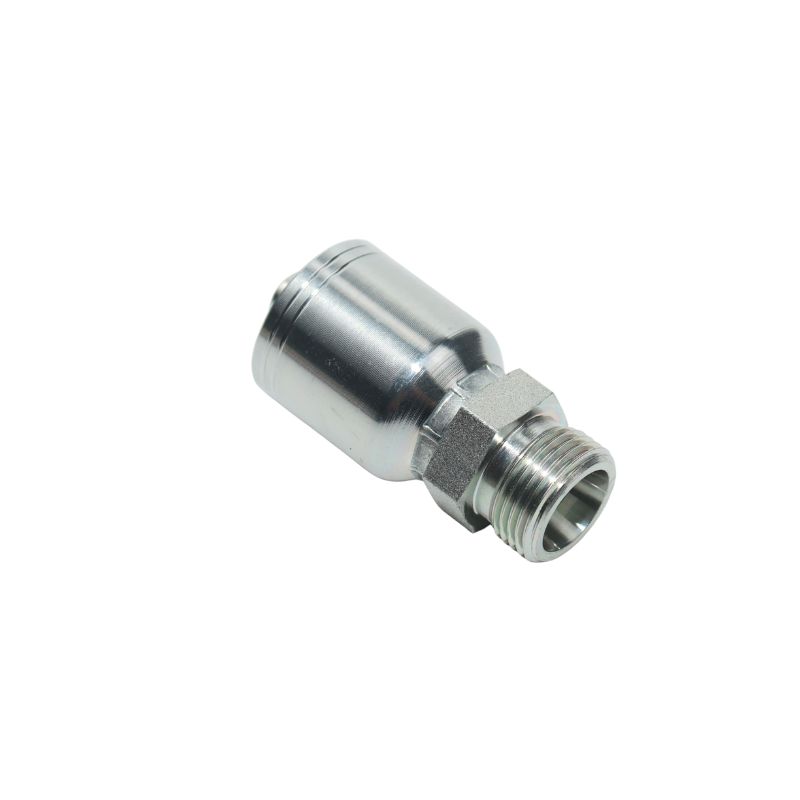

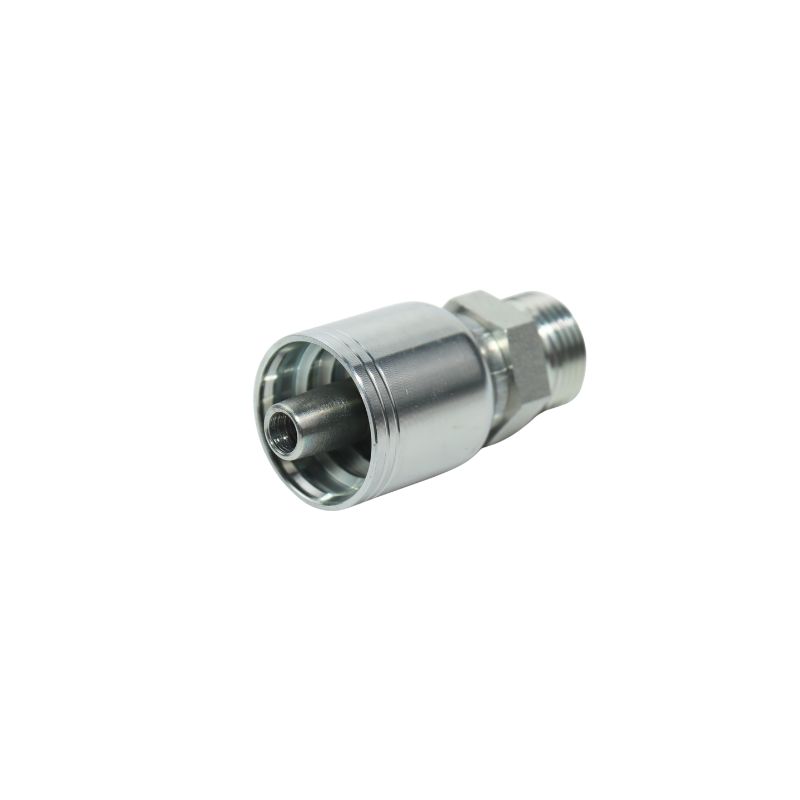

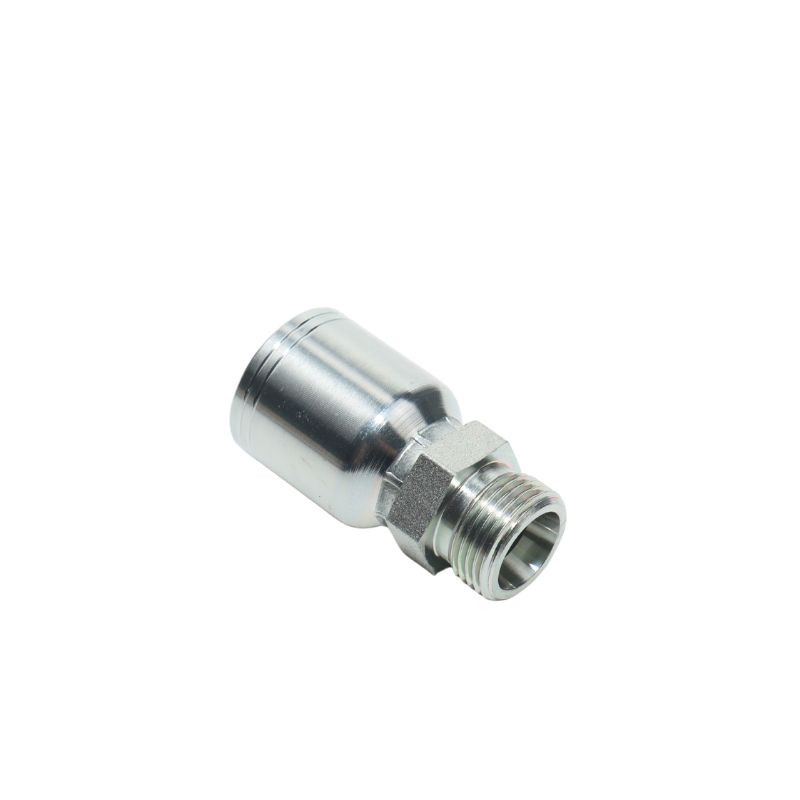

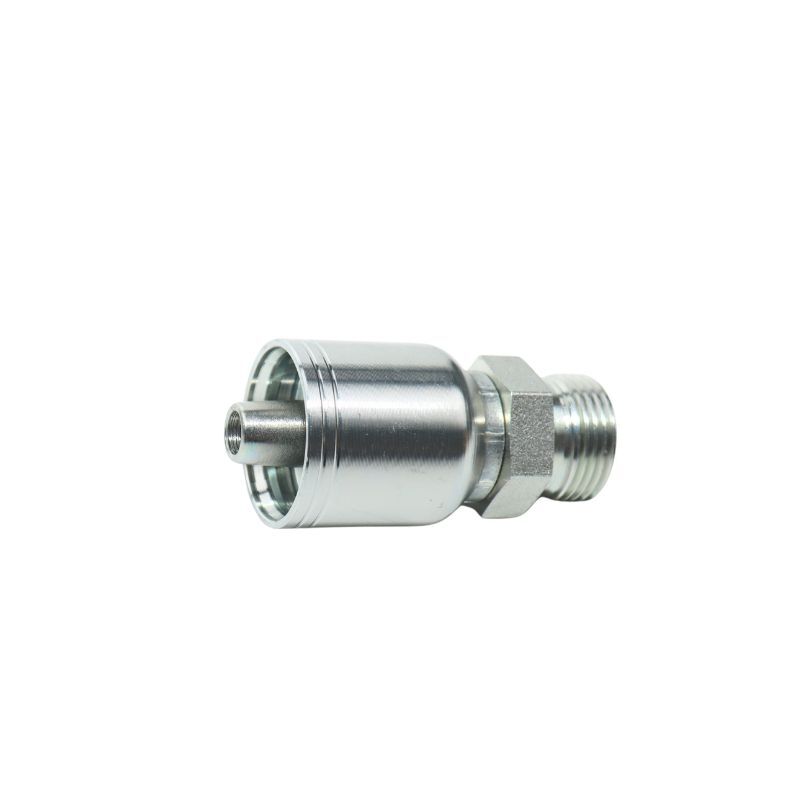

Topa 1D243 crimp on hydraulic fittings provide durable Metric connection for hydraulic hoses, delivering secure, leak-free performance across diverse applications.

Explore the product’s construction details below:

Connection 1: Male Metric S – Rigid (24° Cone)

Connection 2: Hose End – Designed for 1-wire/2-wire braided hydraulic hoses

Material selection: Carbon steel; Stainless steel

Shape: Straight

Product types: Crimp Fittings – Skive or No-Skive

Applications: Construction; Marine; Industry; Heavy Machine; Oil and Gas;

Topa delivers reliable one-piece crimp fittings, engineered for performance, global delivery!

Description

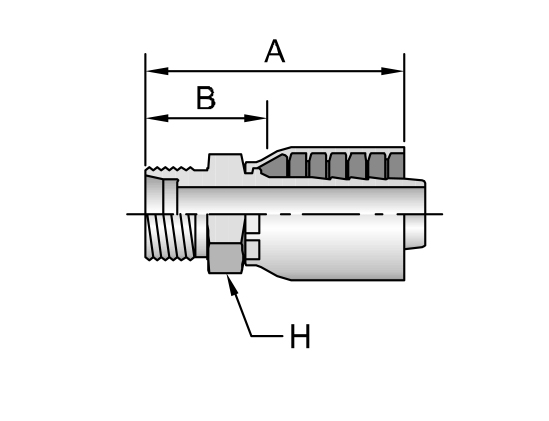

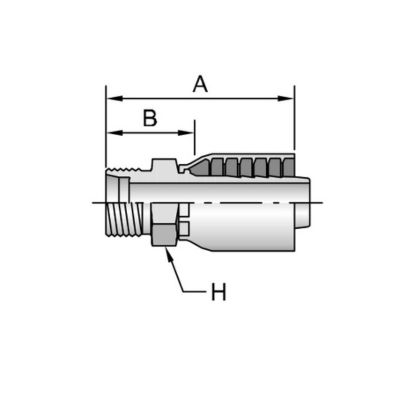

Part Number	Thread mm		Hose I.D. inch	A		H	B
Part Number	Thread mm		Hose I.D. inch	inch	mm	mm	inch	mm
1D243-8-4	8	M16x1,5	1/4	1.73	44	17	0.87	22
1D243-10-4	10	M18x1,5	1/4	1.73	44	19	0.87	22
1D243-12-5	12	M20x1,5	5/16	2.20	56	22	1.29	33
1D243-12-6	12	M20x1,5	3/8	1.97	50	22	1.02	26
1D243-14-6	14	M22x1,5	3/8	2.17	55	22	0.98	25
1D243-16-8	16	M24x1,5	1/2	2.36	60	24	1.17	30
1D243-20-10	20	M30x2	5/8	2.95	75	30	1.44	37
1D243-25-12	25	M36x2	3/4	2.87	73	36	1.30	33
1D243-30-16	30	M42x2	1	3.39	86	46	1.54	39

1D243 Crimp on Hydraulic Fittings Video

Discover the appearance and performance of the Topa 1D243 crimp on hydraulic fittings in this video.

The fitting is manufactured from premium carbon steel with stainless steel options available, ensuring both strength and corrosion resistance. Its precise design guarantees secure, leak-free connections, making it a trusted choice for demanding hydraulic systems.

Topa’s hydraulic crimp fittings are already relied upon by customers worldwide for their durability, compatibility, and efficiency. Watch the video to see why Topa is the right partner for your hydraulic needs—and contact us today to request a quick quote or place your order.
