1XU43 Metric Hydraulic Crimp Fittings

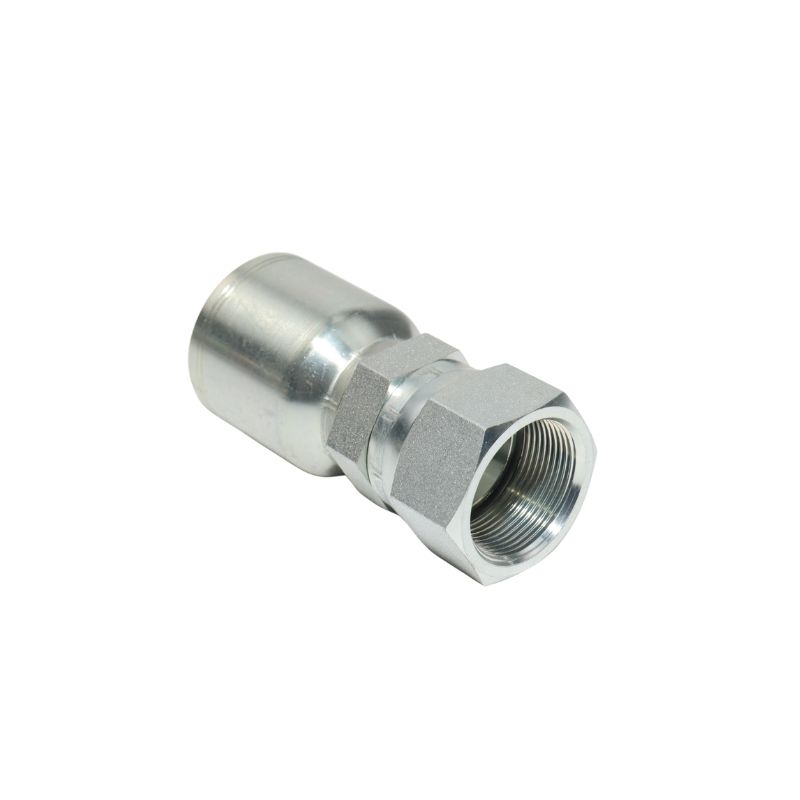

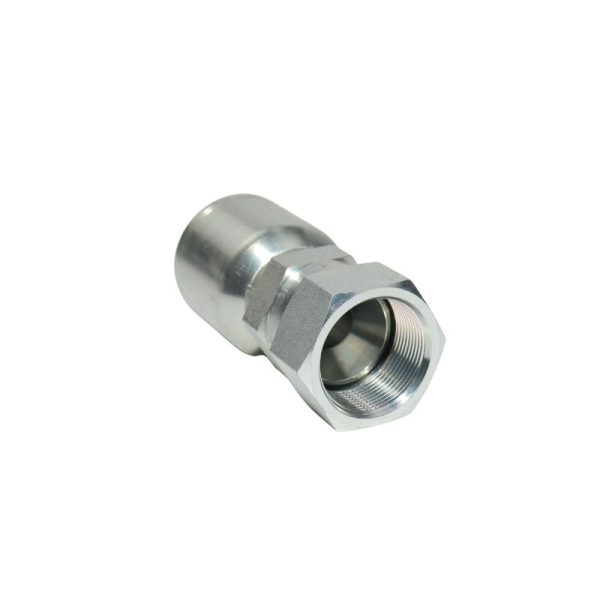

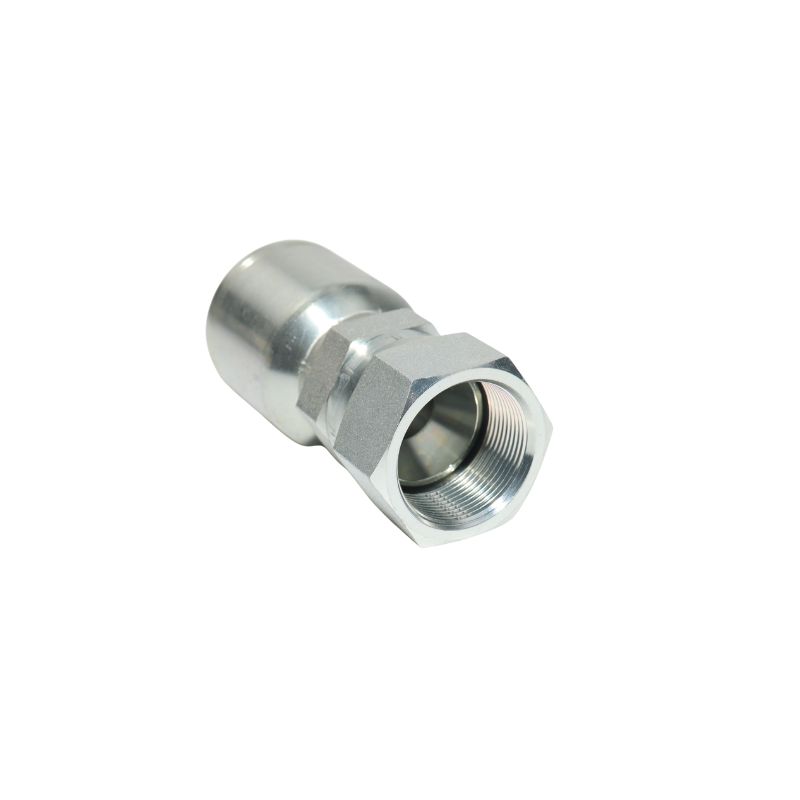

Topa 1XU43 metric hydraulic crimp fittings are carbon steel hydraulic hose fitting with Metric thread, ensuring accurate fit and reliable connection in hydraulic systems.

Check the construction details below:

Connection 1: Female Metric Swivel – (30° Flare)

Connection 2: Hose End – Designed for 1-wire/2-wire braided hydraulic hoses

Material selection: Carbon steel; Stainless steel

Shape: Straight

Product types: Crimp Fittings – Skive or No-Skive

Applications: Construction; Agriculture; Marine; Industry; Heavy Machine;

Looking for trusted hydraulic fittings? Topa offers precision-made crimp solutions, standard or customized. Quote today!

Description

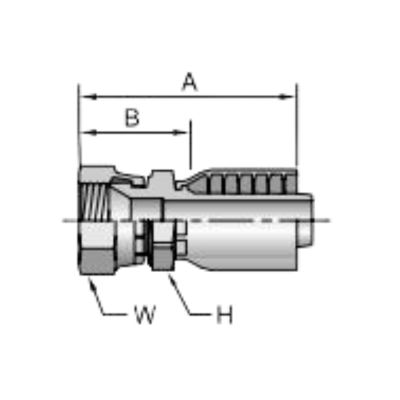

Part Number	Thread mm	Hose I.D. inch	A		H mm	W mm	B
Part Number	Thread mm	Hose I.D. inch	inch	mm	H mm	W mm	inch	mm
1XU43-10-10	M24x1,5	5/8	3.25	83	30	32	1.81	46
1XU43-12-12	M30x1,5	3/4	3.40	86	32	36	1.96	50
1XU43-16-16	M33x1,5	1	4.03	102	36	41	2.41	61
1XU43-20-20	M36x1,5	1-1/4	4.19	106	46	46	2.50	64
1XU43-24-24	M42x1,5	1-1/2	4.12	105	50	55	2.75	70

1XU43 Metric Hydraulic Crimp Fittings Video

This video provides a detailed look at the Topa 1XU43 metric hydraulic crimp fittings.

It highlights the product’s construction, including the high-quality carbon steel and stainless steel materials used, and the precise machining process that guarantees accurate dimensions. You will also see the surface finish and design features that ensure strong, leak-free connections in demanding hydraulic applications.

Topa’s one union hydraulic fittings are built for durability and consistent performance under high pressure and vibration. Watch the full video to understand our technical expertise—and contact Topa today to request your inquiry or order.
