1XN77 Crimp Style Hydraulic Hose Fitting

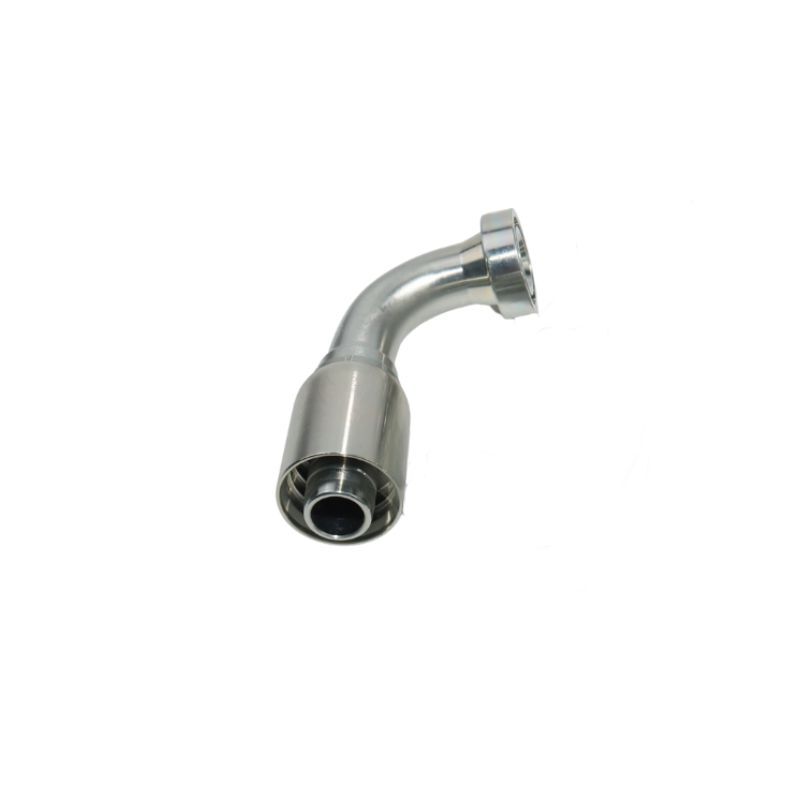

Topa 1XN77 crimp style hydraulic hose fitting is a carbon steel hydraulic hose fitting with Flange thread, ensuring accurate fit and reliable connection in hydraulic systems.

Check the construction details below:

Connection 1: Flange

Connection 2: Hose End – Designed for 6-spiral hoses

Material selection: Carbon steel; Stainless steel

Shape: 90° Elbow

Product types: Crimp Fittings – Skive or No-Skive

Applications: Construction; Agriculture; Marine; Industry; Heavy Machine;

Power your hydraulic systems with Topa fittings—durable, precise. Request a fast quote and experience Topa service!

Description

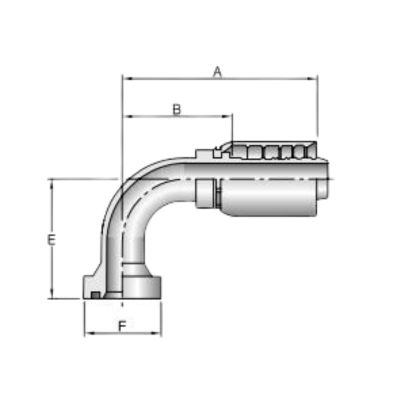

Part Number	Flange inch	Hose I.D. inch	A		E		F inch	B
Part Number	Flange inch	Hose I.D. inch	inch	mm	inch	mm	F inch	inch	mm
1XN77-12-12	3/4	3/4	4.23	1,074	2.48	630	1-5/8	2.59	659
1XN77-16-12	1	3/4	4.23	1,074	2.48	630	1-7/8	2.59	659
1XN77-16-16	1	1	4.73	1,201	2.91	740	1-7/8	2.78	705
1XN77-20-16	1-1/4	1	4.73	1,201	2.91	740	2-1/8	2.78	705
1XN77-20-20	1-1/4	1-1/4	5.81	1,476	3.70	940	2-1/8	3.54	900
1XN77-20-24	1-1/4	1-1/2	6.15	1,562	4.17	1,059	2-1/8	3.76	955
1XN77-24-20	1-1/2	1-1/4	5.81	1,476	3.03	770	2-1/2	3.54	900
1XN77-24-24	1-1/2	1-1/2	6.68	1,697	4.16	1,056	2-1/2	4.29	1,090
1XN77-32-24	2	1-1/2	6.68	1,697	4.16	1,056	3-1/8	4.29	1,090

1XN77 Crimp Style Hydraulic Hose Fitting Video

See the Topa 1XN77 crimp style hydraulic hose fitting up close in this short video.

The video gives you a clear view of its structure, thread type, and material quality, allowing you to quickly understand the product’s design and function. Both carbon steel and stainless steel options are available, ensuring reliable performance in different environments.

Topa’s crimp style hydraulic hose fittings are built for secure, leak-free connections and proven durability in hydraulic systems. Watch now to see the details for yourself, and request a quick quote from Topa today to get the right fittings for your business.
