1GU77 Crimping Hydraulic Hose Fittings Supplier

1GU77 Crimping Hydraulic Hose Fittings

Topa 1GU77 crimping hydraulic hose fittings are carbon steel hydraulic hose fitting with BSP thread, ensuring accurate fit and reliable connection in hydraulic systems.

Check the construction details below:

Connection 1: Female BSP Parallel Pipe – Swivel – (60° Cone)

Connection 2: Hose End – Designed for 6-spiral hoses

Material selection: Carbon steel; Stainless steel

Shape: Straight

Product types: Crimp Fittings – Skive or No-Skive

Applications: Construction; Agriculture; Industry; Heavy Machine; Oil and Gas;

Topa delivers reliable one-piece crimp fittings, engineered for performance, global delivery!

Description

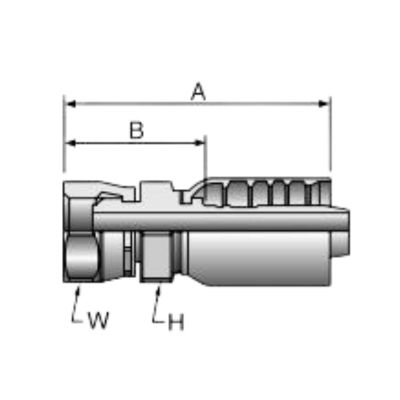

Part Number	Thread inch	Hose I.D. inch	A		H mm	W mm	B
Part Number	Thread inch	Hose I.D. inch	inch	mm	H mm	W mm	inch	mm
1GU77-8-8	1/2×14	1/2	2.97	755	27	27	1.75	445
1GU77-12-12	3/4×14	3/4	3.74	949	36	36	2.10	534
1GU77-16-16	1×11	1	4.33	1,100	41	41	2.38	605
1GU77-20-20	1-1/4×11	1-1/4	4.91	1,247	46	50	2.64	670

1GU77 Crimping Hydraulic Hose Fittings Video

See the Topa 1GU77 crimping hydraulic hose fittings up close in this short video.

The video gives you a clear view of its structure, thread type, and material quality, allowing you to quickly understand the product’s design and function. Both carbon steel and stainless steel options are available, ensuring reliable performance in different environments.

Topa’s crimp style hydraulic hose fittings are built for secure, leak-free connections and proven durability in hydraulic systems. Watch now to see the details for yourself, and request a quick quote from Topa today to get the right fittings for your business.
