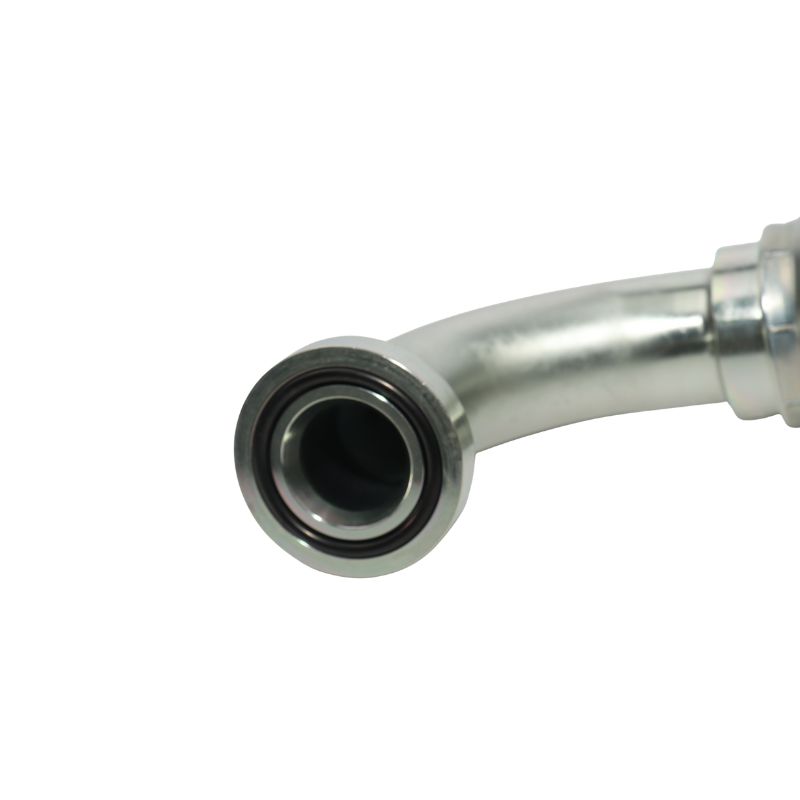

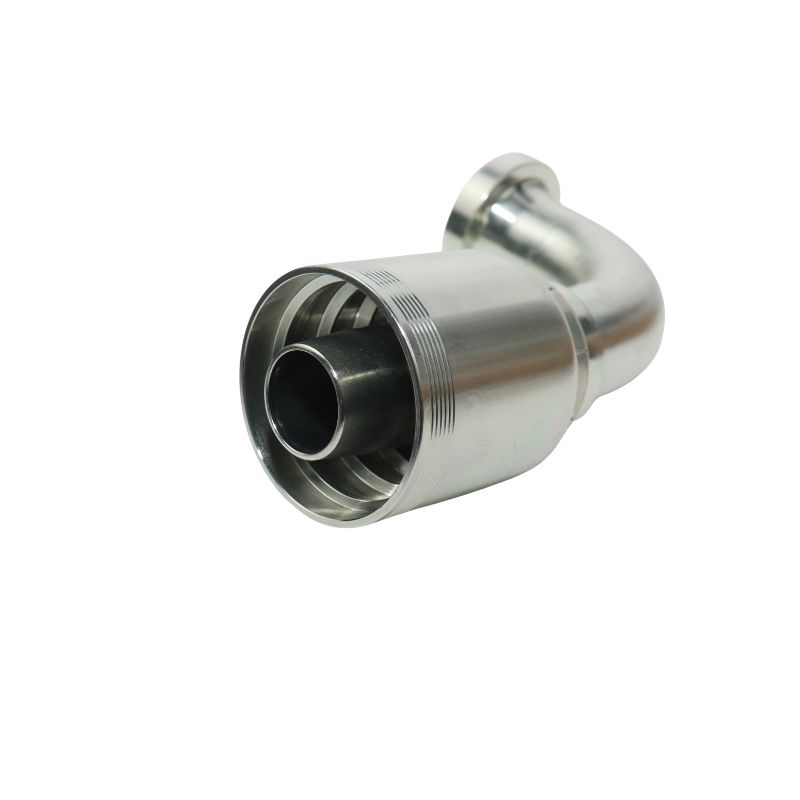

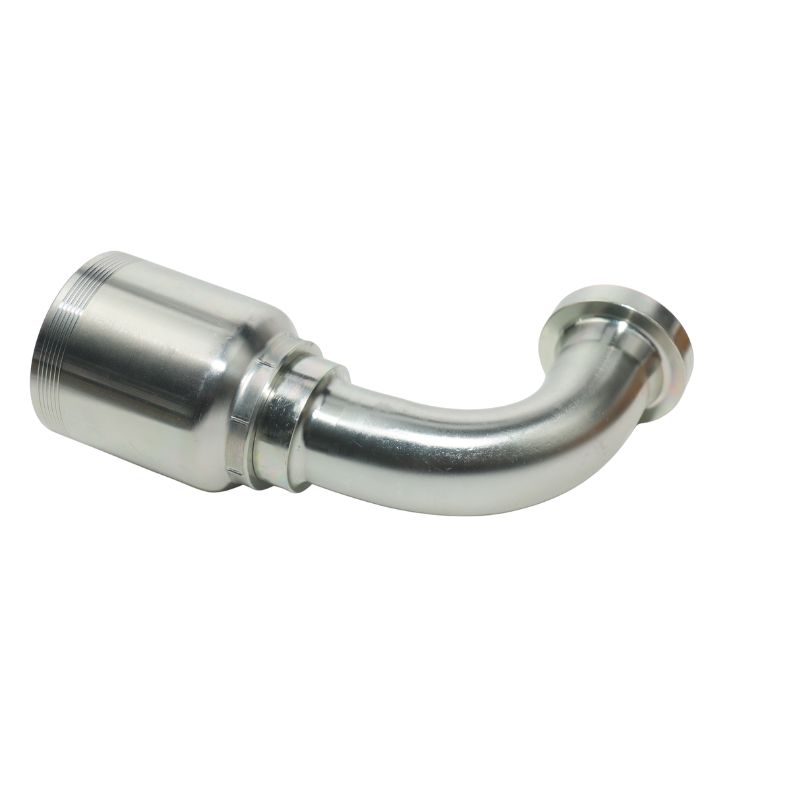

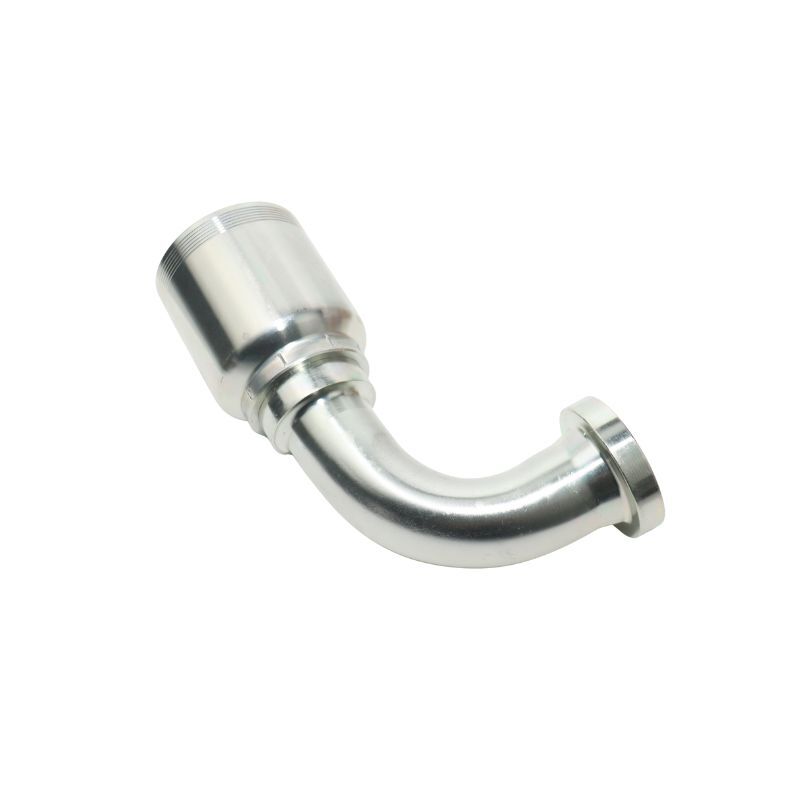

Topa 16N78 crimp hydraulic fittings are carbon steel hydraulic hose fitting with Flange thread, ensuring accurate fit and reliable connection in hydraulic systems. Check the construction details below:

Connection 1: SAE Code 62 Flange Head

Connection 2: Hose End – Designed for 4/6-spiral hoses

Material selection: Carbon steel; Stainless steel

Shape: Elbow 90˚

Product types: Crimp Fittings No-Skive

Applications:Construction;Agriculture;Marine;Industry;Heavy Machine;

Looking for trusted hydraulic fittings? Topa offers precision-made crimp solutions, standard or customized. Quote today!

Description

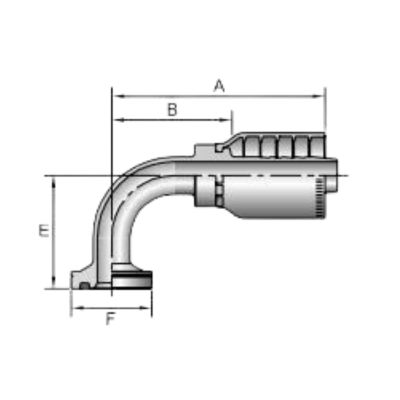

16N78 crimp hydraulic fittings drawing Topa
Part
Number
Flange
inch
Hose I.D.
inch
AEF
inch
B
inchmminchmminchmm
16N78-12-123/43/44.00 102 2.28 58 1-5/82.24 57
16N78-16-123/43.97 101 2.28 58 1-7/82.21 56
16N78-16-164.63 118 2.76 70 1-7/82.78 71
16N78-20-161-1/44.63 118 2.76 70 2-1/82.78 71
16N78-20-201-1/41-1/46.09 155 3.54 90 2-1/83.70 94
16N78-24-161-1/25.04 126 2.70 69 2-1/23.19 81
16N78-24-201-1/21-1/46.09 155 3.54 90 2-1/23.70 94
16N78-24-241-1/21-1/26.52 166 4.09 104 2-1/24.31 109
16N78-32-241-1/26.52 166 4.09 104 3-1/84.31 109
