11978 Hydraulic Crimp Fittings Manufacturers

11978 Hydraulic Crimp Fittings Manufacturers

Topa 11978 hydraulic crimp fittings are carbon steel hydraulic hose fitting with Flange thread, ensuring accurate fit and reliable connection in hydraulic systems. Check the construction details below:

Connection 1: SAE Code 61 Flange Head

Connection 2: Hose End – Designed for 4/6-spiral hoses

Material selection: Carbon steel; Stainless steel

Shape: Elbow 90˚

Product types: Crimp Fittings No-Skive

Applications: Construction;Agriculture;Marine;Heavy Machine;

Secure your hydraulic systems with Topa crimp fittings. Standard and custom solutions available. Contact us now!

Description

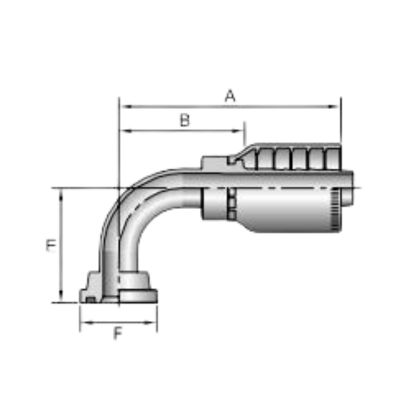

11978 hydraulic crimp fittings manufacturers drawing Topa
Part
Number
Flange
inch
Hose I.D.
inch
AEF
inch
B
inchmminchmminchmm
11978-12-123/43/44.35 110 2.25 57 1-1/22.59 66
11978-16-164.67 119 2.76 70 1-3/42.82 72

11978 Hydraulic Crimp Fittings Manufacturers Video

See the Topa 11978 hydraulic crimp fittings manufacturers up close in this short video.

The video gives you a clear view of its structure, thread type, and material quality, allowing you to quickly understand the product’s design and function. Both carbon steel and stainless steel options are available, ensuring reliable performance in different environments.

Topa’s crimp style hydraulic hose fittings are built for secure, leak-free connections and proven durability in hydraulic systems. Watch now to see the details for yourself, and request a quick quote from Topa today to get the right fittings for your business.
