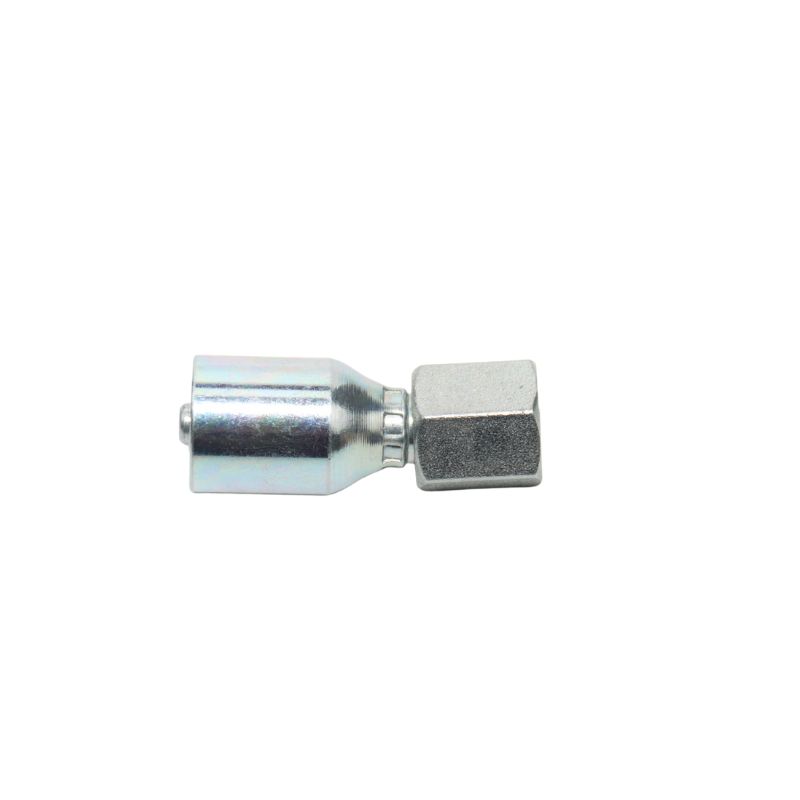

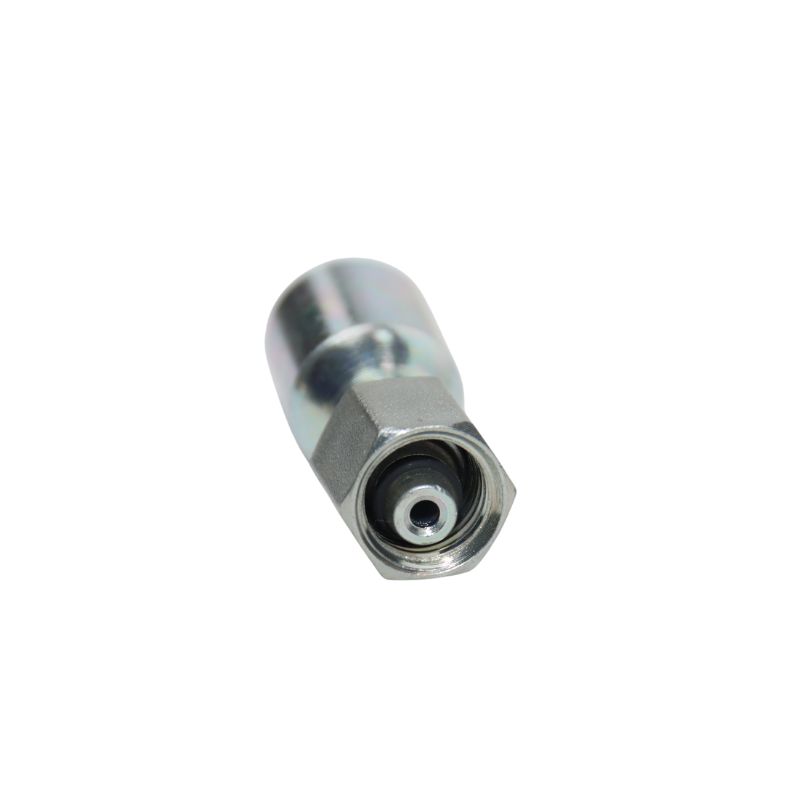

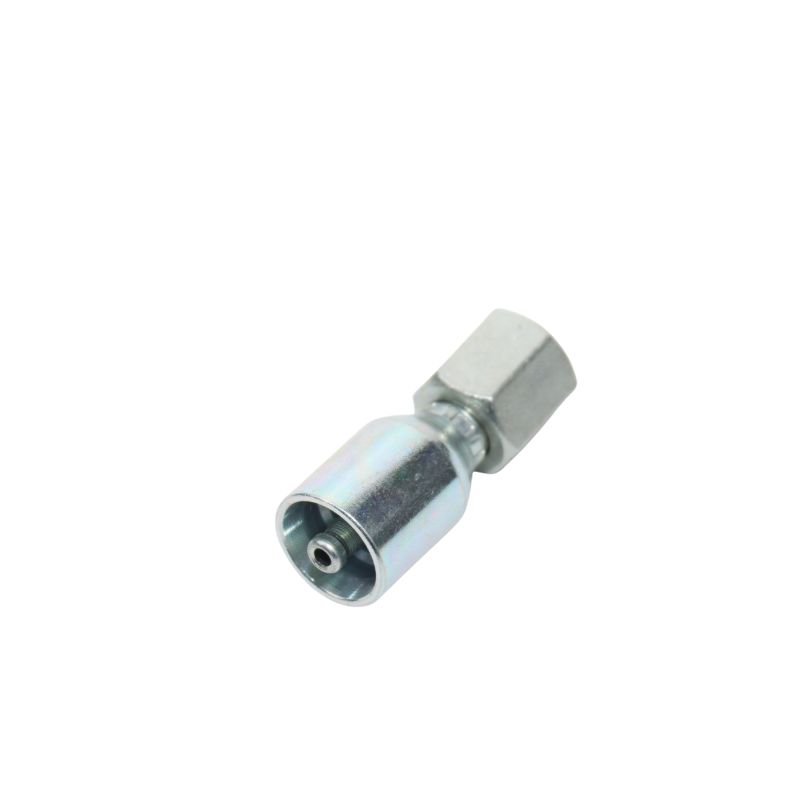

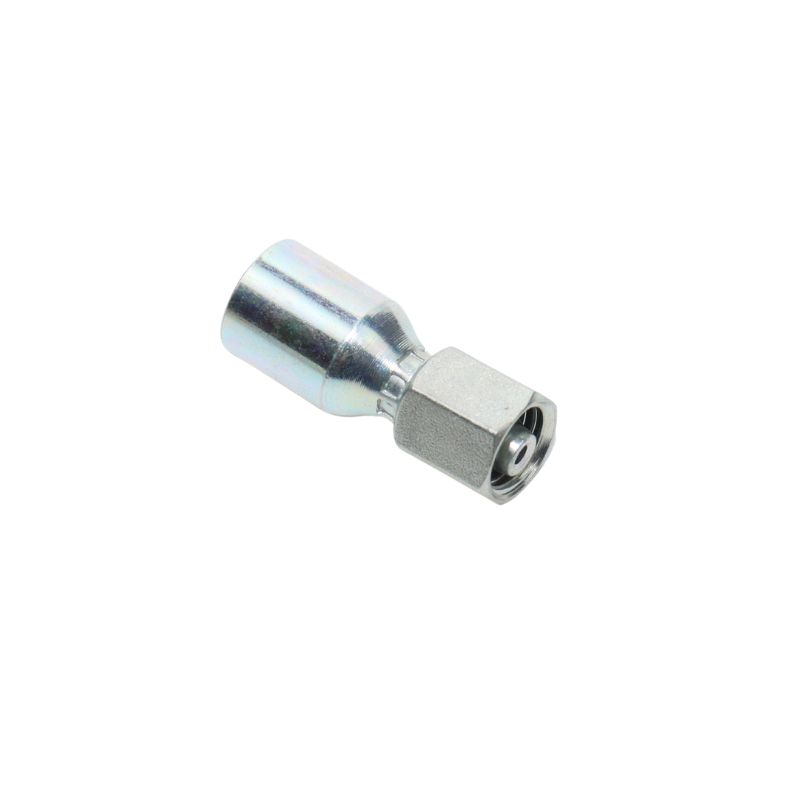

19256 Hydraulic Crimp Fitting

19256 Hydraulic Crimp Fitting

Topa 19256 hydraulic crimp fitting is a carbon steel hydraulic hose fitting with BSP thread, ensuring accurate fit and reliable connection in hydraulic systems. Check the construction details below:

Connection 1: Female BSP Parallel Pipe – Swivel (60° Cone)

Material selection: Carbon steel; Stainless steel

Shape: Straight

Product types: Crimp Fittings No-Skive

Applications: Agriculture;Marine;Industry;Heavy Machine;Oil and Gas;

Topa delivers reliable one-piece crimp fittings, engineered for performance, global delivery!

Category: Tags: , ,

Description

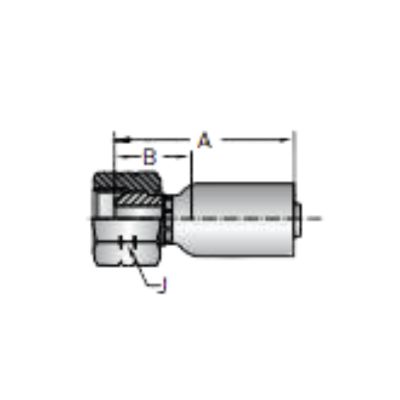

19256 hydraulic crimp fitting drawing Topa
Part
Number
Thread
Size
Hose  I.D.ACutoff Allow.
B
J
Hex
mminchmminchmminchmm
19256-4-3G 1/43/1635 1.38 17 0.67 19
19256-2-4G 1/81/443 1.69 18 0.71 14
19256-4-4G 1/41/442 1.65 17 0.67 19
19256-6-4G 3/81/445 1.77 20 0.79 22
19256-4-5G 1/45/1647 1.85 21 0.83 19
19256-6-5G 3/85/1646 1.81 20 0.79 22
19256-6-6G 3/810 3/846 1.81 21 0.83 22
19256-8-6G 1/210 3/848 1.77 23 0.91 27
19256-6-8G 3/813 1/253 2.09 25 0.98 22
19256-8-8G 1/213 1/251 2.01 23 0.91 27
19256-10-8G 5/813 1/249 1.93 22 0.87 30
19256-12-12G 3/419 3/460 2.36 26 1.02 32
19256-16-16G125 74 2.91 26 1.02 41

19256 Hydraulic Crimp Fitting Video

See the Topa 19256 hydraulic crimp fitting manufacturers up close in this short video.

The video gives you a clear view of its structure, thread type, and material quality, allowing you to quickly understand the product’s design and function. Both carbon steel and stainless steel options are available, ensuring reliable performance in different environments.

Topa’s crimp style hydraulic hose fittings are built for secure, leak-free connections and proven durability in hydraulic systems. Watch now to see the details for yourself, and request a quick quote from Topa today to get the right fittings for your business.

Hot Sales

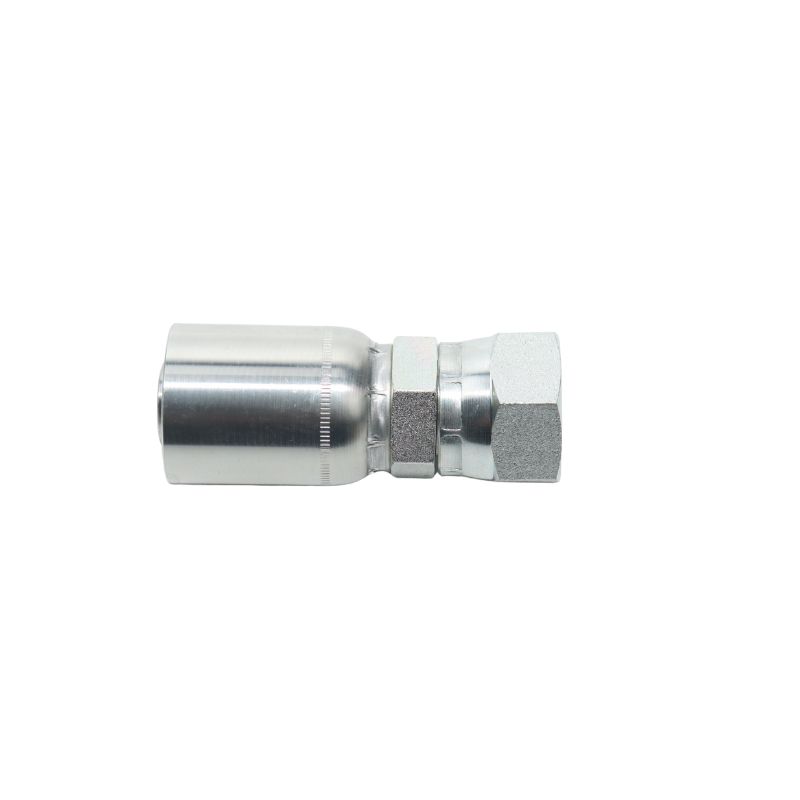

106HY
Crimp on Hydraulic Fittings

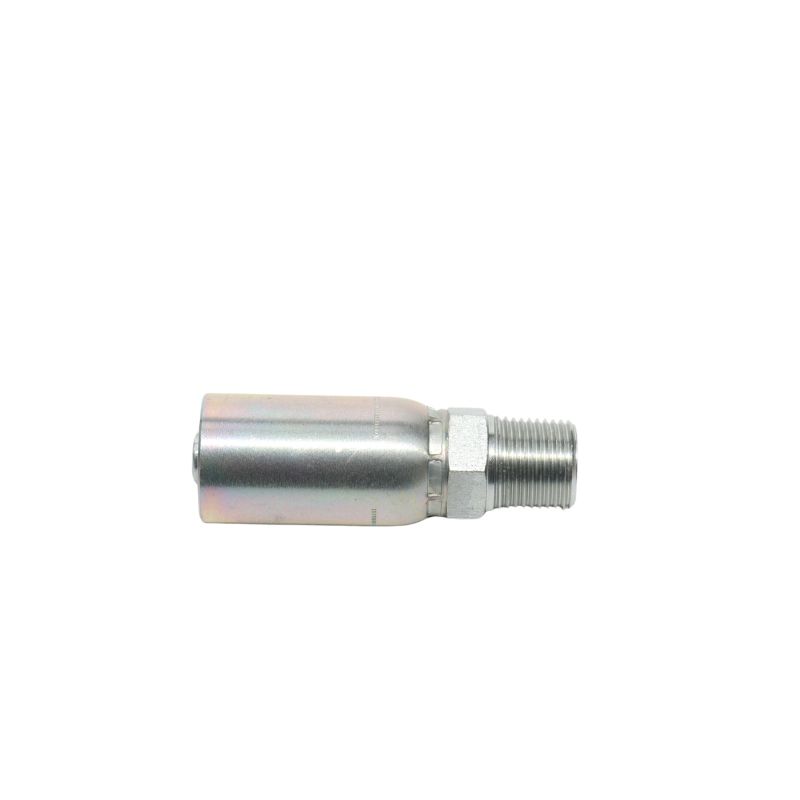

10158 Crimp Style Hydraulic Hose Fitting

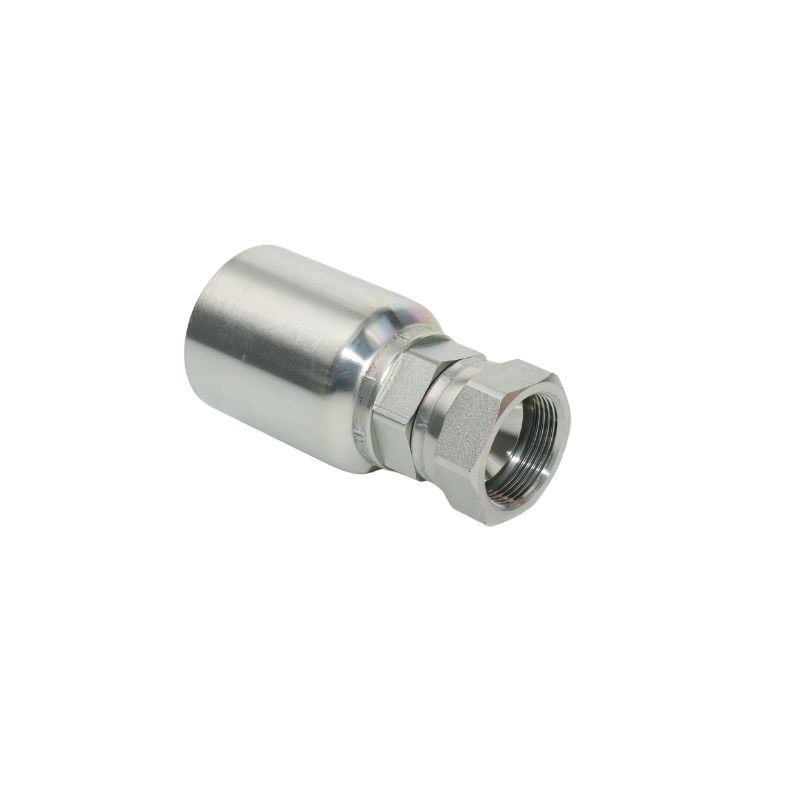

10673
Crimp Hydraulic
Fittings

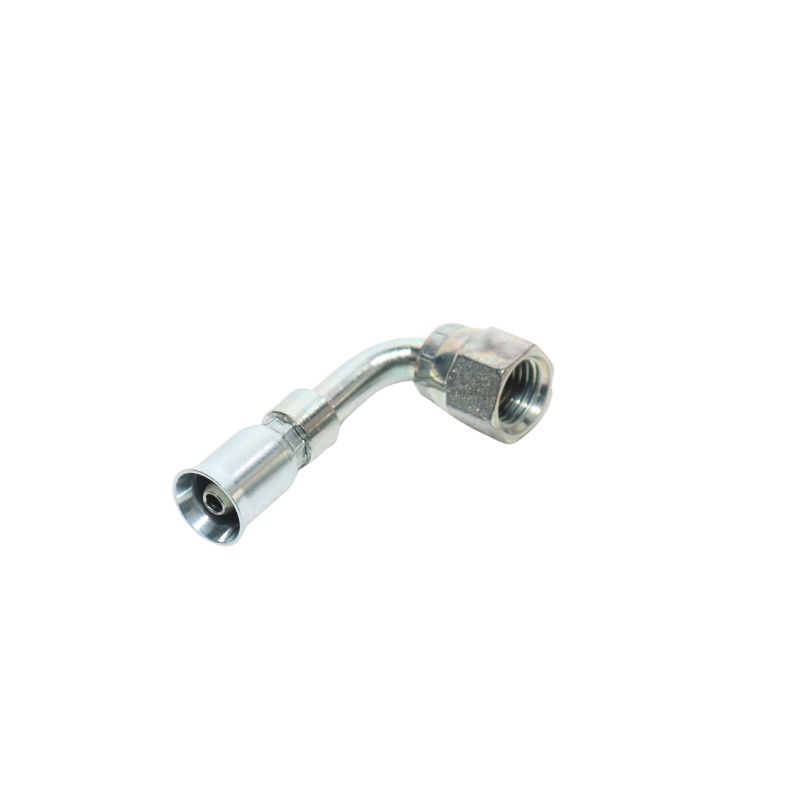

14191N Crimping Hydraulic Hose Fittings
