1C978 Metric Hydraulic Crimp Fittings Manufacturer

1C978 Metric Hydraulic Crimp Fittings

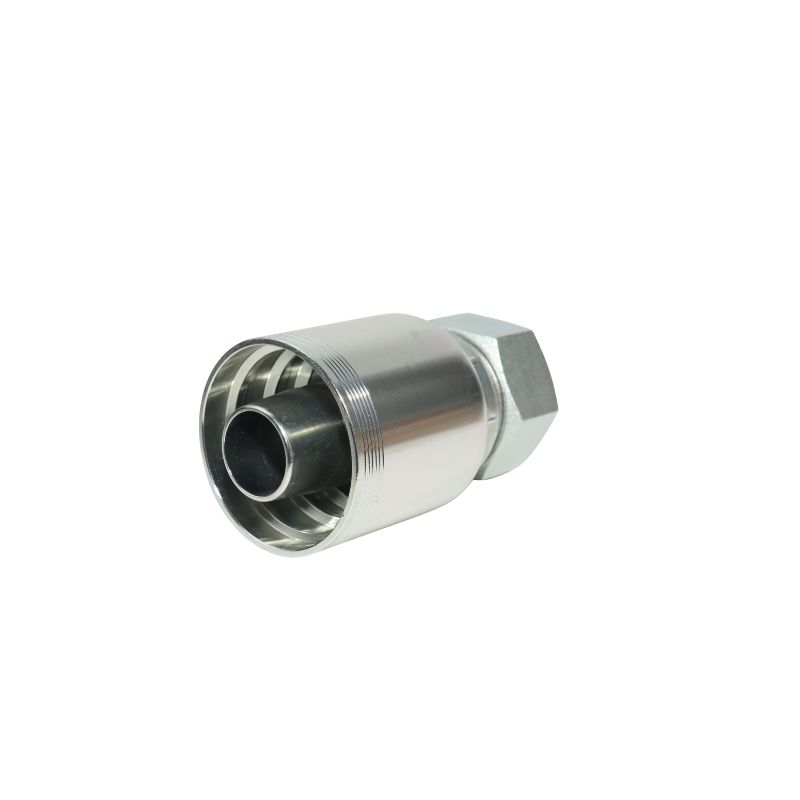

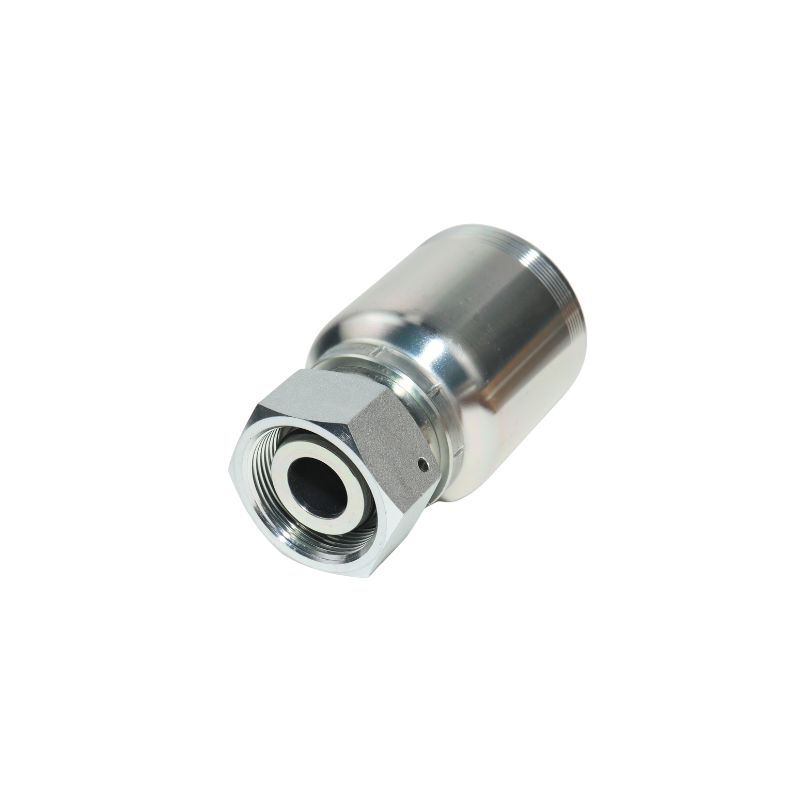

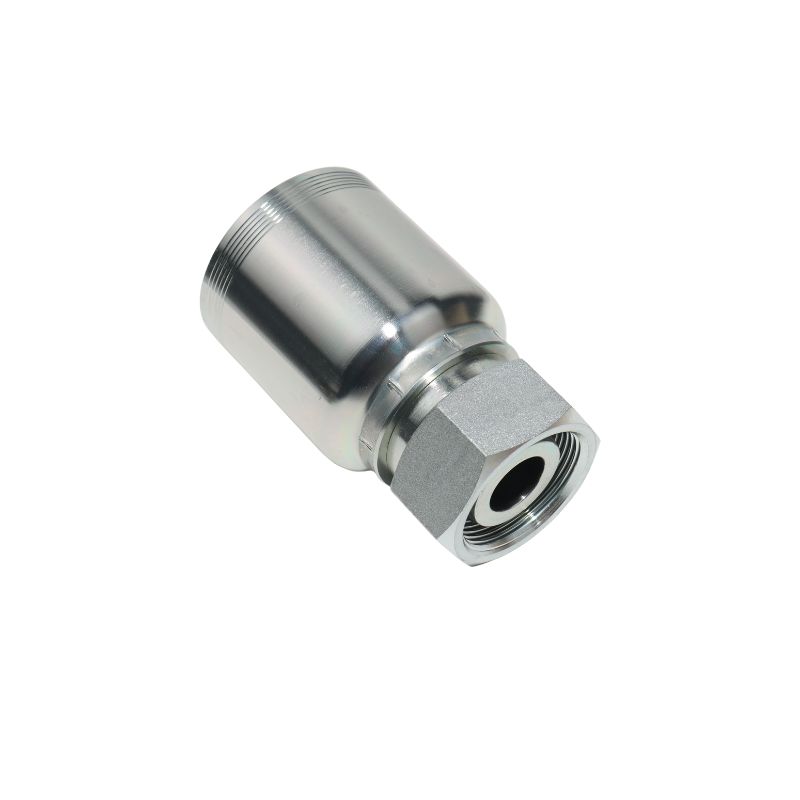

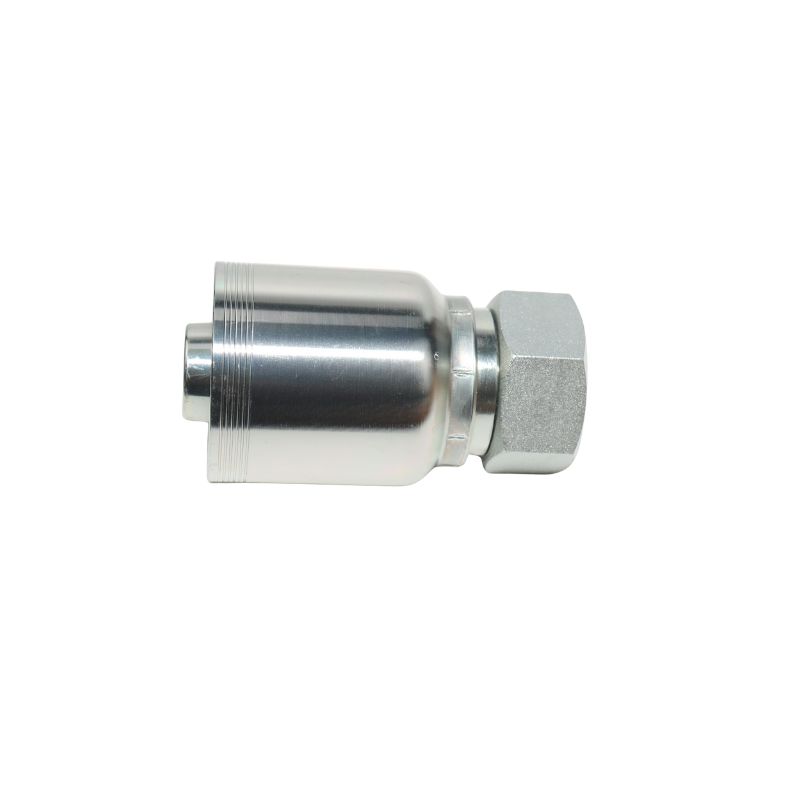

Topa 1C978 metric hydraulic crimp fittings provide durable Metric connection for hydraulic hoses, delivering secure, leak-free performance across diverse applications.

Explore the product’s construction details below:

Connection 1: Female Metric S – Swivel – (24˚ Cone with O-Ring)

Connection 2: Hose End – Designed for 6-spiral hoses

Material selection: Carbon steel; Stainless steel

Shape: Straight

Product types: Crimp Fittings – Skive or No-Skive

Applications: Construction; Agriculture; Industry; Heavy Machine; Oil and Gas;

Secure your hydraulic systems with Topa crimp fittings. Standard and custom solutions available. Contact us now!

Description

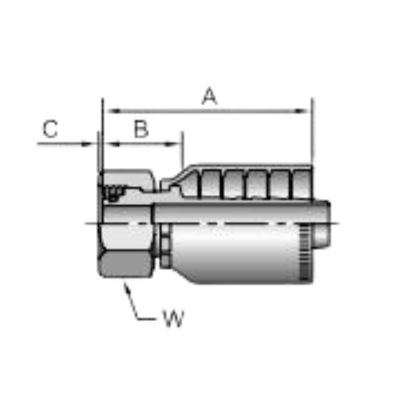

Part Number	Thread mm		Hose I.D. inch	A		C		W mm	B
Part Number	Thread mm		Hose I.D. inch	inch	mm	inch	mm	W mm	inch	mm
1C978-25-12	25	M36x2	3/4	3.12	79	0.10	3	46	1.36	35
1C978-30-16	30	M42x2	1	3.40	86	0.19	5	50	1.55	39
1C978-38-20	38	M52x2	1-1/4	3.98	101	0.23	6	60	1.59	40

1C978 Metric Hydraulic Crimp Fittings Video

See the Topa 1C978 metric hydraulic crimp fittings up close in this short video.

The video gives you a clear view of its structure, thread type, and material quality, allowing you to quickly understand the product’s design and function. Both carbon steel and stainless steel options are available, ensuring reliable performance in different environments.

Topa’s crimp style hydraulic hose fittings are built for secure, leak-free connections and proven durability in hydraulic systems. Watch now to see the details for yourself, and request a quick quote from Topa today to get the right fittings for your business.
