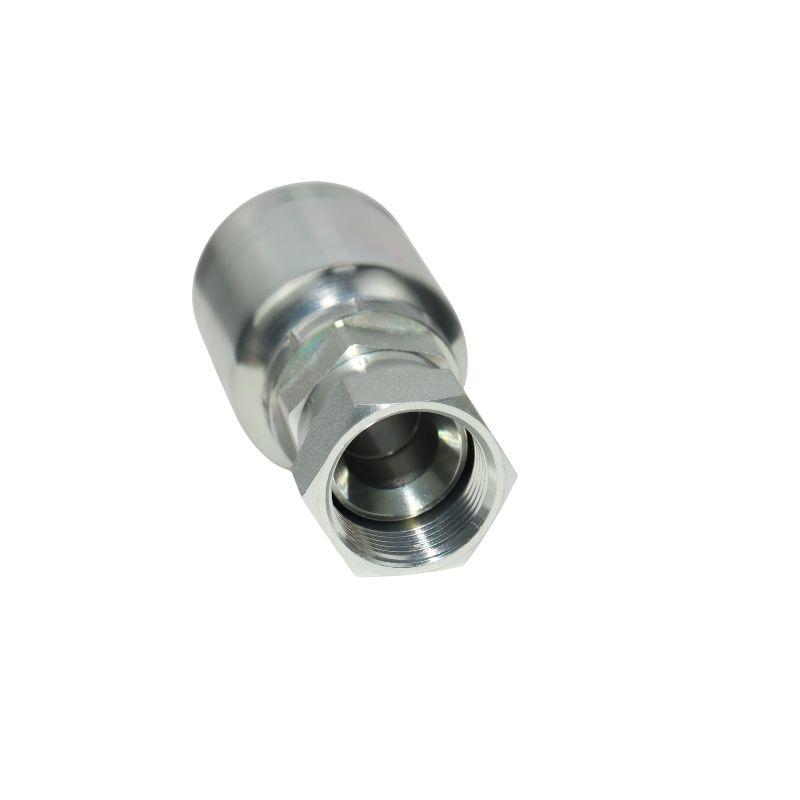

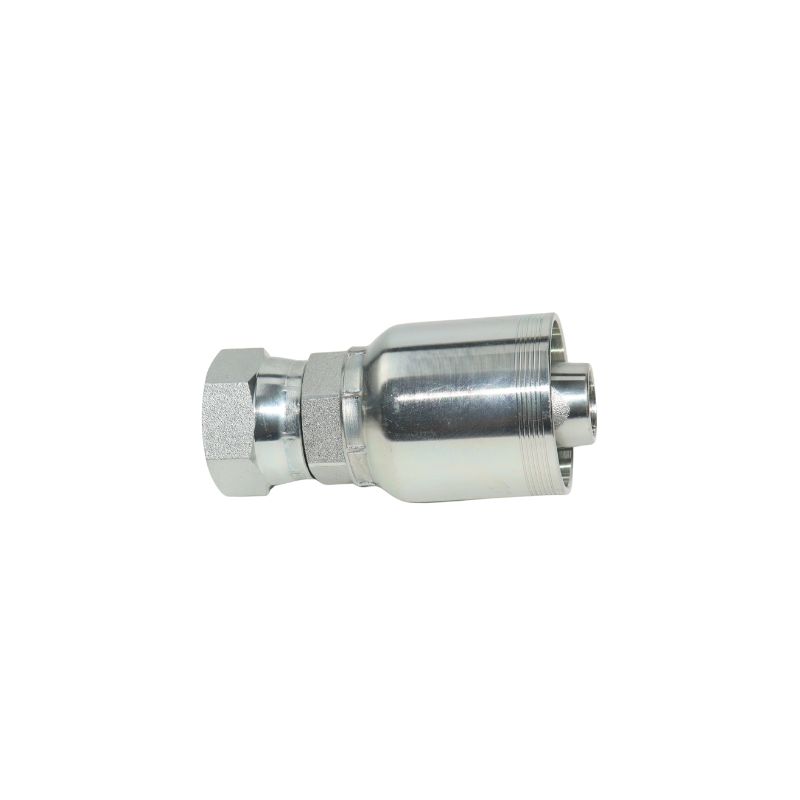

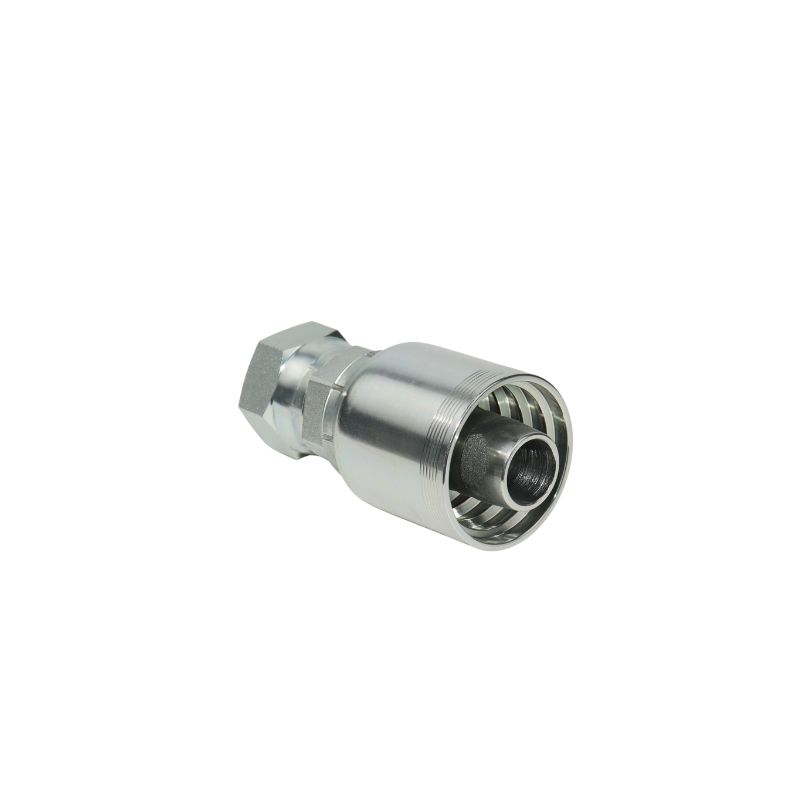

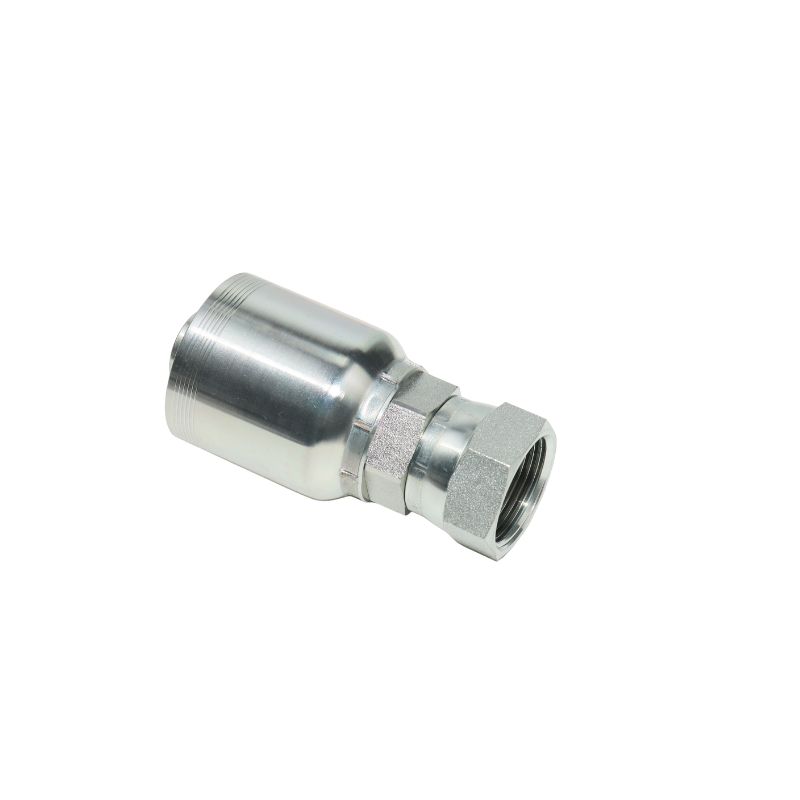

10678 Crimp on Hydraulic Fittings

10678 Crimp on Hydraulic Fittings

Topa 10678 crimp on hydraulic fittings provide durable JIC connection for hydraulic hoses, delivering secure, leak-free performance across diverse applications. Explore the product’s construction details below:

Connection 1: Female JIC 37˚ – Swivel

Connection 2: Hose End – Designed for 4/6-spiral hoses

Material selection: Carbon steel; Stainless steel

Shape: Straight

Product types: Crimp Fittings No-Skive

Applications: Agriculture;Marine;Industry;Heavy Machine;Oil and Gas;

Topa delivers reliable one-piece crimp fittings, engineered for performance, global delivery!

Category: Tags: , ,

Description

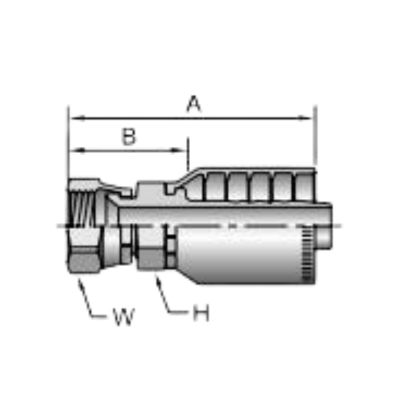

10678 crimp on hydraulic fittings drawing Topa
Part
Number
Thread
inch
Hose I.D.
inch
AH
inch
W
inch
BAdditional Material
Stainless Steel
(C)
inchmminchmm
10678-12-123/41-1/16×123/43.66 93 1-1/81-1/41.90 48
10678-16-121-5/16×123/43.90 99 1-3/81-1/22.14 54
10678-16-161-5/16×124.03 102 1-3/81-1/22.18 55
10678-20-201-1/41-5/8×121-1/44.931251-3/422.5465
10678-24-241-1/21-7/8×121-1/25.0412822-1/42.8372

10678 Crimp on Hydraulic Fittings Video

This video provides a detailed look at the Topa 10678 crimp on hydraulic fittings.

It highlights the product’s construction, including the high-quality carbon steel and stainless steel materials used, and the precise machining process that guarantees accurate dimensions. You will also see the surface finish and design features that ensure strong, leak-free connections in demanding hydraulic applications.

Topa’s one union hydraulic fittings are built for durability and consistent performance under high pressure and vibration. Watch the full video to understand our technical expertise—and contact Topa today to request your inquiry or order.

Hot Sales

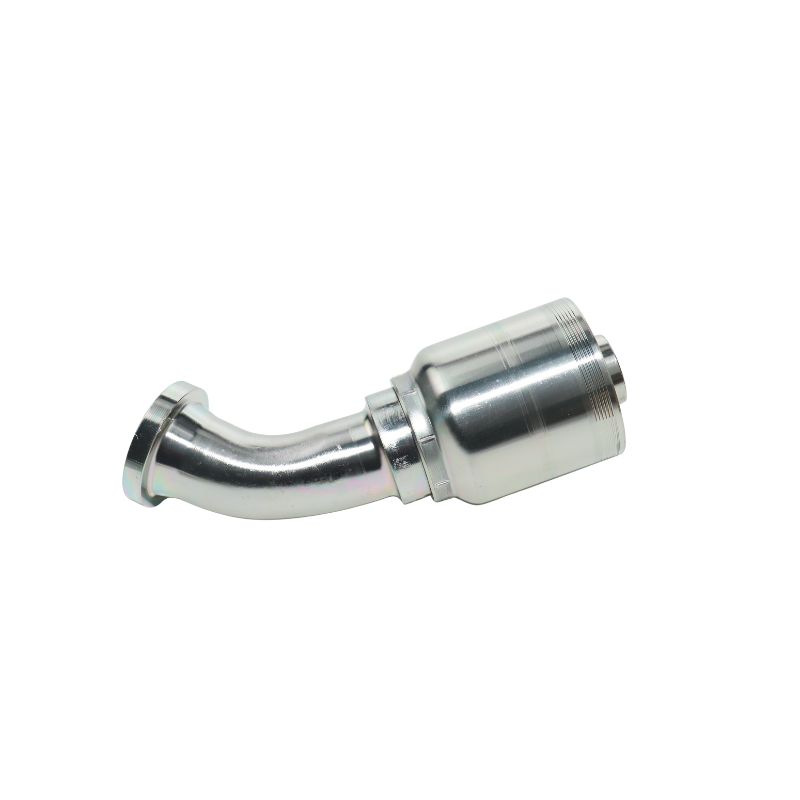

11778 Crimping Hydraulic Hose Fittings

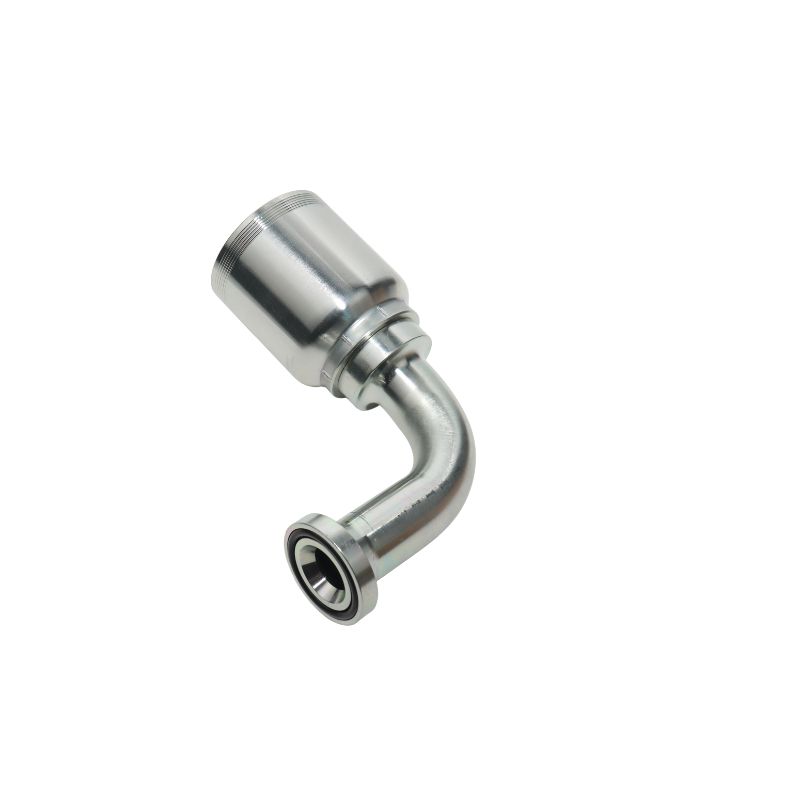

11978 hydraulic crimp fitting manufacturers
