3988 One Piece Hose Fitting Manufacturer

3988 One Piece Hose Fitting

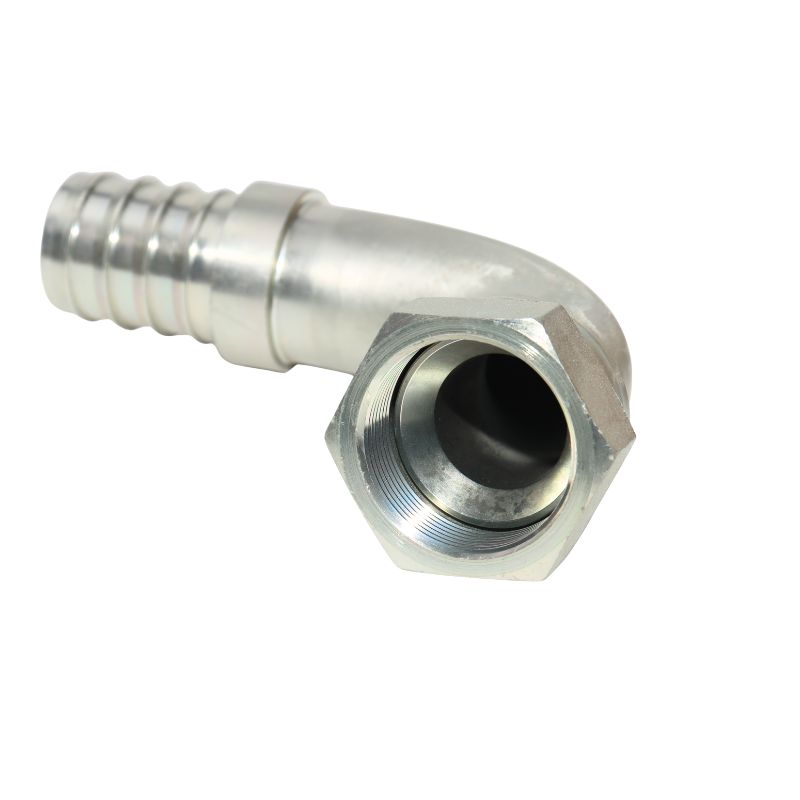

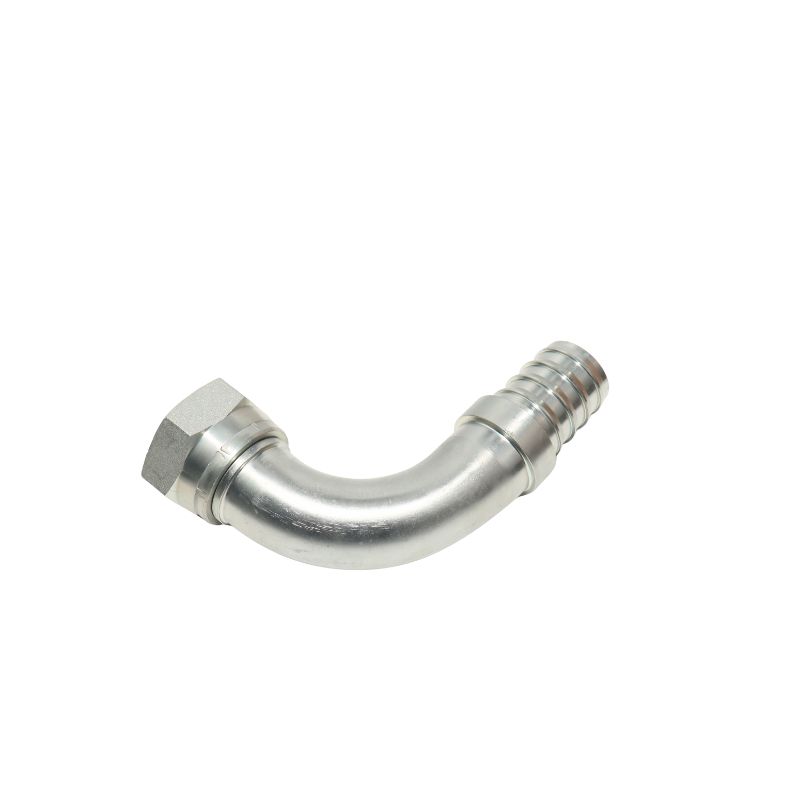

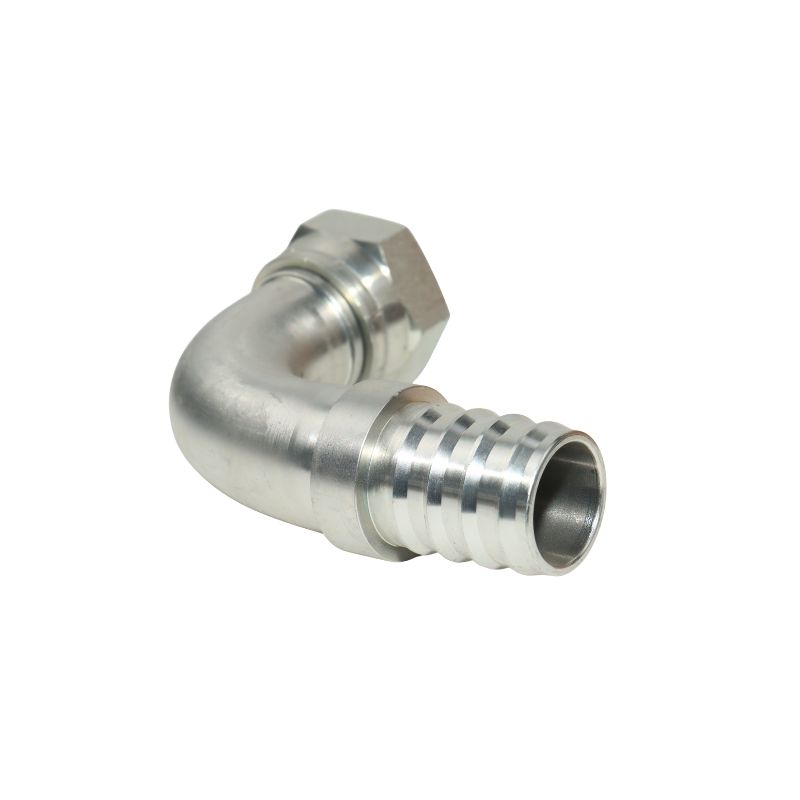

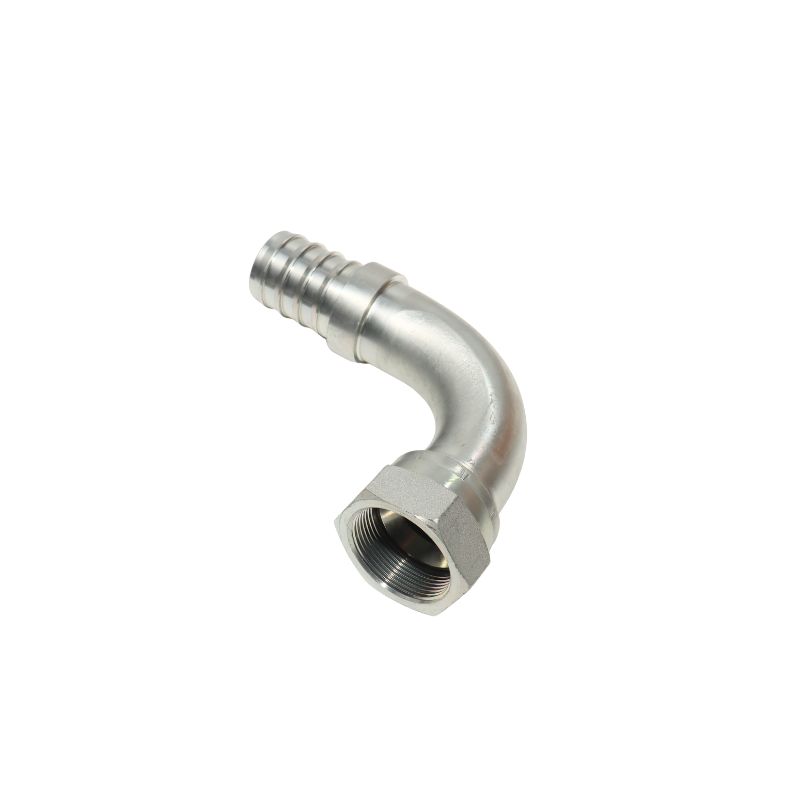

Topa 3988 one piece hose fitting is a carbon steel hydraulic hose fitting with JIC thread, ensuring accurate fit and reliable connection in hydraulic systems.

Check the construction details below:

Connection 1: Female JIC 37° – Swivel

Connection 2: Hose End

Material selection: Carbon steel; Stainless steel

Shape: Elbow 90°

Product types: Crimp Fittings – Skive or No-Skive

Applications: Construction; Marine; Industry; Heavy Machine; Oil and Gas;

Topa delivers reliable one-piece crimp fittings, engineered for performance, global delivery!

Description

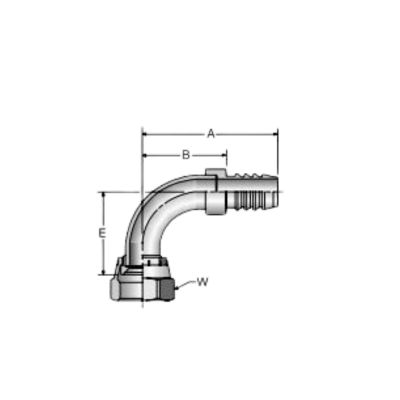

Part Number	Thread inch		Hose I.D. inch	A		E		W inch	B
Part Number	Thread inch		Hose I.D. inch	mm	inch	mm	inch	W inch	mm	inch
3988-12-12	3/4	1-1/16×12	3/4	2.98	76	1.82	46	1-1/4	1.85	47
3988-16-16	1	1-5/16×12	1	3.48	88	2.14	54	1-1/2	2.10	53
3988-20-20	1-1/4	1-5/8×12	1-1/4	3.81	97	2.59	66	2	2.22	56
3988-24-24	1-1/2	1-7/8×12	1-1/2	4.21	107	2.81	71	2-1/4	2.47	63

3988 One Piece Hose Fitting Video

Discover the appearance and performance of the Topa 3988 one piece hose fitting in this video.

The fitting is manufactured from premium carbon steel with stainless steel options available, ensuring both strength and corrosion resistance. Its precise design guarantees secure, leak-free connections, making it a trusted choice for demanding hydraulic systems.

Topa’s hydraulic crimp fittings are already relied upon by customers worldwide for their durability, compatibility, and efficiency. Watch the video to see why Topa is the right partner for your hydraulic needs—and contact us today to request a quick quote or place your order.
