Hydraulic Metric Tees

Description:

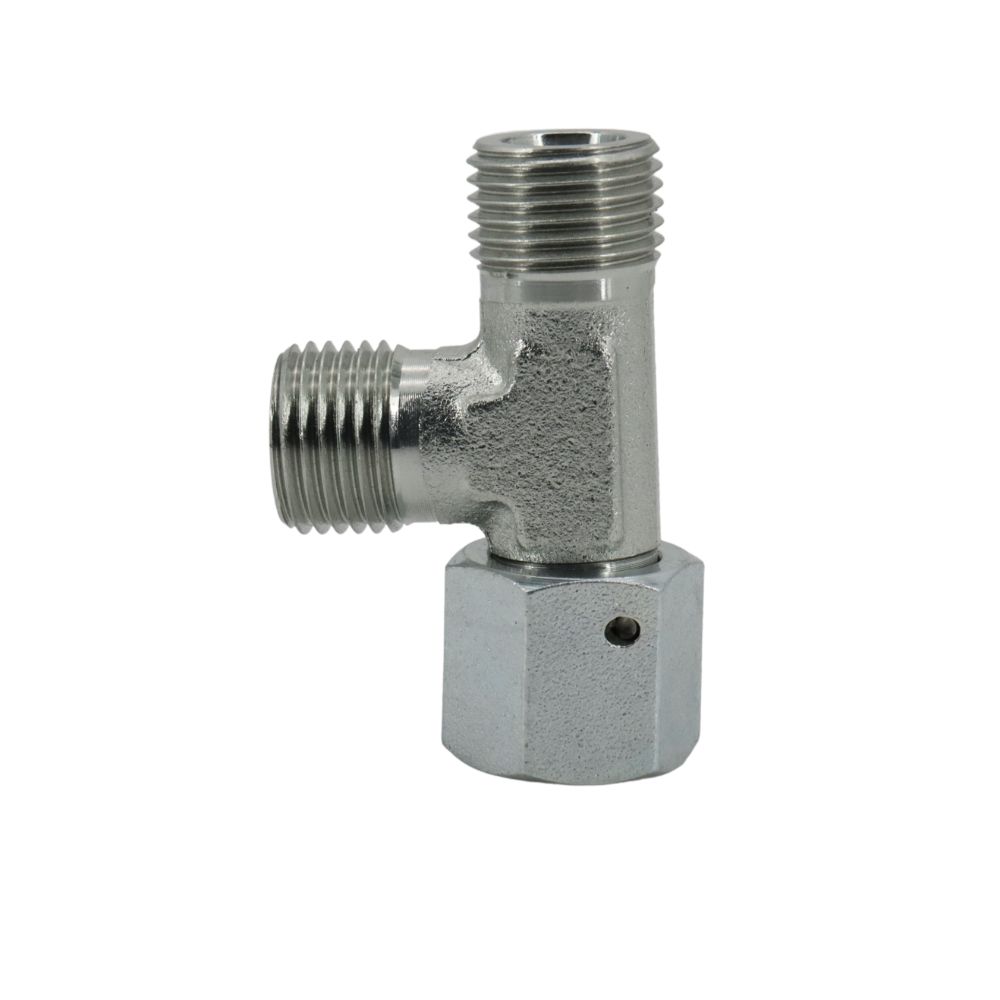

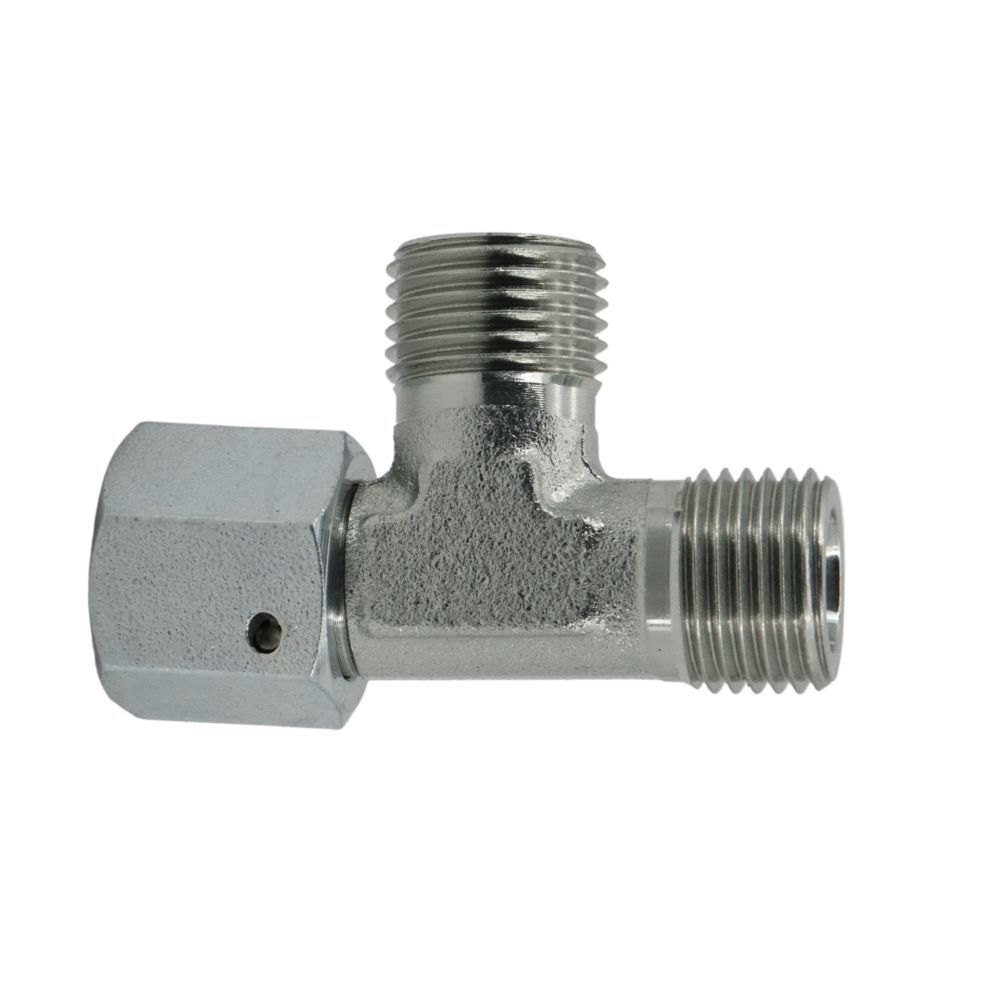

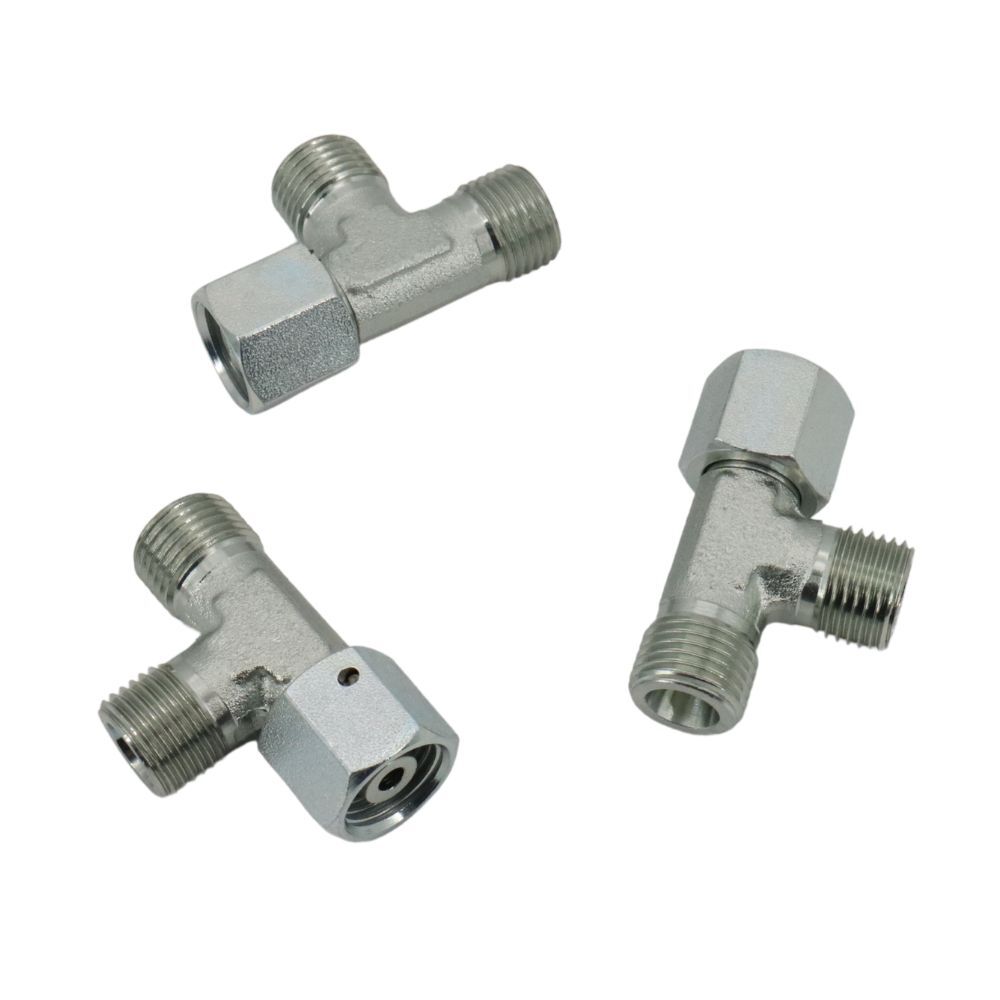

The CC metric run tee fitting has three threaded ends, each with a specific metric thread size, one is a female metric thread, and the others are male o-ring ends.

Overall, hydraulic metric tees are a critical component in hydraulic fluid systems and can help to optimize the flow and function of the system.

Feel free to ask any questions about the metric hydraulic hose tee fittings.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize

Description

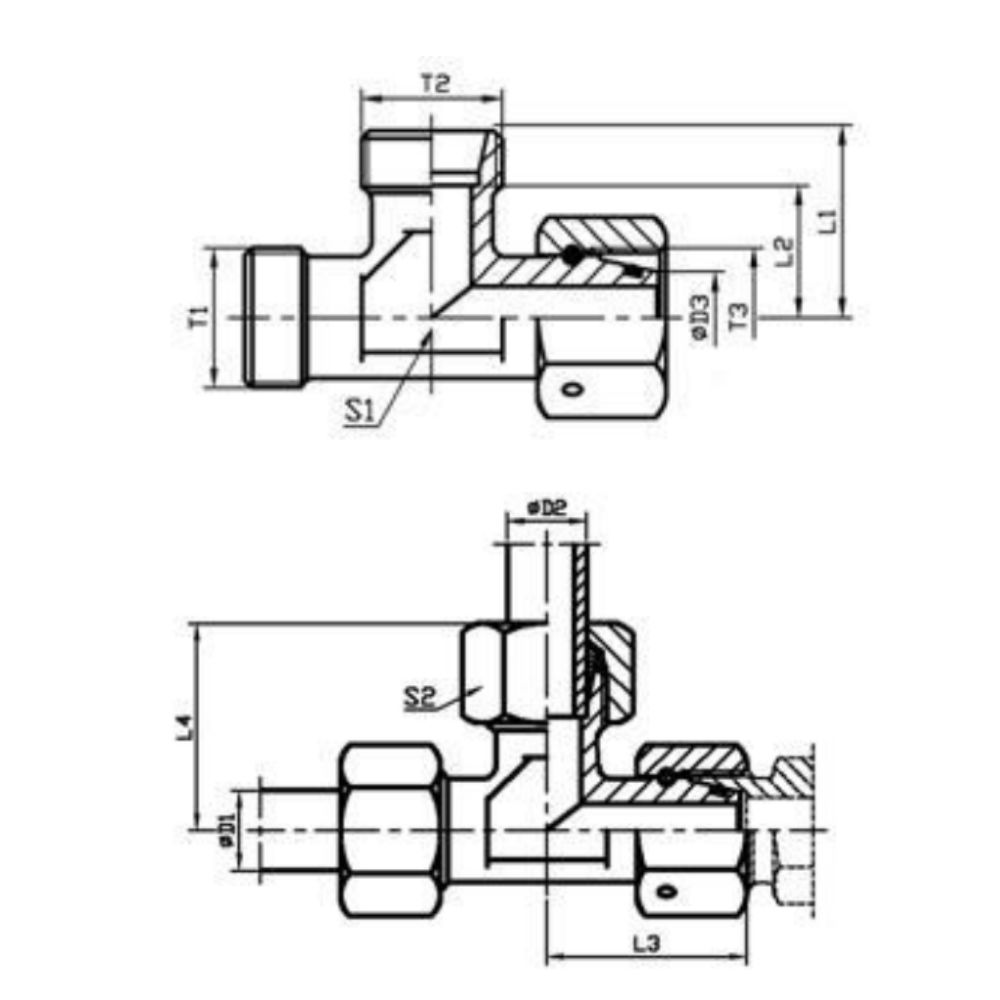

	PART NO.	THREAD			TUBE O.D	DIMENSIONS
	PART NO.	T1	T2	T3	D1、D2、D3	L1	L2	L3	L4	S1	S2
L	CC-12W	M12X1.5	M12X1.5	M12X1.5	06	19	12	26	27	12	14
	CC-14W	M14X1.5	M14X1.5	M14X1.5	08	21	14	27.5	29	12	17
	CC-16W	M16X1.5	M16X1.5	M16X1.5	10	22	15	29	30	14	19
	CC-18W	M18X1.5	M18X1.5	M18X1.5	12	24	17	29.5	32	17	22
	CC-22W	M22X1.5	M22X1.5	M22X1.5	15	28	21	32.5	36	19	27
	CC-26W	M26X1.5	M26X1.5	M26X1.5	18	31	23.5	35.5	40	24	32
	CC-30W	M30X2	M30X2	M30X2	22	35	27.5	38.5	44	27	36
	CC-36W	M36X2	M36X2	M36X2	28	38	30.5	41.5	47	36	41
	CC-45W	M45X2	M45X2	M45X2	35	45	34.5	51	56	41	50
	CC-52W	M52X2	M52X2	M52X2	42	51	40	56	63	50	60
S	CD-14W	M14X1.5	M14X1.5	M14X1.5	06	23	16	27	31	12	17
	CD-16W	M16X1.5	M16X1.5	M16X1.5	08	24	17	27.5	32	14	19
	CD-18W	M18X1.5	M18X1.5	M18X1.5	10	25	17.5	30	34	17	22
	CD-20W	M20X1.5	M20X1.5	M20X1.5	12	29	21.5	31	38	17	24
	CD-22W	M22X1.5	M22X1.5	M22X1.5	14	30	22	35	40	19	27
	CD-24W	M24X1.5	M24X1.5	M24X1.5	16	33	24.5	36.5	43	24	30
	CD-30W	M30X2	M30X2	M30X2	20	37	26.5	44.5	48	27	36
	CD-36W	M36X2	M36X2	M36X2	25	42	30	50	54	36	46
	CD-42W	M42X2	M42X2	M42X2	30	49	35.5	55	62	41	50
	CD-52W	M52X2	M52X2	M52X2	38	57	41	60	72	50	60

CC Hydraulic Run Tees With Swivel Nut Video

This video shows information about the CC hydraulic metric tees.

Metric run tees are commonly used in hydraulic systems for a variety of applications, such as splitting a hydraulic line to power two separate functions or connecting multiple hydraulic lines to a single component.

If you have any questions about metric hydraulic fittings, please contact us.
