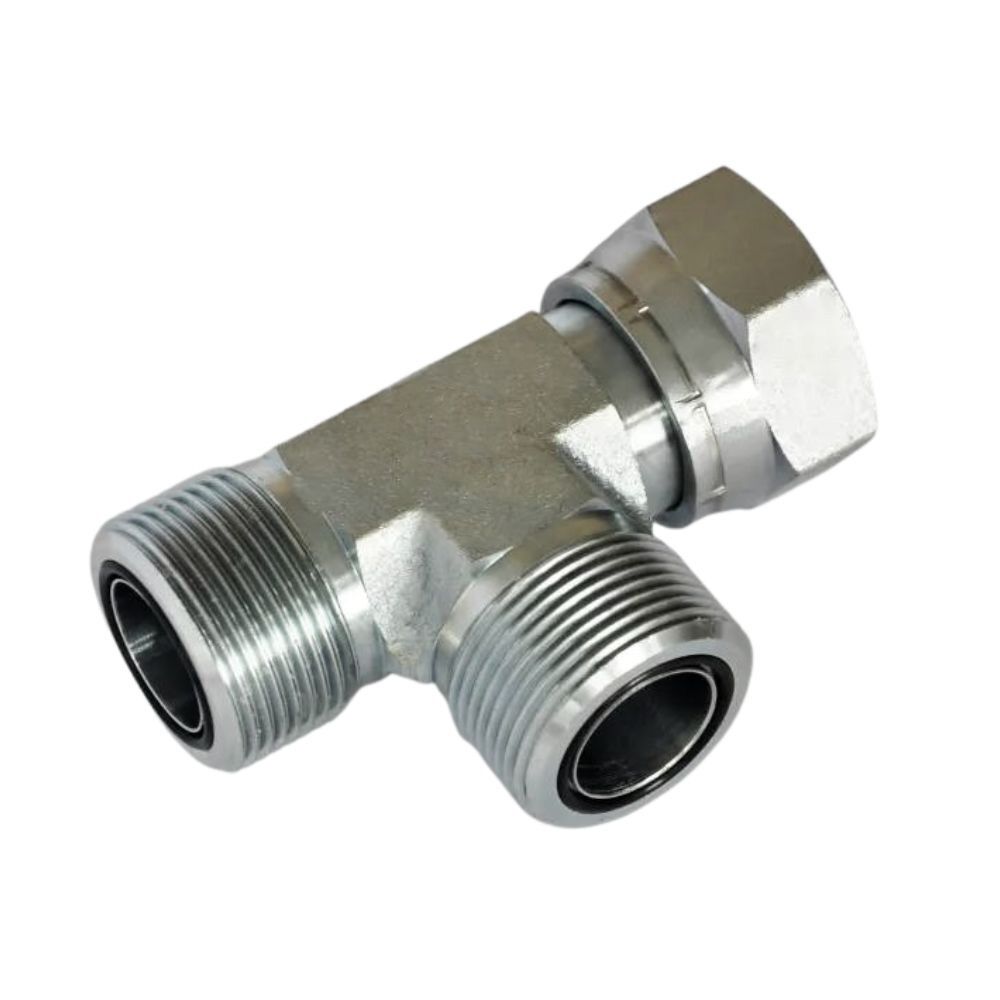

CE Metric Female Run Tee Fittings

Description:

The CE series is a metric female run tee with two male O-ring ports and one female metric port. It is designed for connecting three hydraulic lines in a run-tee configuration while maintaining a sealed connection at the O-ring ports.

Overall, metric hydraulic tees are an important component in hydraulic fluid systems and can help to optimize the flow and function of the system.

If you need help selecting a metric hydraulic tee fitting, please contact TOPA with the part number, thread sizes, quantity, or drawing.

Features and Benefits:

O-ring sealing at the specified ports
Metric thread configurations
Carbon steel construction, subject to the selected model
Suitable for hydraulic line connection and branching
Available in multiple metric sizes

Description

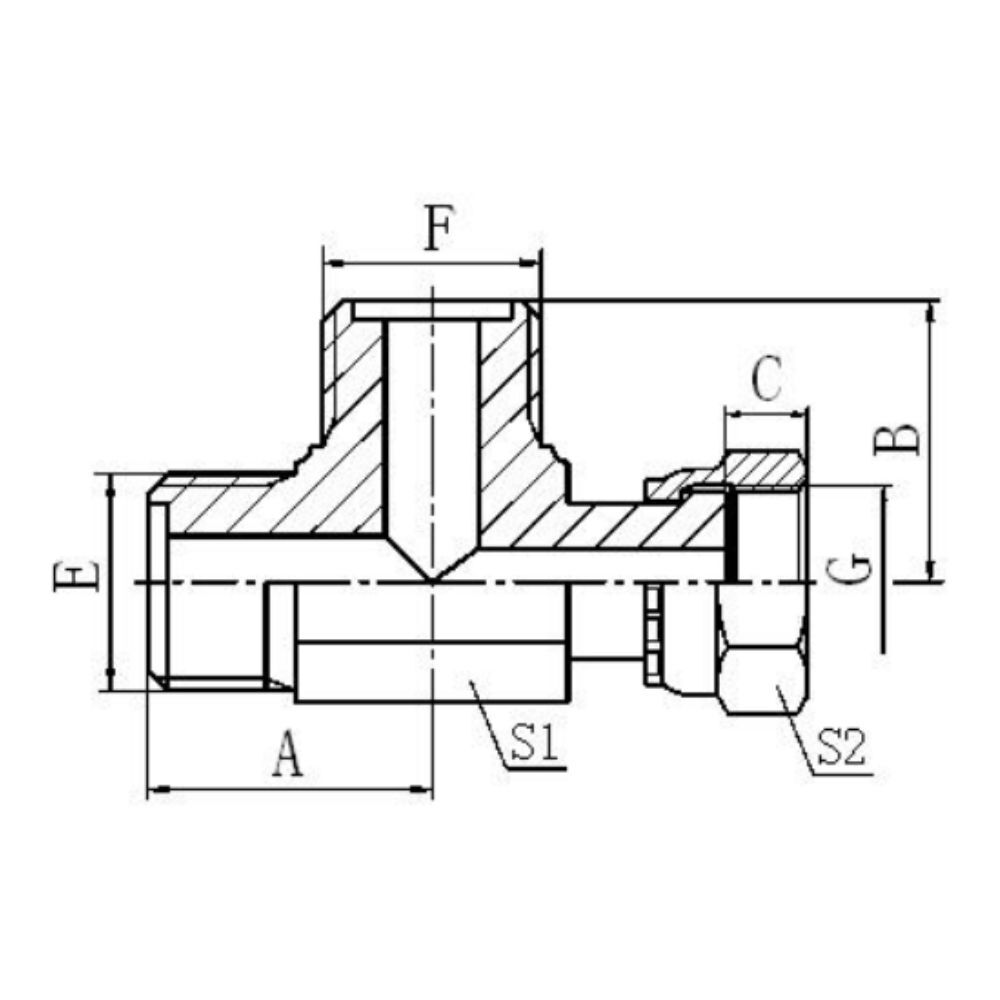

	THREAD	O-RING	DIMENSIONS
PART NO.	E、F、G	E、F	A	B	C	S1	S2
CE-14	M14X1.5	10X1.9	22.5	22.5	8.5	14	19
CE-16	M16X1.5	11X1.9	24	24	8.5	17	22
CE-18	M18X1.5	13X1.9	26	26	8.5	19	24
CE-22	M22X1.5	16X2.4	29	29	10	22	27
CE-27	M27X1.5	20X2.4	32.5	32.5	10	27	32
CE-30	M30X1.5	24X2.4	35.5	35.5	11	30	36
CE-36	M36X2	30X3.1	42	42	13	36	41
CE-39	M39X2	32X3.1	47.5	47.5	13	41	46
CE-42	M42X2	35X3.1	49.5	49.5	15	41	50
CE-45	M45X2	38X3.1	52.5	52.5	15	46	55
CE-52	M52X2	40X3.1	57	57	17	50	60

CE Male O-ring/Femlae Run Metric Tee Fittings Video

This video shows information about the CE hydraulic metric tee fittings.

Metric tees are commonly used in hydraulic systems for a variety of applications, such as splitting a hydraulic line to power two separate functions or connecting multiple hydraulic lines to a single component.

If you have any questions about metric hydraulic tee fittings, please contact us.
