Metric Tee Fitting

Description:

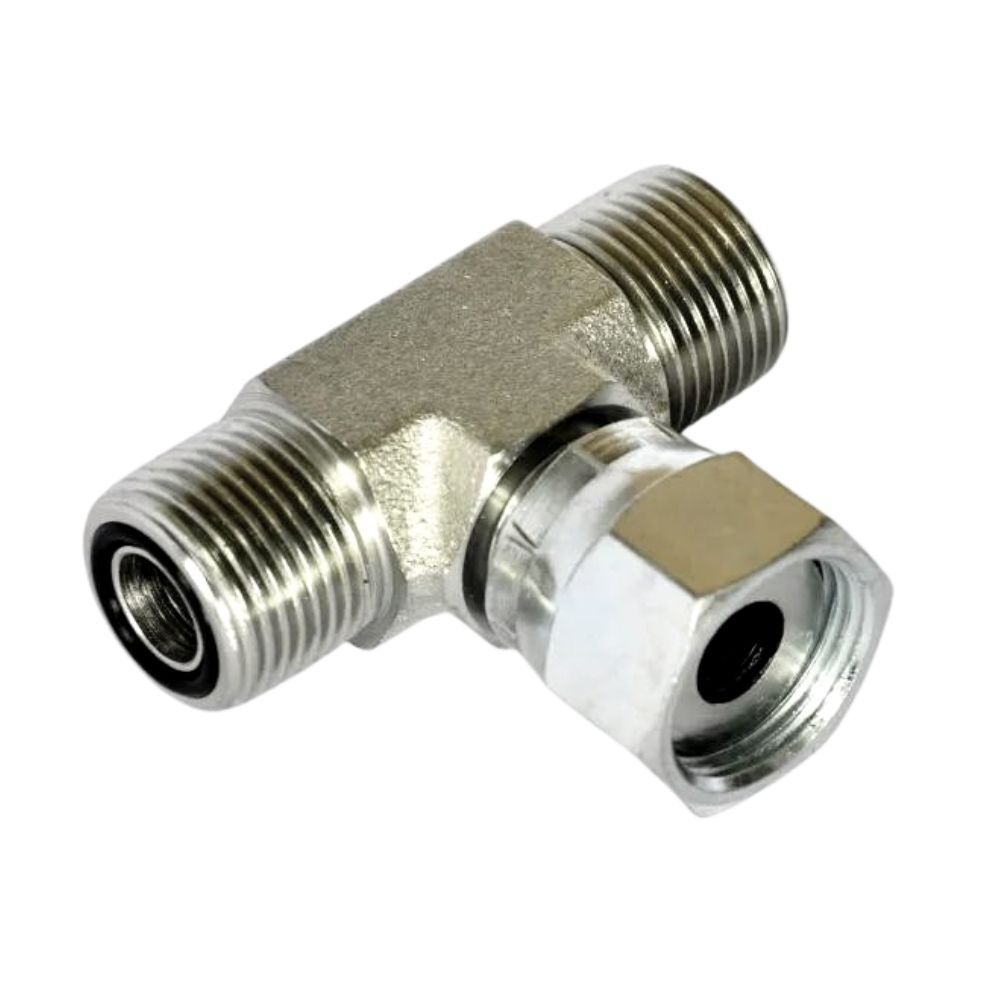

The BE metric tee fitting has three threaded ends, each with a specific metric thread size, one is a female metric thread, and the others are male o-ring ends.

Overall, metric hydraulic tees are an important component in hydraulic fluid systems and can help to optimize the flow and function of the system.

Feel free to ask any questions about the metric hose adapter.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize

Description

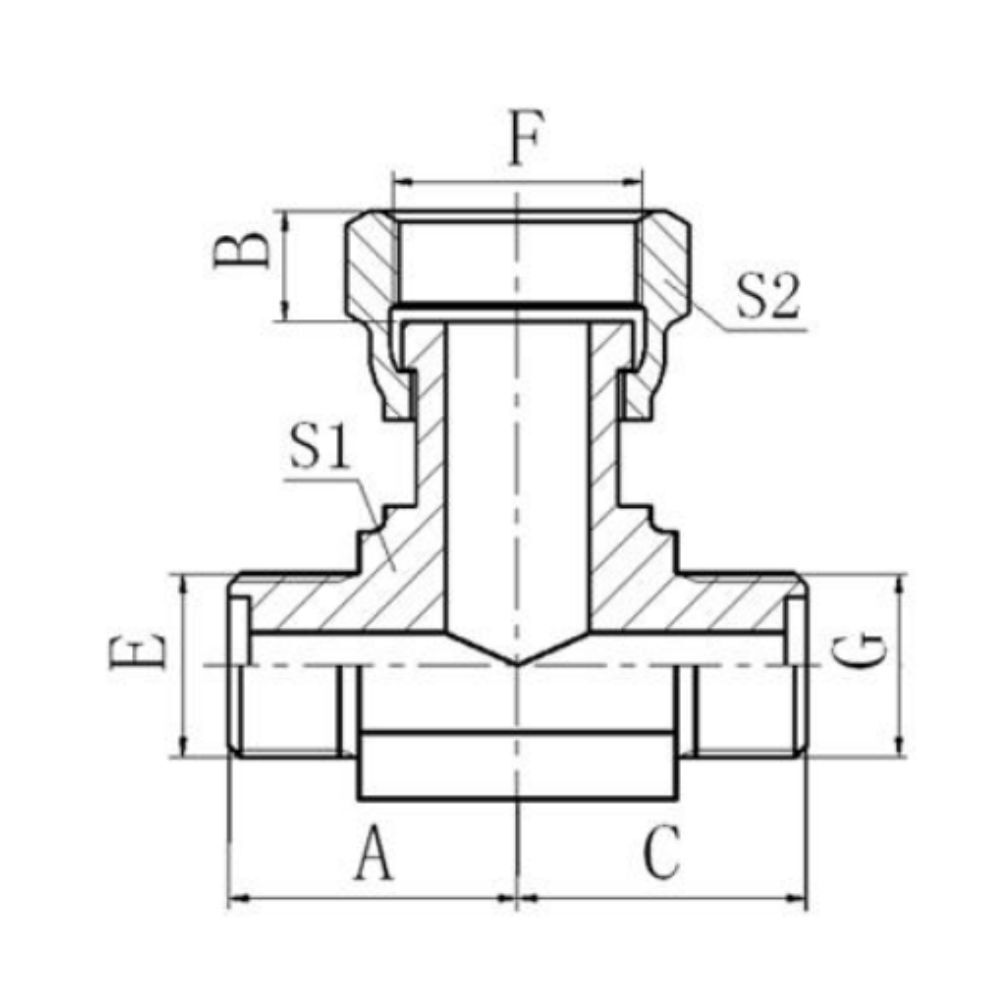

	THREAD	O-RING	DIMENSIONS
PART NO.	E F G	E G	A	B	C	S1	S2
BE-14	M14X1.5	10X1.9	22.5	8.5	22.5	14	19
BE-16	M16X1.5	11X1.9	24	8.5	24	17	22
BE-18	M18X1.5	13X1.9	26	8.5	26	19	24
BE-22	M22X1.5	16X2.4	29	10	29	22	27
BE-27	M27X1.5	20X2.4	32.5	10	32.5	27	32
BE-30	M30X1.5	24X2.4	35.5	11	35.5	30	36
BE-36	M36X2	30X3.1	42	13	42	36	41
BE-39	M39X2	32X3.1	47.5	13	47.5	41	46
BE-42	M42X2	35X3.1	49.5	15	49.5	41	50
BE-45	M45X2	38X3.1	52.5	15	52.5	46	55
BE-52	M52X2	40X3.1	57	17	57	50	60

BE Male O-ring/Femlae Branch Metric Tee Fitting Video

This video shows information about the BE hydraulic metric tee fitting.

Metric tees are commonly used in hydraulic systems for a variety of applications, such as splitting a hydraulic line to power two separate functions or connecting multiple hydraulic lines to a single component.

If you have any questions about metric hydraulic fittings, please contact us.
