Description

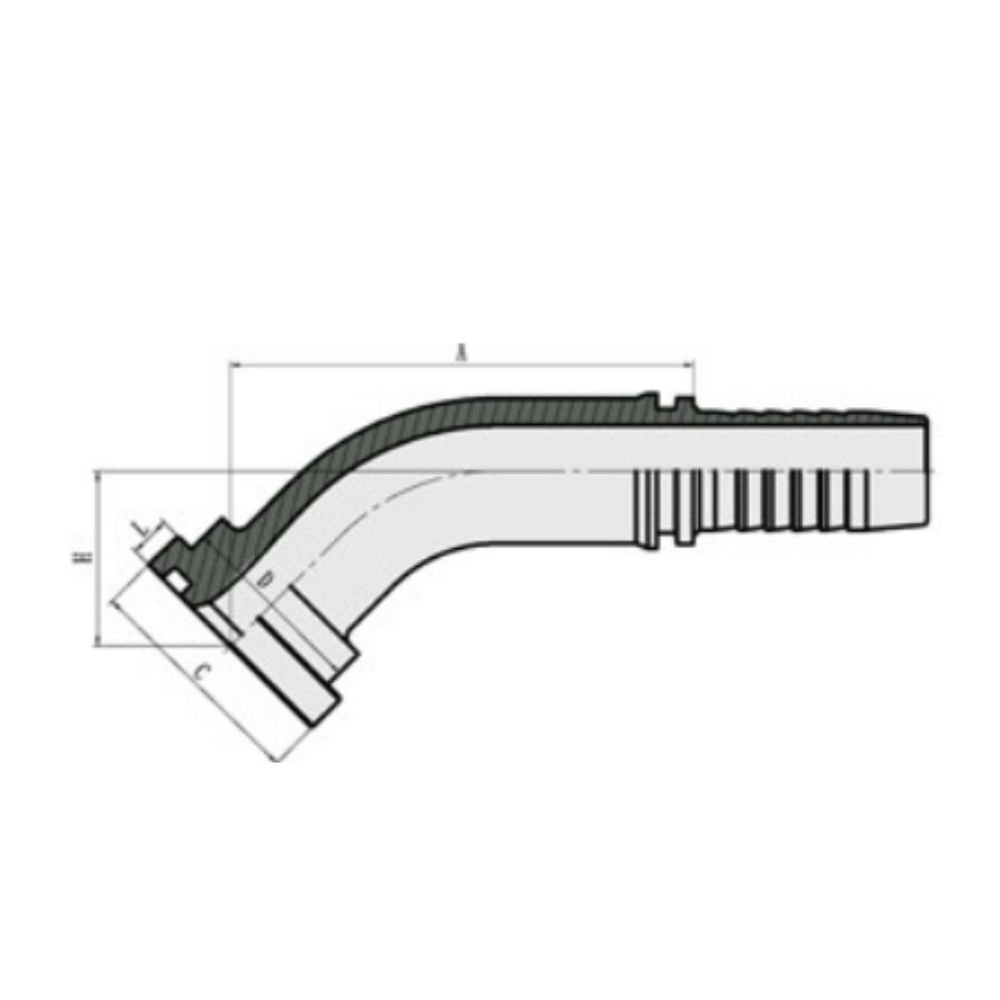

PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | |||||
DN | DASH | A | C | D |
| L | ||
88141-10-08 | 5/8″ | 12 | 08 | 58.9 | 34.2 | 27.8 | 24 | 6.7 |
88141-10-10 | 5/8″ | 16 | 10 | 70.1 | 34.2 | 27.8 | 25.3 | 6.7 |
88141-10-12 | 5/8″ | 20 | 12 | 76.2 | 34.2 | 27.8 | 28.8 | 6.7 |

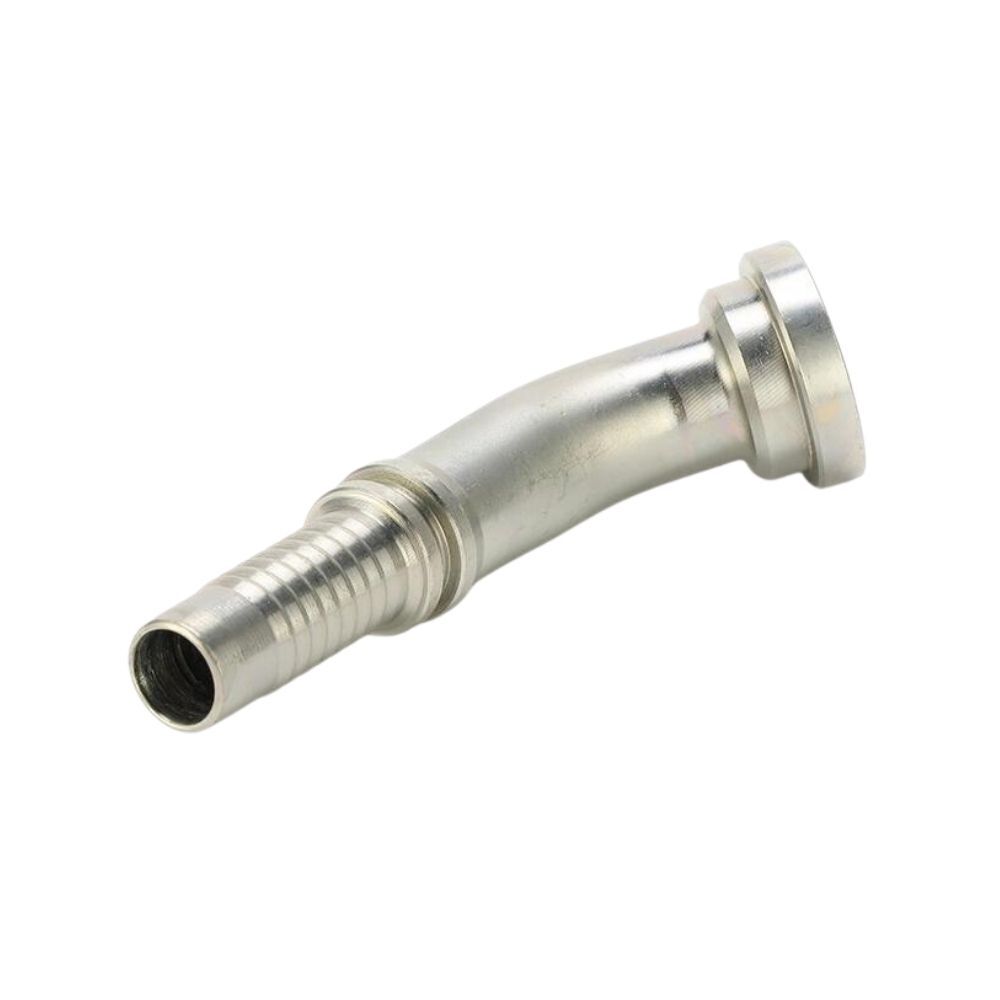

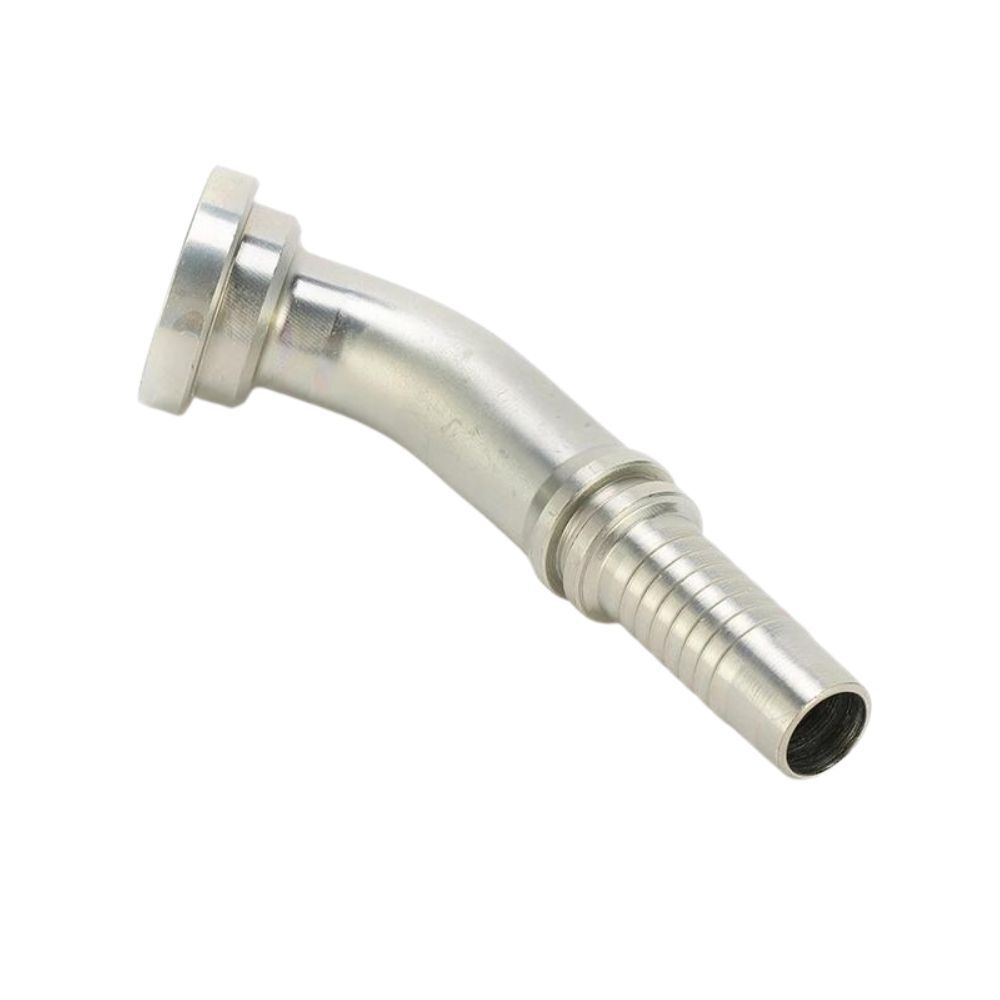

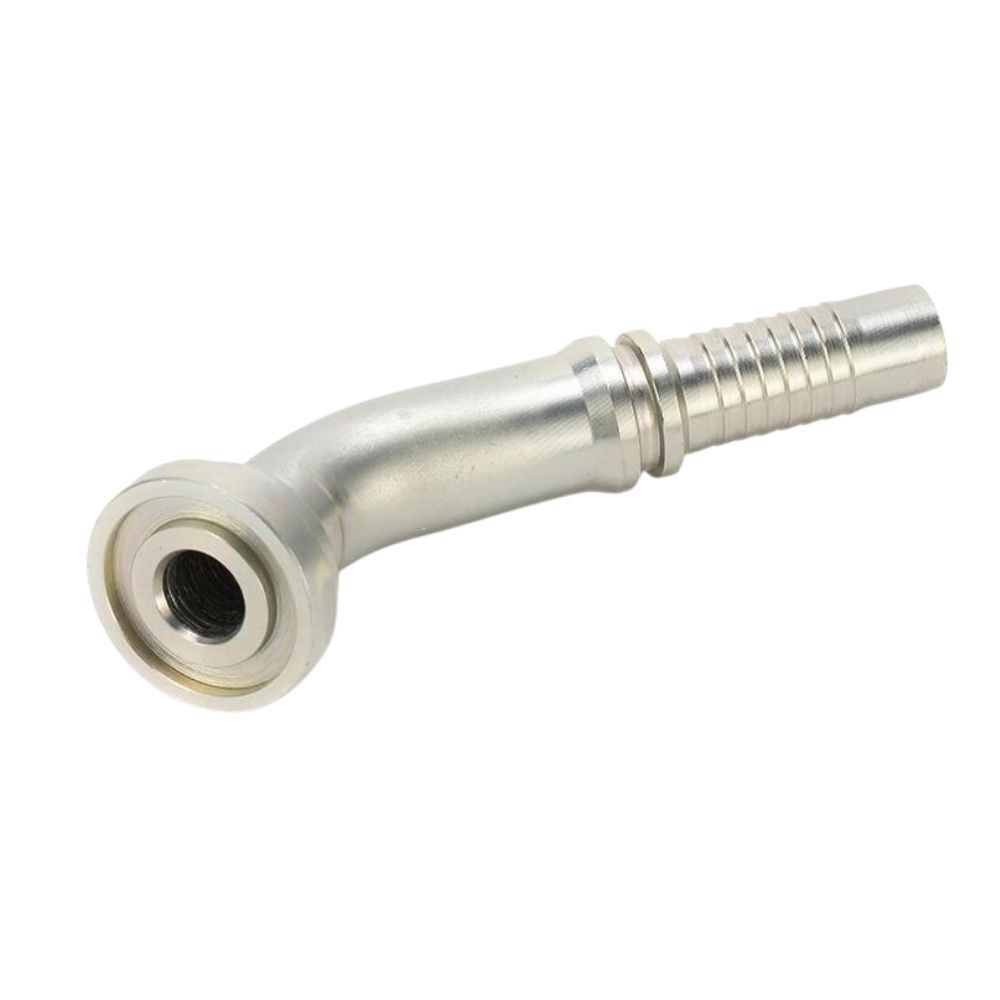

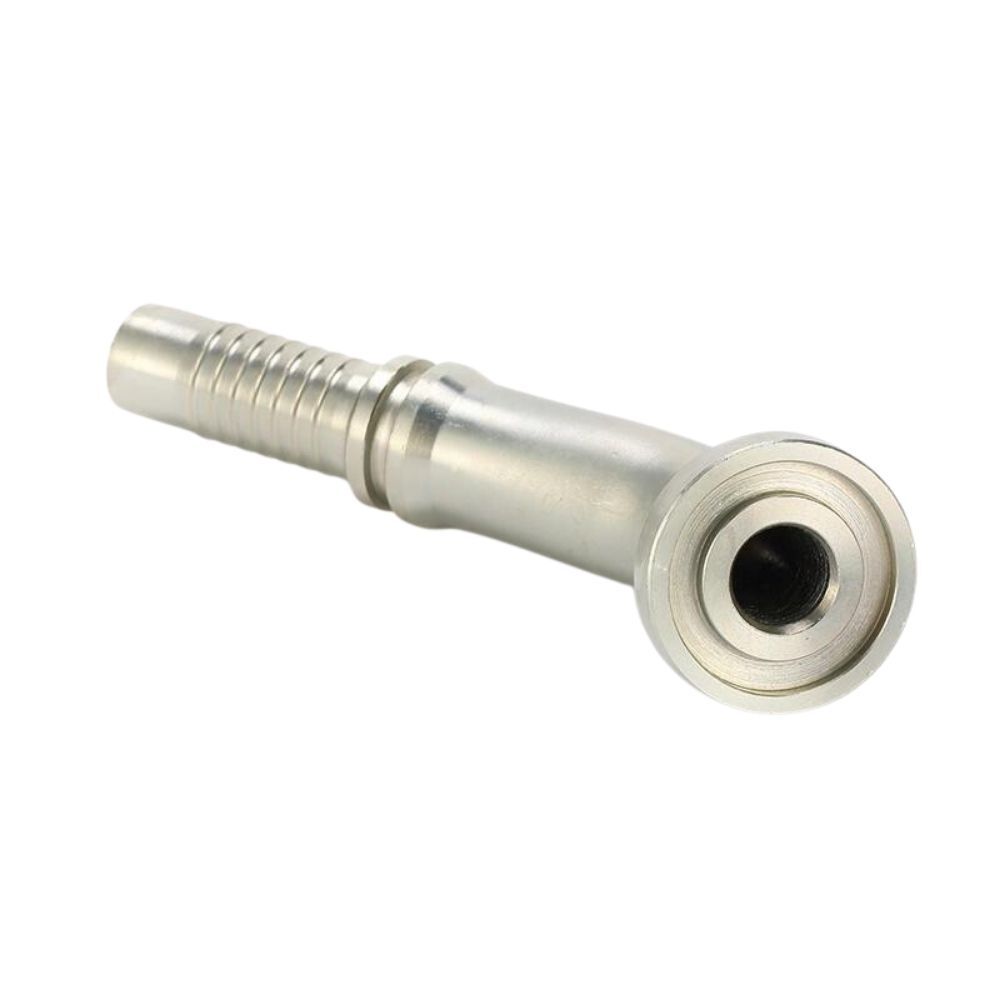

88141 45° Elbow Hydraulic JIS Flange Video
This video shows information about 88141 45° JIS flange.
Typically, JIS hose flange is commonly used in high-pressure hydraulic applications such as in industrial machinery, chemical equipment, and oil and gas systems.
If you have any questions about JIS hydraulic fittings, please contact us.
