JIS Hose Flange

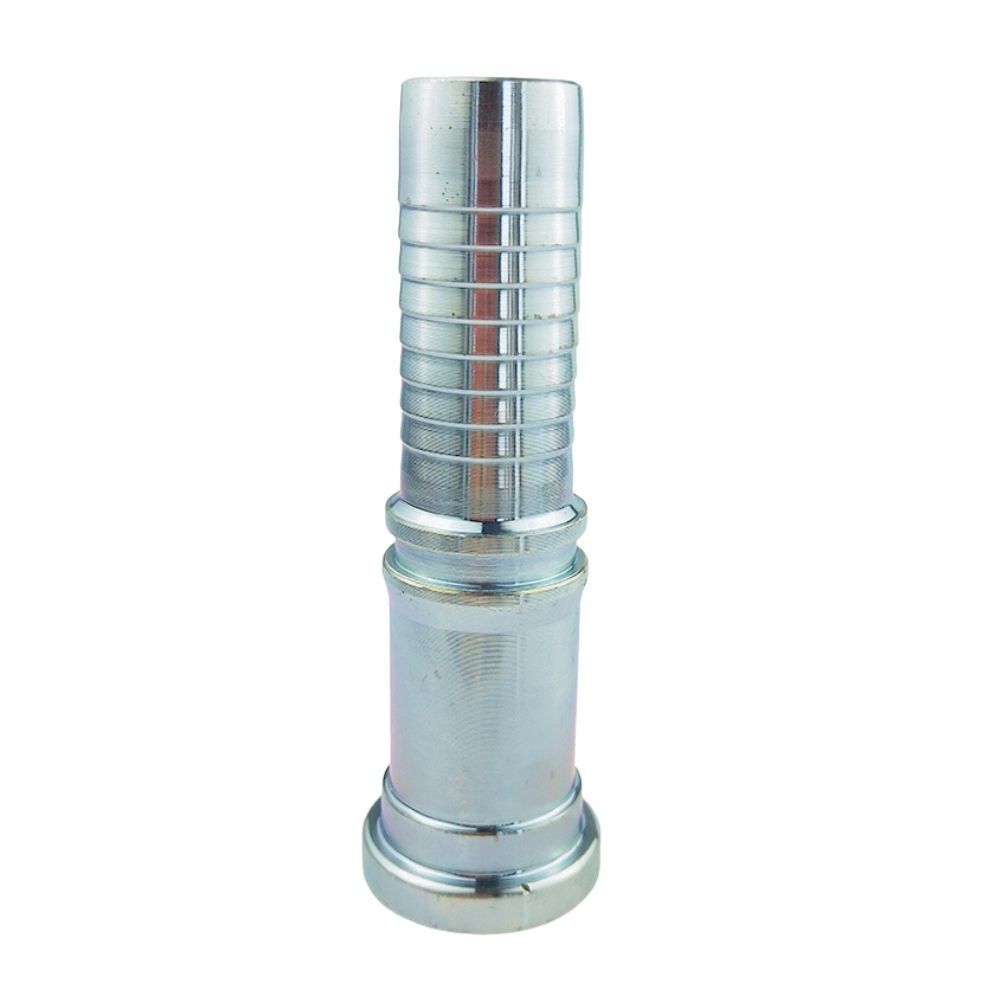

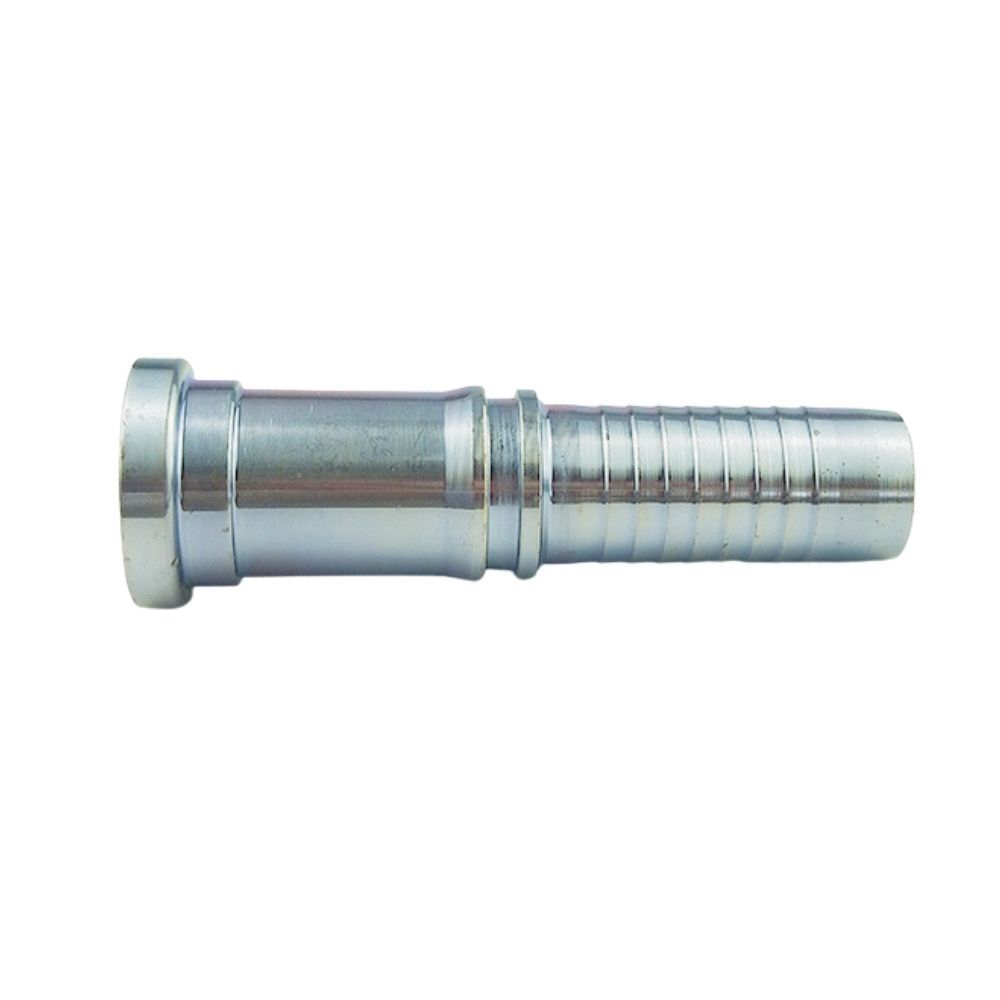

88111 Straight JIS Hose Flange

Description:

The 88111 JIS hose flange is a straight hydraulic hose fitting with a flange connection at one end and a hose stem at the other. Its straight configuration is suitable for installations where the hose can approach the port without an elbow fitting.

Topa JIS hose flanges come in a range of sizes and materials to suit different applications.

Feel free to ask any questions about the JIS standard pipe fittings.

Features and Benefits:

Straight Configuration: A straight body for hose routing that does not require an elbow at the connection.
Separate Flange and Hose Sizes: Select the hose bore to suit the assembly while confirming the flange interface against the mating port.
Dimension-Based Identification: Compare the flange profile and fitting dimensions with the approved drawing before ordering.
Assembly Specification Review: Confirm the hose, ferrule, and crimp requirements for the selected fitting.

Description

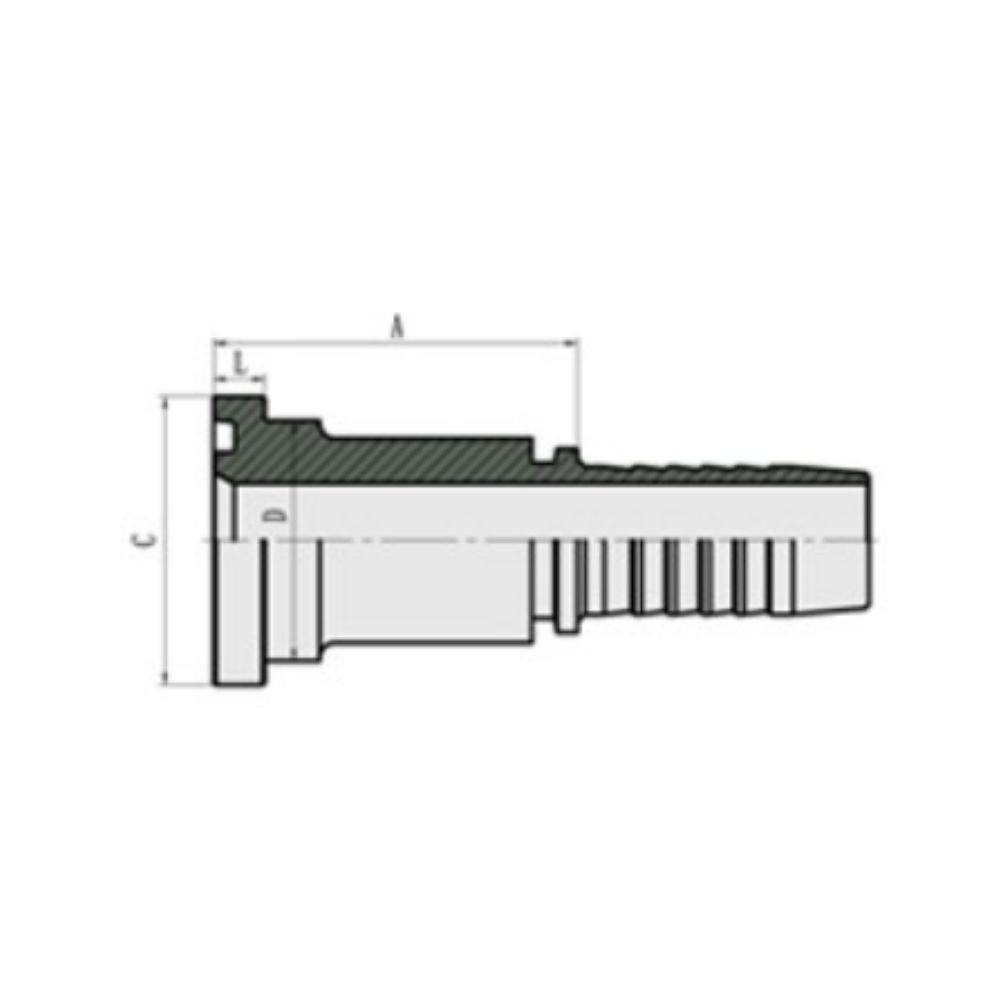

The table below lists the flange size, hose bore, and reference dimensions for the 88111 straight fitting. Read it together with the dimensioned drawing so that each letter can be checked against the correct feature.

PART NO.	FLANGE SIZE	HOSE BORE		DIMENSIONS
PART NO.	FLANGE SIZE	DN	DASH	A	C	D	L
88111-10-08	5/8″	12	08	45	34.2	27.8	6.7
88111-10-10	5/8″	16	10	46	34.2	27.8	6.7
88111-10-12	5/8″	20	12	46	34.2	27.8	6.7

88111 JIS Hose Flange Video

Watch the product video for a closer look at the 88111 straight JIS hose flange. The video provides a visual reference for its overall shape and straight configuration, helping you understand the relationship between the flange connection and the hose stem.

When comparing the 88111 with an existing fitting, pay attention to the flange profile, sealing area, hose stem, and overall dimensions. Check the flange size and hose bore separately, as the same flange connection may be paired with different hose sizes. The mating port, clamps, seal, and hose assembly specifications also need to match your requirements.

Click to watch the video and explore the product in more detail. For a quotation, send Topa your complete part numbers, hose specifications, and quantities by size.

Hot Sales

The connection angle should suit the available installation space and hose routing. Review the straight, 45°, and 90° configurations, and confirm the flange dimensions and hose assembly requirements for each selected part.
