JIS Hydraulic Hose Fittings

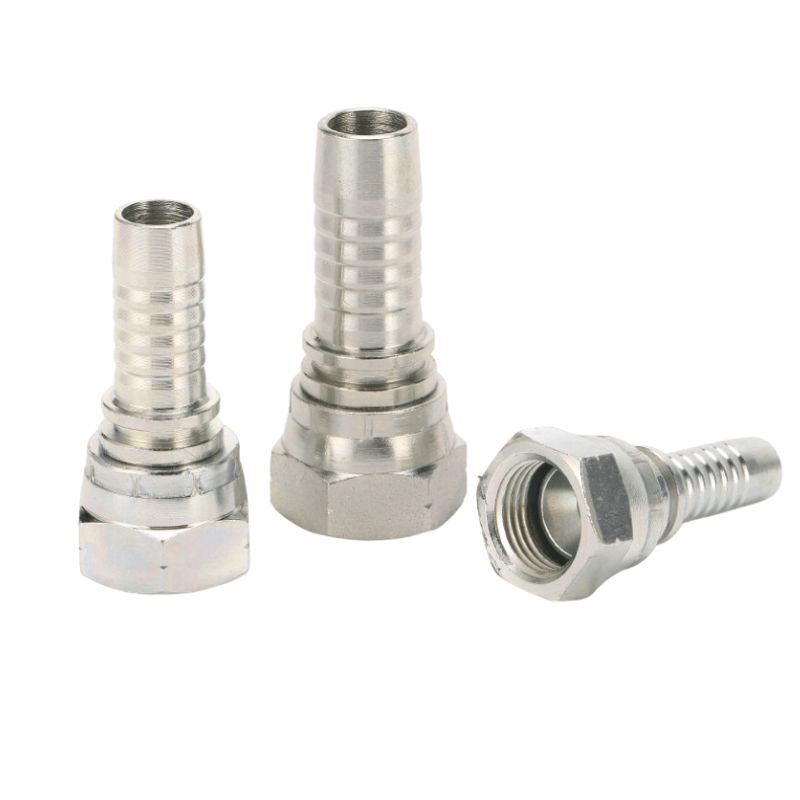

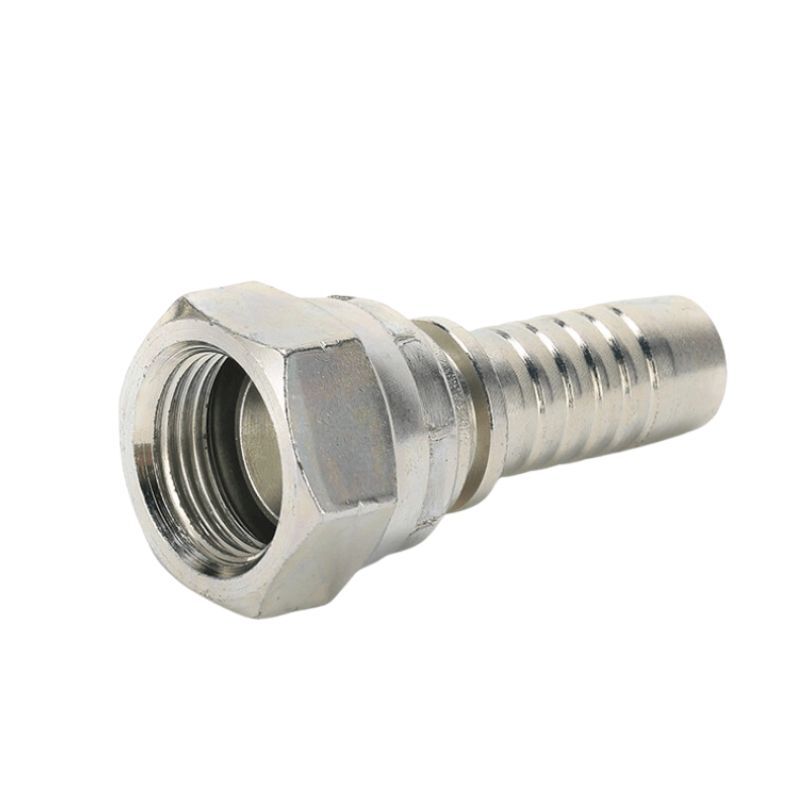

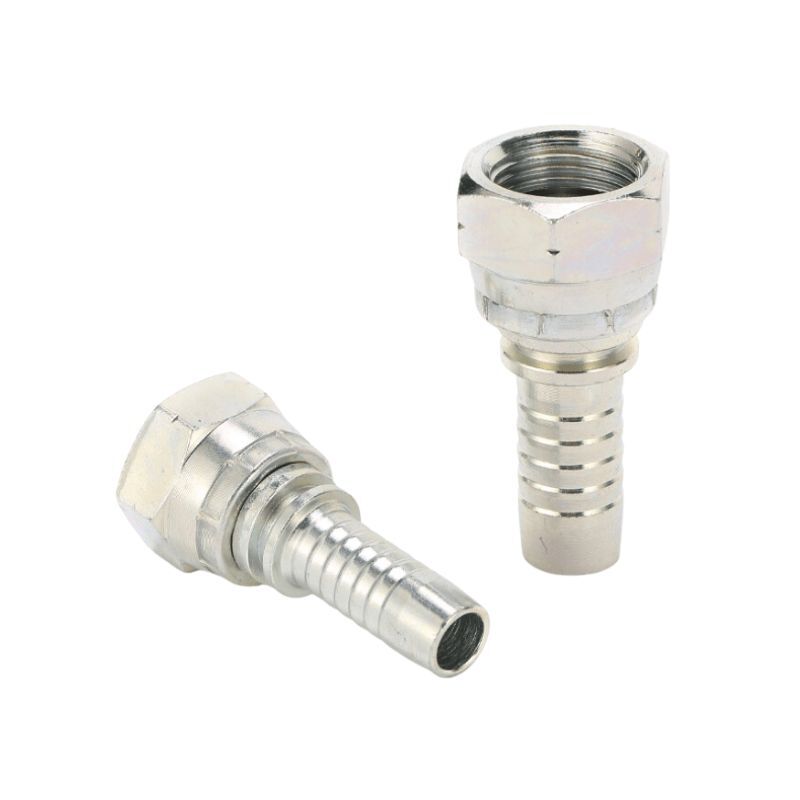

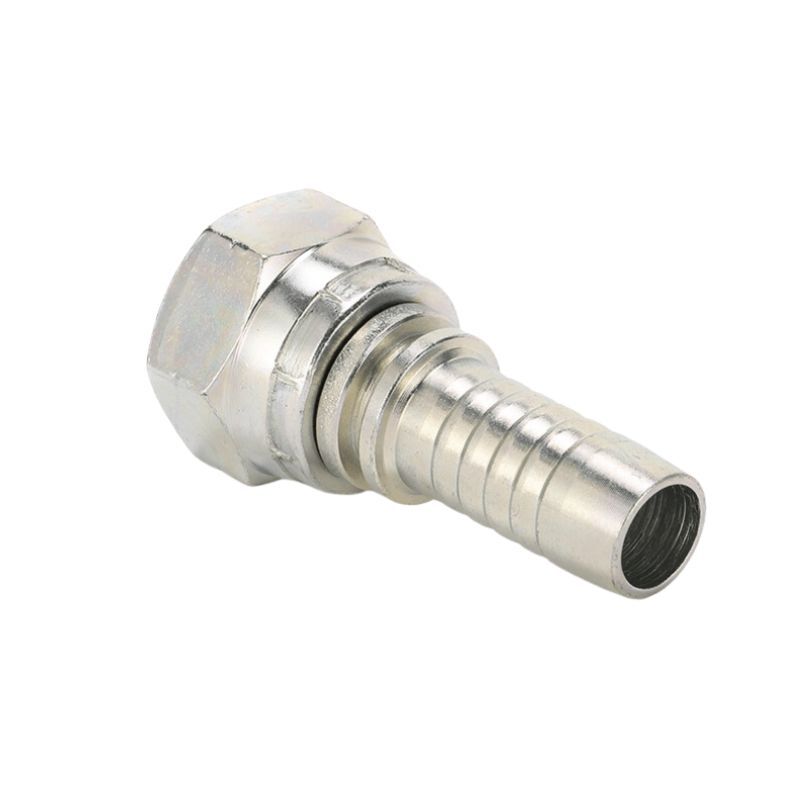

29611 / 29611-W JIS Hydraulic Hose Fittings

Description:

The 29611 / 29611-W is a straight JIS hydraulic hose fitting with a female BSPP threaded connection, a 60° cone seat, and a hose stem. It connects a hydraulic hose assembly to a matching male JIS cone fitting.

JIS standard is a set of standards used in Japan for industrial products, and JIS gas fitting is always used in gas systems.

Send Topa your required part numbers and quantities by size for quotation. If you are identifying an existing fitting, include the hose specification, clear photos of the connection, and measured thread dimensions.

Features and Benefits:

Female BSPP Connection: Parallel G thread for connection to a matching male JIS cone fitting.
60° Cone Seat: A defined sealing interface that must match the mating fitting’s cone geometry.
Straight Configuration: Suitable for hose routing that does not require an elbow at the connection.
Thread and Hose Size Options: Select the connection size and hose bore separately to suit the assembly.

Description

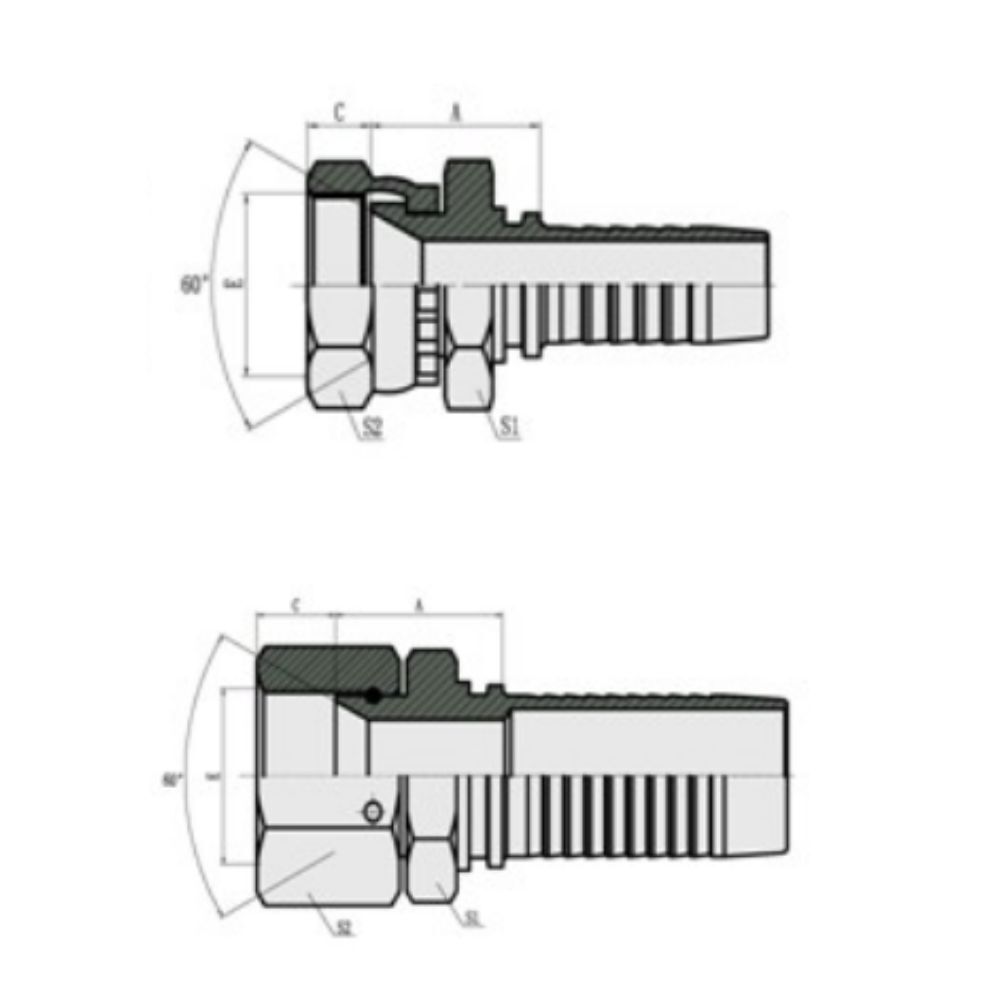

Use the dimension table together with the product drawing to identify the required fitting. Thread E specifies the female BSPP connection, while DN and dash size identify the hose bore. The remaining dimensions should be checked against the corresponding drawing references.

Thread size and hose size are separate selection fields. A fitting with the correct connection thread may still have the wrong hose stem or installation dimensions for your assembly. For repeat orders, use the complete approved part number and drawing revision, including any applicable suffix.

If you are unsure whether the 29611 or 29611-W version is required, send Topa a drawing or clear photos of the existing fitting for comparison.

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	S1	S2
29611-02-03	G1/8″*28	5	03	20	7	14	14
29611-04-04	G1/4″*19	6	04	21	8	19	19
29611-04-05	G1/4″*19	8	05	21	8	19	19
29611-06-04	G3/8″*19	6	04	24	9	22	22
29611-06-06	G3/8″*19	10	06	23	9	22	22
29611-08-06	G1/2″*14	10	06	28	12	27	27
29611-08-08	G1/2″*14	12	08	26.5	12	27	27
29611-10-10	G5/8″*14	16	10	31	11.5	30	30
29611-12-10	G3/4″*14	16	10	28.5	13.5	32	32
29611-12-12	G3/4″*14	20	12	28.5	13.5	32	32
29611-16-16	G1″*11	25	16	32	16	41	41
29611-20-20W	G1.1/4″*11	32	20	43	18.5	50	50
29611-24-24W	G1.1/2″*11	40	24	43.5	19	55	55
29611-32-32W	G2″*11	50	32	46.5	23	70	70v

29611/29611-W Female JIS Hydraulic Hose Fittings Video

Watch the product video for a closer look at the 29611 / 29611-W JIS hydraulic hose fitting. View it alongside the product photos and dimension table to review the straight configuration and the connection features that need to match your hose assembly.

When comparing the product with an existing fitting, check the female thread, cone seat, hose stem, and installation dimensions. Confirm the connection thread and hose bore separately, and verify the complete part number when a particular version or suffix is required.

Click to watch the video and explore the product in more detail. Send Topa your fitting list, hose specifications, and quantities per size for quotation.
