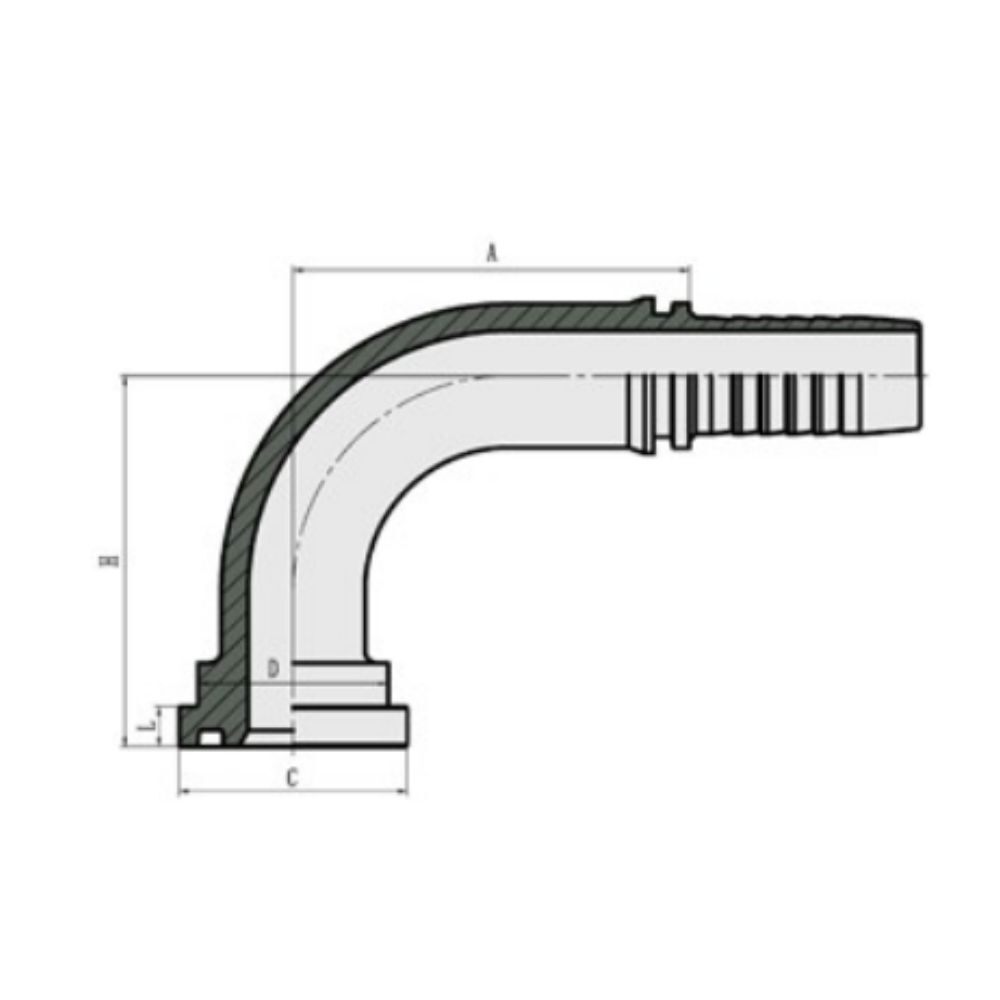

PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | |||||
DN | DASH | A | C | D | H | L | ||
88191-08 | 5/8″ | 12 | 08 | 41 | 34.2 | 27.8 | 48 | 6.7 |
88191-10 | 5/8″ | 16 | 10 | 56.5 | 34.2 | 27.8 | 52.5 | 6.7 |
88191-12 | 5/8″ | 20 | 12 | 56.5 | 34.2 | 27.8 | 62 | 6.7 |

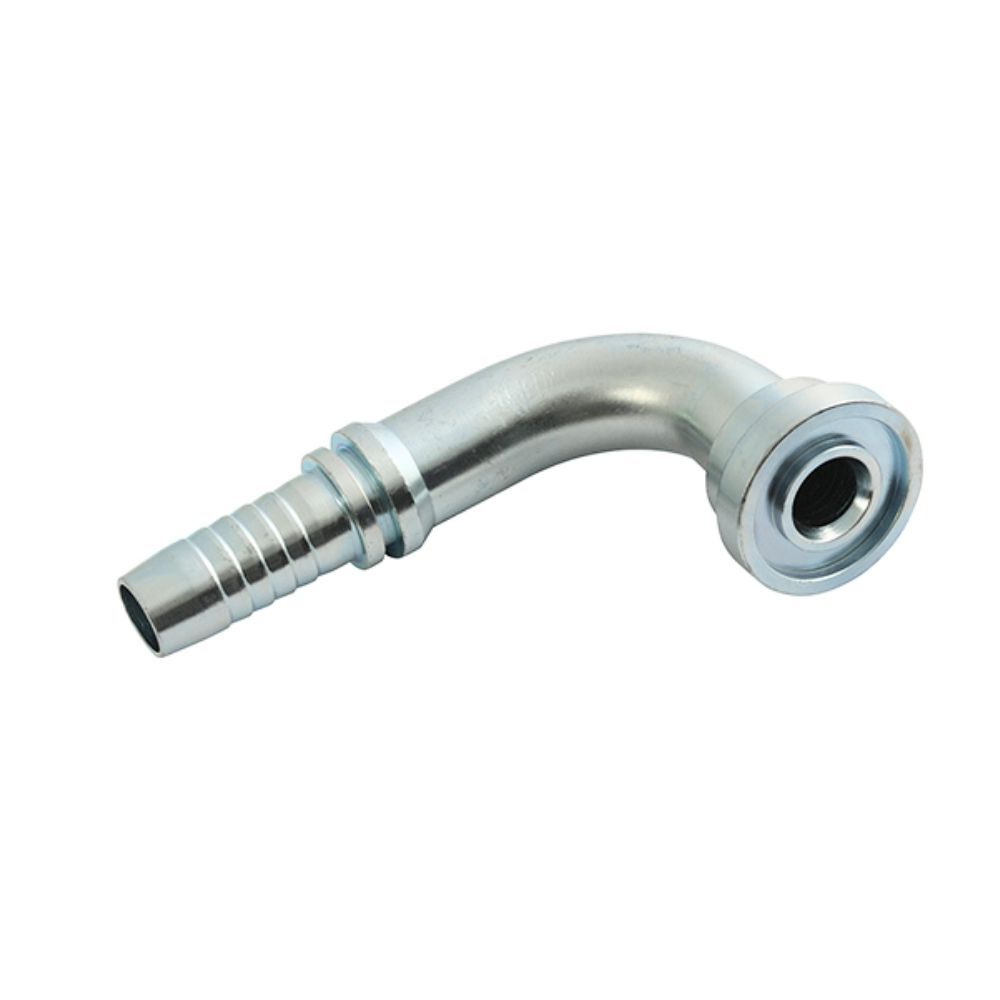

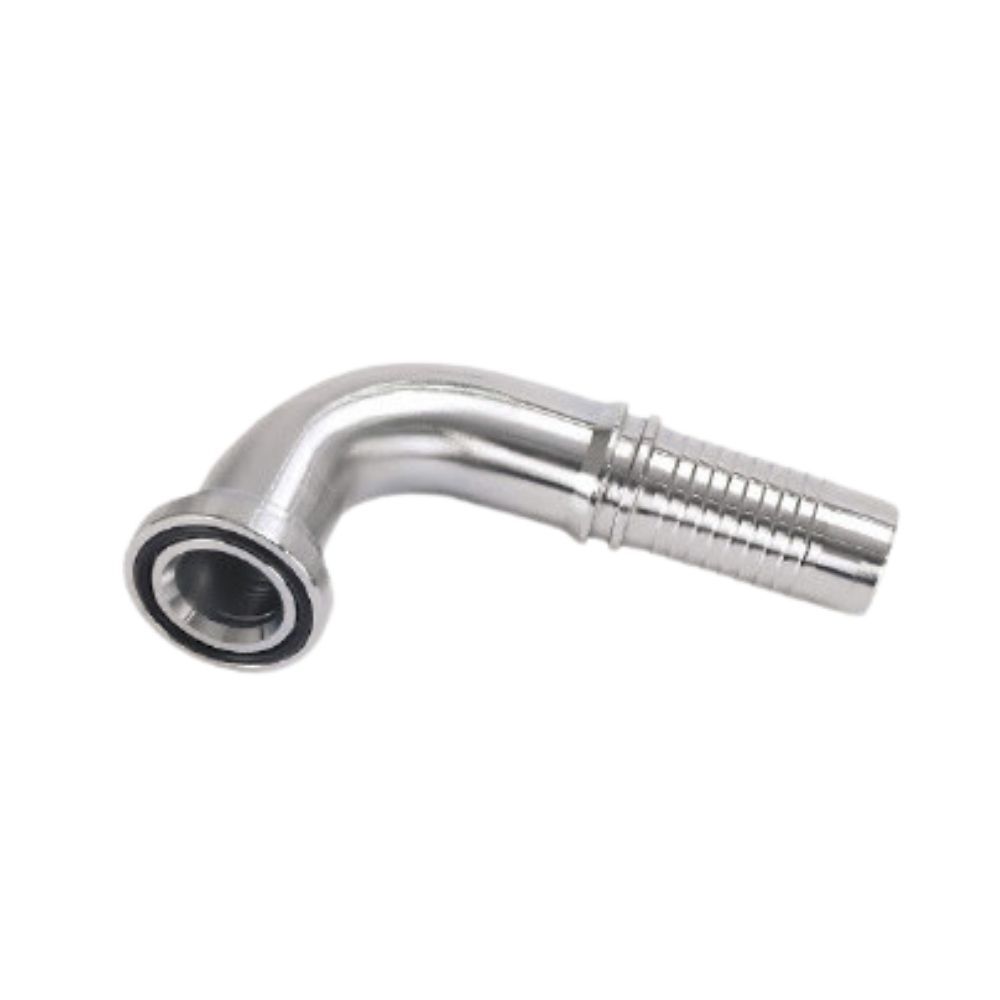

88191 90° Elbow JIS Hose Flanges Video
This video shows information about 88191 JIS hose flanges.
Typically, JIS hose flange is commonly used in high-pressure hydraulic applications such as in chemical machinery, industrial equipment, and oil transmission systems.
If you have any questions about JIS hose fittings, please contact us.
