1KG-OG Metric JIS Fitting-Male 60°Cone/BSP O-ring-Topa

Metric JIS Fitting

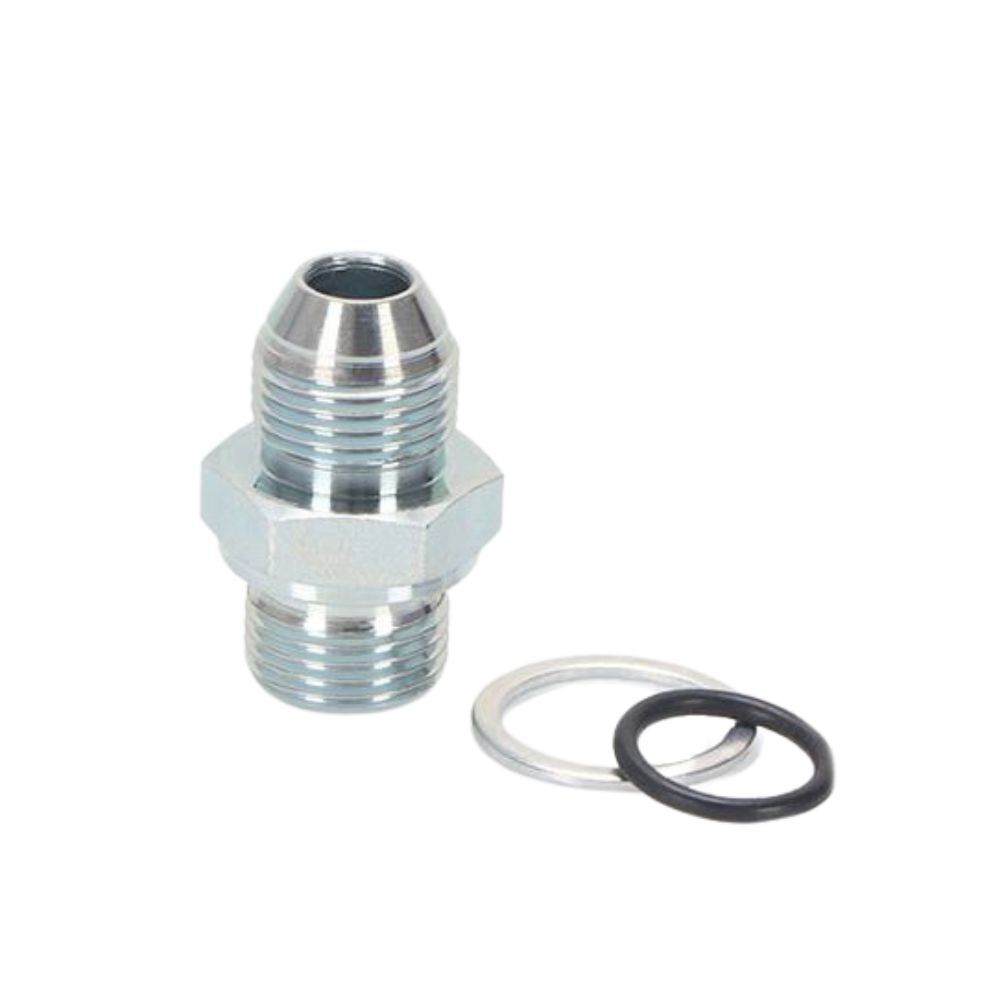

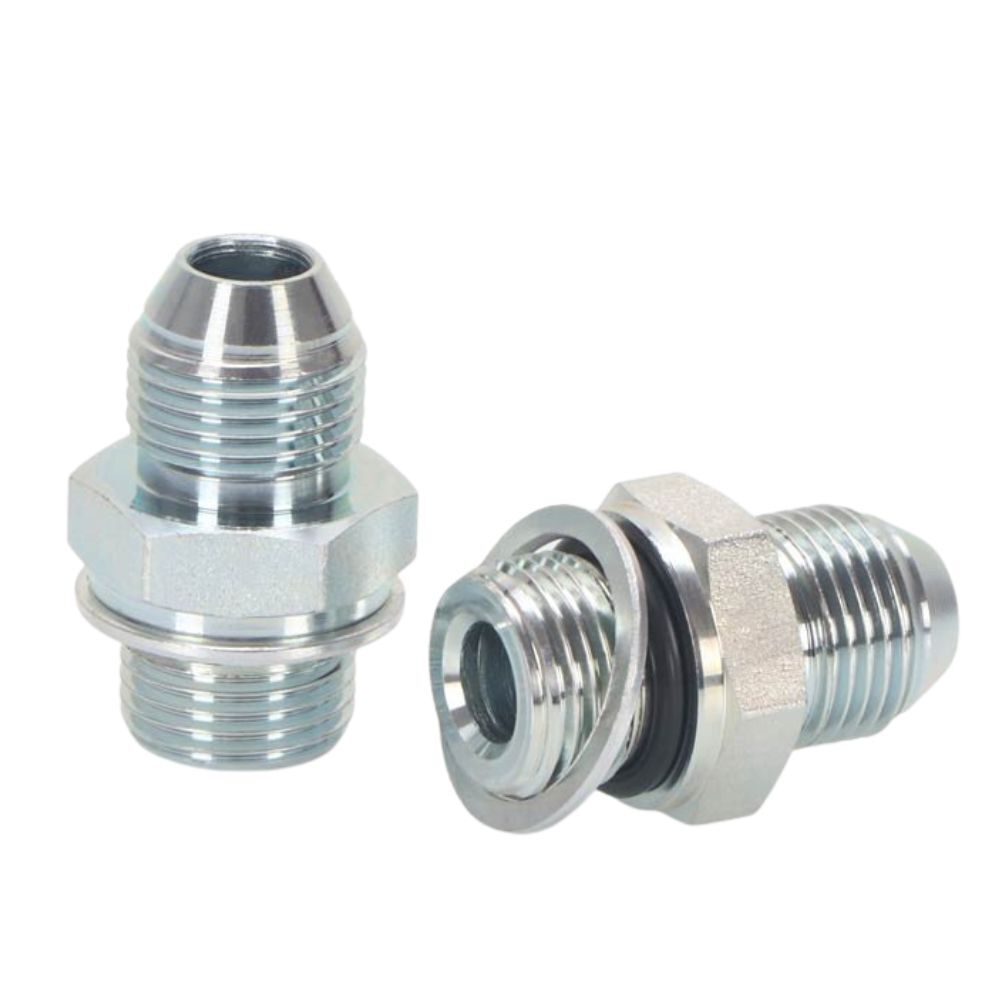

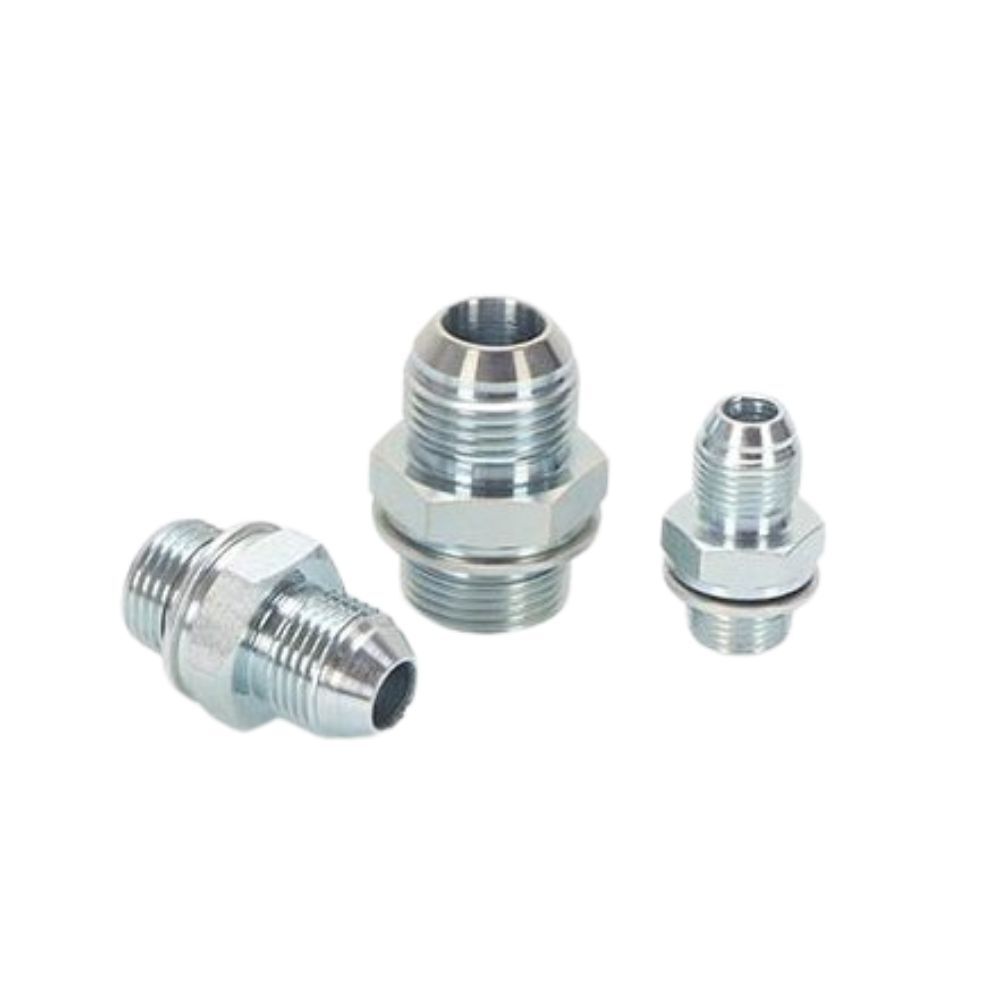

1KG-OG Metric JIS to BSPP O-Ring Adapter

Description:

1KG-OG metric JIS fitting has a 60° cone seat metric thread and a BSP thread with an o-ring seal, it is a male metric adapter that can create a connection with a female adapter or tubes.

Each end has its own connection and sealing requirements. The metric end must match the female fitting’s thread diameter, pitch, and cone geometry. The BSPP end requires a port designed for the adapter’s O-ring sealing arrangement. Check both interfaces, installation dimensions, and operating conditions before selecting a part number.

Send Topa your complete part number or drawing, thread specifications for both ends, and quantity per size for product review and quotation.

Features and Benefits:

Metric JIS Connection: Male metric thread and cone interface for a matching JIS female fitting.
BSPP O-Ring Port End: Parallel G thread with an O-ring sealing arrangement that must match the receiving port.
Straight Body: An inline configuration for installations that do not require an elbow adapter.
Wrench Access: Hexagonal wrench flats for installation with the appropriate tool.

Description

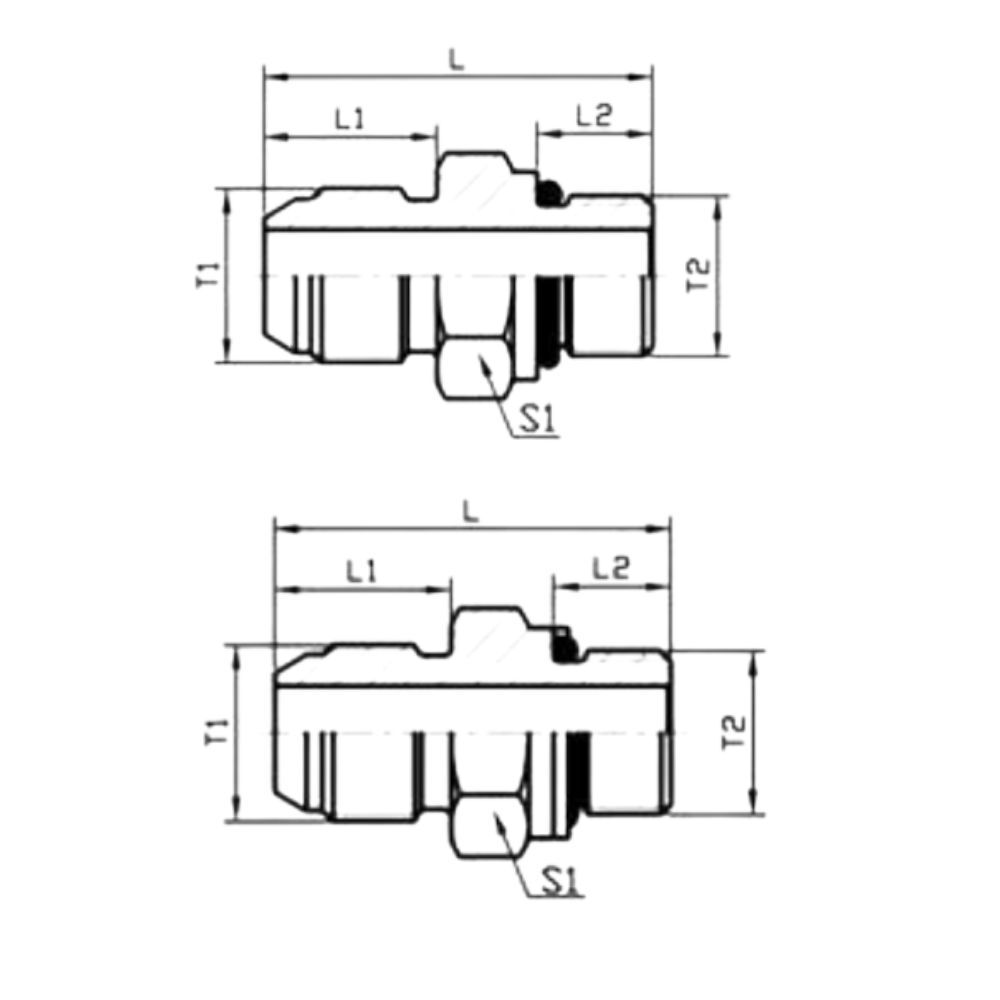

Use the table and dimensioned drawing together to identify the required adapter. T1 identifies the metric JIS end, while T2 identifies the BSPP port end. Check both thread specifications and the body dimensions against your assembly drawing.

For replacement identification, measure thread diameter and pitch, then confirm the cone and O-ring sealing geometry. A matching thread alone does not establish that the adapter will seal correctly.

Working pressure must be confirmed for the selected size, material, seal, and mating connection. Use the verified rating applicable to the complete connection when reviewing the adapter for service.

PART NO.	THREAD		DIMENSIONS				Working pressure(bar)
PART NO.	T1	T2	L1	L2	L	S1	Working pressure(bar)
1KG-14-04	M14X1.5	G1/4＂X19	17	11	36	19	34.5
1KG-14-06	M14X1.5	G3/8＂X19	17	11.5	36.5	22	31.5
1KG-16-06	M16X1.5	G3/8＂X19	18	11.5	38	22
1KG-18-06	M18X1.5	G3/8＂X19	18	11.5	38	22
1KG-22-08	M22X1.5	G1/2＂X14	20	14	47	27
1KG-30-12	M24X1.5	G3/4＂X14	26	15.5	52.5	32	20
1KG-33-12	M30X1.5	G3/4＂X14	30	15.5	59.5	36
1KG-33-16	M33X1.5	G1＂X11	30	18	62	41

1KG-OG Male 60°Cone/BSP O-ring Metric JIS Fitting Video

Watch the product video for a closer look at the 1KG-OG metric JIS adapter, including its straight body, metric JIS cone connection, and BSPP O-ring port end.

The 1KG-OG connects a matching metric JIS female fitting to a compatible BSPP port. When selecting a size, check the thread diameter and pitch at both ends, the mating cone geometry, and the port’s O-ring sealing requirements.

Click to watch the video and explore the product in more detail. Send Topa your required part numbers, connection specifications, and quantities per size for quotation. If you need help identifying an existing adapter, include clear photos of both ends and measured dimensions.
