Description

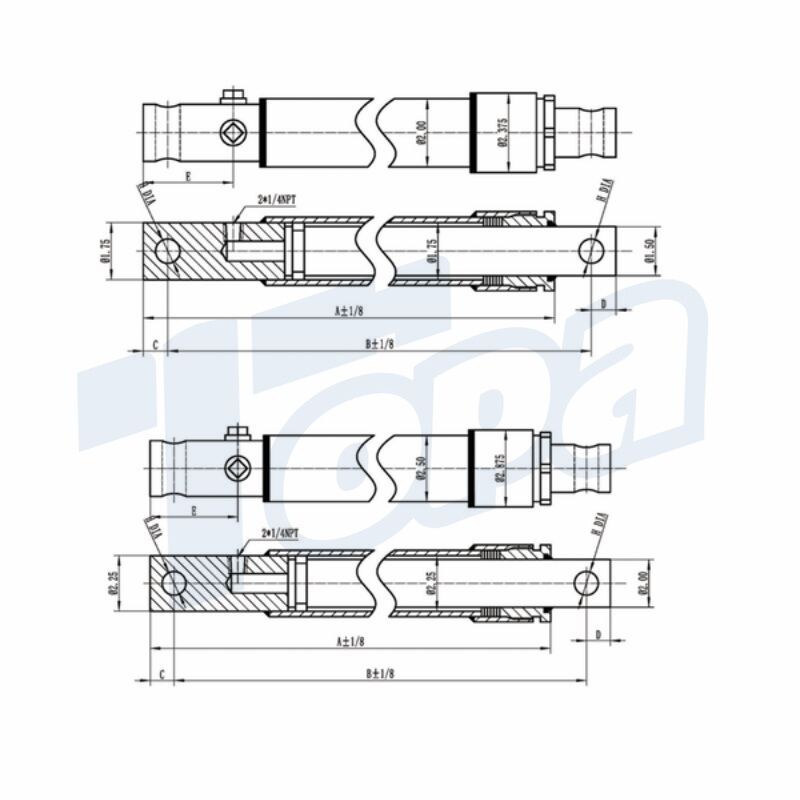

| PART NUMBER | DESCRIPTION | A | B | C & D | E | H | Wt LBS. |
| SPM-1506-0625 | MYER 1.5″ X 6″ | 11-7/8 | 12 | 11/16 | 2 | 5/8 | 12 |
| SPM-1510-0625 | MYER 1.5″ X 10″ | 15-7/8 | 16-1/4 | 11/16 | 2 | 5/8 | 14 |
| SPM-1512-0625 | MYER 1.5″ X 12″ | 17-7/8 | 18 | 11/16 | 2 | 5/8 | 15 |
| SPW-1506-0750 | WESTERN 1.5″ X 6″ | 12-5/8 | 13 | 11/16 | 2-3/4 | 3/4 | 12 |
| SPW-1508-0750 | WESTERN 1.5″ X 8″ | 14-5/8 | 15-1/4 | 11/16 | 2-3/4 | 3/4 | 13 |
| SPW-1510-0750 | WESTERN 1.5″ X 10″ X 3/4″ | 16-5/8 | 17-1/4 | 11/16 | 2-3/4 | 3/4 | 14 |
| SPW-1510-1000 | WESTERN 1.5″ X 10″ X 1″ | 16-5/8 | 17-1/2 | 11/16 | 2-3/4 | 1 | 14 |
| SPA-1510-0750 | ARCTIC 1.5″ X 10″ | 16-5/8 | 17 | 3/4 | 2-3/4 | 3/4 | 14 |
| SPA-1512-0750 | ARCTIC 1.5″ X 12″ | 18-5/8 | 19 | 3/4 | 2-3/4 | 3/4 | 15 |
| SPF-1512-1000 | FISHER 1.5″ X 12″ | 18-7/16 | 19-3/8 | 3/4 | 2-5/8 | 1 | 15 |
| SPF-1510-1000 | FISHER & DIAMOND 1.5″ X 10″ | 16-3/8 | 17-1/4 | 3/4 | 2-11/16 | 1 | 14 |
Customization options are available for Snow Poly Hydraulic Cylinders, allowing adjustments to stroke lengths, mounting configurations, and pressure ratings to meet the specific needs of snow and ice removal equipment.

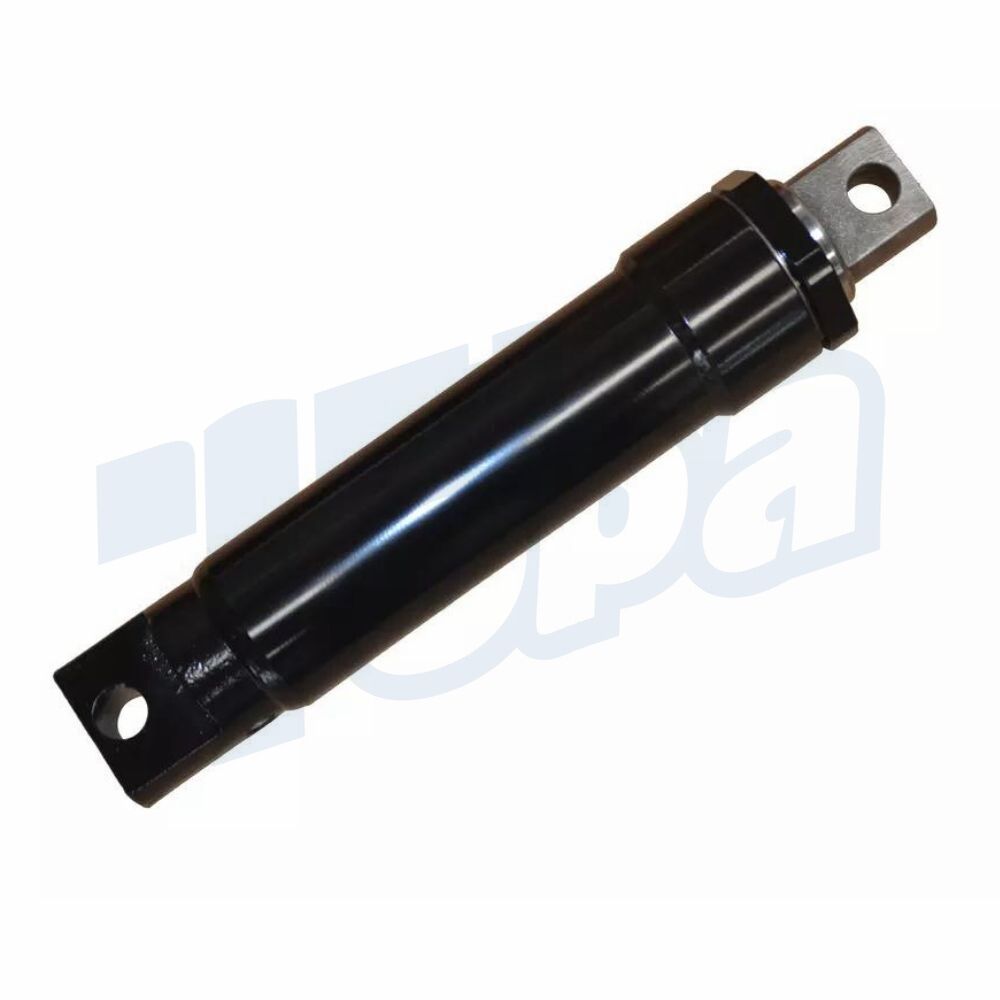

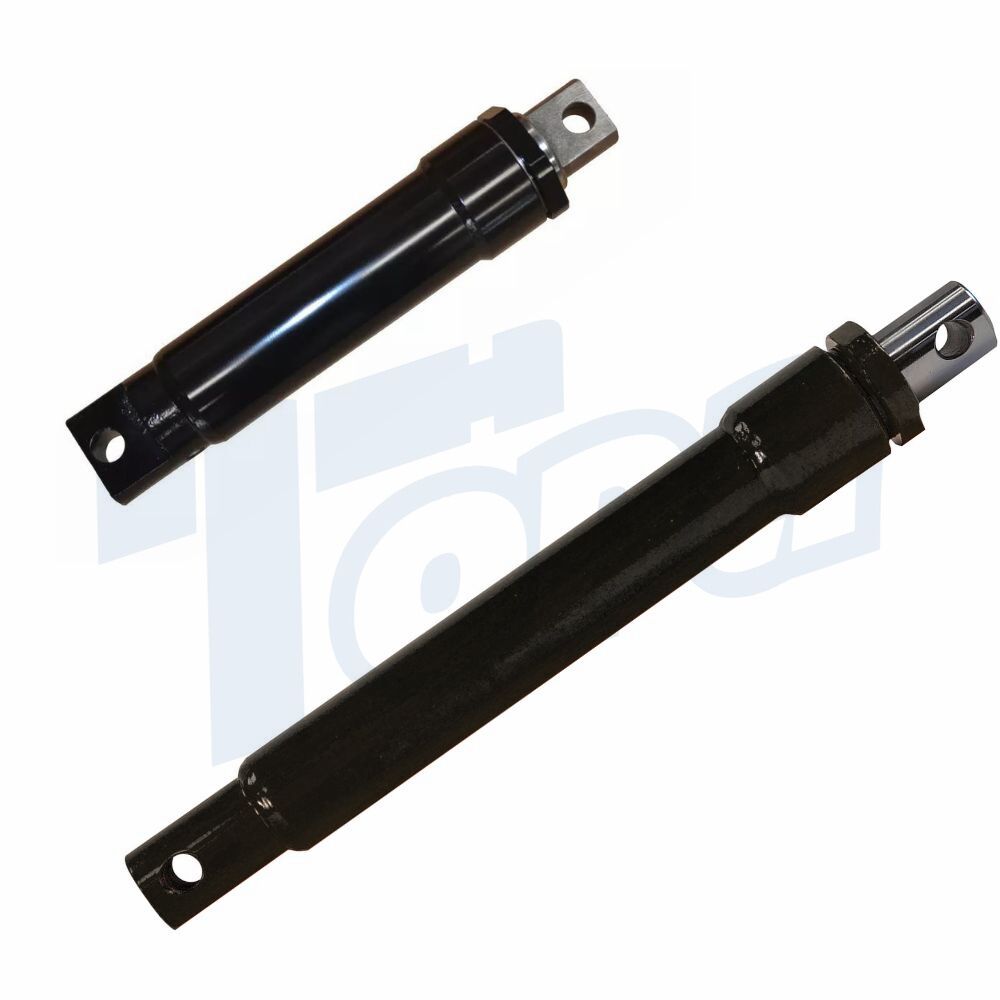

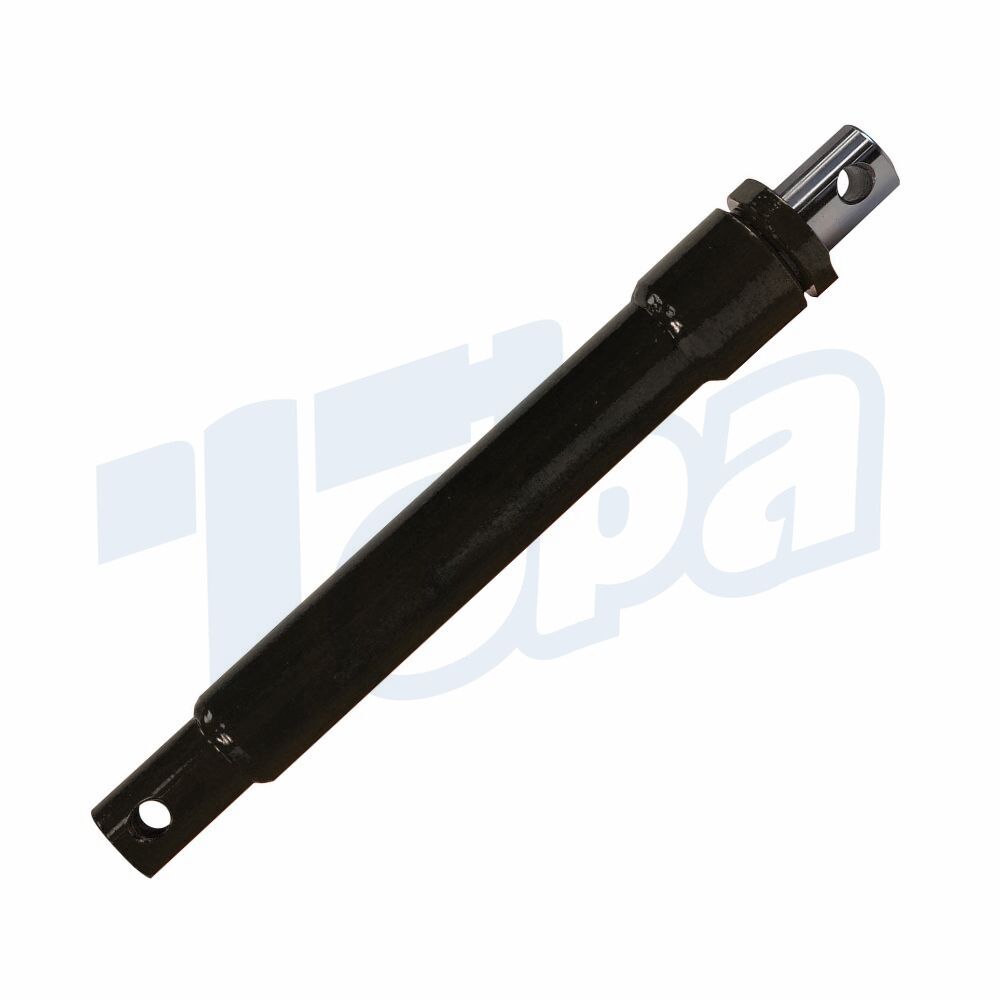

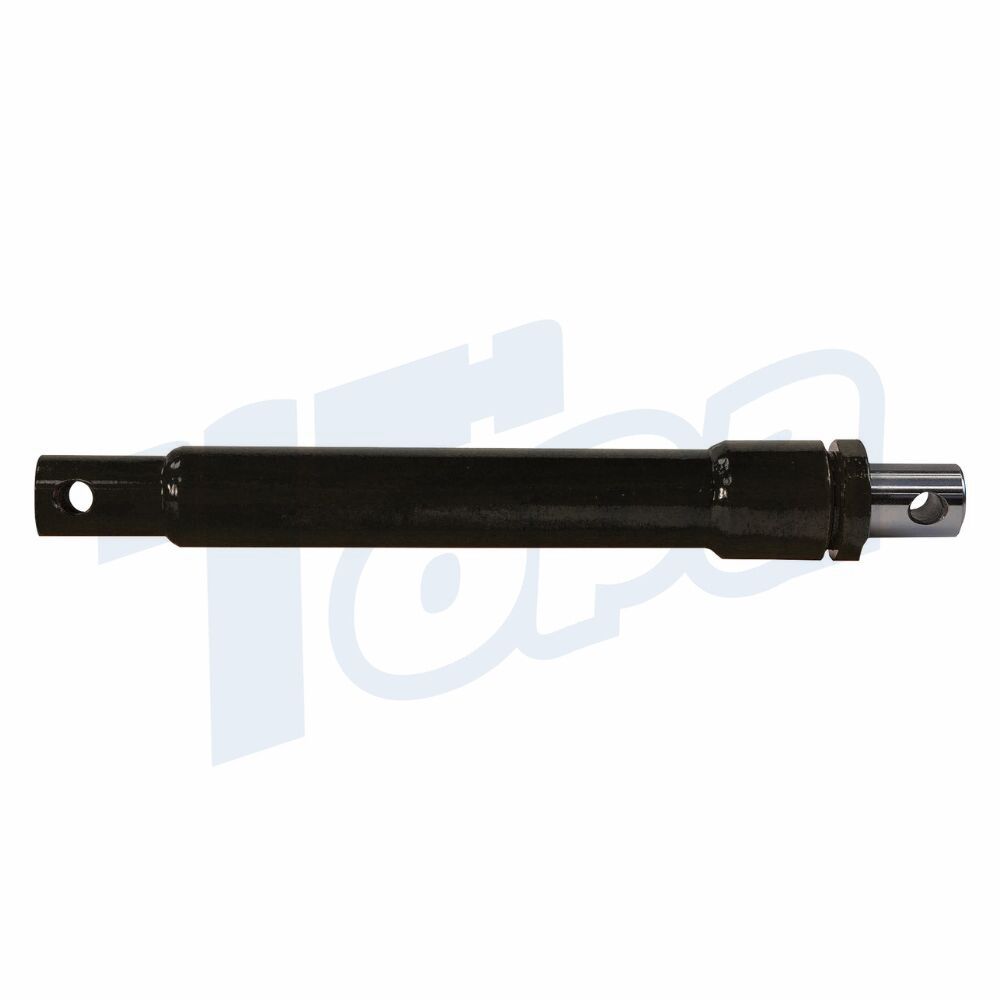

SP - Snow Plow Hydraulic Cylinders
Snow poly hydraulic cylinder is recognized by their unique appearance. The cylinder is specially engineered to provide exceptional durability and resistance to harsh environmental conditions.
These cylinders are commonly employed in extreme weather conditions where exposure to ice, snow, and freezing temperatures is a concern. They are ideal for use in snowplows, snow blowers, and other winter maintenance equipment.
Snow Poly Cylinders are constructed with a polyurethane exterior, which is highly resistant to abrasion, chemicals, and extreme temperatures. The interior components, such as the piston and rod, are typically made from durable steel.
Advantages of Hydraulic Cylinders From Topa
Expertise in Extreme Conditions: Clients benefit from Topa’s expertise in providing hydraulic solutions tailored for extreme weather conditions. Snow Poly Cylinders are designed to perform reliably in snow and ice, ensuring equipment operates effectively in winter.
Durable Polyurethane Exterior: The use of polyurethane in the cylinder’s exterior ensures exceptional resistance to abrasion and harsh chemicals often encountered during snow and ice removal, enhancing the longevity of the cylinders.
Customization for Precision: Topa excels in customization, allowing clients to specify the exact dimensions, mounting options, and pressure ratings required for their snow removal equipment.
