Mar, 2024

How to Install and Tighten JIC Hydraulic Fittings

Introduction

JIC hydraulic fittings are an essential part of the hydraulic system and are the backbone of many operations in various industries. These fittings ensure the flow of hydraulic fluid, which is vital to the operation of a machine. This article is intended to guide readers through the meticulous process of properly installing and tightening JIC hydraulic fittings, an essential skill for maintaining the efficiency and safety of your hydraulic system.

Understanding JIC Hydraulic Fittings

The Basics of JIC Hydraulic Fittings

Hydraulic JIC fittings, standing for Joint Industry Council, are paramount in the hydraulic systems landscape, celebrated for their exceptional reliability and robustness. These fittings are engineered to endure high pressures and adverse conditions, a testament to their origins in the aerospace industry. The hallmark of JIC fittings is their 37-degree flare seating surface, a critical feature that facilitates the creation of secure, leak-proof connections.

Types of Hydraulic JIC Fittings

The diversity of JIC fittings serves as a cornerstone for their widespread application across various hydraulic systems, ensuring that there is a fitting type for virtually every possible scenario.

Straight Fittings

Straight JIC fittings are the most basic and commonly used type. They provide a direct connection between hydraulic hoses and components such as pumps, cylinders, and valves. They offer a straightforward solution for transferring fluid in a linear path without altering direction.

45-Degree Fittings

45-degree JIC fittings are designed to change the direction of the hydraulic line by 45 degrees. These fittings are invaluable in systems where space constraints prevent the use of straight lines or where a more gradual change in direction is beneficial to fluid dynamics. They help in minimizing the pressure drops and turbulence that can occur with sharper bends, ensuring a smoother flow of hydraulic fluid.

90-Degree Fittings

90-degree JIC fittings are essential for creating right-angle connections in hydraulic systems. They are particularly useful in tight spaces where bending a hose at a 90-degree angle would be impractical or could cause damage to the hose.

Bulkhead Fittings

Bulkhead JIC fittings are used to pass hydraulic lines safely and without leakage through bulkheads such as tanks or walls. They ensure system integrity while effectively separating components or parts of a hydraulic system.

Swivel Fittings

Swivel JIC fittings provide a pivoting connection point that can be rotated or moved without disassembling the fitting or twisting the hydraulic hose. These fittings reduce the risk of hose wear and leakage in applications where components need to move or rotate freely.

Tee and Cross Fittings

Tee and cross JIC fittings are used to branch hydraulic lines to distribute fluid from one source to multiple locations.

Applications of Hydraulic JIC Fittings

The utility of JIC fittings stretches across a broad spectrum of industries, marking them as indispensable components in fields as varied as agriculture, construction, and manufacturing. This widespread applicability is a testament to their versatility and the reliability they bring to hydraulic systems. Among the myriad advantages of JIC fittings are their ease of assembly and disassembly, which greatly simplifies maintenance and repair tasks. Additionally, their inherent resistance to vibration makes them an ideal choice for applications subject to constant movement or mechanical shock, ensuring that connections remain secure even in the most challenging conditions. The extensive range of sizes and configurations available further underscores the adaptability of JIC fittings, enabling their use in virtually any hydraulic system configuration one might encounter.

Pre-Installation Checklist

Before diving into the installation of hydraulic JIC fittings, it’s crucial to undertake thorough preparation. This preparation not only sets the stage for a smooth installation process but also ensures the safety and reliability of the hydraulic system. Let’s explore the essential steps, tools, and safety measures required to get started.

Tools Required

The installation of JIC fittings demands precision and the right set of tools. Each tool plays a significant role in ensuring that the fittings are installed correctly and securely. Here are some of the essential tools and their purposes:

Wrenches: Adjustable wrenches are indispensable for tightening and loosening fittings. Using two wrenches simultaneously — one to hold the fitting and the other to turn the nut — helps prevent the twisting of lines.

Tube Cutters: A clean, square cut on the hydraulic tube is vital for a leak-free connection. Tube cutters provide a precise cut, reducing the risk of leaks at the fitting interface.

Flaring Tools: For creating the 37-degree flare on tubing, a flaring tool is necessary. This flare matches the angled surface of the JIC fitting, ensuring a tight, leak-proof seal.

Deburring Tools: After cutting the tube, it’s essential to remove any sharp edges or burrs. Deburring tools ensure a smooth surface that won’t damage the sealing surface or O-ring.

Inspection Tools: Gauges and calipers are useful for verifying the dimensions of fittings and tubes, ensuring they meet the required specifications for a secure fit.

Safety Measures

Working with hydraulic systems requires a keen awareness of safety to prevent accidents and injuries. Here are some critical safety measures to observe:

Protective Gear: Always wear appropriate protective gear, including gloves, safety glasses, and steel-toed boots, to protect against hydraulic fluid spills and flying debris.

Depressurizing the System: Before starting any work, ensure the hydraulic system is fully depressurized. This step is crucial to prevent accidental discharge of hydraulic fluid under pressure.

Awareness of Surroundings: Be conscious of your environment, especially the potential for slipping on hydraulic fluids or tripping over equipment.

Fire Safety: Because hydraulic fluid is flammable, keep a fire extinguisher nearby and ensure the work area is well-ventilated to prevent the buildup of fumes.

Preparing the Fittings and Hydraulic Lines

Proper preparation of the fittings and hydraulic lines is foundational to a successful installation. This process includes several key steps:

Inspection: Carefully inspect all fittings and hydraulic lines for any signs of damage, such as cracks, nicks, or corrosion. Damaged components should be replaced to avoid leaks or system failures.

Compatibility Check: Ensure that the fittings and hydraulic lines are compatible in size, material, and pressure rating. Mismatched components can lead to leaks or damage under pressure.

Cleaning: Remove any contaminants from the fittings and tubing. Cleanliness is critical to prevent dirt or debris from entering the system, which can cause wear or blockages.

Deburring: After cutting the tubing to the desired length, use a deburring tool to smooth the cut edge. This step is crucial to prevent damage to the sealing surfaces and ensure a leak-free connection.

Flaring: For tubing that requires flaring, use a flaring tool to create a 37-degree flare that matches the fitting. This precise angle is critical for a secure fit and leak-proof seal.

Step-by-Step Installation Guide

Inspection

Objective: Ensure the compatibility and integrity of both hydraulic lines and fittings before installation.

Process: Carefully examine the hydraulic lines and fittings for any signs of damage, such as cracks, nicks, or any form of debris that might compromise the installation. Verify that the fittings match the hydraulic line in terms of size, type, and material.

Preparation

Objective: Prepare the hydraulic line for fitting installation.

Process: If necessary, use a tube cutter to cut the hydraulic line to the required length, ensuring a clean, square cut. After cutting, use a deburring tool to remove any sharp edges or burrs from the cut end of the line, creating a smooth surface for fitting installation.

Flaring (If Applicable)

Objective: Create a 37-degree flare on the hydraulic line to match the JIC fitting angle.

Process: Utilize a flaring tool to form a precise 37-degree flare at the end of the hydraulic line. This flare is essential for establishing a leak-proof seal with the JIC fitting.

Fitting Installation

Objective: Securely connect the fitting to the hydraulic line.

Process: Start by threading the fitting nut onto the hydraulic line, followed by threading the fitting itself. It’s important to hand-tighten the fitting initially to ensure proper engagement and alignment, avoiding cross-threading.

Tightening

Objective: Secure the fitting to the correct torque specification to ensure a leak-proof connection.

Process: Use two wrenches for this step — one to hold the fitting in place and the other to tighten the nut. This prevents the fitting from turning and potentially damaging the hydraulic line. Tighten the nut to the manufacturer’s recommended torque specification, being careful not to over-tighten, as this could strip the threads or damage the fitting and the line.

Common Mistakes to Avoid

When installing JIC fittings, certain pitfalls can compromise the integrity and performance of the hydraulic system. Awareness and proactive measures can prevent these issues:

Cross-threading: This occurs when the fitting is not properly aligned with the thread of the port or hose. To avoid cross-threading, start threading by hand to ensure proper alignment. If resistance is felt, backtrack and realign rather than forcing the fitting.

Over-tightening: Excessive force can strip threads or deform the fitting and the sealing surface, leading to leaks or fitting failure. Adhering to the manufacturer’s torque specifications is crucial. Use a torque wrench whenever possible to apply the correct amount of torque.

Under-tightening: Insufficient torque can lead to leaks due to inadequate seal compression. Ensure that fittings are tightened to the recommended torque value, checking for leaks under pressure after installation.

Using Damaged Components: Inspecting all fittings and hydraulic lines for damage before installation is essential. Damaged threads, cracks, or deformities can prevent a proper seal, leading to leaks or system failure. Replace any damaged components before proceeding with the installation.

Troubleshooting Installation Issues

Leaks

Immediate Action: Verify that the fitting is tightened to the manufacturer’s recommended torque. Over- or under-tightening can lead to leaks.

Further Steps: If leaks persist after ensuring proper torque, disassemble the connection for a thorough inspection. Look for signs of damage to the threads, fitting, or tubing. Ensure no foreign material is present on the sealing surfaces. Re-install after ensuring all components are clean and undamaged.

Poor Fit

Verification: Double-check the compatibility of the fitting with the hydraulic line. This includes checking the size, type (male or female), thread pattern, and material. Incorrectly matched components can lead to poor fit and potential system failure.

Resolution: Replace any components that do not match exactly. Always refer to the manufacturer’s specifications for both the fittings and the hydraulic lines.

Pressure Drop

Investigation: A significant pressure drop post-installation could indicate several issues, such as under-tightening, which might not create a proper seal, or using an incorrect fitting type that does not match system requirements.

Diagnostic Steps: Check the entire system for any signs of leaks or improper fittings. Ensure all fittings are correctly tightened. If the issue persists, consult the system’s hydraulic schematic to verify that the correct type of fittings is used and that they are installed in the correct orientation.

Additional Troubleshooting Tips

Cross-Contamination: Ensure that different materials (e.g., stainless steel and carbon steel) are not used together in the same system to prevent galvanic corrosion.

Thread Damage: Inspect threads on both the fittings and the hydraulic lines for any signs of damage. Even minor thread damage can prevent a proper seal.

Use of Sealants: While JIC fittings are designed to seal without additional sealants, ensure no unauthorized sealants have been used, as they can cause issues with the hydraulic fluid and system performance.

Tightening Hydraulic JIC Fittings

Understanding the Tightening Process

The correct tightening of JIC hydraulic fittings is crucial to prevent leaks and ensure the longevity of both the fitting and the hydraulic system. Over-tightening can be as detrimental as under-tightening. The former can lead to deformation of the fitting, damage to the threads, or even cracking, while the latter may result in leaks or disconnection under pressure. Therefore, understanding and applying the correct torque is essential for a secure and reliable connection.

Tools for Tightening JIC Fittings

Torque wrenches are highly recommended for the tightening process as they allow for precise application of torque. These tools are critical in preventing over-tightening, ensuring that each fitting is tightened to the manufacturer’s specified torque value.

The Flats Method

The flats method is a commonly used technique for achieving the correct torque without a torque wrench, particularly in field conditions where precise tools may not be available. This method involves tightening the nut by a specific number of flat surfaces on the hex nut after finger-tightening. While useful, it’s less precise than using a torque wrench and can potentially lead to over-tightening if not done with care.

Final Inspection and Testing

After installation and tightening, conducting a thorough inspection and testing phase is critical. This includes checking for any signs of over-tightening such as thread damage, leaks, or any deformation of the fitting and tubing. Pressure testing the system can help verify that connections are secure and there are no leaks, ensuring everything is assembled correctly and functioning as intended.

Over-tightening JIC Hydraulic Fittings

Over-tightening JIC fittings can compromise the integrity of the hydraulic system. It can lead to damaged threads, compromised seal integrity, and even cracking of the fitting or flared end of the tubing. These issues can result in leaks and reduced system performance, and they may necessitate costly repairs or replacements. Therefore, it’s essential to follow the specified torque values and use the appropriate tools and techniques to avoid over-tightening.

Conclusion

The correct installation and tightening of JIC hydraulic fittings is vital to the efficiency of your hydraulic system. By following this guide, you can ensure that your systems are maintained to a high standard. If you still have any questions, feel free to contact Topa with your confusion!

FAQ

What is the proper method for installing JIC hydraulic fittings?

To install JIC hydraulic fittings, ensure the fitting is properly aligned and threaded onto the hose or pipe before tightening.

Do I need to use a sealant when installing JIC hydraulic fittings?

No, JIC fittings rely on the metal-to-metal contact for sealing, so no additional sealant is required.

How do I tighten JIC hydraulic fittings properly?

Use a proper wrench to tighten the fitting until it is snug, but avoid over-tightening, which can damage the threads or cause leaks.

What tools are required to install JIC hydraulic fittings?

You will need a wrench or socket tool that fits the specific size of the JIC fitting for secure installation.

Can I use JIC fittings on flexible hoses?

Yes, JIC fittings are commonly used on both rigid pipes and flexible hydraulic hoses, provided they are the correct size.

How do I know when a JIC fitting is tight enough?

A JIC fitting is tight enough when it is securely fastened and there is no visible gap or leakage at the connection point.

Topa Blog

Find out more about Topa Blog and learn more about specialized hydraulic fittings.

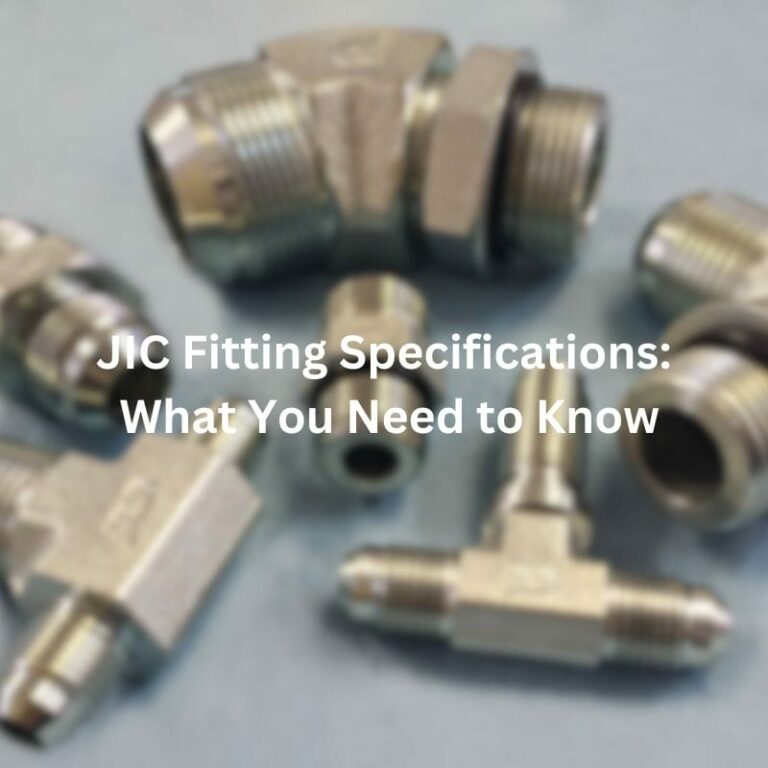

JIC Fitting Specifications: What You Need to Know

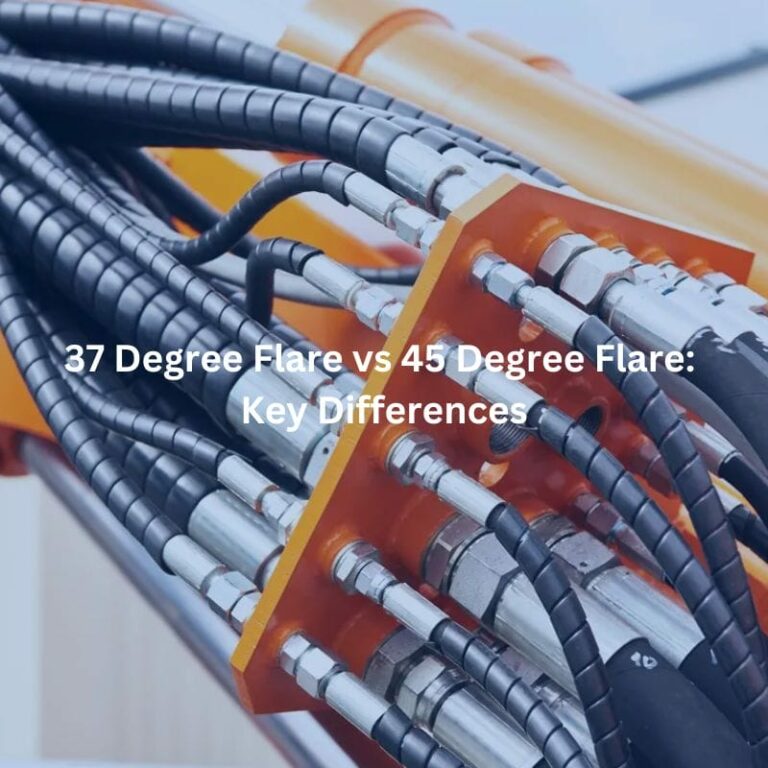

37 Degree Flare vs 45 Degree Flare: Key Differences

Will JIC Fittings Work with AN Fittings?

Understanding JIS vs JIC Fittings: Your Ultimate Guide

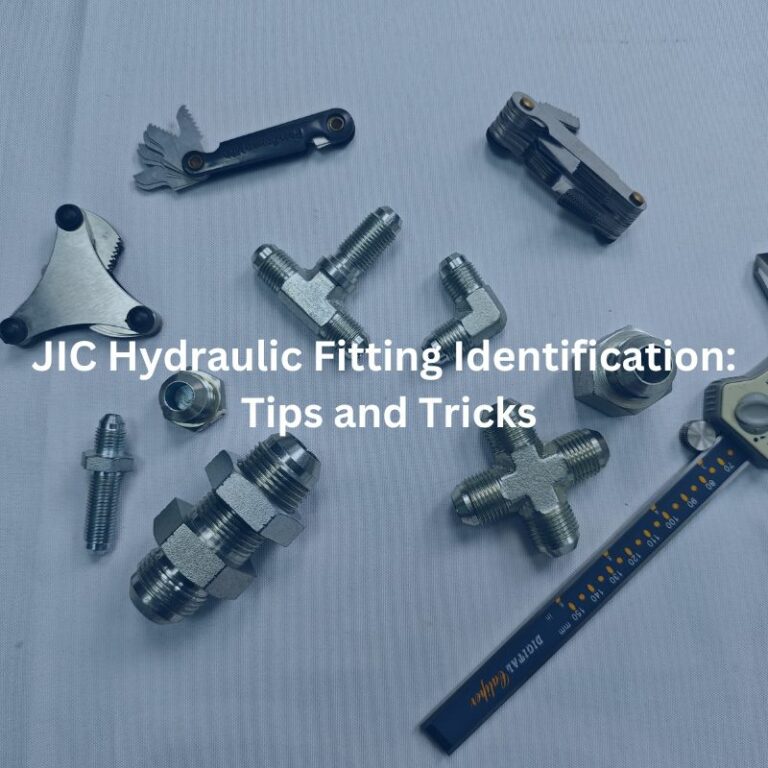

JIC Hydraulic Fitting Identification

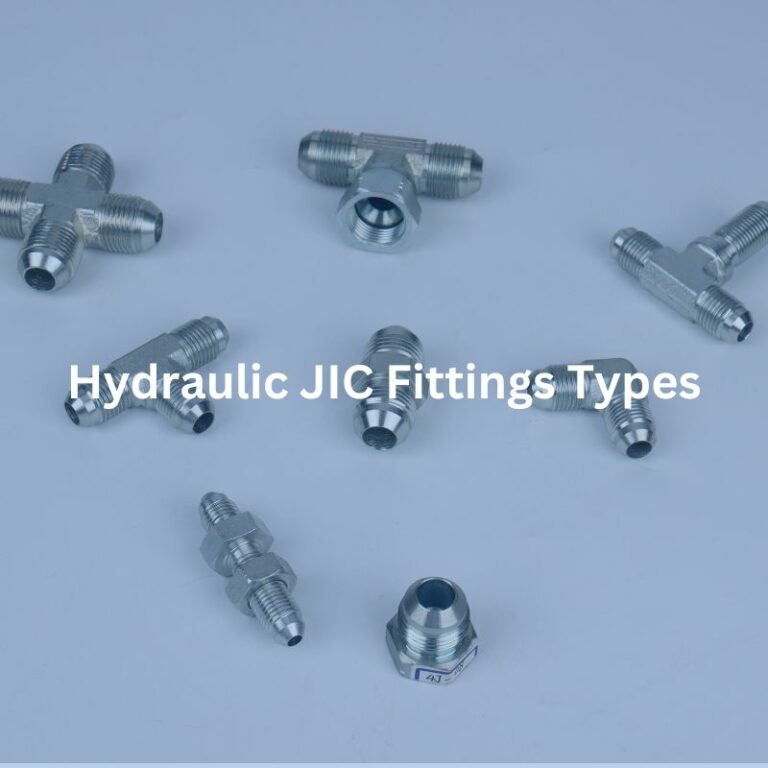

Hydraulic Fittings Types JIC: A Comprehensive Guide

Feb, 2024

How to Measure A JIC Hydraulic Fitting

Introduction

In the world of hydraulic systems, the precision with which components are measured and installed can be the difference between optimal performance and costly failures. This post delves into the specifics of measuring JIC hydraulic fittings, a critical task for ensuring the integrity of these systems. We’ll guide you through the necessary tools, steps, and best practices to accurately measure JIC fittings, aiming to provide you with the knowledge needed to execute this task flawlessly.

Defining JIC Hydraulic Fittings

JIC hydraulic fittings, standing for Joint Industry Council, are the gold standard in creating secure, leak-free connections in hydraulic systems. Originally developed for the high-pressure demands and stringent requirements of the aerospace industry, these fittings have proven their mettle by providing unmatched reliability and durability. The hallmark of JIC fittings is their 37-degree flare, which ensures a tight seal and easy assembly.

Versatility and Applications

The adaptability of JIC hydraulic fittings to various environments is a testament to their design excellence. Beyond their aerospace origins, these fittings are now integral components in a plethora of sectors. Agricultural machinery relies on them for efficient operation under rugged conditions, while industrial equipment benefits from their robust performance in high-pressure applications. This versatility not only highlights their importance across different industries but also showcases their role in ensuring the smooth and reliable operation of hydraulic systems.

Essential Measuring Tools

When it comes to measuring JIC hydraulic fittings, three primary tools are indispensable:

Calipers: These are the workhorses for measuring both external and internal dimensions of fittings. Digital calipers, in particular, offer high precision and ease of reading measurements, making them a favorite among professionals. They are crucial for determining the outer diameter of male fittings and the inner diameter of female fittings, ensuring that the sizes match industry standards.
Thread Gauges: The correct identification of thread pitch and size is critical for ensuring the compatibility of fittings. Thread gauges allow users to match the threads of a fitting against a known standard, ensuring that the fitting will thread correctly into its counterpart. This tool is essential for preventing cross-threading and ensuring a leak-free connection.
Angle Gauges: Given that JIC fittings utilize a 37-degree flare, measuring the seat angle accurately is paramount. An angle gauge helps in verifying that the seating angle matches the JIC standard, ensuring a proper seal upon connection. Incorrect angles can lead to improper sealing and potential system failures.

Step-by-Step Guide to Measuring JIC Fittings

Step 1: Identifying the Fitting Type

Before diving into measurements, it’s essential to identify the type of JIC fitting you’re dealing with. JIC fittings come in various forms, including straight, elbow, tee, and cross types, each serving different functions in a hydraulic system. Recognizing the fitting type not only facilitates a smoother measurement process but also ensures you’re applying the correct specifications for that particular design.

Step 2: Measuring Thread Size and Pitch

Measuring Thread Size

Select the Appropriate Caliper: Begin with a digital or vernier caliper that offers precision. Ensure it is zeroed out before use to guarantee accuracy.
Measure Male Threads: For male fittings, position the caliper’s jaws around the outer diameter of the threads. Ensure you are measuring the widest part, which is typically at the middle of the threads, avoiding any damaged or worn areas.
Measure Female Threads: For female fittings, insert the caliper’s tips into the fitting to measure the inner diameter. Again, aim for a measurement in the center of the thread path to avoid inaccuracies.
Record the Measurement: Take note of the measurement displayed on the caliper. This is the nominal size of the fitting, crucial for ensuring compatibility with the hydraulic system.

Measuring Thread Pitch

Select the Correct Thread Gauge: Thread gauges come with a variety of pitches. Select the one that you suspect matches the fitting’s thread pitch based on the nominal size measured earlier.
Align the Gauge with the Threads: Gently press the gauge against the fitting’s threads. The gauge should slot into the thread grooves seamlessly if it’s the correct pitch.
Verify the Match: If the gauge’s teeth align perfectly with the threads, without any gap or overlap, you’ve correctly identified the thread pitch. If the match isn’t perfect, try a gauge with a different pitch until you find the correct one.
Record the Pitch Measurement: Once the correct pitch is identified, make a note of it. This information, combined with the thread size, is crucial for identifying the exact specifications of the JIC fitting.

Step 3: Determining the Seat Angle

Select an Angle Gauge: To start, choose an angle gauge capable of accurately measuring the 37-degree seat angle. There are specialized gauges available that are specifically designed for measuring the angles of hydraulic fittings.
Prepare the Fitting: Ensure the fitting is clean and free from any debris or damage that could affect the measurement. It’s important to have a clear view of the seat area where the fitting will make contact with its counterpart.
Position the Angle Gauge: Carefully place the angle gauge against the seat of the fitting. The gauge should sit flush against the angled surface. For fittings with internal seats, ensure the gauge is inserted properly and sits evenly against the seat angle.
Verify the Angle: Look closely to confirm that the gauge aligns perfectly with the seat’s angle. A perfect match indicates a 37-degree angle. If there’s any gap or misalignment, double-check the positioning of the gauge or reevaluate the fitting’s specifications.
Adjust if Necessary: If the gauge does not sit flush, it may indicate an issue with the fitting’s angle. While JIC fittings should have a 37-degree seat angle, manufacturing variances can occur. If you suspect a discrepancy, compare with another fitting or consult with the manufacturer.
Record Your Findings: Once you’ve confirmed the seat angle, make a note of it. This information is critical for ensuring that the fitting will form a proper, leak-free seal when connected to its counterpart.

Step 4: Checking for Additional Features

Finally, inspect the fitting for any additional features that may affect its functionality or compatibility with the hydraulic system. This includes:

O-rings: Some JIC fittings include O-rings for additional sealing capabilities. Ensure these are present if required and in good condition.
Seals: Similar to O-rings, other types of seals may be part of a fitting’s design. These should also be inspected for integrity and suitability for the intended application.
Special Coatings or Materials: Depending on the application, fittings may have coatings for corrosion resistance or be made from specific materials to handle different fluids. Recognizing these features is crucial for application success.

Step 5: Common Measurement Mistakes in JIC Fitting Assessment

Using Worn-Out Tools

Problem: Over time, measuring tools can wear down, leading to inaccurate readings. This is particularly true for tools like calipers and thread gauges, which rely on precise contact points to measure dimensions accurately.
Solution: Regularly inspect your tools for signs of wear, especially on the measuring surfaces. Consider replacing tools that show significant wear or have become unreliable. Implementing a scheduled calibration can also help ensure ongoing accuracy.

Incorrect Tool Selection

Problem: Choosing the wrong tool for the job can lead to measurement errors. For example, using a standard angle gauge instead of one designed for hydraulic fittings might not provide the accuracy needed for determining the correct seat angle.
Solution: Always use tools that are appropriate for the specific measurement task at hand. Research and invest in specialized tools designed for hydraulic fitting measurements, such as specific thread gauges for hydraulic threads and angle gauges with a 37-degree measurement capability.

Overlooking Critical Dimensions

Problem: Failing to measure all necessary dimensions of a fitting can result in compatibility issues, leading to leaks or connection failures. This can happen if one focuses solely on thread size, neglecting other critical aspects like the seat angle or the presence of additional sealing features.
Solution: Develop a comprehensive checklist of dimensions and features that need to be measured for each fitting type. Ensure that every measurement is taken and recorded before proceeding. This systematic approach prevents critical details from being overlooked.

Not Double-Checking Measurements

Problem: Even experienced professionals can make mistakes. A single incorrect measurement can have a domino effect, causing significant issues down the line.
Solution: Always double-check your measurements, especially if the first measurement seems off or if you’re working with a critical component. Taking the time to verify your measurements can save time, money, and frustration in the long run.

Neglecting Calibration

Problem: Measurement tools that are not regularly calibrated can drift from their original settings, leading to inaccurate readings.
Solution: Implement a regular calibration schedule for all measurement tools. This ensures that they remain accurate and reliable over time. Many manufacturers offer calibration services, or you can use certified calibration weights and standards to perform calibrations in-house.

Step 6: Regular Maintenance Practices for JIC Fittings

Maintaining the integrity of hydraulic systems involves diligent attention to the condition and compatibility of JIC fittings. Regular maintenance not only extends the lifespan of these systems but also enhances their performance and reliability. Key maintenance practices include:

Inspecting for Wear and Tear

Routine Checks: Schedule regular inspections of all hydraulic fittings within the system. Look for signs of wear, such as thread damage, corrosion, or deformation of the fitting’s body or flared end.
Preventive Replacement: If wear is detected, replace the fittings before failure occurs. This preemptive approach prevents system downtime and potential safety hazards.

Ensuring Correct Tightening

Torque Specifications: Adhere to the manufacturer’s torque specifications when installing or maintaining fittings. Over-tightening can damage threads and under-tightening can lead to leaks.
Use Proper Tools: Employ torque wrenches to achieve the correct tightness, ensuring a secure and leak-free connection.

Replacing Damaged Components

Immediate Action: Damaged or compromised fittings should be replaced immediately to maintain system integrity.
Compatibility Checks: When replacing fittings, ensure the new components are fully compatible with the existing system. This includes verifying the size, thread pitch, and seat angle.

Troubleshooting Common Issues

Addressing common issues within hydraulic systems often starts with a thorough assessment of the JIC fittings. Understanding potential problems and their solutions is crucial for efficient troubleshooting.

Leaks at Connection Points

Cause: Leaks can result from improper fitting selection, incorrect installation, or wear and tear.
Solution: Re-examine the fitting for correct size, thread pitch, and seat angle. Ensure it’s properly installed and replace if necessary.

System Pressure Drops

Cause: A drop in system pressure may indicate a loose or damaged fitting.
Solution: Inspect all fittings for proper tightness and integrity. Replace fittings where necessary and re-check system pressure once corrections are made.

Fitting Corrosion

Cause: Exposure to harsh environments can lead to fitting corrosion, compromising system reliability.
Solution: Replace corroded fittings immediately. Consider using fittings made from materials better suited to the operating environment for future installations.

JIC 37°vs SAE 45° Hydraulic Fittings

Key Differences

Sealing Angle: The most apparent difference between JIC and SAE 45-degree fittings is the angle of the flare seating surface. JIC fittings use a 37-degree flare, while SAE 45-degree fittings use a 45-degree flare.

Interchangeability: JIC fittings offer greater interchangeability across different systems and manufacturers due to the standardization of the 37-degree flare design. SAE 45-degree fittings have more limited compatibility and require matching components with the same 45-degree design.

Feature	JIC 37° Fitting	SAE 45° Fitting
Flare Angle	37 degrees	45 degrees
Standard	SAE J514	SAE J512
Sealing Method	Metal-to-metal (flare seat)	Metal-to-metal (flare seat)
Typical Application	High-pressure hydraulic systems	Low- to medium-pressure refrigeration & plumbing
Working Pressure	Up to 5,000 PSI (varies by size/material)	Typically < 1,200 PSI
Material	Steel, stainless steel, brass, aluminum	Brass, copper (mainly)
Compatibility	Not interchangeable with SAE 45°	Not interchangeable with JIC 37°
Thread Type	UNF (Unified National Fine), straight threads	SAE threads, often with straight or flare nut
Seat Design	37° cone (on male/female)	45° cone (on male/female)
Visual ID Tip	Shallower flare angle	Sharper flare angle

How to Identify JIC vs. SAE 45-Degree Fittings

Measure the Seat Angle: Using an angle gauge, measure the angle of the fitting’s seat. A 37-degree angle indicates a JIC fitting, while a 45-degree angle points to an SAE fitting.

Inspect the Thread Standard: Comparing the thread standards can also aid in identification. If it follows the UN/UNF standard with a 37-degree flare, it’s likely a JIC fitting. If the fitting has a 45-degree flare, check for the SAE thread standard.

Look for Markings: Some fittings are marked with their specifications, including the seat angle or the standard they conform to (JIC or SAE). While not all fittings are marked, those that are can provide a quick way to identify them.

Use Fitting Identifiers: There are tools and charts available designed to help identify hydraulic fittings by comparing their physical characteristics against known standards.

Conclusion

Accurate measurement of JIC hydraulic fittings plays a pivotal role in maintaining the reliability and efficiency of hydraulic systems. By grasping the significance of these fittings, utilizing appropriate tools, and adhering to a detailed measurement protocol, professionals can guarantee the seamless operation of their systems. This attention to precision helps in minimizing potential leaks and enhancing overall performance, ensuring that hydraulic systems meet the demands of their applications effectively. Through diligent practice and an understanding of the nuances involved in measuring and identifying hydraulic fittings, one can uphold the integrity and functionality of hydraulic systems, contributing to their longevity and reliability.

FAQ

What does JIC stand for in hydraulic fittings?

JIC stands for Joint Industry Council, a standard for hydraulic fittings with a 37-degree flare angle.

How do I measure the size of a JIC hydraulic fitting?

To measure a JIC fitting, use a caliper to measure the outside diameter of the male threads and the flare angle, typically 37 degrees.

How do I determine the thread size on a JIC fitting?

Use a thread gauge or measure the number of threads per inch (TPI) to determine the thread size on a JIC fitting.

What is the importance of measuring the flare angle on a JIC fitting?

The 37-degree flare angle is critical to ensuring a proper seal when the fitting is connected, preventing leaks and ensuring reliable performance.

Can I measure a JIC fitting with just a ruler?

While a ruler can be used for basic measurements like length or diameter, it’s more accurate to use a caliper and thread gauge for precise measurement.

How do I verify if a JIC fitting is compatible with my system?

Verify compatibility by checking the fitting size, thread type, and flare angle to ensure it matches the requirements of your hydraulic system.

Topa Blog

Find out more about Topa Blog and learn more about specialized hydraulic fittings.

Why Does Your Hydraulic Hose Assembly Need Early Replacement?

Why Hose Assembly Quality Matters for Safe System Operation?

How to Ensure Hydraulic Fittings Match International Standards?

Why Do Tractor Hydraulic Hoses Fail During Peak Seasons?

Why Do Cheap Hydraulic Hoses Cost More Over Time?

Which Hydraulic Hoses Are Best for Excavators and Loaders?

Sep, 2023

Hydraulic Live Swivels

Best China Hydraulic Swivel Fittings Manufacturer

❖ Suitable for narrow spaces

❖ Withstand high pressure

❖ Adopt pressure balance design

❖ The maximum speed is 10 rpm

Product List

Upgrade your hydraulic system with our 90° Live Swivel Fittings, engineered for performance, reliability, and flexibility in even the most demanding applications. Designed to handle pressures up to 3,000 PSI, these precision-forged fittings allow for 360° rotation under pressure, preventing hose twisting, reducing wear, and extending service life. With a compact elbow design and a variety of thread options (BSP, NPT, JIC, ORFS, Metric), installation is quick, secure, and compatible with most hydraulic setups. Available in carbon steel or stainless steel, with high-quality surface treatments like zinc plating, silver plating, or nitriding, these swivels are built to perform in harsh environments. Whether you need a durable solution for mobile equipment, construction machinery, or industrial systems—our live swivels deliver unmatched reliability and value.

Products Video

This short video gives you a detailed look at Topa’s 90° hydraulic live swivel fittings. It clearly shows the compact elbow design, precise machining, and thread specifications of the product.

At Topa, we combine precision machining, high-grade materials, and strict quality control to deliver fittings that perform under pressure—literally. With years of experience in hydraulic solutions, our team understands your industry’s needs and delivers products that meet ISO standards, support custom branding, and ensure on-time global delivery.

If you’re looking for a reliable 90° live swivel fitting solution, you’re in the right place. Whether you need a sample for testing, bulk orders, or a fully customized version with your logo, Topa is ready to deliver.

Application

Our 90° hydraulic live swivel fittings are widely used across industries where fluid lines require movement, flexibility, and durability under pressure. These fittings reduce hose stress and twisting by allowing 360° rotation, making them an essential solution for dynamic hydraulic systems.

Construction Equipment

Our 90° live swivel fittings are ideal for use in excavators, wheel loaders, cranes, and rotary booms, where hydraulic hoses are frequently exposed to continuous movement, vibration, and harsh environmental conditions. By allowing 360-degree rotation, these swivels significantly reduce hose torsion and minimize the risk of cracking, abrasion, and pressure-related failures.

Agricultural Machinery

Farm equipment operates in some of the toughest outdoor environments, often under heavy load and uneven terrain. Swivel fittings are especially beneficial for harvesters, seeders, sprayers, and tractors, where moving arms and lifting components constantly shift and bend hydraulic lines.

Material Handling Systems

In warehouse and factory environments, forklifts, hydraulic lift tables, scissor lifts, and articulating arms rely heavily on hydraulic systems for repetitive motion. Our 90° swivel fittings solve this problem by offering free rotation in confined spaces, reducing stress on hydraulic lines, and ensuring consistent fluid flow.

Ready to upgrade your hydraulic system?

Request a quote today and get fast, reliable support from Topa.

Our Factory

90° Hydraulic Live Swivel Fittings – Key Features

Appearance Features

90-Degree Elbow Design: The fitting has an L-shaped structure, perfect for tight spaces or situations where fluid direction needs to be changed.

Perpendicular Rotation Axis: The swivel mechanism is typically located at one end of the elbow, offering a compact design ideal for moving or dynamic equipment.

Smooth Surface Finish: Usually treated with zinc plating, chrome plating, or left in stainless steel finish to provide corrosion resistance and a clean, industrial appearance.

Visible Sealing Structure: Equipped with sealing washers or O-rings at the connection points to ensure leak-free performance under high pressure.

Thread Features

Available with a variety of standard thread types, including:

BSP (British Standard Pipe)

NPT (National Pipe Tapered)

JIC 37° Flare

ORFS (O-Ring Face Seal)

Metric Threads

Often designed with different thread types on inlet and outlet, allowing for flexible connections across various hydraulic systems.

Precision-machined threads with smooth finishes to ensure tight sealing and prevent leaks.

Options for male, female, or mixed-thread designs, making them compatible with different machine and equipment configurations.

Working Principle

The live swivel mechanism allows the hydraulic line to rotate 360 degrees or pivot under pressure, preventing hose twisting or stress.

The rotating section includes precision bearings or sliding components to ensure smooth motion, with internal O-rings or seals to block hydraulic fluid leakage.

Fluid enters through the fixed end, passes through the internal swivel channel, and exits via the 90-degree outlet—maintaining pressure and flow without compromising mobility.

Especially suitable for applications with frequent movement or vibration, such as rotating booms, hydraulic cylinders, and agricultural machinery connections.

Surface Treatment Options

Stainless Steel

Silver Plating

Function:

Enhances surface conductivity (suitable for specific technical applications)

Improves anti-galling properties, especially for threaded connections under high temperature and pressure

Advantages:

Low friction coefficient, allowing smoother assembly and disassembly

Increases resistance to corrosion and heat

Applications:

Aerospace, military equipment, and high-end hydraulic systems

Nitriding Treatment

Function:

Increases surface hardness and wear resistance

Retains the inherent corrosion resistance of stainless steel

Advantages:

Enhances fatigue resistance and extends service life

Causes minimal dimensional change, preserving precision

Applications:

High-frequency or high-wear applications such as construction machinery and rotary fittings with continuous motion

Carbon Steel

Zinc Plating

Types: Blue-white zinc, yellow zinc, black zinc

Function:

Basic anti-rust treatment to protect carbon steel in humid or mildly corrosive environments

Advantages:

Cost-effective with a clean, finished appearance

Improves corrosion resistance and extends product lifespan

Applications:

General industrial use, standard hydraulic systems, agricultural machinery, construction equipment

How to Customize 90° Hydraulic Live Swivel Fittings

Application Requirements

Where will the swivel be installed?

Is it subject to continuous rotation, vibration, or pressure surges?

Working Pressure Range

Specify normal and maximum operating pressure (e.g., 2500 PSI, 3000 PSI, 5000 PSI)

Do you require pressure testing or certification (e.g., ISO, CE)?

Thread Type and Size

BSP, NPT, JIC, ORFS, Metric, etc.

Are the inlet and outlet different thread types? Male or female threads?

Port Size / Hose Size

Common sizes: 1/4″, 3/8″, 1/2″, 3/4″, 1″

Any special sizing or fitting requirements?

Material Selection

Carbon steel

Stainless steel (304/316)

Brass (less common)

Is it for food-grade, chemical, or marine use?

Surface Treatment

Zinc plating (blue-white, yellow, black)

Silver plating

Nitriding

Natural stainless steel finish or sandblasting

Seal Material

NBR (nitrile), Viton (FKM), PTFE (Teflon), etc.

Requirements for high temperature, oil resistance, or chemical resistance

Swivel Rotation Speed

Will it rotate continuously?

Required speed (e.g., up to 10 RPM or more)

Flow Capacity

Maximum flow rate required (in L/min or GPM)

Operating Environment

Indoor or outdoor use

Exposure to heat, cold, saltwater, chemicals, etc.

Order Quantity and Lead Time

Sample and bulk quantity

Expected delivery timeline (urgent orders?)

Custom Branding or Packaging

Laser logo, custom packaging, private label stickers, etc.

Have questions or custom specs?

Contact our team now—we’ll help you find the perfect swivel solution.

Our Factory

Topa-The Best Hydraulic Swivel Fittings Factory

Precision Engineering

Each swivel fitting features accurately machined threaded ends for a secure, leak-free connection, even under demanding conditions.

High-Quality Materials

Crafted from premium-grade steel or stainless steel, these fittings offer strong resistance to corrosion, wear, and hydraulic stress, ensuring a longer service life.

Broad Compatibility

Threaded ends are engineered to be fully compatible with a variety of hose and fitting standards, allowing for easy integration into most hydraulic systems.

Pressure Rated to 3,000 PSI

Built to withstand demanding hydraulic environments, these swivel joints are rated up to 3,000 PSI, making them suitable for high-pressure, heavy-duty applications.

Forged for Strength

Each unit is hot-forged to deliver enhanced durability, rigidity, and resistance to mechanical shock, ideal for use in rough or outdoor environments.

Integrated Safety Features

Internal safeguards help minimize pressure surges, protect system components, and support consistent hydraulic performance.

360° Full Swivel Motion

The built-in swivel mechanism allows for full rotation, preventing hose strain, reducing connection fatigue, and enhancing system flexibility.

Anti-Tangle Functionality

Designed to prevent hose kinking and twisting, which significantly lowers the risk of premature failure and reduces maintenance efforts.

Quick Installation

The rotating design simplifies assembly, reduces setup time, and makes it easier to adjust hose positions without disconnecting the system.

10 RPM Operating Speed

Designed to operate at up to 10 RPM without increasing resistance, ensuring smooth, efficient movement even in dynamic systems.

Why Choose Topa

Reliable Manufacturing Partner

With strict production standards, 100% inspection, and reliable partner factories, we ensure every product meets your expectations—whether standard or customized.

One-Stop Hydraulic Solution

From hydraulic fittings, hoses, quick couplings to valves, we offer a complete product line. Save time and cost by sourcing everything from one supplier. Need special threads, non-standard sizes, or private labeling? We’ve got you covered.

Global Export Experience

We proudly serve customers in Europe, Southeast Asia, Africa, North & South America, and beyond. Our multilingual team understands international standards, shipping logistics, and the urgency of your timelines.

Fast Response & Professional Service

With a mature marketing and sales team, we provide fast quotes, detailed drawings, and prompt support. Whether you’re a distributor, maintenance provider, or equipment manufacturer—we respond quickly and work around your schedule.

Custom Solutions, Flexible MOQ

Need a custom logo, special packaging, or a trial order before a big purchase? Topa offers flexible MOQ and supports your business growth with scalable options and stable supply.

On-Time Delivery

We maintain well-organized inventory systems, work with long-term partner factories, and closely monitor every order from production to shipping. Whether it’s a small sample or a large container load, we deliver on schedule—every time.

FAQ

What is the main function of a 90° live swivel fitting?

A 90° live swivel fitting allows hoses to rotate under pressure while changing the flow direction at a 90-degree angle. It helps prevent hose twisting, reduces wear, and improves the lifespan of the hydraulic system.

Can these swivels rotate under pressure continuously?

Yes, Topa’s swivel fittings are designed for 360° rotation while under pressure. However, they are optimized for low to moderate rotational speed, typically up to 10 RPM.

What thread types are available?

We offer a wide range of thread options including BSP, NPT, JIC, ORFS, and Metric threads. You can choose from male, female, or mixed-end configurations depending on your system requirements.

What materials are these swivel fittings made from?

Topa manufactures 90° swivel fittings in carbon steel (with zinc plating) and stainless steel (with optional silver plating or nitriding). Material choice depends on your environment and pressure rating needs.

What is the maximum speed at which these fittings can operate?

These fittings can operate at a maximum speed of 10 RPM without any significant increase in torque as the pressure escalates.

Can I use this swivel with any hydraulic hose?

Yes, as long as the thread and size match, and the pressure rating is compatible. Always confirm the thread compatibility and hose fitting type before installation.

Is the swivel joint leak-proof?

Yes. Each fitting includes high-quality seals such as NBR, Viton, or PTFE, depending on the application. All products are tested for leakage before shipment.

How should I install the 90° swivel fitting?

Installation is simple—just thread the fitting securely into place using proper torque specifications. Avoid overtightening and ensure seals are seated correctly to avoid leaks.

Can this 90° swivel fitting be used in high-vibration environments?

Yes. Topa’s swivel fittings are engineered with precision bearings and durable seals, making them suitable for high-vibration applications such as construction equipment, mining machines, and agricultural implements. They maintain smooth rotation and leak-free performance even under tough conditions.

Is this fitting suitable for both hydraulic oil and other fluids?

Yes. Our swivel joints are compatible with a wide range of media including hydraulic oil, water-glycol, synthetic fluids, and some chemicals, depending on the seal material used. Let us know your fluid type when ordering so we can recommend the right sealing solution.

Get More Information About Products

Sep, 2023

BSP and JIC Hydraulic Fittings: A Comparative Analysis

In the complex landscape of hydraulic systems, choosing the right fittings is a decision that can significantly impact performance, reliability, and overall efficiency. With a myriad of options available, two types of fittings often stand out—JIC (Joint Industry Council) and BSP (British Standard Pipe). Both come with their unique features, advantages, and limitations. This comprehensive guide aims to delve into the intricacies of JIC and BSP fittings, offering insights into their origins, features, applications, and how to identify and measure them.

JIC Fittings

Definition and Origin

The JIC (Joint Industry Committee) fitting is a hydraulic fitting that originated in the United States. Designed to meet standards set by the Society of Automotive Engineers (SAE), it is commonly used in a variety of hydraulic applications.

Features

JIC fittings are known for their 37-degree flare seating surface, a key feature that distinguishes them from other types of hydraulic fittings. This design provides a strong metal-to-metal sealing surface. Also, JIC fittings have straight threads, and they are typically made of high-strength materials such as stainless steel, carbon steel, and brass, ensuring durability and reliability.

Typical Applications

JIC fittings are versatile and can be used in a variety of industries, including:

Construction machinery
Agricultural equipment
Automotive hydraulics
Industrial hydraulics

They are particularly useful in systems where high-pressure capabilities are required and leakage is a major concern.

Advantages

High-Pressure Handling: The 37-degree flare design allows JIC fittings to effectively handle high-pressure conditions.

Versatility: JIC fittings are compatible with a wide range of tubing and hose materials, making them highly versatile.

Easy to install: The design allows for quick and easy assembly and disassembly, saving time and labor costs.

Durability: JIC fittings are made of high-strength materials for durability, reducing the need for frequent replacement.

Disadvantages

Limited Material Options: Although durable, JIC fittings have limited material options compared to other fitting types.

Possibility of over-tightening: Metal-to-metal seals can sometimes be over-tightened, which can cause deformation and break the seal.

Dash Size	Thread size	Threads Pre lnch	Female Thread l.D.(mm)	Male Thread O.D.(mm)
-2	5/16	24	6.7	7.9
-3	3/8	24	8.3	9.5
-4	7/16	20	9.9	11.1
-5	12	20	11.5	12.7
-6	9/16	18	12.7	14.3
8	3/4	16	17.5	19.1
-10	7/8	14	20.6	22.2
-12	1-1/16	12	24.6	27.0
-14	1-3/16	12	28.2	30.2
-16	1-5/16	12	31.4	33.3
-20	1-5/8	12	39.3	41.3
-24	1-7/8	12	45.6	47.6
-32	2-1/2	12	61.5	63.5

JIC hydraulic fittings size chart

BSP Fittings

Definition and Origin

BSP (British Standard Pipe) fittings are a globally recognized standard for connecting and sealing pipes and fittings. Originating from the United Kingdom, BSP threads have been adopted internationally and are based on ISO 228 and Whitworth standard threads. Developed in 1841, Whitworth threads were the world’s first screw thread standard, paving the way for BSP’s widespread adoption.

Features of BSP Fittings

BSP threads are rounded and have a 55-degree thread angle, which is different from the 60-degree angle found in NPT threads. BSP threads come in two styles—parallel (often referred to as “G” threads) and tapered (referred to as “R” threads). BSP fittings often use bonded ring seals or O-rings, providing a secure, leak-tight seal without the need for thread sealants.

Advantages

Global Acceptance: Due to their British origin and international standardization, BSP fittings are widely accepted and used globally.

Excellent Sealing Properties: BSP fittings offer superior leak-tight seals, especially when used with bonded rings or O-rings. This makes them highly efficient in high-pressure systems.

Ease of Installation: The design of BSP fittings allows for straightforward assembly and disassembly, saving time and reducing labor costs.

Material Versatility: BSP fittings are made from a variety of materials, including steel, stainless steel, brass, and even plastics, making them suitable for a wide range of applications.

High-Pressure Ratings: BSP fittings are known for their ability to withstand high pressures, making them ideal for demanding hydraulic applications.

Disadvantages

Possibility of Leakage: While BSP fittings generally provide an excellent seal, metal-to-metal contact can sometimes lead to leakage if not installed properly.

Limited Availability in Some Areas: BSP fittings may not be readily available in areas where American standards are the norm.

Cost: High-quality BSP fittings made from premium materials can be more expensive than other types of fittings.

Thread size	Threads per inch	Pitch	Major diameter
Thread size	Threads per inch	Pitch	Mm	Inch
1/16	28	0.907	7.723	0.304
1/8	28	0.907	9.728	0.383
1/4	19	1.337	13.157	0.518
3/8	19	1.337	16.662	0.656
1/2	14	1.814	20.995	0.825
5/8	14	1.814	22.911	0.902
3/4	14	1.814	26.441	1.041
1	11	2.309	33.249	1.309
1 1/4	11	2.309	41.91	1.65
1 1/2	11	2.309	47.803	1.882
2	11	2.309	59.614	2.347
2 1/2	11	2.309	75.184	2.96
3	11	2.309	87.884	3.46
4	11	2.309	113.03	4.45
5	11	2.309	138.43	5.45
6	11	2.309	163.83	6.45

BSP hydraulic fittings size chart

Key Differences Between JIC and BSP Fittings

Design and Construction

JIC (Joint Industry Council) Fittings: Originating in the United States, JIC fittings are known for their 37-degree flare seating surface. They are commonly used in high-pressure hydraulic systems.

BSP (British Standard Pipe) Fittings: Originating in the United Kingdom, BSP fittings come in two main types: parallel (BSPP) and tapered (BSPT). They are known for their rounded threads and are widely used in fluid and gas applications.

Comparison of the Design Features

JIC: The 37-degree flare seating surface ensures a metal-to-metal seal, which is highly effective in high-pressure systems.

BSP: The 30-degree cone seat, rounded threads, and the option for tapered threads provide a secure, leak-tight seal, especially when using bonded seals or O-rings.

Performance

JIC: Known for their high-pressure handling capabilities, making them ideal for hydraulic systems.

BSP: Known for their reliable sealing mechanisms, making them suitable for both high and low-pressure systems.

Pressure Handling Capabilities

JIC: Can handle pressures up to 10,000 psi depending on the material and size.

BSP: Generally suitable for up to 6,000 psi, but this can vary based on the material and application.

Compatibility

JIC: Primarily compatible with other JIC fittings and some SAE fittings.

BSP: Compatible with other BSP fittings and, in some cases, with Metric and NPT fittings.

Availability and Sourcing Options

JIC: Widely available in the United States and other countries that follow SAE standards.

BSP: Widely available in the UK and countries that follow British standards.

How to Identify JIC and BSP hydraulic fittings

Visual Inspection

JIC Fittings

JIC fittings are easily recognizable by the two marks present on the hex, which is the American Standard marking. Additionally, these fittings have a 37-degree flare at the end. If you’re unsure about the angle, a specialized protractor can be used to measure it accurately. This is crucial because the 37-degree flare is a defining characteristic of JIC fittings.

BSP Fittings

For BSP fittings, you’ll typically find an indentation on the hex of a fractional fitting. This is a quick way to identify BSP over other types. The fittings sit at a 30-degree angle, which is another distinguishing feature. Furthermore, the type of threads can give you more information: tapered threads indicate BSPT (British Standard Pipe Tapered), while parallel threads indicate BSPP (British Standard Pipe Parallel).

Additional Identification Methods

Thread Pitch: Use a thread gauge to measure the threads per inch (TPI) for both JIC and BSP fittings. JIC usually has a finer thread, while BSP threads are generally coarser.

Country of Origin: JIC is predominantly used in the United States, while BSP is common in the UK and other countries that follow British standards. Knowing the origin of the machinery can offer clues.

Manufacturer’s Markings: Some manufacturers include specific markings or codes on the fittings, which can be cross-referenced with product manuals for identification.

How to Measure JIC and BSP Fittings

Measuring JIC Fittings

Diameter

When it comes to measuring the diameter of JIC fittings, precision is key. Utilize calipers to measure the outer diameter of the male thread or the inner diameter of the female thread. This step is crucial for ensuring that the fitting will properly connect with its corresponding component, thereby preventing any potential leaks or system failures.

Thread Count

Thread count is another vital metric. To determine the thread pitch, count the number of threads within an inch. This information is essential for compatibility, especially when you’re dealing with high-pressure hydraulic systems where even a minor mismatch can lead to significant issues.

Flare Angle

The flare angle is a defining characteristic of JIC fittings. Use a specialized angle gauge to confirm the 37-degree flare angle. This is especially important in high-pressure applications where a secure, leak-proof connection is paramount.

Measuring BSP Fittings

Diameter

Just like with JIC fittings, the diameter is a critical measurement for BSP fittings. Use calipers to measure the major diameter of the male thread or the inner diameter of the female thread. Accurate measurement ensures that the fitting will seamlessly integrate into your hydraulic system.

Thread Count

BSP thread pitch is generally measured in threads per inch (TPI). To accurately determine this, use a thread gauge. Knowing the correct TPI is essential for ensuring that the BSP fitting will be compatible with other components in the system.

Thread Angle

BSP fittings have a unique 55-degree thread angle. Confirm this angle using an angle gauge to ensure you have the right type of fitting. This is particularly important in applications requiring a secure, leak-proof connection.

Type

BSP fittings come in two main types: BSPP (parallel) and BSPT (tapered). To determine which type you have, use a parallel or tapered gauge. This is crucial because each type has its own set of applications and compatibility requirements.

Making the Right Choice for Your Business

Assessing Your Needs

Before diving into the specifics of BSP and JIC fittings, it’s crucial to assess the needs of your hydraulic systems. Consider factors like operating pressure, fluid type, temperature, and the geographical location of your operations. These elements will guide you in making an informed decision.

BSP vs JIC: A Quick Comparison

BSP (British Standard Pipe) Fittings: Known for their excellent sealing properties and global acceptance. They are versatile, with both parallel (BSPP) and tapered (BSPT) options. Ideal for high-pressure, high-vibration applications.

JIC (Joint Industry Council) Fittings: Recognized for their high-pressure handling capabilities and 37-degree flare angle. They are predominantly used in the United States and are versatile, and compatible with a wide range of tubing and hose materials.

The Right Choice for You

High-Pressure Systems: If your operations require high-pressure handling, JIC might be more suitable due to its 37-degree flare design.

Global Operations: If your business operates internationally, especially in regions following British standards, BSP fittings might be the better option due to their global acceptance.

Versatility: If you need a fitting that can be used in a variety of applications, both JIC and BSP offer versatility, but BSP provides an added advantage with its parallel and tapered options.

Cost-Effectiveness: JIC fittings are generally more expensive due to their high-pressure capabilities. If cost is a significant factor, BSP might be a more economical choice.

Choosing the Best Manufacturer

Quality Assurance: Look for manufacturers who offer quality certifications and can provide test reports for their products.

Product Range: Choose a manufacturer that offers a wide range of fittings, giving you more options to find the perfect fit for your needs.

Customer Support: Excellent customer service, including after-sales support, can be a deciding factor.

Reputation: Research customer reviews and industry reputation to ensure you’re partnering with a reliable manufacturer.

Customization: If your hydraulic systems have unique requirements, a manufacturer that offers customization services can be invaluable.

By considering these factors, you can make an informed decision that aligns with the specific needs of your business. Whether you opt for BSP or JIC fittings, the key is to choose based on your operational requirements, ensuring optimal performance and reliability.

Why Choose Topa

Unmatched Quality

At Topa, we pride ourselves on delivering high-quality hydraulic fittings that meet international standards. Our products undergo rigorous quality checks to ensure they meet the high-pressure and high-performance demands of hydraulic systems.

Extensive Product Range

Topa offers an extensive range of hydraulic fittings, including both BSP and JIC types. This wide selection ensures that you’ll find the perfect fit for your specific needs, whether you operate domestically or internationally.

Competitive Pricing

Being a direct factory, Topa offers competitive pricing without compromising on quality. Our products provide a higher cost-performance ratio, making us a go-to choice for businesses looking for both affordability and performance.

Exceptional Customer Service

Customer satisfaction is at the core of our business. Our dedicated customer support team is always ready to assist you with any inquiries or issues you may have, both pre-sale and post-sale.

Proven Track Record

With years of experience in the hydraulic industry, Topa has built a reputation for reliability and excellence. Our clients, who range from experienced salespeople to maintenance professionals, trust us for their hydraulic fitting needs.

By choosing Topa, you’re not just buying a product; you’re investing in a partnership that offers quality, reliability, and value. Make the right choice for your business—choose Topa, the best hydraulic fittings manufacturer in China.

Conclusion

In summary, the decision between JIC and BSP fittings boils down to your specific needs, and this guide serves as a comprehensive resource to help you navigate this complex yet crucial aspect of hydraulic systems. Choose wisely, and you’ll set the stage for operational excellence and long-term success.

FAQ

What does BSP stand for?

BSP stands for British Standard Pipe, a type of thread commonly used in hydraulic and plumbing systems in the UK and other countries.

What does JIC stand for?

JIC stands for Joint Industry Council, a standard for hydraulic fittings primarily used in the United States with a 37-degree flare connection.

What is the main difference between BSP and JIC fittings?

The main difference is that BSP fittings have a parallel or tapered thread, while JIC fittings have a 37-degree flare for sealing.

Are BSP and JIC fittings compatible?

No, BSP and JIC fittings are not compatible due to different thread designs and sealing methods.

Which fitting type is more common in the UK?

BSP fittings are more common in the UK, while JIC fittings are used primarily in the United States.

Can I use BSP fittings in high-pressure systems?

Yes, BSP fittings can be used in high-pressure systems, but proper sealing techniques must be applied to ensure leak-free connections.

Topa Blog

Find out more about Topa Blog and learn more about specialized hydraulic fittings.

The Smart Manufacturing Exhibition

The processing steps of brass fittings

The Basics of Hydraulic Hose Fittings

The Advantages of Using Hydraulic Fittings in Industrial Applications

Thailand Exhibition

Six Steps to Replace Hydraulic Hoses

Sep, 2023

An vs JIC Hydraulic Fittings: What’s the Difference

An vs JIC Hydraulic Fittings: What's the Difference？

The Genesis of JIC Fittings

JIC (Joint Industrial Council) fittings originated to serve industrial applications and have become a staple in various sectors, including manufacturing and construction. The development of hydraulic systems can be traced back to the early 20th century when threaded fittings were the norm. However, these fittings are easy to leak and inefficient. By the 1930s, a new era dawned with the development of compression-style hydraulic hose fittings, providing a more secure and leak-proof seal. These were typically made from brass or steel and found applications in mining, construction, manufacturing, and transportation.

The Advent of AN Fittings

AN (Army-Navy) fittings, on the other hand, were initially designed for military applications, particularly in aerospace. During the 1950s and 1960s, as hydraulic systems became more prevalent in aerospace and defense, new materials and designs were developed. Lightweight aluminum fittings capable of withstanding high pressures and extreme temperatures were introduced. These fittings met stringent military standards like MIL-F-5509 and were used in high-stakes applications like aircraft landing gear and control systems.

Evolution Over Time

Both types of fittings have evolved significantly over the years. The 1970s and 1980s saw the development of new hydraulic hose materials like synthetic rubber and thermoplastics, leading to even more durable and resistant fittings. Today, these fittings come in a wide range of materials, sizes, and configurations to meet industry-specific needs.

JIC Fittings

JIC (Joint Industry Council) fittings are flare-type connectors designed for high-pressure applications. They are an integral part of hydraulic systems, fuel delivery mechanisms, and other fluid power applications. These fittings are especially useful in systems that require pressure levels up to 10,000 PSI.

Appearance and Characteristics

JIC fittings are typically made of forged carbon steel, although other materials like stainless steel, brass, and nickel-copper alloys are also used. They feature a 37-degree flare seating surface, which ensures a secure and leak-proof connection. The fittings come in various sizes and configurations, including straight, elbow, and tee shapes, among others.

International Standards

These fittings adhere to international standards such as SAE J514 and MIL-DTL-18866. The SAE J514 standard has effectively replaced the older MS16142 military specification, although some tooling still references the older code. These standards ensure that the fittings meet quality and dimensional requirements, making them reliable choices for industrial applications.

Advantages

Durability: One of the most significant advantages of JIC fittings is their rugged construction. Made from high-quality materials such as forged carbon steel or stainless steel, these fittings can withstand high pressures. They can withstand harsh environments such as extreme temperatures and corrosive substances, making them ideal for heavy-duty applications.

Versatility: JIC fittings are not limited to a single application or industry. They are used in a wide range of applications, from hydraulics and fuel delivery mechanisms to fluid power applications in industrial environments. This versatility means you can use standardized JIC fittings in multiple systems.

Standardized: JIC fittings conform to international standards such as SAE J514 to meet stringent quality and dimensional requirements. This standardization is critical for interchangeability, allowing you to easily swap out parts from different manufacturers without worrying about compatibility issues.

Cost Effective: JIC fittings are cost-effective considering their durability and versatility. They offer long-term value, reducing the need for frequent replacement.

Disadvantages

Specialized Tools: One of the drawbacks is that specialized tools may be required to install JIC fittings. These tools can add to the initial installation cost.

Tolerance Levels: JIC fittings have less stringent tolerance requirements than AN (Army-Navy) fittings. While this is not usually a problem for most industrial applications. However, in highly specialized systems, even the slightest variation can affect performance.

Possibility of over-tightening: Due to their flared design, there is a risk of over-tightening, which can deform the fitting and lead to leaks. Proper training is required to ensure proper fitting installation.

Not Suitable for Dynamic Stress: While JIC fittings are well suited for high-pressure applications, they may not be the best choice for dynamically stressed systems, such as frequent vibration or thermal cycling.

Applications

Construction and Manufacturing Equipment

JIC fittings are commonly found in hydraulic systems that power heavy machinery such as excavators, bulldozers and cranes. Their rugged design ensures they can withstand the high pressures and harsh conditions often encountered on construction sites. In manufacturing environments, they are used in hydraulic presses, conveyor systems, and automated machinery for reliable performance and minimal downtime.

Automotive and Marine Applications

In the automotive industry, JIC fittings exist in fuel delivery systems, including fuel lines and fuel injection systems. Their durability and high-pressure tolerance make them ideal for the harsh conditions of modern engines. In marine applications, JIC fittings are used in the fuel systems of boats and ships, which must not only withstand high pressures but also corrosive saltwater environments.

Industrial Machinery

JIC fittings are also used in a variety of fluid power applications in industrial environments. These include hydraulic systems in manufacturing plants, pneumatic controls in automation, and lubrication systems in heavy machinery. Their standardization and versatility make them a popular choice for engineers and maintenance professionals.

Renewable Energy Systems

As the world moves toward more sustainable energy solutions, renewable energy systems such as wind turbines and solar panel trackers are frequently utilizing JIC hydraulic fittings.

Medical Equipment

In special cases, JIC fittings exist in medical equipment such as patient hydraulic lifts and specialized surgical tools. In these life-sustaining applications, their reliability and adherence to standards is critical.

AN fittings

Originally designed for the U.S. Army, AN (Army-Navy) joints are known for their ruggedness and durability. Developed during World War II, these fittings were the product of fitting standards agreed upon by the Army Air Corps and the Navy. Over the years, their applications have expanded beyond the military, especially in high performance systems.

Appearance and Characteristics

Appearance and Features

At first glance, AN fittings may look similar to JIC fittings, but they are typically made of higher quality materials. These fittings typically consist of lightweight aluminum, stainless steel, or titanium, and feature a 37-degree flared seating surface. The premium materials used in AN fittings allow them to withstand extreme conditions, including high pressure and high temperature.

International Standards

AN fittings meet military specifications such as MIL-F-5509 and are currently governed by SAE aerospace standards (AS4841 through AS4843 and AS4875). These standards ensure that fittings meet the stringent requirements of aerospace and military applications.

Advantages

High-quality: AN fittings are made from high-quality materials such as aluminum, stainless steel, and titanium. This ensures not only product longevity but also unmatched reliability, especially in high-risk environments.

Precision: AN fittings are manufactured to exacting military and aerospace standards with precise tolerances. This precision makes them the preferred choice for specialized applications where even small deviations can have serious consequences.

High-Pressure Tolerance: These fittings can withstand extreme conditions, including high pressure and high temperature.

Corrosion-resistance: Due to the use of high-quality materials, AN fittings have excellent corrosion resistance, making them suitable for marine and other corrosive environments.

Disadvantages

High Cost: The flip side of high-quality materials and manufacturing standards is cost. AN fittings are typically more expensive than JIC fittings because of the materials used, among other things.

Limited Interchangeability: Although AN fittings look similar to JIC fittings, they are not universally interchangeable due to their specific tolerances and materials. This can complicate matters when trying to integrate them into existing systems.

Availability: Because of their specificity, AN fittings may not be as readily available as more standard types, so purchases need to be planned in advance.

Installation complexity: The precision of AN fittings often requires specialized tools and expertise for installation, adding time and cost to the overall project.

Applications

Aerospace

AN fittings are a staple in the aerospace industry and exist in critical hydraulic systems in aircraft, including landing gear, flight control systems, and fuel delivery.

High Performance Vehicles

AN fittings are standard in motorsports and high-performance vehicles. Their reliability and performance make them ideal for fuel, cooling, and hydraulic systems in race cars and luxury automobiles.

Military Equipment

From tanks and armored vehicles to warships and aircraft, AN fittings serve a wide variety of military applications where failure is not an option.

Specialty Industries

Medical equipment: In specialized medical facilities, AN couplings serve in medical equipment such as hydraulic patient lifts and surgical tools. In such equipment, high precision and reliability are essential.

Chemical and pharmaceutical industries: AN fittings are corrosion-resistant and made of high-quality materials. Therefore, they are also used in chemical processing plants and the pharmaceutical industry to handle the transfer of sensitive or corrosive substances.

Differences Between JIC and AN Fittings

Connector Markings

AN Fittings: These often come with identifiable markings, usually indicating the manufacturer, material, and military or aerospace standards met. These markings provide an added layer of assurance regarding the fitting’s quality and origin.

JIC Fittings: While they may also have markings, these are usually less comprehensive and may only indicate size or basic material information.

Thread Size and Dimensions

AN Fittings: Manufactured to exacting tolerances, the thread size and dimensions are highly consistent, adhering to strict military and aerospace standards.

JIC Fittings: While similar in size, they are produced to industrial standards, which are generally less stringent. This means they may not always be interchangeable with AN fittings.

AN/JIC FITTING & TUBE INFORMATION
DASH S1ZE	BRAIDED HOSE I.D.	HARD TUBE O.D.	AN/JIC THREAD	AN FLARE BORE SIZE	AN/JIC WIRE UT HEX
-3	1/8″	3/16″	3/8″ x24	0.125″	7/6″ or 12″
-4	7/32″	1/4″	7/16″x20	0.171″	9/16″
-6	11/32″	3/8″	9/16″x18	0.298″	11/16″
-8	7/16″	1/2″	3/4″x16	0.391″	7/8″
-10	9/16	5/8″	7/8″x14	0.484″	1″
-12	11/16″	3/4″	1-1/16″x12	0.608″	1-1/4″
-16	7/8″	1″	1-5/16″x12	0.844″	1-1/2″
-20	1-1/8″	1-1/4″	1-5/8″x12	1.078″	1-13/16″

Flare Angle and Sealing Mechanism

Both Types: Both JIC and AN fittings feature a 37-degree flare seating surface.

Differences: The tolerances may differ, with AN fittings often having tighter tolerances due to their military-grade requirements. This can affect the sealing mechanism and the ability to form a leak-proof connection.

Pressure Rating Ranges

AN Fittings: These are often rated for higher pressures, making them suitable for critical applications like aerospace and military equipment.

JIC Fittings: While also designed for high-pressure systems, they may not meet the extreme pressure requirements of specialized applications.

Materials and Compatibility

AN Fittings: Typically made from higher-grade materials like lightweight aluminum, stainless steel, or titanium, making them more suitable for specialized applications where material compatibility is crucial.

JIC Fittings: Commonly made from forged carbon steel, although other materials like stainless steel and brass are also used. These are generally more cost-effective but may not offer the same level of material compatibility as AN fittings.

Are JIC and AN Fittings Interchangeable?

Whether or not JIC and AN fittings are interchangeable is a common question, especially considering their similar appearance and 37-degree flare angle. However, the international recommendation is not to interchange JIC and An fittings.

Why not

Critical Systems: In high-stakes environments like aerospace, military, or medical applications, it’s advisable not to interchange JIC and AN fittings due to the stringent standards and tight tolerances required.

Different Materials: If the fittings are made from different materials, interchanging them could lead to compatibility issues, such as galvanic corrosion.

Tolerance Levels: AN fittings are manufactured to more exact tolerances than JIC fittings. Interchanging them in a system that requires high precision could lead to leaks or system failure.

Certification Requirements: In systems that must meet specific certifications, like military or aerospace standards, interchanging fittings that don’t meet those standards could result in non-compliance.

Risks of Incorrect Interchangeability

System Failure: Using the wrong fitting in a critical system could lead to catastrophic failure, posing safety risks.

Increased Maintenance: Incorrect interchangeability could result in leaks or other issues, leading to increased maintenance costs and downtime.

Voided Warranties: Using non-approved fittings could void the warranty of the hydraulic system or the equipment in which it is installed.

How to Choose the Right JIC and AN Fitting

Selecting the appropriate JIC or AN fitting for your hydraulic system is a critical decision that can impact the system’s performance, safety, and longevity. Here are some key factors to consider:

Environmental Factors and Industry Requirements

Operating Environment: Consider the conditions where the hydraulic system will operate. This includes temperature ranges, exposure to corrosive substances, and potential for mechanical impact.

Compliance Needs: Different industries have varying standards and certifications. Make sure the fittings you choose meet or exceed these requirements, especially for critical applications like aerospace or healthcare.

Hydraulic System Compatibility

Pressure Requirements: Ensure that the fitting can withstand the system’s maximum operating pressure. AN fittings are generally suitable for higher-pressure applications, while JIC fittings are often used in industrial settings.

Flow Requirements: The fitting should be sized appropriately to match the system’s flow rate. Incorrect sizing can lead to inefficiencies or system failure.

Availability and Sourcing

Lead Time: Consider the availability and lead time for the fittings, especially for large projects or critical applications where downtime is costly.

Quality Assurance: Look for suppliers who offer quality certifications and testing to ensure the fittings meet your standards.

Where to Buy

Local Suppliers: Local suppliers may offer quick delivery but may have higher prices or limited selection.

Online Retailers: These offer a wide range of options but may lack personalized customer service.

Direct from Manufacturers: Purchasing directly from manufacturers can offer a high cost-performance ratio. You get high-quality products at competitive prices, backed by expert advice.

Why Choose Topa Hydraulic?

Quality: Topa Hydraulic fittings meet or exceed industry standards, ensuring reliability and performance.

Cost-Performance Ratio: Manufactured in China, our products offer a high cost-performance ratio, providing quality at an affordable price.

One-Stop Service: From consultation to delivery, Topa Hydraulic offers a seamless customer experience, saving you time and effort.

Conclusion

By taking a comprehensive approach to selecting hydraulic fittings, you not only ensure the optimal performance of your system but also contribute to its long-term reliability and safety. For those looking to make an informed choice, Topa offers a wide range of JIC and AN fittings that meet stringent industry standards, providing you with options that can be tailored to your specific needs. Would you like to explore these options further? Feel free to reach out to us for any inquiries or assistance you may require.

FAQ

What does AN stand for?

AN stands for Army-Navy, a standard for hydraulic fittings used primarily in the military and aerospace industries.

What does JIC stand for?

JIC stands for Joint Industry Council, a standard for hydraulic fittings widely used in the U.S. for general industrial applications.

What is the main difference between AN and JIC fittings?

The main difference is that AN fittings have a 37-degree flare, while JIC fittings also have a 37-degree flare but are designed for different sealing methods and applications.

Are AN and JIC fittings compatible?

Yes, AN and JIC fittings are generally interchangeable, as both use a 37-degree flare, though it’s important to check specific application requirements.

What are AN fittings typically used for?

AN fittings are primarily used in aerospace, military, and high-performance automotive applications due to their precise design and reliability.

What are JIC fittings typically used for?

JIC fittings are commonly used in industrial and hydraulic systems for a wide range of applications, including fluid and gas transfer.

Topa Blog

Find out more about Topa Blog and learn more about specialized hydraulic fittings.

The Smart Manufacturing Exhibition

The processing steps of brass fittings

The Basics of Hydraulic Hose Fittings

The Advantages of Using Hydraulic Fittings in Industrial Applications

Thailand Exhibition

Six Steps to Replace Hydraulic Hoses

Sep, 2023

SAE vs JIC Hydraulic Fittings: What is the Difference

SAE vs JIC Hydraulic Fittings: What is the Difference？

In this guide, we’ll take an in-depth look at all aspects of JIC and SAE fittings, from their historical origins to their physical characteristics, performance specifications, and compatibility. Our goal is to equip you with the knowledge and insight you need to make an informed decision, ensuring you choose the right fitting for your specific hydraulic needs. So let’s begin this journey to better understand the intricacies of JIC and SAE hydraulic fittings.

What is a Flare Fitting?

A flare fitting is more than just a simple connection in a hydraulic system, it is a critical component designed for high performance. These specialized fittings are used to connect tubing, hose or pipe to ensure a leak-proof seal that can withstand hydraulic conditions. The tip of the flare fitting has been engineered to include precise angles and dimensions to meet stringent industry standards. This not only ensures optimal performance of the fitting, but also provides long-term reliability, reducing the need for frequent maintenance or replacement.

Function of Flare Fittings

Flare fittings are essential in hydraulic systems for connecting various hydraulic components, from pumps and valves to actuators and cylinders. In this way, they allow hydraulic fluids to flow smoothly and efficiently throughout the system.

But flare fittings do more than just connect. These components are designed to maintain the overall efficiency and performance of the system. They do this by ensuring leak-proof seals, minimizing fluid loss and reducing the risk of contamination. It’s critical because even small leaks can lead to serious operational problems, including reduced system efficiency and increased maintenance costs.

The most common hydraulic flare fittings are the JIC 37-degree tapered seat and SAE 45-degree flare fittings, both of which are described in more detail below.

Historical Background

Origins of the JIC Fitting

The Joint Industry Committee (JIC) fitting is a product of American ingenuity, originally developed to meet the stringent requirements of military applications. During World War II, the need for reliable, high-pressure fittings became critical. As a result, the JIC fitting was created and quickly adopted by the U.S. military for its durability and reliability under extreme conditions.

However, the JIC fitting’s use extends far beyond the battlefield. Over the years, JIC fittings have been used in a wide range of industrial applications. For example, they are commonly found in manufacturing environments, handling applications ranging from high-pressure fluid systems to pneumatic controls. The aerospace industry also relies heavily on JIC fittings for their ability to withstand high pressures and temperatures while maintaining a leak-tight seal.

Origins of SAE Flare Fittings

SAE flare fittings, on the other hand, were designed by the Society of Automotive Engineers, originally to meet the specific needs of the automotive industry. These fittings were designed to be versatile and cost-effective, making them ideal for automotive mass production. Their original applications included fuel lines, brake systems, and hydraulic clutches, among others.

However, the versatility of SAE flare fittings has led to their use in a variety of other areas as well. Today, they are commonly used in light industrial applications and heavy machinery. Their design allows for moderate pressure ratings, making them suitable for less demanding hydraulic systems. In addition, they can be used in refrigeration systems because they can handle a wide range of refrigerants.

Evolution of JIC and SAE Fittings

It’s important to note that both JIC and SAE fittings have come a long way over the years. Innovations in materials science have led to the development of more durable and corrosion-resistant fittings. This extends their service life and reduces the need for frequent replacement, resulting in long-term cost savings.

Physical Properties

Design

JIC: 37-Degree flare angle

JIC fittings have a 37-degree flare angle optimized for high-pressure applications. This specific angle makes for a stronger connection, reduces the risk of leakage, and ensures overall system reliability.

SAE: 45-degree flare angle

SAE fittings have a 45-degree flare angle. This design is better suited for medium-pressure conditions and is ideal for automotive and light industrial applications.

Thread size and pitch

JIC: JIC fittings typically have standardized thread sizes. This standardization ensures uniformity across applications and makes it easier for maintenance professionals to find alternatives. In addition, standardized threads help improve the fitting’s ability to form a secure, leak-tight connection, which is critical in high-pressure hydraulic systems.

SAE: SAE fittings use different methods, have uniform dimensional standards, and are available in a range of customizable thread sizes. This flexibility allows them to meet the specific needs of applications ranging from automotive to industrial environments.

Materials

JIC: JIC fittings contain stainless steel or brass materials. These materials offer excellent durability and corrosion resistance, making them ideal for long-term use in harsh environments. The choice of material usually depends on the application. Carbon steel fittings require different surface treatments for corrosion and acid resistance.

SAE: SAE fittings are typically made of carbon steel and offer a good balance of strength and cost-effectiveness. While carbon steel fittings are not as corrosion-resistant as stainless steel, they are often coated to increase durability and make them suitable for a variety of applications. However, SAE fittings are also available in other materials, depending largely on your needs.

Feature	JIC (Joint Industry Council)	SAE (Society of Automotive Engineers)
Flare Angle	37 degrees	45 degrees
Primary Materials	Stainless steel, brass, carbon steel (with coating)	Carbon steel (often coated), brass, aluminum
Typical Pressure Range	Up to 5,000 psi (345 bar) depending on size/material	Up to 1,500 psi (103 bar); varies by system
Application Focus	High-pressure industrial, aerospace, military	Automotive, light industrial, refrigeration systems
Seal Type	Metal-to-metal flare seal	Metal-to-metal flare seal
Standard	SAE J514 / MIL-DTL-18866	SAE J512

Compatibility

Both JIC and SAE fittings are compatible with a variety of hydraulic systems. However, in some cases, a direct fit may not be feasible due to differences in design or thread size. In such cases, adapters with different threads can be used to bridge this gap and ensure a safe and reliable connection.

Pressure ratings

JIC: Known for their high pressure ratings, JIC fittings are the preferred choice for industrial, aerospace, and military applications. These industries often require hydraulic systems to operate under extreme conditions where even minor failures can have serious consequences. jic fittings are designed to meet these stringent requirements, providing a reliable, rugged solution.

SAE: In contrast, SAE fittings are designed for medium-pressure ratings. They are particularly well suited for automotive and light industrial applications, where hydraulic systems typically have lower pressure requirements. This makes SAE fittings a practical choice in these areas, balancing performance and cost.

Leak Resistance

JIC: One of the outstanding features of JIC fittings is their excellent leak resistance. These fittings are precision-engineered to minimize the risk of system failure due to leakage.

SAE: SAE fittings also offer good leakage resistance, but may require more frequent maintenance to ensure optimal performance.

Applications

JIC: JIC fittings are commonly used in a variety of industrial, aerospace, and military applications. Their high-pressure ratings and excellent leak-tightness make them ideal for these demanding applications.

SAE: SAE fittings are primarily used in automotive and light industrial applications. Their design and material selection make them suitable for these less demanding environments, balancing performance and cost.

Cost Effectiveness

JIC fittings have a high upfront cost but offer long-term value. Their durability and lower maintenance requirements mean they are actually more cost-effective over the entire life cycle of a hydraulic system. SAE fittings, on the other hand, are typically less expensive initially, but may need to be replaced more frequently, resulting in higher long-term costs.

Which is Better, JIC or SAE?

JIC fittings and SAE fittings are not superior or inferior, and much depends on the specific requirements of the hydraulic system. Both types of fittings have their advantages and limitations. The best choice depends on the specific needs of the hydraulic system, including factors such as pressure ratings, material compatibility, and long-term maintenance requirements. By understanding these nuances, you can make an informed decision that will improve the efficiency and reliability of your hydraulic system.

Category	JIC Fittings	SAE Fittings
Best For	– Industrial hydraulic systems – Aerospace and military applications – High-pressure environments (up to 5,000+ psi)	– Automotive systems (fuel, brake, power steering) – Refrigeration and HVAC – Light industrial or agricultural equipment
Advantages	– Excellent leak resistance under high pressure – Durable material options (stainless steel, brass) – Widely adopted in demanding industries – Available in both metric and imperial sizes	– Lower cost and widely available – Easier installation and maintenance in low-to-medium pressure systems – Compatible with various refrigerants and fluids
Limitations	– Higher upfront cost than SAE – Over-specified for low-pressure use, making it cost-inefficient	– Not ideal for high-pressure or high-vibration systems – Requires more frequent inspection and replacement in demanding environments

Can JIC and SAE be used interchangeably?

The short answer is no, it is not recommended to interchange JIC and SAE fittings. Although they may appear similar at first glance, these fittings have different design specifications and pressure ratings and are not intended to be used interchangeably.

What Happens If You Mix Them?

Attempting to connect a JIC fitting to an SAE fitting—or vice versa—can result in several serious issues, including:

Leaks Under Pressure

Because the flare angles do not align, the seal will not be tight. This can cause slow leaks or even catastrophic fluid loss under high pressure.

Thread Damage

Forcing incompatible threads can strip or cross-thread the fitting, making it unusable and possibly damaging expensive equipment ports.

Reduced System Performance

Even minor leaks or pressure inconsistencies can cause a drop in hydraulic efficiency, affecting system responsiveness and stability.

Component Failure

Misalignment puts uneven stress on the flare seat and threads, which over time may lead to cracking, deformation, or complete failure of the fitting.

Safety Hazards

A failed connection in high-pressure systems could lead to oil spray, burst lines, or fire risk (especially near flammable fluids or hot surfaces), endangering personnel and equipment.

How to Identify JIC and SAE Fittings?

Ensuring proper identification of JIC and SAE fittings is critical for optimal performance and safety of your hydraulic system. Below is a detailed step-by-step guide to help you accurately distinguish between the two types of fittings:

Tools Required

Protractor: These tools are essential for accurately measuring the flare angle of a fitting.

Thread Gauge: This tool helps you identify the thread size and pitch, another key feature that separates JIC and SAE fittings.

Step-by-step

Visual Inspection

Begin with a careful visual inspection of the joint in question. Although JIC and SAE fittings appear similar at first glance, their flare angles are very different. In practice, however, it is difficult to tell the difference between a 37-degree and a 45-degree flare, and you will need to use the appropriate tool to measure them.

Measure Flare Angle

Use a protractor to measure the flare angle at the end of the fitting. This is a critical step because the flare angle is the most important feature that distinguishes these two types of fittings. There is also a special specialty angle gauge that allows for a direct comparison of JIC and SAE thread seating angles.

Check Thread Size and Pitch

Use a thread gauge to measure the thread size and pitch of the fitting. There are special fitting size tables as well as pitch tables, which you can compare to analyze once you have come up with the numbers with the help of a thread gauge.

Cross Reference

If you have access to any product documentation or specifications, verify the type of fitting against its measurements. Manufacturers often provide detailed information, including diagrams and specifications, to help you identify accurately.

Consult an Expert

When in doubt, it’s best to confirm with a hydraulic system expert or fitting manufacturer, who has the most detailed knowledge of hydraulic fittings. Incorrect identification can lead to system failure, increased maintenance costs, and even safety hazards.

How to Buy JIC and SAE Fittings?

Purchasing the right JIC or SAE fitting is a critical step in ensuring the optimal performance and safety of your hydraulic system. The following is a comprehensive guide to help you make an informed decision:

● Preliminary Steps

Determine your needs: Determine the specific requirements of your hydraulic system, such as pressure ratings, material compatibility, and type of application.

Review technical documentation: Review any technical specifications or system diagrams for the type and size of fittings required.

● Where to Buy

Authorized Distributors: Always buy from an authorized distributor or directly from the manufacturer to ensure that you are buying a quality product at the right price.

Web platforms: Ask for and buy hydraulic fittings from specialized hydraulic websites.

Trade shows and exhibitions: These events allow you to meet manufacturers and suppliers face-to-face, allowing you to evaluate products first-hand.

● Questions to ask the seller

Are these connectors certified to meet industry standards?

How long is the warranty?

Are volume discounts or trade accounts available?

What is the lead time?

Is after-sales support available?

● Final Steps

Place Order: After verifying all the details, place the order.

Quality Check: Upon receipt of the product, inspect the connector for any defects or discrepancies.

Installation: It is recommended that the connector be installed by a qualified technician to ensure proper installation.

Conclusion

For those who are still unsure about which accessories to choose, it is always a prudent step to consult with a hydraulic system specialist or manufacturer. At Topa, we aim to provide you with expert advice and high-quality solutions to meet your specific needs for hydraulic components.

Thank you for taking the time to read this guide. We hope it provides you with useful information to help you understand the complexities of JIC and SAE hydraulic fittings. Please feel free to contact us if you have any questions or need assistance.

FAQ

What does SAE stand for?

SAE stands for Society of Automotive Engineers, and it refers to a standard for hydraulic fittings commonly used in the automotive and industrial sectors.

What does JIC stand for?

JIC stands for Joint Industry Council, and it refers to a standard for hydraulic fittings with a 37-degree flare connection, commonly used in the U.S.

What is the main difference between SAE and JIC fittings?

The main difference is that SAE fittings have a 45-degree flare angle, while JIC fittings have a 37-degree flare angle.

Are SAE and JIC fittings compatible with each other?

No, SAE and JIC fittings are not directly interchangeable due to the difference in their flare angles.

Which fitting type is more commonly used?

JIC fittings are more commonly used in North America, while SAE fittings are often seen in more specialized applications.

Can I use SAE fittings in high-pressure systems?

Yes, SAE fittings are designed for high-pressure systems and are commonly used in hydraulic and industrial applications.

Topa Blog

Find out more about Topa Blog and learn more about specialized hydraulic fittings.

The Smart Manufacturing Exhibition

The processing steps of brass fittings

The Basics of Hydraulic Hose Fittings

The Advantages of Using Hydraulic Fittings in Industrial Applications

Thailand Exhibition

Six Steps to Replace Hydraulic Hoses

Sep, 2023

JIC vs NPT Fittings: The Ultimate Guide

Hydraulic systems are the lifeblood of many industrial applications, from manufacturing to construction and beyond. At the heart of these systems are hydraulic fittings, which serve as the critical links ensuring the safe and efficient flow of hydraulic fluid. This comprehensive guide aims to provide an in-depth understanding of JIC and NPT hydraulic fittings—two of the most commonly used types of hydraulic fittings. From their origins and design features to installation procedures and maintenance tips, this guide covers everything you need to know to make informed decisions for your hydraulic needs.

What is a Hydraulic Fitting?

Hydraulic fittings are critical components in a hydraulic system, serving as connections between hoses, pipes, and other components. These fittings ensure the safe flow of hydraulic fluid, which is critical to the overall function of the system.

Understanding JIC Fittings

Origins and Standards

JIC (Joint Industry Council) fittings have their roots in AN (Army-Navy) fittings developed during World War II for aviation applications. The JIC standard was later established to simplify manufacturing processes and reduce costs. These fittings conform to SAE J514 and ISO 8434-2 standards, making them a reliable choice for various industries.

Design Features

● 37-degree flare: The hallmark of JIC fittings is the 37-degree flare, which provides a strong mechanical connection.

● Thread Size: JIC fittings come in various sizes, adhering to the 2A/2B thread fit standard.

● Sealing Method: These fittings employ a metal-to-metal sealing mechanism, eliminating the need for additional sealants.

Advantages

● High-Pressure Resistance: JIC fittings are designed to withstand high pressures, making them ideal for demanding hydraulic applications.

● Reusability: One of the standout features is their reusability, offering long-term value.

● Leak Resistance: The 37-degree flare design minimizes the risk of leaks, ensuring a secure connection.

Disadvantages

● Cost Considerations: While JIC fittings offer numerous advantages, they can be more expensive than other types of fittings.

● Limited Compatibility: These fittings are not universally compatible with other thread types, which may limit their application in some systems.

Dash Size	Thread size	Threads Pre lnch	Female Thread l.D.(mm)	Male Thread O.D.(mm)
-2	5/16	24	6.7	7.9
-3	3/8	24	8.3	9.5
-4	7/16	20	9.9	11.1
-5	12	20	11.5	12.7
-6	9/16	18	12.7	14.3
8	3/4	16	17.5	19.1
-10	7/8	14	20.6	22.2
-12	1-1/16	12	24.6	27.0
-14	1-3/16	12	28.2	30.2
-16	1-5/16	12	31.4	33.3
-20	1-5/8	12	39.3	41.3
-24	1-7/8	12	45.6	47.6
-32	2-1/2	12	61.5	63.5

JIC hydraulic fittings size chart

Understanding NPT Fittings

● Origins and Standards

NPT, or National Pipe Thread Taper, is a standard that originated in North America and is widely used in various industries. Governed by the American National Standard for Tapered Pipe Threads (ANSI/ASME B1.20.1), NPT hydraulic fittings are designed for consistency, ensuring reliable and leak-free connections.

● Typical Applications

NPT hose fittings are commonly used in industries such as plumbing, HVAC, and pharmaceutical manufacturing. Their versatility extends to oil and gas, chemical processing, and water treatment systems.

● Design Features

Tapered Threads: The unique tapered design creates a tighter seal as the fitting is threaded deeper into the pipe.

Sealing Method: NPT pipe fittings usually require a thread sealant to ensure a leak-free connection.

Thread Size: NPT threads are standardized and measured according to ANSI/ASME B1.20.1, which specifies pitch diameter, major diameter, and minor diameter.

● Advantages

Versatility: NPT hydraulic fittings are suitable for a wide range of applications and industries.

Cost-effectiveness: These fittings are generally less expensive than other types, offering a cost-efficient solution.

Wide Availability: NPT adapter fittings are readily available in various sizes and materials, making them a convenient choice.

● Disadvantages

Risk of Over-tightening: The tapered design can lead to over-tightening, which may damage the threads.

Thread Sealant Required: Unlike some other types of fittings, NPT usually requires a thread sealant, adding an extra step to the installation process.

DASH	SIZE	THREAD	Male Thread O.D.(mm)	Female Thread l.D.(mm)
02	1/8″	1/8-27	10.32	9.12
04	1/4″	1/4-18	13.89	11.90
06	3/8″	3/8- 18	17.06	15.08
08	1/2″	1/2-14	21.43	19.05
12	3/4″	3/4-14	26.98	24.20
16	1″	1-11.1/2	33.33	30.56
20	1-1/4″	1-1/4-11.1/2	42.46	38.89
24	1-1/2″	1-1/2-11.1/2	48.41	45.24
32	2″	2-11.1/2	60.32	57.15

NPT hydraulic fittings size chart

Comparison of JIC and NPT

Thread Type

JIC hydraulic fittings feature a 37-degree flare, while NPT pipe fittings have tapered threads. The former offers a metal-to-metal seal, whereas the latter relies on the taper to create a tight fit.

Sealing Mechanism

JIC’s 37-degree flare provides a robust mechanical seal, eliminating the need for additional sealants. On the other hand, NPT hose fittings usually require a thread sealant to ensure a leak-free connection.

Degree of Pressure Resistance

JIC fittings are designed to withstand high pressures, making them ideal for demanding hydraulic applications. hydraulic NPT fittings are versatile but may not offer the same level of pressure resistance as JIC fittings.

Cost Effectiveness

NPT fittings are generally more cost-effective and widely available. However, JIC fittings, while more expensive, offer long-term value due to their reusability and high-pressure resistance.

Which is Best?

The choice between JIC and NPT depends on various factors like application requirements, budget, and availability. JIC is often the go-to for high-pressure systems, while NPT is a versatile choice for less demanding applications.

Are JIC and NPT Fittings Interchangeable?

Discussion of Compatibility and Adapters

They are not interchangeable. JIC and NPT hydraulic fittings are very different in appearance and are fundamentally different in design and function; JIC fittings rely on a 37-degree flare for sealing, while NPT uses tapered threads. While there are adapters available to connect JIC fittings to NPT hydraulic fittings, these adapters are specialized parts and are not a standard feature of either fitting type.

Risks and Precautions

Thread Mismatch: Attempting to interchange JIC and NPT hydraulic fittings without an adapter can result in thread wear and leakage. The threads are not designed to match, and forcing them to do so can compromise the integrity of the hydraulic system.

Pressure resistance: JIC fittings are generally better suited for high-pressure applications, while NPT hydraulic fittings may not have the same pressure resistance. Using NPT pipe fittings in a high-pressure system designed for JICs can lead to failure.

Sealant requirements: NPT hydraulic fittings typically require the use of thread sealant. If you are converting from a JIC that does not require sealant, you will need to add this extra step to your process.

Cost: Adapters can be expensive and may make NPT hose fittings less cost-effective. In addition, using an adapter creates another potential point of failure in the system.

JIC and NPT Fitting Selection

Application Requirements

The first factor to consider is the specific needs of your hydraulic system. JIC fittings are generally better suited for high-pressure applications, while NPT hydraulic fittings are more versatile and can be used in a variety of settings. Understanding the pressure requirements, fluid type, and operating conditions is crucial for making an informed decision.

Budgetary Constraints

Cost is always a significant factor in any decision-making process. NPT adapters are generally more budget-friendly but may require additional components like thread sealants. JIC fittings, although more expensive upfront, offer long-term value due to their reusability and high-pressure resistance.

Component Availability

Lastly, consider the availability of the components you need. NPT pipe fittings are widely available and come in various materials and sizes. JIC fittings, while also available in different sizes, may not be as readily accessible, depending on your location and the specific requirements of your hydraulic system.

How to Install JIC and NPT Fittings

Tools Required

Adjustable wrench

Thread sealant (optional, but recommended for added safety)

Safety Precautions:

Always wear safety goggles to protect your eyes from any debris.

Use gloves to protect your hands.

Ensure the hydraulic system is depressurized to avoid sudden bursts of fluid.

JIC Fitting Step-by-Step Guide

Preparation: Before you begin, clean the work area to avoid contamination. Make sure you have all the necessary tools and parts on hand.

Thread inspection: Inspect the threads on the fitting and hose or pipe. Look for any signs of wear, corrosion, or damage that could affect the connection.

Insertion: Align the JIC fitting with the hose or pipe and insert carefully. Make sure it is properly aligned with the flare or base.

Tighten: Use an adjustable wrench to tighten the fitting until snug. Then tighten another quarter turn to ensure a secure connection.

NPT Fitting Step-by-Step Guide

Preparation: As with the JIC fittings, begin by cleaning the work area. Prepare all tools required for installation.

Thread Sealant: Apply thread sealant to the male threads of the NPT fitting. This is critical for a leak-tight seal.

Insertion: Carefully align the NPT fitting with the appropriate female threads. Insert the fitting, making sure it is inserted straight in to avoid cross-threading.

Tighten: Use an adjustable wrench to tighten the fitting. Because the NPT threads are tapered, be careful not to over-tighten or the threads may strip.

Maintenance Tips for JIC and NPT Hydraulic Fittings

Maintaining hydraulic fittings is just as important as selecting the correct fitting. Proper maintenance ensures longevity, efficiency, and safety. Below are some tips for keeping JIC and NPT adapters in top condition.

Leak Detection and Prevention

Periodic Inspection: Periodically check for signs of leakage around the fitting. Look for wet spots, drips, or puddles.

Pressure Test: Perform a pressure test to identify any weaknesses in the hydraulic system.

Sealant: For NPT fitting, consider reapplying thread sealant during maintenance checks to ensure a leak-free connection.

When to Replace Fittings

Visual Inspection: Look for signs of wear, corrosion, or damage. If there are any visible signs, the fitting should be replaced.

Performance Problems: Consider replacing fittings if you notice a drop in system performance, such as reduced pressure or fluid leaks.

Regular Maintenance: Replace fittings at specific intervals according to the manufacturer’s guidelines to ensure optimum performance.

Whether you’re dealing with high-pressure requirements or looking for a cost-effective, versatile solution, this guide provides all the information you need to navigate the complex landscape of hydraulic fittings. Armed with this knowledge, you can make choices that are not just good but optimal for your specific hydraulic needs.

FAQ

What are JIC fittings used for?

JIC fittings are commonly used in high-pressure hydraulic applications due to their 37-degree flare design, which offers a robust mechanical seal.

How do NPT differ from JIC?

NPT hydraulic fittings have tapered threads and usually require a thread sealant, whereas JIC fittings have a 37-degree flare and generally do not require additional sealants.

Can JIC and NPT be interchanged?

While there are adaptors that can connect JIC to NPT, it’s generally not advisable due to the risks involved, such as thread mismatch and varying pressure resistance.

How do I prevent leaks in NPT hydraulic fittings?

Applying a thread sealant to the male threads before insertion can help prevent leaks.

What tools are required for installing JIC and NPT fitting?

An adjustable wrench is essential for both, and thread sealant is usually required for NPT fitting.

How often should I inspect my hydraulic fittings?

Regular inspection intervals depend on the system’s usage and the manufacturer’s guidelines, but a monthly check is generally a good practice.

When should I replace my hydraulic fittings?

Replace fittings if you notice signs of wear, or corrosion, or if there are performance issues like reduced pressure or fluid leaks.

Are JIC fittings reusable?

Yes, one of the advantages of JIC fittings is their reusability, offering long-term value.

What safety precautions should I take when installing fittings?

Always wear safety goggles and gloves, and ensure the hydraulic system is depressurized before starting any installation or maintenance work.

Which is more cost-effective: JIC or NPT?

NPT pipe fittings are generally more budget-friendly, but JIC fittings offer long-term value due to their high-pressure resistance and reusability.

Why Choose Topa Fittings?

When it comes to hydraulic fittings, quality and reliability are paramount. That’s where Topa hydraulic fittings comes into play. Here’s why you should choose Topa JIC and NPT tube fittings for your hydraulic systems:

Unmatched Quality

Our fittings are manufactured to meet the highest industry standards. Whether it’s JIC’s 37-degree flare or NPT’s tapered threads, you can count on Topa for a leak-free, secure connection.

High-Pressure Resistance

Especially with our JIC fittings, you’ll find exceptional resistance to high pressures, making them ideal for demanding hydraulic applications.

Cost-Effectiveness

Our NPT hydraulic fittings offer a budget-friendly yet highly reliable option. Plus, our JIC fittings, while more expensive upfront, provide long-term value due to their durability and reusability.

Versatility

Whether you need fittings for high-pressure applications or something more versatile for various uses, Topa has you covered with both JIC and NPT options.

Easy Installation

Our fittings are designed for easy installation, reducing downtime and increasing efficiency. Plus, we offer all the necessary accessories like thread sealants for NPT pipe fittings.

Safety First

We prioritize your safety. Our fittings are rigorously tested to ensure they meet all safety standards, giving you peace of mind during installation and operation.

Expert Support

Our team of skilled professionals is always ready to assist you, whether you need help selecting the right fitting or troubleshooting an issue.

One-Stop Solution

From JIC to NPT, we offer a comprehensive range of hydraulic fittings, making Topa your one-stop solution for all your hydraulic needs.

The Smart Manufacturing Exhibition

The processing steps of brass fittings

The Basics of Hydraulic Hose Fittings

The Advantages of Using Hydraulic Fittings in Industrial Applications

Thailand Exhibition

Six Steps to Replace Hydraulic Hoses

Sep, 2023

Swept Adaptor

Topa

Swept Adaptor Supplier in China

Product Lists

Swept adapters have emerged to meet these requirements with a unique curved design that optimizes fluid flow and reduces pressure drop. Constructed from high-strength materials such as steel, these adapters are long-lasting, durable, and meet international standards. Although they have a slightly higher initial cost, their long-term performance advantages make them a cost-effective investment. Their design makes them particularly effective in high-pressure and complex systems. In addition, their robust construction reduces long-term maintenance costs. All in all, swept hydraulic adapters are the perfect combination of quality and economy and are a valuable addition to any hydraulic system. If you need Swept hydraulic adaptors, please contact us!

45° JIC Female to Female ORFS

Elbow 45° JIC female to female ORFS Swept adapters

90° BSP Male to Male

Elbow 90° BSP male to male Swept adapters

45° BSP Female to Female

Elbow 45° BSP female to female Swept adapters

45° BSP Male to Male

Elbow 45° BSP male to male Swept adapters

90° JIC Male to Female

Elbow 90° JIC male to female Swept adapters

90° JIC Female to Female BSP

Elbow 90° JIC female to Female BSP Swept adapters

45° JIC Male to Female

Elbow 45° JIC male to Female Swept adapters

95° JIC Female to Female Metric

Elbow 95° JIC female to Female metric Swept adapters

Products Video

Our hydraulic swept adapters are built with precision to deliver smoother fluid flow, lower pressure loss, and extended system life. Every curve is designed to reduce turbulence—making them ideal for high-flow, high-pressure applications.

Manufactured from premium carbon steel and stainless steel, our swept adapters undergo rigorous inspection—including thread testing and pressure sealing checks. Whether you’re working in construction, automation, or oil & gas, you can trust Topa to provide leak-free performance and long-term reliability.

If you’re looking for custom threads, special angles, or private labeling, we’re ready to support your needs. Watch the video now, then message our team for a fast quote and global delivery options.

Applications

Heavy Machinery

Hydraulic swept adapters play a vital role in heavy-duty equipment such as excavators, bulldozers, tractors, and mining trucks. These machines operate under extreme pressure, vibration, and continuous motion—conditions where standard fittings may fail prematurely. The curved design of swept adapters minimizes pressure drop and flow disruption, ensuring consistent hydraulic power delivery to critical components like cylinders and motors.

Industrial Automation

In manufacturing environments where hydraulic circuits control automated machinery, precision and efficiency are paramount. Swept adapters offer smooth directional changes in piping layouts, helping to maintain optimal flow velocity while minimizing turbulence. This results in faster response times for hydraulic actuators, improved system reliability, and reduced energy consumption.

Oil & Gas

The oil and gas sector demands components that can withstand extreme conditions—both offshore and onshore. Hydraulic swept adapters are commonly used in drill rigs, fracturing equipment, and wellhead control systems where high flow rates, pulsating pressure, and corrosive media are common. The swept design enhances flow stability, which is critical in long hydraulic circuits often found in large installations.

Products Features

Hydraulic Swept Adapters are essential fittings used in high-pressure hydraulic systems to change fluid direction with minimal resistance. Unlike conventional elbow adapters, swept adapters feature a gradually curved design—typically in 45° or 90° bends—that significantly reduces turbulence and pressure loss. This not only improves overall flow efficiency but also extends the life of connected components by reducing internal stress caused by abrupt flow changes.

These adapters are precisely machined to deliver reliable, leak-proof connections between hoses, tubes, and system components such as valves, pumps, and cylinders. Available in a wide range of thread types—including BSP, BSPT, JIC, ORFS, NPT, Metric, UNF, and JIS—swept adapters can accommodate global system requirements with ease.

Product Details

Shape Options

Material

Connection Types

Available Configurations

Technical Design

Component Structure

Manufacturing Standards

Swept Hydraulic Adapter VS Standard Hydraulic Adapter

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Gradual, curved bend design
Minimizes internal flow resistance
Reduces turbulence inside the hydraulic system
Promotes more efficient fluid movement
Results in lower pressure drop
Ideal for high-flow applications
Helps reduce energy loss in hydraulic circuits

Sharp 90-degree angle bend
Higher internal flow resistance
Increased risk of turbulence
May cause energy loss due to abrupt direction change
More pressure drop across the fitting
Suitable for general routing where flow efficiency is less critical

How to Customize Your Hydraulic Swept Adapter

At Topa, we understand that not every hydraulic system is built the same. That’s why we offer full customization options for swept adapters to meet your specific performance, installation, and material requirements. Whether you need non-standard threads, unique bend angles, or special coatings, we make it easy to get exactly what your project demands.

Provide Application Requirements

Provide your application scenario and parameters

Connection Selection

Choose your connection types and thread standards

Angle & Dimensions

Define angles and sizing requirements

Material Selection

Select appropriate materials for your environment

Special Requirements

Add custom features and finishing options

Production & Delivery

Technical confirmation and manufacturing

Why Choose Topa

When it comes to hydraulic systems, choosing the right components can make the difference between optimum performance and the constant headache of maintaining your system. At Topa, we’ve built a reputation for providing quality hydraulic components, such as hydraulic swept adapters, that meet the exacting requirements of hydraulic industry professionals. Here’s why choosing Topa Hydraulic is a smart move for you:

Competitive pricing

We pride ourselves on being a direct sales factory. We are able to offer competitive prices without compromising on quality, so you get your money’s worth. With Topa, you don’t have to choose between affordability and high performance – you can have both.

International Standards, Made in China

Our products are manufactured in China under strict quality control to ensure compliance with international standards in terms of durability, performance, and reliability. This is especially important for customers who face challenges in sourcing reliable components. Rest assured that our products offer a better price/performance ratio and are perfectly suited to your needs.

One-stop shop

No more traveling between different suppliers for different hydraulic needs. We offer a full range of products from hydraulic cylinders to fittings and adapters, providing you with the convenience of one-stop shopping.

Customized Solutions

We know that not all hydraulic systems are created equal. Our team of highly skilled professionals can customize solutions to meet the specific needs and challenges of your hydraulic applications.

Topa Services

Choosing the right hydraulic fitting supplier isn’t just about product specs—it’s about performance, reliability, and long-term support. Here’s why hundreds of buyers across the globe trust Topa for their hydraulic swept adapter needs:

Reliable Manufacturing Partnerships

Our factory equipped with CNC machining centers and strict QC systems. You get factory-direct pricing—without compromising on quality.

One-Stop Sourcing for Global Thread Standards

We support BSPP, BSPT, NPT, JIC, ORFS, Metric, UNF, Code 62, and more. Whether you're working with North American, European, or Asian systems, we deliver fittings that fit right the first time.

Fast Quotation & Technical Support

Our dedicated team responds to technical inquiries, RFQs, and drawing confirmations within 24 hours. Need a recommendation or a custom drawing? We've got you covered—fast.

Flexible Customization Options

Need a custom thread, bend angle, or private label? We handle OEM/ODM requests, laser marking, logo engraving, and special packaging for your brand or system requirement.

Global Export Experience

We ship to over 30+ countries, with customers across industries like construction, agriculture, mining, oil & gas, and manufacturing. Whether you're in the USA, Germany, UAE, or South Africa.

After-Sales Support

Our job doesn't stop after shipment. We offer fast after-sales service, technical troubleshooting, and warranty support—so you’re never left guessing.

20+

Years Experience

30+

Countries Served

10,00+

Products Delivered

500+

Customer

FAQ

What is the main difference between a swept adapter and a standard elbow fitting?

Swept adapters feature a gradual, curved bend that reduces turbulence and pressure loss, unlike standard elbow fittings that have sharp angles and can disrupt fluid flow.

What thread types are available for swept adapters?

We offer a wide range of thread types, including BSPP, BSPT, NPT, JIC, ORFS, Metric, UNF, JIS, and Code 62 flange connections.

Are these adapters available in both fixed and swivel ends?

Yes, many of our swept adapters are available with either fixed or female swivel ends for easier hose alignment during installation.

What materials are used for hydraulic swept adapters?

Our standard options include carbon steel with surface plating (zinc or zinc-nickel), stainless steel (304/316L), and brass for specific low-pressure or corrosion-resistant applications.

What is the maximum pressure these adapters can withstand?

Depending on size and material, swept adapters can handle pressures up to 6000 psi (≈420 bar) under standard hydraulic system conditions.

Can I request a non-standard angle, such as 135°?

Yes. While 45° and 90° are standard, we can manufacture custom-angle swept adapters like 135°, based on your system design or technical drawing.

Are these adapters compatible with international hydraulic systems?

Yes, our adapters comply with SAE, ISO, and DIN standards, making them compatible with most global hydraulic systems.

Do you offer private labeling or laser marking for branding?

Absolutely. We can laser engrave your logo, part number, or batch code on the adapter body and offer custom packaging to match your brand.

Can hydraulic swept adapters be used in both mobile and stationary systems?

Yes. Swept adapters are suitable for both mobile equipment (such as excavators and tractors) and stationary hydraulic systems (like industrial presses or marine platforms).

What surface treatments are available for corrosion protection?

We offer electroplated zinc, zinc-nickel alloy, phosphate coating, and stainless steel (304/316L) to suit various corrosion protection needs.

Get More Information About Products

Aug, 2023

What are JIC Hydraulic Fittings

What are JIC Hydraulic Fittings?

In the complex world of hydraulics, the choice of fittings can make or break an operation. That’s where JIC (Joint Industry Council) fittings come into play, the industry standard for hydraulic connections. Developed by the Joint Industry Council, the standard has become the first choice for professionals seeking reliability, ease of use and high performance. Understanding JIC fittings is not just a matter of technical knowledge, it’s also about making smart business decisions. These fittings offer a range of benefits from quick assembly to high-pressure capability, making them a cost-effective and versatile choice for a variety of applications. Whether you work with industrial machinery, automotive systems, aerospace or general hydraulics, JIC fittings offer unrivaled compatibility and interchangeability.

In this comprehensive guide, we’ll take an in-depth look at the origins of the JIC standard, its key features, and discuss what makes it stand out in the hydraulics industry.

What does JIC Stand for?

JIC stands for Joint Industrial Council, an organization that seeks to standardize specifications for hydraulic fittings. By creating a common standard, the JIC makes it easier for professionals to select, install, and maintain hydraulic systems, thereby reducing downtime and increasing efficiency.

JIC standards are fundamental to quality and performance in the hydraulic industry, ensuring that fittings meet stringent requirements. This standardization allows professionals to focus more on the application at hand without worrying about the compatibility of various components.

Key Features of JIC Hydraulic Fittings

When it comes to hydraulic fittings, details matter, and JIC fittings have a number of features that make them the preferred choice of industry professionals. Let’s analyze each of these key features in turn.

Standardized Dimensions

First, JIC fittings follow standardized dimensions. This standardization simplifies the selection process and ensures that you can easily find the fitting that meets your system requirements. Whether you’re dealing with a high-pressure application or a routine setup, you can rest easy knowing that the dimensions are standardized. You don’t have to sift through a myriad of options or worry about compatibility; standardized dimensions make it simple.

Material Selection

Material selection is another key factor; JIC fittings are typically made of high-quality steel, but stainless steel and brass options are also available. The material you choose will depend on your specific application. For example, if you work in a corrosive environment, stainless steel is a better choice. The point is, that JIC fittings are available in a range of materials to meet a variety of needs without sacrificing quality.

Pressure Ratings

Understanding the pressure rating of JIC fittings is critical. These fittings can withstand a wide range of pressures, making them suitable for both low and high-pressure applications. Fittings are typically labeled with the pressure rating for easy identification and to ensure that the fitting you select will meet the pressure requirements of your system.

Fitting Size	Dash Size	Thread Size	Torque ft/lbs
JIC2	-02	5/16-24	6-7
JIC3	-03	3/8-24	6-9
JIC4	-04	7/16-20	9-12
JIC5	-05	1/2-20	14-15
JIC6	-06	9/16-18	18-20
JIC8	-08	3/4-16	27-39
JIC10	-10	7/8-14	36-63
JIC12	-12	1 1/16-12	65-88
JIC14	-14	1 3/16-12	75-103
JIC16	-16	1 5/16-12	85-113
JIC20	-20	1 5/8-12	115-133
JIC24	-24	1 7/8-12	125-167
JIC32	-32	1 1/2/-12	190-258

Advantages of Using JIC Fittings

JIC fittings offer many advantages that make them the preferred choice of professionals in the hydraulic industry. Let’s take a closer look at these benefits and see why JIC fittings are often considered the gold standard.

Metal to metal

The 37-degree flared seating surface of the JIC fitting creates an efficient metal-to-metal seal that is both strong and reliable. This design withstands high pressures and extreme conditions, making it ideal for a variety of industrial applications. The elimination of additional sealants means less risk of contamination of the hydraulic system, which is especially important in sensitive applications such as aerospace, medical equipment and food processing.

Easy Assembly

One of the most significant benefits of JIC fittings is their ease of assembly. Standardized sizes and thread types mean you can quickly and safely connect components without specialized tools.

Cost Effective

JIC fittings offer an excellent balance between cost and performance. Their durability means fewer replacements over time, while their ease of assembly reduces labor costs. Taking these factors into account, JIC fittings clearly offer a high return on investment.

High-Pressure Applications

JIC fittings excel in high-pressure environments. Their rugged construction and quality materials allow them to withstand extreme pressures without failure. Whether you’re in aerospace or industrial machinery, you can count on JIC fittings to perform under pressure.

Compatibility and Interchangeability

Perhaps one of the most underrated advantages of JIC fittings is their compatibility with other systems. Standard sizes and thread types make JIC fittings interchangeable with other standardized fittings, providing flexibility.

Common Applications

The versatility of JIC fittings makes them suitable for a wide range of applications. Let’s take a look at how these fittings are used in some key industries and systems.

Industrial Machinery

In industrial machinery, where downtime is costly, JIC fittings provide the reliability and quick assembly needed to keep machines running smoothly. Whether in production lines, hydraulic presses or conveyor systems, these joints are essential.

Automotive

The automotive industry requires components that can withstand high pressures and harsh conditions. JIC fittings meet these requirements and are ideal for hydraulic braking systems, power steering systems and even fuel lines. they are durable and easy to assemble. They are durable and easy to assemble, especially for automotive applications where safety is paramount.

Aerospace

In aerospace and defense, where failure is not an option, JIC fittings are commonly used in the hydraulic systems of aircraft and military vehicles. Their high-pressure capabilities and stringent quality standards make them the preferred choice for applications where performance and reliability are paramount.

Hydraulic Equipment

JIC fittings are frequently used in general purpose hydraulic equipment such as pumps, cylinders, and valves. Their standardized dimensions and compatibility make them a practical choice for a variety of hydraulic systems.

JIC vs AN

When it comes to hydraulic fittings, people often refer to both the JIC and the AN. While there are similarities, there are also key differences. Understanding these nuances will help you make an informed choice for your specific needs.

Similarities

Both JIC and AN fittings use a 37-degree flared seating surface to provide a secure, leak-proof connection. They are typically made of the same materials, such as steel and stainless steel, and are used in high-pressure applications. As a result, both types are suitable for a range of industries, from aerospace to automotive.

Differences

The main difference is in the threads.AN fittings use a special thread called the “J thread,” which is not commonly found in other fittings. JIC fittings, on the other hand, use a standard UNF (Unified National Fine Thread) thread, making them more versatile and easier to source.

Another difference is in certifications and standards. AN fittings generally meet military specifications and tend to be more expensive due to these stringent requirements. JIC fittings, while also meeting high quality standards, are generally more cost-effective and easier to find in the commercial market.

JIC vs SAE

In the field of hydraulic fittings, JIC and SAE are two standards that come up frequently. While they have some similarities, understanding their differences is critical to selecting the right fitting for your application.

Similarities

Both JIC and SAE fittings are commonly used in high-pressure applications and are made from high-quality materials such as steel and stainless steel. They are designed to provide a secure, leak-proof connection and are used in a variety of industries, including automotive and industrial machinery.

Differences

Sealing Mechanism

One of the most significant differences is the sealing mechanism; JIC fittings seal with a 37-degree flare, while SAE fittings typically seal with an O-ring The O-ring in SAE fittings provides an additional sealing layer, which can be advantageous in some applications The O-ring in SAE fittings provides an additional sealing layer, which can be advantageous in some applications.

Thread type

JIC fittings typically use UNF (Unified National Standard Fine Thread) threads, making them more versatile and suitable for a wider range of applications. SAE fittings, on the other hand, may use a variety of thread types, including NPTF (National Pipe Thread Fuel) and other threads, which may require an adapter for compatibility.

Standards and Certifications

JIC fittings are typically manufactured to industry standards and are therefore more universally applicable. SAE fittings are typically designed to meet specific automotive standards, which may make them more specialized but may also limit their wider applicability.

Cost

While both fittings are of high quality, SAE fittings are sometimes more expensive than JIC fittings due to their specialized standards and additional sealing mechanisms.

How to Select the Right JIC Fitting

Selecting the proper JIC fitting is critical to the success of your hydraulic system. Below are some key factors to consider in the selection process.

Size Considerations

The size of the hydraulic fitting is very important. Be sure to measure the inside and outside diameters of the hose or pipe to ensure a tight fit. jic fittings come in a variety of sizes, so accurate measurements will help you easily find the right fitting.

Material Selection

As mentioned earlier, JIC fittings are available in steel, stainless steel, and brass. Your choice depends on the specific application and environment. For corrosive environments, stainless steel is recommended, while for general applications, standard steel is usually sufficient.

Quality Approvals

When selecting a JIC fitting, look for certifications or quality approvals. These include ISO certifications or other industry-specific standards to ensure that the fitting meets performance and safety criteria.

Installation and Maintenance

Proper installation and maintenance of the JIC fittings is critical for optimal performance and longevity of your hydraulic system. The following guidelines are provided to assist you in this process.

Pre-Installation Inspection

Before beginning installation, inspect the fitting for visible defects such as cracks or distortion. Also, make sure the threads are clean and free of debris. A quick inspection can prevent potential problems from occurring.

Installation Steps

Thread preparation: If necessary, apply a thin layer of thread sealant, but avoid using too much to avoid hydraulic contamination.

Hand tighten: First hand tighten the fitting to the mating part to ensure proper alignment.

Torque application: Use a torque wrench to tighten the fitting to the manufacturer’s specifications. Over-tightening can cause thread damage, while under-tightening can cause leaks.

Maintenance Tips

Periodic inspection: Inspect fittings periodically for leaks, cracks, or any signs of wear.

Replace: If any problems are found during inspection, replace the defective fitting immediately to prevent system failure.

Clean: Keep the area around the fitting clean to minimize the risk of contamination.

Take the Next Step with Topa

Ready to elevate your hydraulic systems with top-quality JIC fittings? At Topa Hydraulic, we offer a wide range of JIC fittings that meet rigorous industry standards. Our one-stop services are designed to meet all your hydraulic component needs, ensuring quality, durability, and cost-effectiveness.

Don’t settle for less when you can have the best. Contact Topa today to find out how we can make your hydraulic systems more efficient and reliable.

Conclusion

JIC fittings are more than just components; they’re the backbone of efficient and reliable hydraulic systems. From their standardized dimensions to their versatile material options, JIC fittings offer unparalleled advantages for professionals in various industries. Whether you’re involved in industrial machinery, automotive systems, or aerospace, choosing JIC fittings is a decision that pays off in performance and reliability.

FAQ

Can I reuse JIC fittings?

In general, reusing fittings is not recommended as it can compromise the integrity of your hydraulic system.

What is the life expectancy of a JIC fitting?

Life expectancy varies by application and maintenance, but with proper maintenance, quality fittings can last for years.

Are JIC and SAE interchangeable?

SAE and JIC fittings may look similar and even fit together due to their 37-degree flare, they are not always interchangeable.

Do JIC fittings need sealant?

JIC fittings are designed to provide a secure, leak-proof connection without the need for additional sealants, thanks to their 37-degree flare seating surface. However, proper installation and regular inspection are crucial for maintaining the integrity of the seal.

What thread is the same as JIC?

JIC fittings typically use UNF threads similar to AN and some SAE fittings, with 37 degree flare being a distinguishing feature of JIC fittings.

What sizes are available for JIC hydraulic fittings?

JIC fittings come in various sizes, ranging from 1/8 inch to several inches, to accommodate different hydraulic system requirements.

Topa Blog

Find out more about Topa Blog and learn more about specialized hydraulic fittings.

Apr, 2024

The Comprehensive Guide to Hydraulic Fitting Types

Our Blog

Comprehensive Guide

Your Questions？

Mar, 2024

How to Install and Tighten JIC Hydraulic Fittings

Introduction

Understanding JIC Hydraulic Fittings

The Basics of JIC Hydraulic Fittings

Types of Hydraulic JIC Fittings

Applications of Hydraulic JIC Fittings

Pre-Installation Checklist

Tools Required

Safety Measures

Preparing the Fittings and Hydraulic Lines

Step-by-Step Installation Guide

Inspection

Preparation

Flaring (If Applicable)

Fitting Installation

Tightening

Common Mistakes to Avoid

Troubleshooting Installation Issues

Leaks

Poor Fit

Pressure Drop

Additional Troubleshooting Tips

Tightening Hydraulic JIC Fittings

Understanding the Tightening Process

Tools for Tightening JIC Fittings

The Flats Method

Final Inspection and Testing

Over-tightening JIC Hydraulic Fittings

Conclusion

FAQ

Topa Blog

JIC Fitting Specifications: What You Need to Know

37 Degree Flare vs 45 Degree Flare: Key Differences

Will JIC Fittings Work with AN Fittings?

Understanding JIS vs JIC Fittings: Your Ultimate Guide

JIC Hydraulic Fitting Identification

Hydraulic Fittings Types JIC: A Comprehensive Guide

Feb, 2024

How to Measure A JIC Hydraulic Fitting

Table of Contents

Introduction

Defining JIC Hydraulic Fittings

Versatility and Applications

Essential Measuring Tools

Step-by-Step Guide to Measuring JIC Fittings

Step 1: Identifying the Fitting Type

Step 2: Measuring Thread Size and Pitch

Measuring Thread Size

Measuring Thread Pitch

Step 3: Determining the Seat Angle

Step 4: Checking for Additional Features

Step 5: Common Measurement Mistakes in JIC Fitting Assessment

Using Worn-Out Tools

Incorrect Tool Selection

Overlooking Critical Dimensions

Not Double-Checking Measurements

Neglecting Calibration

Step 6: Regular Maintenance Practices for JIC Fittings

Inspecting for Wear and Tear

Ensuring Correct Tightening

Replacing Damaged Components

Troubleshooting Common Issues

Leaks at Connection Points

System Pressure Drops

Fitting Corrosion

JIC 37°vs SAE 45° Hydraulic Fittings

Key Differences

How to Identify JIC vs. SAE 45-Degree Fittings

Conclusion

FAQ

Topa Blog

Why Does Your Hydraulic Hose Assembly Need Early Replacement?

Why Hose Assembly Quality Matters for Safe System Operation?

How to Ensure Hydraulic Fittings Match International Standards?
