The cause of an O-ring failure is rarely obvious. You must learn to read the signs on the failed seal itself. This guide provides a systematic approach to diagnosing failure mechanisms, from mechanical damage to chemical attack, turning you into a seal failure expert.
Why is an O-Ring So Critical to System Integrity?
It’s easy to overlook the O-ring. It’s small, simple, and inexpensive. But this simplicity hides a sophisticated design that is fundamental to virtually all modern hydraulic fittings. Its failure is a direct failure of the entire system.
The O-ring is the heart of the seal. Its job is to block leak paths by deforming to fill the microscopic imperfections between metal surfaces. When it works, it is invisible. When it fails, the consequences are immediate and severe.
The genius of the O-ring lies in its ability to be both a static and a dynamic seal. It uses the very pressure it is designed to contain to energize and improve its sealing force. However, this elegant design is dependent on three things: correct material selection, precise gland geometry, and proper installation. A mistake in any of these areas will compromise the seal’s integrity and lead directly to the failure modes we will discuss.
The Simple Genius of O-Ring Sealing
An O-ring seals in two stages. First, when installed in its groove (the gland), it is slightly squeezed. This initial compression provides a low-pressure seal. Second, when system pressure is applied, the fluid pushes the O-ring against the opposite side of the gland. This pressure energizes the seal, forcing it into the clearance gaps and creating a highly effective, self-sealing barrier against high pressures.
From a Rubber Ring to a Precision Component
The term “rubber” is too simple. O-rings are made from a wide range of sophisticated elastomer compounds, each formulated for specific conditions. A standard NBR (Nitrile) O-ring made for mineral oil will quickly disintegrate in a synthetic fluid like Skydrol. The material’s properties—its hardness (durometer), temperature range, and chemical resistance—are all critical design parameters.
The High Cost of a Tiny Failure
A single O-ring might cost pennies, but its failure can cost thousands. The direct costs include lost hydraulic fluid and replacement parts. The indirect costs are far greater:
- Unscheduled Downtime: Lost production time is often the biggest expense.
- Safety Hazards: High-pressure fluid sprays can cause serious injection injuries and slip hazards.
- Environmental Contamination: Oil leaks require costly cleanup and can result in fines.
- Damage to Other Components: Loss of hydraulic pressure can cause other system parts to fail.
How Does Mechanical Damage Destroy O-Rings?
The O-ring looks chewed up and has small pieces missing. This physical damage is a clear sign that it has been subjected to mechanical forces it was not designed to withstand. This is one of the most common categories of failure.
Mechanical failure occurs when the O-ring is physically damaged during installation or by the operating conditions of the system. This includes being cut by sharp edges, squeezed into gaps under high pressure, or permanently flattened over time.
These failures are often preventable with careful attention to hardware design and installation procedures. The gland’s surface finish, the size of the clearance gaps, and the technique used to install the O-ring all play a direct role. Examining a mechanically failed O-ring is like being a detective; the evidence points directly to a specific flaw in the system’s design or assembly process.
The Classic Failure: Installation Damage
This occurs when the O-ring is pushed over sharp threads, burrs, or corners during assembly. The result is a small nick, cut, or peel on the surface of the O-ring. While it may seal initially, this damage creates a weak point that will quickly fail under pressure.
- Prevention: Ensure all gland edges have a proper radius. Cover sharp threads with tape or a specialized installation tool. Use proper lubrication.
The High-Pressure Killer: Extrusion
Under high pressure, the O-ring is pushed into the small clearance gap between the metal components. This causes the edge of the O-ring on the low-pressure side to be “nibbled” or “chewed” away. This is a tell-tale sign that either the pressure is too high, the clearance gap is too large, or the O-ring material is too soft.
- Prevention: Decrease the clearance gap, increase the O-ring durometer (hardness), or add a hard plastic back-up ring to support the O-ring.
The Silent Destroyer: Compression Set
After a long period of being compressed at high temperatures, the O-ring fails to return to its original shape when the pressure is removed. It becomes flattened and loses its elasticity. This permanently “set” O-ring no longer has the ability to effectively fill the gland, leading to leaks, especially in low-pressure or cycling conditions.
- Prevention: Select an O-ring material with a better compression set rating, especially one designed for high temperatures (like FKM or a high-grade NBR). Ensure the gland design provides the correct amount of squeeze.
| Failure Type | What Happens | Prevention Tips |
| Installation Damage | O-ring nicked or cut by sharp threads, burrs, or corners during assembly. | Radius gland edges, cover sharp threads, use proper lubrication/tools. |
| Extrusion | O-ring “chewed” into clearance gap under high pressure, causing edge damage. | Reduce clearance gap, use harder O-ring (higher durometer), add back-up ring. |
| Compression Set | O-ring stays flattened after long compression at high temperature. | Use materials with better set resistance (e.g., FKM, high-grade NBR), design correct squeeze. |
What Role Does Hydraulic Fluid Play in Failure?
The O-ring is swollen to twice its original size, or it has become hard and brittle like rock. This indicates a chemical attack. The chosen elastomer material is not compatible with the hydraulic fluid or the operating temperature.
Chemical and thermal failures occur when the O-ring’s polymer structure is broken down by an incompatible fluid or by excessive heat. This permanently changes the physical properties of the seal, rendering it useless.
This type of failure highlights the absolute necessity of fluid compatibility charts. Many engineers assume “oil is oil,” but synthetic fluids, vegetable oils, and biodegradable fluids have vastly different chemical makeups than standard mineral oils. Matching the O-ring material to the specific fluid used in the system is not just a recommendation; it is a fundamental requirement for a reliable seal.
The Wrong Match: Chemical Incompatibility
When an O-ring is exposed to an incompatible fluid, it can either swell or shrink.
- Swelling: The O-ring absorbs the fluid, causing it to soften, increase in size, and lose physical strength. A swollen O-ring can fill the gland completely, making disassembly difficult.
- Shrinking: The fluid leaches plasticizers from the O-ring compound, causing it to harden, shrink, and lose its ability to seal.
- Prevention: Always consult a fluid compatibility chart. Validate the O-ring material (e.g., NBR, FKM, EPDM) against the specific hydraulic fluid being used.
Under Pressure: Explosive Decompression
This occurs in high-pressure gas or gas-charged liquid systems. The gas permeates the elastomer. If the system pressure is released rapidly, the trapped gas inside the O-ring expands violently, causing internal ruptures, blisters, and cracks on the O-ring’s surface.
- Prevention: Use an explosive decompression (ED) resistant material, such as a specially formulated FKM or HNBR. Reduce the rate of pressure release in the system.
Too Hot to Handle: Thermal Degradation
Every elastomer has a maximum operating temperature. Exceeding this limit causes the polymer chains to break down. The O-ring becomes hard, brittle, and often develops a charred or “burnt” appearance. It loses all its elasticity and will crack if flexed.
- Prevention: Select a material with a temperature rating that safely exceeds the system’s maximum operating temperature. FKM (Viton®) is a common choice for high-temperature applications.
| Failure Type | What Happens | Prevention Tips |
| Chemical Incompatibility | O-ring swells or shrinks when exposed to incompatible fluids, losing sealing ability. | Check fluid compatibility chart; match material (NBR, FKM, EPDM) with fluid. |
| Explosive Decompression | Rapid pressure release causes gas in the O-ring to expand, leading to ruptures and blisters. | Use ED-resistant materials (special FKM, HNBR); release pressure slowly. |
| Thermal Degradation | High temperatures harden and crack the O-ring, often with a burnt appearance. | Choose materials rated for higher temperatures (e.g., FKM/Viton®). |
How Do You Visually Diagnose O-Ring Failure?
You have the failed O-ring in your hand. Knowing how to interpret its appearance is the key to identifying the root cause of the failure and implementing a permanent solution. An incorrect diagnosis will only lead to a repeat failure.
A visual inspection is the most powerful diagnostic tool for a sealing engineer. By systematically examining the failed O-ring, you can accurately determine the failure mode, which in turn points directly to the system condition that caused it.
O-Ring Failure Diagnostic Chart
| Visual Symptom | Probable Failure Mode | Common Causes | Prevention Strategy |
| Nibbled, chipped edge on low-pressure side. | Extrusion | Excessive clearance Gaps; Pressure too high; O-ring too soft; Irregular clearances. | Use a harder durometer O-ring. Install a back-up ring. Reduce hardware clearances. |
| Flat surfaces on top and bottom; square cross-section. | Compression Set | Material has poor compression set properties; Excessive temperature; Gland too wide. | Use a material with better compression set resistance (e.g., FKM). Verify gland design. |
| A single, clean cut or notch. | Installation Damage | O-ring stretched over sharp edges, threads, or burrs in the gland during assembly. | Remove all burrs and sharp edges. Use installation tools or tape over threads. Lubricate properly. |
| Swollen, larger in all dimensions; may feel soft. | Chemical Swell | Incompatibility between the O-ring elastomer and the system fluid or cleaning chemicals. | Verify fluid compatibility. Select a material (e.g., FKM, EPDM) suitable for the fluid. |
| Blisters, pits, or internal cracks. | Explosive Decompression | Rapid decrease in system pressure; High gas absorption into the elastomer. | Use an ED-resistant material. Slow down the rate of system depressurization. |
| Hard, brittle, may be cracked or charred. | Thermal Degradation | System temperature exceeds the maximum rating of the O-ring material. | Select a material with a higher temperature rating (e.g., FKM). Consider system cooling. |
| Worn, flattened patches on one side of the ring. | Abrasion | Occurs in dynamic applications; Poor surface finish of hardware; Lack of lubrication. | Use an internally-lubricated material. Ensure gland surfaces have a smooth finish (8-16 µin Ra). |
How Do You Select the Correct O-Ring Material?
You need a replacement O-ring. A black rubber ring is a black rubber ring, right? This is a dangerous assumption. Choosing the wrong material is a guarantee of premature failure.
The material is the most important factor in O-ring selection. You must match the elastomer’s properties to the system’s fluid type, temperature range, and pressure. Each common material offers a unique profile of strengths and weaknesses.
Material Comparison for Hydraulic Sealing
| Material | Common Name | Typical Temp. Range | Best For | Avoid |
| NBR | Nitrile, Buna-N | -40°C to 120°C | Petroleum-based oils, water, most general-purpose applications. (Best Value) | Brake fluids, Skydrol, high ozone, long-term high heat. |
| FKM | Viton® (Chemours) | -20°C to 205°C | High temperatures, chemicals, petroleum oils, many synthetic fluids, ozone. | Ketones, brake fluids, ammonia. |
| EPDM | Ethylene Propylene | -50°C to 150°C | Skydrol, brake fluids (DOT 3/4), water, steam, polar solvents. (Do not use with oil!) | Petroleum oils and fuels. |
| HNBR | Hydrogenated Nitrile | -40°C to 160°C | Petroleum oils at higher temperatures than NBR, improved abrasion resistance. | Brake fluids, polar solvents. |
NBR (Nitrile): The Workhorse of Hydraulics
Nitrile is the most widely used elastomer for O-rings. It offers an excellent balance of good mechanical properties, resistance to petroleum-based fluids, and a very attractive cost. It is the default choice for general-purpose hydraulic fittings where temperatures are moderate and the fluid is a standard mineral oil.
FKM (Viton®): The High-Performance Choice
FKM is the material of choice for demanding applications. Its primary advantages are its outstanding resistance to high temperatures and its broad chemical compatibility. It can handle petroleum oils, many synthetic fluids, and solvents that would destroy NBR. It is more expensive but essential for systems running hot or using aggressive chemicals.
EPDM: The Specialist for Specific Fluids
EPDM’s claim to fame is its excellent resistance to fluids that are incompatible with oil-based elastomers. It is the go-to material for automotive brake systems (using glycol-based fluids) and aerospace hydraulic systems (using phosphate-ester fluids like Skydrol). It is critical to remember that EPDM will swell and fail rapidly if exposed to petroleum oils.

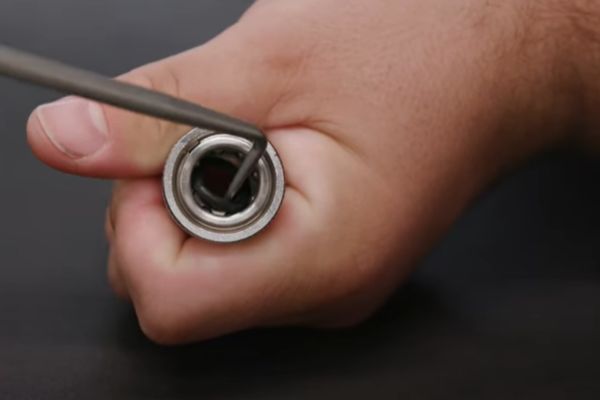

What Are Best Practices for Installation and Maintenance?
You have selected the perfect O-ring, but it fails shortly after installation. Even the highest quality seal will fail if it is not installed and maintained correctly. A few simple best practices can dramatically an O-ring’s service life.
Proper gland preparation, correct lubrication, and careful handling are just as important as material selection. These fundamental maintenance and assembly steps ensure the seal can perform as designed from the moment it is installed.
A preventative maintenance mindset is crucial for sealing technology. The goal is to create a perfect environment for the O-ring to do its job. This means ensuring the hardware is clean and smooth, and that the O-ring itself is not damaged before it even sees its first pressure cycle. These best practices are simple, quick, and the best insurance against premature seal failure.
The Importance of a Clean Gland
The O-ring gland must be perfectly clean. Any dirt, debris, or metal shavings left in the groove from machining will act like an abrasive, damaging the O-ring and creating a potential leak path. The gland should be wiped clean with a lint-free cloth just before installation.
Lubrication: Your Best Friend During Installation
Proper lubrication is essential. It helps protect the O-ring from damage as it slides over threads and into the gland. It also aids in seating the O-ring correctly and can make assembly much easier.
- What to use: Use a lubricant that is compatible with both the O-ring material and the system fluid. Often, the system fluid itself is the best choice. Silicone grease is also a common option.
- What NOT to use: Never use a lubricant that is incompatible with the seal. For example, do not use a petroleum-based grease on an EPDM O-ring.
Conclusion
O-ring failure is not random; it is a predictable event caused by specific mechanical, chemical, or thermal stresses. By learning to diagnose the failure mode, you can solve the root problem, not just treat the symptom, leading to more reliable systems.
Choose Topa for reliable hydraulic solutions. Our hydraulic fittings, hoses, and seals are manufactured to international standards, tested for safety, and built for long service life. Place your order today and keep your equipment running with confidence.
FAQ
What causes most O-ring failures?
Most failures are due to mechanical damage, chemical incompatibility, or excessive heat rather than defects in the O-ring itself.
How can I tell if an O-ring failed from extrusion?
If the O-ring edge looks “nibbled” or chewed away, it was likely forced into clearance gaps under high pressure.
Why did my O-ring become flat and lose elasticity?
This is called compression set, usually caused by long-term compression at high temperature.
Can hydraulic fluid damage O-rings?
Yes. Incompatible fluids can cause swelling, shrinking, or hardening of the O-ring material. Always check compatibility.
What material is best for high-temperature applications?
FKM (Viton®) is often the best choice, as it resists both high heat and many chemicals.
How can I extend O-ring service life?
Use the correct material, ensure clean and smooth glands, apply proper lubrication, and install carefully without twisting or cutting.
