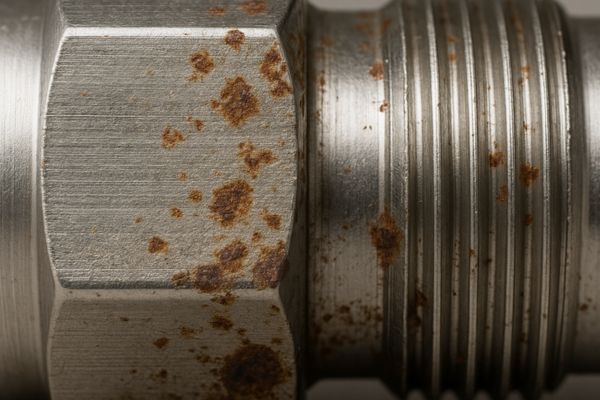

Is your “rust-proof” stainless steel hydraulic fitting showing signs of corrosion, leading to baffling leaks and costly equipment downtime? The unexpected appearance of rust on these components can challenge conventional understanding.
Stainless steel hydraulic fittings, despite their inherent corrosion resistance due to a protective chromium oxide passivation layer, can still rust under specific conditions. This occurs when environmental factors like chloride ions, mechanical damage, galvanic contact, high temperatures, chemical exposure, or inherent material defects compromise this delicate layer, allowing the underlying metal to oxidize and form rust.
The “Rust-Proof” Secret: Chromium and the Passivation Layer on Stainless Steel Fittings
What gives stainless steel its remarkable ability to resist rust, making it a preferred material for crucial hydraulic fittings? The secret lies in an invisible, yet incredibly powerful, protective layer.
The inherent corrosion resistance of stainless steel hydraulic fittings comes from a thin, self-regenerating chromium oxide (Cr₂O₃) layer, known as the passivation film. This nanometer-thin barrier physically isolates the metallic body from corrosive agents, chemically stabilizes the surface, and possesses a unique self-healing capability, acting as an invisible shield against degradation.
The remarkable “rust-proof” quality of stainless steel hydraulic fittings is not due to the absence of iron, but rather the presence of something far more sophisticated: chromium. Specifically, it is the chromium content, typically 10.5% or more, that enables the formation of a spontaneously developed, extremely thin, and durable film on the steel’s surface. This film, known as the passivation layer or passive film, is primarily composed of chromium oxide (Cr₂O₃). This layer is typically only 2 to 5 nanometers thick, making it invisible to the naked eye, yet it provides an unparalleled level of protection against corrosive attacks.
Triple-threat Defense Mechanism
This invisible passivation layer acts as a triple-threat defense mechanism for stainless steel hydraulic fittings:
- Physical Isolation: The primary function of the passivation layer is to act as a physical barrier. It precisely separates the underlying active metal from the surrounding environment. This means that oxygen, water molecules, and other potential corrosive substances cannot directly access the iron atoms within the stainless steel.
- Chemical Stability: Chromium oxide (Cr₂O₃), the main component of the passive film, exhibits exceptional chemical stability. This means it is highly inert and does not readily react with most chemicals at ambient temperatures. This chemical inertness ensures that the film itself is not easily dissolved or degraded by common acids, bases, or other aggressive substances that might be present in a hydraulic fluid or the surrounding operational environment.
- Self-Healing Capability: One of the most fascinating and critical properties of the passivation layer is its ability to self-repair. If the film is scratched, abraded, or chemically damaged, the chromium in the stainless steel underneath the damaged area quickly reacts with oxygen (from air or water) to spontaneously re-form the chromium oxide layer. This rapid self-healing mechanism ensures continuous protection.
Destroying the Passivation Layer: Six “Culprits” for Stainless Steel Fittings
Why do those supposedly rust-proof stainless steel hydraulic fittings still succumb to corrosion? The invisible passivation layer, critical for their resistance, is not indestructible.
The primary reasons stainless steel hydraulic fittings can rust include aggressive chloride ions, physical damage like scratches, galvanic corrosion from dissimilar metals, high-temperature sensitization, exposure to strong corrosive chemicals, and inherent manufacturing defects.
Chlorine Ions (Cl⁻): The “Ultimate Killer” of Passive Film on Fittings
Chlorine ions are widely recognized as the most potent threats to the integrity of stainless steel’s passivation layer, particularly for hydraulic fittings. Their aggressive nature can initiate specific and highly damaging forms of corrosion.
Chlorine ions, due to their small size and high electronegativity, possess a unique ability to penetrate the otherwise robust chromium oxide passivation layer. This attack typically begins with the chloride ions adsorbing onto the surface of the passivation film. Following adsorption, they migrate through microscopic defects or weakest points in the film, ultimately reaching the metal-oxide interface. Once at this interface, chloride ions compete with oxygen for available sites on the chromium atoms. They react with the chromium to form soluble chromium chlorides.
This localized reaction dissolves the protective passive film in specific, tiny areas, creating microscopic pits. Inside these pits, the environment rapidly becomes acidic and oxygen-depleted, accelerating the corrosion process within the confines of the pit. This leads to what is known as pitting corrosion, characterized by small, deep holes in the fitting’s surface.
Mechanical Damage: “Corrosion Traps” in Fitting Surfaces
damaged, the bare metal underneath is exposed. Once exposed, the metal becomes vulnerable to corrosion because it no longer has the chromium oxide film that normally protects it.
Scratches or crevices create areas where oxygen cannot easily reach. This difference in oxygen levels sets up a tiny electrochemical cell. The damaged spot becomes the “anode” where corrosion starts, while the surrounding protected surface becomes the “cathode.” This process quickly accelerates rust formation in the scratched area.
Mechanical damage can happen during installation, from improper wrenching, impacts, abrasion with other parts, or even rough cleaning using wire brushes. Even a small scratch can act as a corrosion trap, leading to pitting, leaks, or early failure of the hydraulic fitting.
Electrochemical Corrosion: “Fatal Contact” for Stainless Steel Fittings
Galvanic corrosion happens when two different metals touch each other while also being exposed to an electrolyte like water, moisture, or even humid air. In hydraulic systems, this can occur when a stainless steel fitting is connected directly to a part made of carbon steel, brass, or aluminum.
Stainless steel is usually the more “noble” metal, so it tends to stay protected. The less noble metal, such as carbon steel or aluminum, corrodes faster. The corrosion products, like rust from carbon steel, can then spread onto the stainless steel surface. These iron deposits can trap moisture and oxygen, creating crevices where stainless steel itself may begin to corrode.
Even though stainless steel is resistant, contamination from other metals can damage its protective layer and cause localized corrosion. To avoid this, different metals should be electrically isolated using non-conductive washers, gaskets, or by applying cathodic protection in wet environments.
High Temperature Environments: “Hidden Threat” of Sensitization in Fittings
When stainless steel fittings are exposed to high temperatures between 450–850°C (840–1560°F), their microstructure can change. This is especially true for grades like 304 and 316. At these temperatures, chromium combines with carbon to form chromium carbides along the grain boundaries of the steel.
As chromium forms carbides, the areas around the grain boundaries lose chromium. Once the chromium level drops below the 10.5% needed for passivation, those spots become vulnerable. This makes the grain boundaries prone to corrosion. When exposed to moisture or hydraulic fluid, the corrosion spreads along these weakened paths, leading to intergranular corrosion.
Even if the fitting looks fine from the outside, intergranular corrosion can severely weaken it, causing cracks and sudden leaks. This is a hidden risk in high-heat environments like welding zones or engine compartments. To reduce the danger, low-carbon grades such as 304L or 316L are often used, as their lower carbon content minimizes sensitization.
Chemical Corrosion: “Direct Attack” on Fitting Surfaces
Stainless steel fittings resist many chemicals, but strong acids and bases can directly attack their protective passivation layer. Unlike mechanical damage or galvanic effects, this type of corrosion dissolves the chromium oxide film and exposes the active steel beneath.
Concentrated sulfuric acid at temperatures above 65°C can cause uniform corrosion in 304 stainless steel. Hydrofluoric acid (HF) is even more dangerous, as its fluoride ions break down the protective layer. Strong alkaline solutions, like concentrated sodium hydroxide (>10%), can also trigger stress corrosion cracking when fittings are under tension.
These chemicals may come from specialized hydraulic fluids, harsh cleaning agents, or industrial spills. If stainless steel grades like 304 or 316 are exposed without proper material selection, the passivation layer will dissolve.
Material Defects: “Inherent Flaws” in Stainless Steel Fittings
Stainless steel needs at least 10.5% chromium to form a stable protective passivation layer. If the alloy has insufficient chromium, or if chromium is unevenly distributed during production, some areas won’t form a proper protective film. These weak spots can corrode even in mild environments, leading to unexpected rust on fittings.
Impurities like sulfur and phosphorus reduce corrosion resistance. Sulfur, for example, forms manganese sulfide (MnS) inclusions inside the steel. These inclusions dissolve easily in moisture, releasing aggressive ions that damage the nearby protective layer. This makes the fitting prone to localized pitting corrosion, which can create small holes and leaks.
| Factor | Mechanism | Risk/Result |
| Chlorine Ions (Cl⁻) | Penetrate passivation layer, form soluble chromium chlorides → pits form | Pitting corrosion, deep holes |
| Mechanical Damage | Scratches/crevices break passive film, create local electrochemical cells | Local rust traps, leaks, early failure |
| Galvanic Corrosion | Contact with less noble metals in moisture forms galvanic cell | Rust transfer, localized corrosion |
| High Temperature | 450–850°C causes chromium carbide precipitation → chromium depletion | Intergranular corrosion, cracking |
| Chemical Attack | Strong acids/bases dissolve chromium oxide film | Uniform corrosion, stress cracking |
| Material Defects | Low chromium, impurities (S, P) or inclusions weaken corrosion resistance | Pitting, early rust, leaks |
Full-Chain Protection for Stainless Steel Hydraulic Fittings
How can you proactively protect your stainless steel hydraulic fittings from the various threats of corrosion and ensure a truly leak-free, long-lasting hydraulic system? A multi-faceted approach, from initial selection to ongoing maintenance, is key.
Ensuring corrosion resistance in stainless steel hydraulic fittings requires a full-chain strategy encompassing scientific material selection based on the operating environment, appropriate surface treatments to enhance the passivation layer, and diligent maintenance practices to preserve the material’s integrity and prevent film breakdown.
Scientific Material Selection: Matching Fittings to Environment
| Stainless Steel Grade | Composition Highlights | Suitable Environments | Limitations / Notes |
| 304 (06Cr19Ni10) | ~18% Cr, 8% Ni | Indoor, dry air, general industrial use | Susceptible to pitting/crevice corrosion in chloride-rich or marine environments |
| 316L (022Cr17Ni12Mo2) | ~17% Cr, 12% Ni, 2–3% Mo, low C | Marine, coastal, chloride-containing fluids | Higher cost than 304, but much better chloride resistance |
| Duplex 2205 | ~22% Cr, 3% Mo, duplex microstructure | Aggressive chemical environments, moderate chlorides, higher temperatures | Balance of strength and corrosion resistance, more expensive than 316L |
Surface Treatments for Stainless Steel Hydraulic Fittings
| Treatment | How It Works | Benefits |
| Passivation | Immersing fittings in nitric or citric acid to remove contaminants and enrich the chromium oxide film | Thickens the passive layer (up to 2–5×), eliminates free iron, boosts corrosion resistance |
| Electropolishing | Electrochemical removal of a thin surface layer, creating a mirror-like smooth finish (Ra < 0.1μm) | Reduces crevice sites, minimizes corrosion risk, prevents microbial growth |
| Protective Coatings | Applying PTFE, epoxy, or ceramic coatings to encapsulate fittings | Acts as a physical barrier in highly aggressive environments, extends service life |
Usage and Maintenance: Detail Decides Success for Fittings Longevity
The long-term reliability of stainless steel hydraulic fittings depends heavily on regular cleaning. Dirt, dust, fluid residues, and metal particles can build up on the surface, creating crevices where corrosion can start. Always use neutral cleaners and soft cloths or brushes. Avoid abrasive tools like steel wool or wire brushes, which can damage the protective passivation layer.
Moisture and salt deposits are major threats to fittings. In humid environments, keeping relative humidity below 60% or ensuring good ventilation helps reduce corrosion risk. In areas exposed to road salt or coastal spray, rinsing fittings with fresh water prevents chloride buildup that can trigger pitting or crevice corrosion.
Leaks must be fixed promptly, as escaping fluids can act as electrolytes and accelerate corrosion. Periodic inspections should check for early signs of rust, discoloration, or pitting. In critical systems, advanced tools like electrochemical impedance spectroscopy (EIS) can monitor the health of the passivation layer, allowing for proactive maintenance before failures occur.
Conclusion
The “rust-proof” perception of stainless steel hydraulic fittings is a testament to their inherent properties, but their actual performance hinges on understanding how the protective passivation layer can be compromised. Factors like chloride ions, mechanical damage, galvanic contact, high temperatures, chemical exposure, and material flaws can all lead to corrosion and, critically, to leaks. By applying scientific material selection, robust surface treatments, and diligent maintenance, the longevity and integrity of these vital components can be significantly enhanced.
At Topa, we specialize in high-quality hydraulic fittings, hydraulic hoses, brass fittings, and quick couplings engineered for superior performance. Our commitment to preventing failures and leaks means we prioritize corrosion resistance across our product range.
Ready to secure your hydraulic systems against corrosion and ensure a leak-free operation? Contact the Topa team today to explore our comprehensive range of high-performance stainless steel hydraulic fittings and discuss your specific needs. Let us help you select the ideal solution for total peace of mind.
FAQ
Why do stainless steel hydraulic fittings rust if they are “rust-proof”?
Because their protective chromium oxide passivation layer can be damaged or broken down by environmental or material factors.
What is the passivation layer and how does it protect fittings?
It is a thin chromium oxide film that acts as a physical, chemical, and self-healing shield against corrosion.
What are the main causes of rust on stainless steel fittings?
Chloride ions, mechanical damage, galvanic corrosion, high-temperature sensitization, aggressive chemicals, and material defects.
How can I protect stainless steel fittings from corrosion?
Choose the right stainless steel grade for the environment, apply surface treatments like passivation or electropolishing, and perform regular maintenance.
What maintenance practices help extend fitting lifespan?
Clean fittings with neutral agents, avoid abrasive tools, control humidity, rinse off salt deposits, and inspect regularly for early signs of corrosion.
Which stainless steel grades are best for harsh environments?
316L is recommended for chloride-rich or marine conditions, while duplex or super duplex alloys are ideal for extreme chemical or high-temperature environments.
