Hydraulic Fitting Impact Pressure Protection Strategies

Hydraulic systems are the backbone of countless industrial and mobile applications, converting fluid power into mechanical force. However, the very nature of these high-pressure environments exposes critical components, particularly hydraulic fittings, to destructive forces like pressure shock. This article delves into the causes and hazards of pressure impact, offering comprehensive strategies to mitigate damage and enhance overall system safety and longevity.

Understanding Hydraulic Systems and the Critical Role of Fittings

Basics of Hydraulic Power Transmission

Hydraulic systems operate on the fundamental principle of Pascal’s Law, which states that pressure applied to an enclosed fluid is transmitted undiminished to every portion of the fluid and the walls of the containing vessel. This allows for the efficient transmission of power from a prime mover (like an electric motor or internal combustion engine) to an actuator (such as a cylinder or motor) through an incompressible fluid, typically hydraulic oil. The system comprises several key components: a reservoir to hold the fluid, a pump to create flow and pressure, valves to control fluid direction and pressure, actuators to perform work, and, crucially, a network of hoses, pipes, and fittings to connect these components and contain the high-pressure fluid. The ability to generate immense force and precise control makes hydraulics indispensable in heavy machinery, manufacturing, aerospace, and countless other sectors. The fluid, under high pressure, acts as the medium for power transfer, making the integrity of the containment system paramount for both performance and safety.

The Importance of Hydraulic Fittings: Connectors of Power

Hydraulic fittings are often underestimated in their critical role within a hydraulic system. Far from being mere connectors, they are engineered components designed to withstand extreme pressures, temperatures, and vibrations while ensuring a leak-free and secure connection between hoses, tubes, and various hydraulic components. Their primary function is to facilitate the seamless transfer of hydraulic fluid, allowing the system to perform its intended tasks with precision and power. A failure in a single fitting can compromise the entire system, leading to fluid leaks, pressure drops, reduced efficiency, and potentially catastrophic equipment damage or safety incidents. Therefore, the selection, installation, and maintenance of hydraulic fittings are as vital as any other major component in ensuring the reliability and safety of a hydraulic power system.

The Silent Menace: Pressure Surges and Hydraulic Shock (Water Hammer)

Defining Pressure Surges and Hydraulic Shock

In hydraulic systems, a pressure surge, often referred to as hydraulic shock or water hammer, is a sudden and rapid increase in pressure that propagates through the fluid. This phenomenon occurs when the flow of a fluid in a high-pressure system is abruptly stopped or forced to change direction. Imagine a fast-moving train suddenly hitting a wall; the kinetic energy of the train is instantaneously converted into a destructive force. Similarly, in a hydraulic system, the kinetic energy of the moving fluid is converted into a pressure wave that can be many times higher than the system’s normal operating pressure. This pressure wave travels back and forth within the piping until its energy is dissipated, subjecting all components, especially fittings and hoses, to immense stress. While the term “water hammer” is commonly associated with water piping systems, the same principle applies to hydraulic oil in industrial and mobile equipment, making it a critical concern for system integrity and safety.

Common Causes of Pressure Surges in Hydraulic Systems

Pressure surges in hydraulic systems are typically triggered by rapid changes in fluid velocity. These changes can be intentional, such as the operation of a valve, or unintentional, like a sudden pump failure. Understanding these common causes is the first step in developing effective mitigation strategies. The primary culprits include:

Cause	Description	Impact on System	Example Scenario
Sudden Valve Closure/Opening	Abruptly stopping or starting fluid flow by rapidly closing or opening a valve.	Generates a high-pressure wave upstream of the valve and a low-pressure wave downstream.	A quick-acting solenoid valve closing rapidly to stop an actuator.
Pump Start-up/Shutdown	The sudden acceleration or deceleration of fluid when a pump is rapidly turned on or off.	Can create significant pressure spikes, especially during start-up in systems with long pipelines.	A large hydraulic pump starting up without a soft-start mechanism.
Actuator Stopping Abruptly	When a hydraulic cylinder or motor reaches the end of its stroke or is suddenly stopped by an external force.	The kinetic energy of the moving load is rapidly converted into pressure, causing a shock wave.	A hydraulic cylinder extending rapidly and then hitting a hard stop.
Trapped Air/Gas	Air or other compressible gases trapped within the hydraulic fluid or system components.	When compressed and decompressed rapidly, trapped air can cause pressure oscillations and shock.	Incomplete bleeding of air during system commissioning or maintenance.
Temperature Fluctuations	Significant and rapid changes in fluid temperature.	Can cause fluid expansion or contraction, leading to pressure changes, especially in closed systems.	A hydraulic system operating in an environment with extreme temperature swings.
Load Rejection	Sudden removal of a heavy load from a hydraulic actuator.	The stored energy in the fluid is suddenly released, causing a pressure spike.	A hydraulic crane suddenly dropping its load.

The Destructive Power: Analyzing the Hazards of Pressure Shock

The consequences of unchecked pressure shock in hydraulic systems range from minor annoyances to catastrophic failures, impacting operational efficiency, maintenance costs, and, most critically, safety. The destructive power of these transient pressure spikes can manifest in several ways:

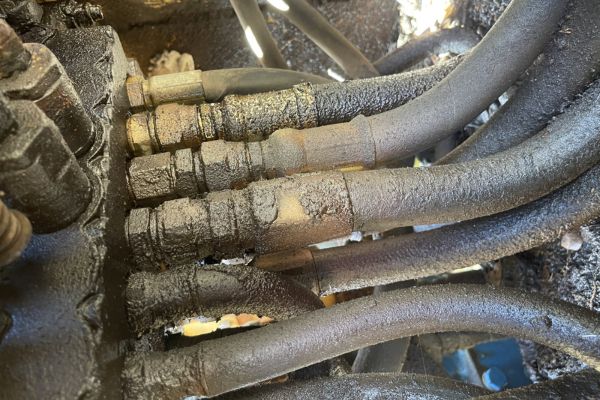

• Fitting Damage and Failure: Hydraulic fittings are particularly vulnerable to pressure shock. The sudden, intense pressure waves can exceed the fitting’s design limits, leading to fatigue, cracking, deformation, or complete rupture. This is often observed at connection points where stress concentrations are highest, resulting in leaks or complete disconnections.
• Hose Rupture: Similar to fittings, hydraulic hoses are subjected to extreme stress during pressure shock events. The rapid pressure fluctuations can cause the hose material to degrade, leading to blistering, delamination of layers, or outright bursting. A ruptured hose can spray high-pressure hydraulic fluid, posing a severe injury risk.
• Component Wear and Tear: Beyond fittings and hoses, other critical hydraulic components, including pumps, motors, and cylinders, suffer accelerated wear and tear. Bearings, seals, and internal mechanisms are subjected to repeated impact loads, reducing their lifespan and increasing the frequency of costly repairs or replacements.
• System Downtime and Production Losses: Failures caused by pressure shock inevitably lead to unscheduled downtime. This translates directly into lost productivity, missed deadlines, and significant financial losses for businesses reliant on continuous operation. The time and resources spent on troubleshooting, repairing, and replacing damaged components further add to the operational burden.
• Safety Incidents and Personnel Injury: Perhaps the most severe consequence of pressure shock is the risk to personnel. A sudden hose rupture or fitting failure can release hydraulic fluid at extremely high pressures and temperatures, capable of causing severe injection injuries, burns, or even fatalities. The uncontrolled movement of machinery due to component failure also poses a significant crush or impact hazard. Protecting against pressure shock is therefore not just an economic imperative but a moral and legal obligation to ensure worker safety.

Identifying the Enemy: Assessing Pressure Shock Risk in Your System

Proactive identification and assessment of pressure shock risk are paramount to preventing costly damage and ensuring system longevity. Recognizing the subtle and overt signs of pressure surge activity is crucial for system designers and maintenance personnel. Ignoring these indicators can lead to a reactive maintenance approach, where repairs are only performed after a failure has occurred, often with significant consequences.

Key Indicators of Potential Pressure Shock Problems

Observing the following signs can help in early detection of pressure shock issues:

• Unusual Noise: A distinct knocking, banging, or hammering sound, often referred to as “water hammer noise,” emanating from pipes, hoses, or components is a primary indicator. This noise is the audible manifestation of the pressure wave impacting the system.
• Excessive Vibration: Visible or palpable vibrations in hydraulic lines, especially during valve actuation or pump start-up/shutdown, suggest the presence of pressure surges. These vibrations can loosen connections and accelerate component fatigue.
• Frequent Leaks: Repeated leaks at fitting connections, even after re-tightening or component replacement, can be a symptom of underlying pressure shock. The transient pressure spikes can repeatedly stress seals and connection points beyond their elastic limits.
• Premature Component Failure: If hydraulic components such as pumps, valves, cylinders, or even the fittings themselves are failing much earlier than their expected lifespan, pressure shock could be a contributing factor. This includes issues like cracked manifolds, damaged valve spools, or worn cylinder seals.
• Erratic Actuator Movement: Inconsistent or jerky movement of hydraulic cylinders or motors, particularly at the beginning or end of their stroke, can indicate pressure fluctuations caused by shock.
• Gauge Needle Fluctuations: Rapid and wide oscillations of pressure gauge needles, especially during dynamic operations, are a clear visual cue of pressure instability and potential shock.

Calculating Potential Surge Magnitudes: A Simplified Approach

While a precise calculation of pressure surge magnitudes can be complex and often requires specialized software, understanding the fundamental principles and key influencing factors can provide a valuable conceptual framework. The most widely recognized formula for estimating the maximum pressure rise due to sudden flow stoppage is the Joukowsky equation. Though simplified, it highlights the critical parameters:

ΔP = ρ * a * ΔV

Where:

ΔP is the change in pressure (the pressure surge).

ρ (rho) is the density of the fluid. Denser fluids will generate higher pressure surges for the same change in velocity.

a is the wave speed (or celerity) of the pressure wave in the fluid. This depends on the fluid’s bulk modulus (compressibility) and the elasticity of the pipe material. Stiffer pipes and less compressible fluids result in higher wave speeds and thus higher pressure surges.

ΔV is the change in fluid velocity. A larger and more rapid change in velocity (e.g., from full flow to zero flow) will result in a greater pressure surge.

From this equation, it’s clear that the most significant factors influencing surge magnitude are the speed at which the fluid flow changes (ΔV) and the wave speed (a). Therefore, strategies aimed at reducing pressure shock often focus on either slowing down the rate of fluid velocity change or reducing the effective wave speed within the system. While this equation provides a theoretical maximum, real-world scenarios are influenced by factors like pipe friction, minor losses, and the presence of air, which can dampen the surge. However, it serves as a powerful reminder of the physics behind hydraulic shock and the importance of managing fluid dynamics.

Fortifying Your Defenses: Strategies to Mitigate Hydraulic Pressure Shock by 85%

Achieving an 85% reduction in pressure shock damage is an ambitious yet attainable goal through a multi-faceted approach that combines intelligent system design, the strategic deployment of protective devices, and the meticulous selection and installation of high-quality components.

System Design Considerations for Shock Prevention

Effective pressure shock mitigation begins at the design phase. By incorporating preventative measures into the system architecture, engineers can significantly reduce the likelihood and severity of pressure surges:

• Proper Component Sizing (Hoses, Pipes, Valves): Undersized hoses and pipes can lead to excessively high fluid velocities, which, when abruptly stopped, generate larger pressure surges. Conversely, oversized components can lead to sluggish system response. Careful sizing based on flow rates, pressure requirements, and desired fluid velocities is crucial. Similarly, selecting valves with appropriate flow characteristics and response times can prevent sudden flow interruptions.
• Optimized Piping Layout: The physical layout of hydraulic lines plays a significant role in pressure shock. Avoiding sharp bends, excessive lengths, and unnecessary restrictions minimizes turbulence and reduces the potential for pressure wave reflection and amplification. Gentle curves and gradual transitions are preferred. Additionally, ensuring adequate support for long pipe runs prevents excessive vibration and movement, which can exacerbate shock effects.

The Role of High-Quality Fittings and Seals in Shock Resistance

cWhile external devices play a crucial role, the inherent quality and design of hydraulic fittings and their seals are fundamental to resisting pressure shock. Investing in superior components and ensuring their correct installation is paramount:

• Material Selection for Fittings: The material from which a fitting is manufactured directly impacts its ability to withstand high pressures and fatigue caused by repeated pressure shocks. Steel and stainless steel are the predominant materials due to their high tensile strength, yield strength, and fatigue resistance. Stainless steel offers superior corrosion resistance, making it ideal for harsh environments where chemical exposure or moisture is a concern.
• Advanced Seal Designs and Materials: The seal within a hydraulic fitting is the primary barrier against leakage, especially under dynamic pressure conditions. Traditional seals might struggle with the rapid pressure fluctuations of hydraulic shock. Advanced seal designs, such as O-rings with anti-extrusion backup rings, bonded seals (where a rubber sealing element is chemically bonded to a metal washer), and metal-to-metal seals, offer enhanced performance. The choice of seal material is equally critical; materials like Viton (FKM) and PTFE (Teflon) offer excellent resistance to high temperatures, aggressive hydraulic fluids, and compression set, ensuring the seal maintains its integrity even after repeated pressure spikes.
• Emphasizing Proper Installation and Tightening Torque: Even the highest quality fittings and seals will fail if not installed correctly. Proper installation involves meticulous cleaning of mating surfaces, correct alignment, and, most importantly, applying the precise tightening torque specified by the manufacturer. Overtightening can deform the fitting or crush the seal, leading to premature failure and leakage. Undertightening results in insufficient sealing force, making the connection vulnerable to pressure surges. Using calibrated torque wrenches and following manufacturer guidelines are non-negotiable steps to ensure the fitting performs as designed and provides maximum resistance to pressure shock.

Conclusion

Hydraulic fitting impact pressure poses a significant threat to industrial systems, leading to costly damage and safety hazards. By understanding the causes of pressure shock and implementing a multi-layered protection strategy—encompassing design, protective devices, and quality components—it is possible to drastically reduce its detrimental effects.

If you have any purchasing needs. Contact Topa and we can arrange the most suitable hydraulic fittings for you!

References

[1] Crown Hydraulics. (2023, November 27). How the Right Hoses and Fittings Impact Hydraulic Efficiency and Safety.

[2] Sannke. (2024, December 3). How Hydraulic High Pressure Fittings Ensure System Safety.

[3] Flowflex. (2024, July 10). Hydraulic Shock: Causes, Impacts, and How to Prevent Water Hammer.

---
