Hydraulic systems are the backbone of countless industrial and mobile applications, providing the power and precision necessary for heavy machinery to operate. At the heart of these systems are hydraulic fittings, seemingly small components that play a critical role in ensuring fluid conveyance and system integrity. However, these vital connections are also common points of failure, leading to costly downtime, reduced productivity, and potential safety hazards. This comprehensive guide is designed to equip maintenance technicians and failure analysis experts with the knowledge and tools to quickly and accurately diagnose hydraulic fitting failures, minimizing downtime and preventing recurring issues.
Common Hydraulic Fitting Failures: Symptoms and Causes
Identifying the root cause of a hydraulic fitting failure requires a systematic approach, starting with recognizing the symptoms. Here are some of the most common issues encountered with hydraulic fittings, along with their typical symptoms and underlying causes:
Leaks at the Fitting Connection
Visible hydraulic fluid weeping, dripping, or spraying around the fitting connection. This can range from a minor seep to a significant stream, often accompanied by a noticeable drop in system pressure or fluid level.
Causes:
- Damaged or Missing O-rings/Seals: O-rings and seals are crucial for creating a tight seal. They can degrade over time due to age, chemical incompatibility, excessive heat, or improper installation, leading to cracks, hardening, or extrusion.
- Improper Torque: Under-tightening can result in insufficient compression of the seal, allowing fluid to escape. Over-tightening can deform or crack the fitting components, leading to immediate or delayed leaks.
- Cross-threading: Forcing a fitting onto a misaligned thread can damage both the male and female threads, preventing a proper seal.
- Contamination: Dirt, debris, or foreign particles trapped between sealing surfaces can create pathways for fluid to escape.
- Vibration and Pulsation: Constant vibration or pressure pulsations in the system can loosen fittings over time, leading to leaks.
- Thermal Expansion/Contraction: Significant temperature fluctuations can cause fitting components to expand and contract at different rates, stressing the seal and potentially leading to leaks.
- Incorrect Fitting Type: Using a fitting that is not compatible with the hose, tube, or port, or that is not designed for the system’s pressure and temperature requirements.
- Damaged Sealing Surfaces: Scratches, nicks, or corrosion on the mating surfaces of the fitting can prevent a proper seal.
Hose Burst at the Fitting Connection
A sudden, forceful rupture of the hydraulic hose near the fitting, resulting in a rapid loss of hydraulic fluid and system pressure. This is often accompanied by a loud noise.
Causes:
- Improper Crimping/Assembly: If the hose is not properly crimped to the fitting, the connection may not be strong enough to withstand system pressure, leading to the hose pulling out or bursting at the crimp.
- Excessive Pressure Surges: Sudden and extreme pressure spikes that exceed the hose’s or fitting’s rated working pressure can cause a catastrophic failure.
- Hose Kinking/Bending: Bending the hose beyond its minimum bend radius, especially near the fitting, can weaken the hose structure and concentrate stress, leading to a burst.
- Abrasion/External Damage: External wear and tear on the hose near the fitting due to rubbing against other components or sharp edges can compromise its integrity.
- Corrosion: Exposure to corrosive fluids or environments can weaken the hose material and fitting components over time.
- Fatigue: Repeated pressure cycles and vibrations can cause material fatigue in the hose or fitting, leading to a burst.
Fitting Corrosion and Degradation
Visible rust, pitting, discoloration, or material degradation on the surface of the fitting. This can lead to leaks, reduced structural integrity, and eventual failure.
Causes:
- Chemical Incompatibility: Exposure to hydraulic fluids, cleaning agents, or environmental chemicals that are not compatible with the fitting material.
- Moisture Ingress: Water or humidity in the system or environment can lead to rust and corrosion, especially with carbon steel fittings.
- Galvanic Corrosion: Occurs when two dissimilar metals are in electrical contact in the presence of an electrolyte (e.g., water), leading to accelerated corrosion of the less noble metal.
- High Temperatures: Elevated temperatures can accelerate chemical reactions and material degradation.
- Poor Material Selection: Using fittings made from materials that are not suitable for the operating environment or fluid.
Loose or Disconnected Fittings
A fitting that has come loose or completely separated from its connection point. This will result in a significant loss of hydraulic fluid and system pressure.
Causes:
- Insufficient Torque: The fitting was not tightened to the manufacturer’s specifications during installation.
- Vibration and Pulsation: Prolonged exposure to vibration and pressure pulsations can gradually loosen threaded connections.
- Improper Thread Engagement: Not enough threads were engaged during installation, leading to a weak connection.
- Thermal Cycling: Repeated expansion and contraction due to temperature changes can cause fittings to loosen.
- Incorrect Thread Type: Using fittings with incompatible thread types (e.g., NPT with BSP) can lead to a loose connection that is prone to failure.
Restricted Flow or Pressure Drop
Reduced hydraulic system performance, slow operation of actuators, or a noticeable drop in system pressure without visible leaks at the fitting.
Causes:
- Internal Contamination: Debris, foreign particles, or degraded seal material trapped within the fitting, obstructing fluid flow.
- Kinked or Collapsed Hose: A severely bent or internally collapsed hose near the fitting can restrict fluid passage.
- Improper Fitting Size: Using a fitting with an internal diameter that is too small for the required flow rate, leading to excessive pressure drop.
- Damaged Internal Components: Internal components of certain fittings (e.g., quick-disconnect couplings) can become damaged, restricting flow.
- Excessive Number of Fittings: Too many fittings in a line can cumulatively contribute to pressure loss due to increased resistance to flow.
Expert Diagnostic Methods for Hydraulic Fitting Failures
Effective troubleshooting goes beyond merely observing symptoms; it involves a systematic process of inspection, testing, and analysis to pinpoint the exact cause of the failure. Here are expert diagnostic methods:
Visual Inspection: The First Line of Defense
A thorough visual inspection is often the most effective initial step in diagnosing hydraulic fitting issues. It requires keen observation and attention to detail.
- Look for Leaks: Trace the path of hydraulic fluid. Is it weeping, dripping, or spraying? Note the exact location of the leak – at the thread, ferrule, or hose-to-fitting interface.
- Check for External Damage: Inspect the fitting for signs of physical damage such as cracks, dents, abrasions, or deformation. Look for signs of corrosion or rust.
- Examine the Hose: Check the hose near the fitting for kinks, bulges, cuts, or excessive wear. Look for signs of hose twist (spiraling layline).
- Inspect for Proper Assembly: Verify that the fitting is fully seated and that all components (e.g., nuts, ferrules) are in their correct positions. Look for signs of cross-threading or improper thread engagement.
- Observe for Misalignment: Check if the hose or fitting is under stress due to misalignment or improper routing.
- Look for Contamination: Observe if there is any dirt, grime, or foreign material around the fitting or on the sealing surfaces.
Tactile Inspection: Feeling for Clues
Sometimes, visual inspection alone is not enough. A tactile inspection can reveal subtle clues.
- Feel for Heat: Touch the fitting (carefully, if the system is hot) to detect localized overheating, which could indicate restricted flow or excessive friction.
- Check for Looseness: Gently try to wiggle the fitting. Any noticeable play could indicate insufficient torque or damaged threads.
- Feel for Vibrations: Place your hand on the fitting during operation to detect abnormal vibrations, which can contribute to loosening.
Pressure and Flow Testing: Quantifying Performance
For issues related to restricted flow or pressure drops, specialized testing equipment is necessary.
- Pressure Gauges: Install pressure gauges at various points in the hydraulic circuit to measure pressure drops across fittings or sections of hose. A significant pressure drop across a single fitting indicates an internal obstruction.
- Flow Meters: Use flow meters to measure the actual flow rate through a section of the system. A reduced flow rate compared to specifications can point to restrictions.
- Diagnostic Manifolds: These allow for easy connection of pressure gauges and flow meters to different parts of the system for comprehensive testing.

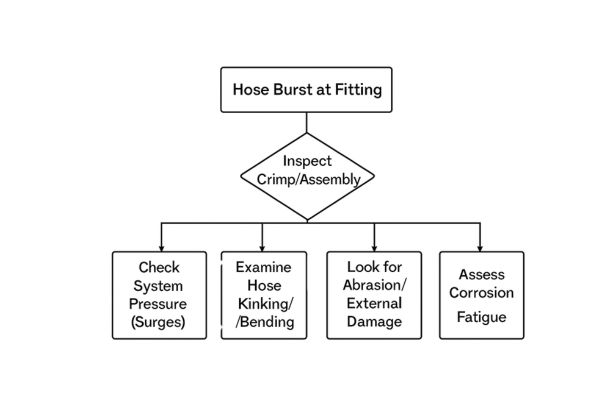

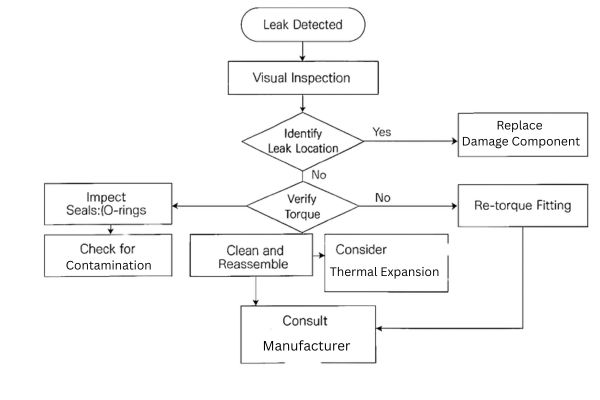

Troubleshooting Flowchart and Decision Tree
Preventive Maintenance and Best Practices
Preventing hydraulic fitting failures is far more cost-effective than reacting to them. Implementing robust preventive maintenance practices and adhering to best practices during installation and operation can significantly extend the life of your hydraulic system.
Proper Selection of Fittings
- Match to Application: Always select fittings that are compatible with the system’s pressure, temperature, fluid type, and environmental conditions.
- Material Compatibility: Ensure the fitting material and seal material are compatible with the hydraulic fluid being used.
- Size and Type: Use the correct size and type of fitting (e.g., JIC, ORFS, NPT, BSP) for the specific hose, tube, and port connections.
Correct Installation Procedures
- Cleanliness: Ensure all fitting components and sealing surfaces are clean and free of dirt, debris, or foreign particles before assembly.
- Lubrication: Lightly lubricate O-rings and threads with compatible hydraulic fluid to aid in assembly and prevent damage.
- Proper Torque: Always use a calibrated torque wrench and tighten fittings to the manufacturer’s specified torque values. Avoid over-tightening.
- Avoid Cross-threading: Start threads by hand to ensure proper alignment before using a wrench.
- Proper Hose Routing: Route hoses to avoid kinks, sharp bends, and abrasion points. Allow for natural movement and expansion/contraction.
- Minimize Stress: Avoid putting undue stress on fittings due to misalignment or excessive tension.
Regular Inspection and Monitoring
- Scheduled Inspections: Implement a routine inspection schedule for all hydraulic fittings. Look for leaks, external damage, corrosion, and signs of loosening.
- Thermal Imaging: Use thermal cameras to identify hot spots around fittings, which can indicate restricted flow or excessive friction.
- Vibration Analysis: Monitor system vibrations to identify potential issues that could lead to fitting loosening.
Advanced Troubleshooting Techniques and Tools
For persistent or complex hydraulic fitting issues, advanced techniques and specialized tools can be invaluable.
Ultrasonic Leak Detection
Description: Ultrasonic leak detectors can pinpoint even the smallest leaks by detecting the high-frequency sound waves generated by escaping pressurized fluid or gas. This is particularly useful for identifying leaks that are not visibly apparent or are in hard-to-reach areas.
Application: Ideal for early detection of minor leaks before they escalate into major failures, and for confirming the absence of leaks after repairs.
Dye Penetrant Testing
Description: A non-destructive testing method used to detect surface-breaking defects (like cracks) in non-porous materials. A liquid dye is applied to the fitting surface, allowed to penetrate any defects, and then a developer is applied to draw the dye out, making the defects visible.
Application: Useful for identifying hairline cracks in fitting bodies that may not be visible to the naked eye, especially after a suspected over-tightening incident or fatigue failure.
Endoscopic Inspection
Description: Using a small, flexible camera (endoscope or borescope) to inspect the internal surfaces of hoses and fittings without disassembling the entire system.
Application: Can help identify internal obstructions, tube delamination, or corrosion within the hose or fitting that would otherwise be impossible to see.
Material Analysis
Description: Sending samples of failed fitting components or seals to a laboratory for metallurgical or chemical analysis. This can determine material composition, identify contaminants, or confirm material degradation mechanisms.
Application: Crucial for root cause analysis of recurring failures, especially when chemical incompatibility, fatigue, or manufacturing defects are suspected.
Infrared Thermography
Description: Using thermal cameras to create heat maps of hydraulic systems. Abnormal temperature patterns can indicate areas of excessive friction, restricted flow, or impending component failure.
Application: Excellent for identifying fittings that are overheating due to internal blockages or excessive pressure drops, even before visible symptoms appear.
Conclusion
Effective hydraulic fitting troubleshooting is an indispensable skill for maintaining the reliability and efficiency of hydraulic systems. By understanding common failure modes, employing systematic diagnostic methods, and adhering to best practices in selection, installation, and maintenance, technicians can significantly reduce downtime, extend equipment lifespan, and enhance operational safety.
FAQ
What is the most common cause of hydraulic fitting leaks?
Improper torque or damaged seals are frequently the culprits.
How can I prevent hose bursts at the fitting?
Ensure proper crimping, avoid excessive pressure, and prevent kinking.
Why do my fittings corrode?
Chemical incompatibility, moisture, or dissimilar metals can cause corrosion.
What causes restricted flow in a hydraulic fitting?
Internal contamination or a kinked hose are common reasons.
How often should I inspect hydraulic fittings?
Regular visual inspections should be part of your routine maintenance schedule.
Can I reuse hydraulic fittings?
It is generally not recommended to reuse fittings, especially seals, as their integrity may be compromised.
