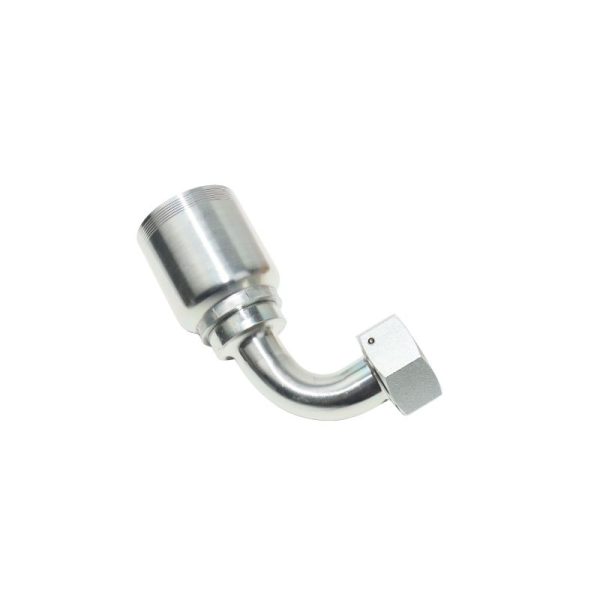

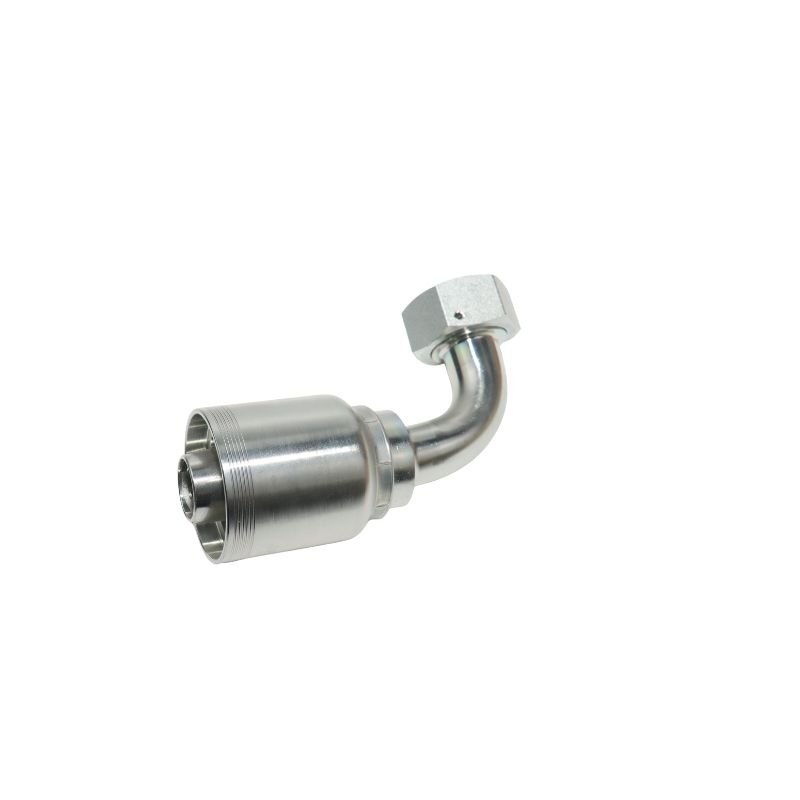

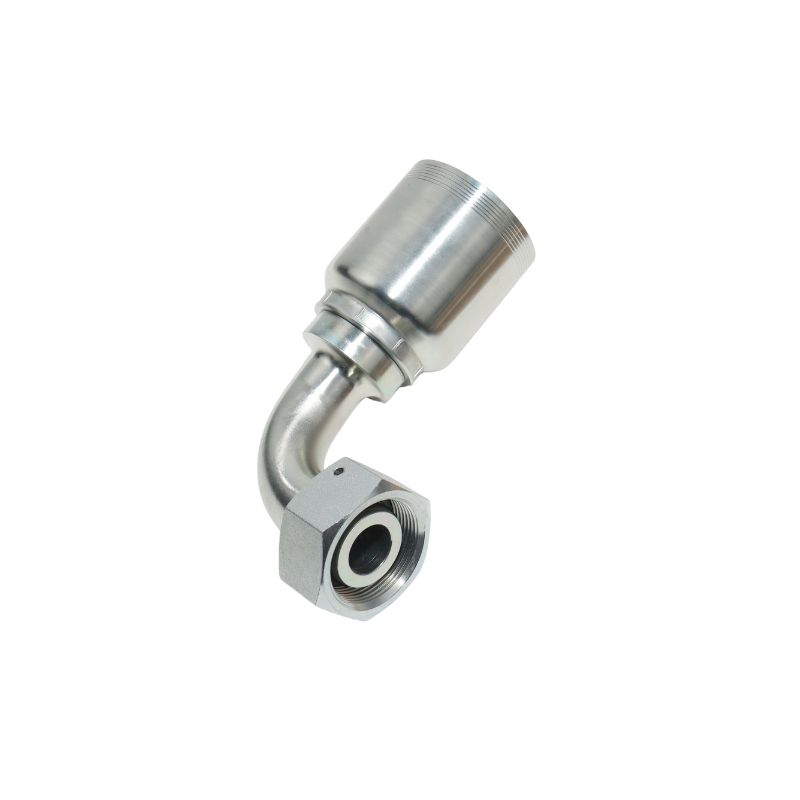

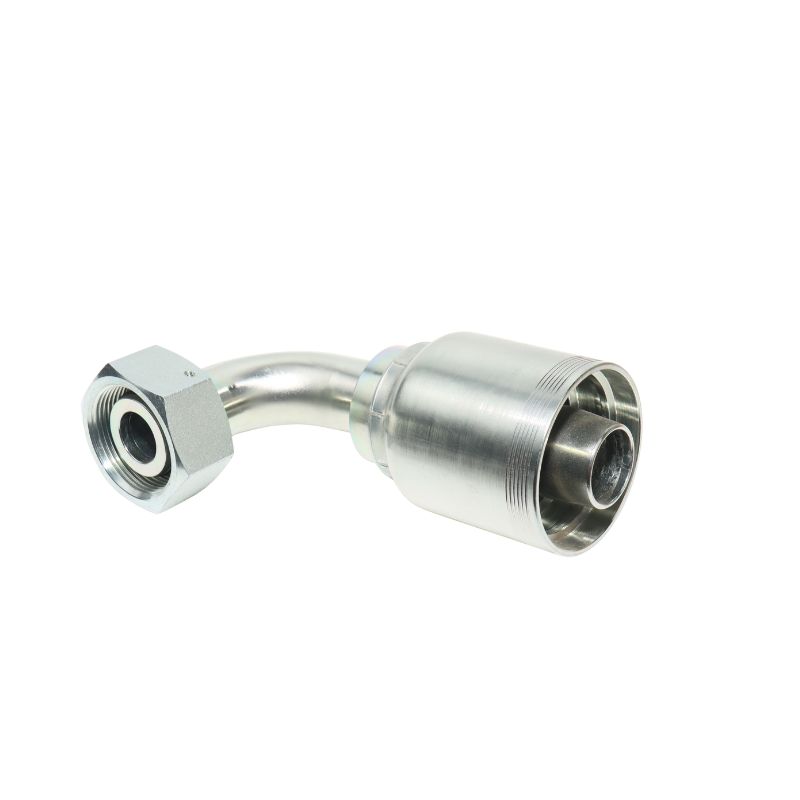

Topa 11C78 one piece hose fitting provides a durable Metric connection for hydraulic hoses, delivering secure, leak-free performance across diverse applications. Explore the product’s construction details below:

Connection 1: Female Metric S – Swivel – (24˚ Cone with O-Ring)

Connection 2: Hose End – Designed for 4/6-spiral hoses

Material selection: Carbon steel; Stainless steel

Shape: Elbow 90˚

Product types: Crimp Fittings No-Skive

Applications: Marine;Industry;Heavy Machine;Construction;Oil and Gas

Power your hydraulic systems with Topa fittings—durable, precise. Request a fast quote and experience Topa service!

Description

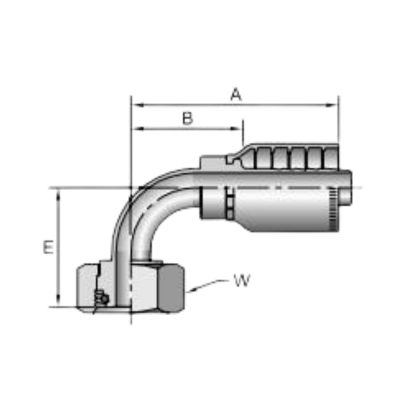

11C78 one piece hose fitting drawing Topa
Part
Number
Thread
mm
Hose I.D.
inch
AEW
mm
B
inchmminchmminchmm
11C78-25-1225 M36x23/44.12 105 2.32     59 46 2.36 60
11C78-30-1630 M42x24.71 120 2.68     68 50 2.86 73
11C78-38-2038 M52x21-1/45.67 144 2.86     73 60 3.28 83

11C78 One Piece Hose Fitting Video

This video provides a detailed look at the Topa 11C78 one piece hose fitting.

It highlights the product’s construction, including the high-quality carbon steel and stainless steel materials used, and the precise machining process that guarantees accurate dimensions. You will also see the surface finish and design features that ensure strong, leak-free connections in demanding hydraulic applications.

Topa’s one union hydraulic fittings are built for durability and consistent performance under high pressure and vibration. Watch the full video to understand our technical expertise—and contact Topa today to request your inquiry or order.
