JIC to Pipe Adapter Hydraulic Fittings

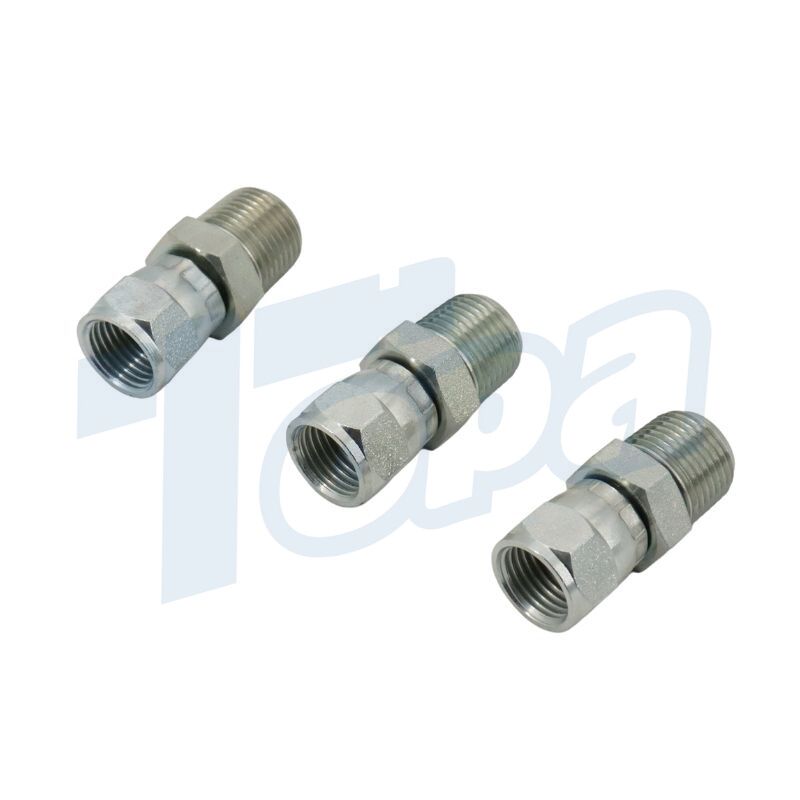

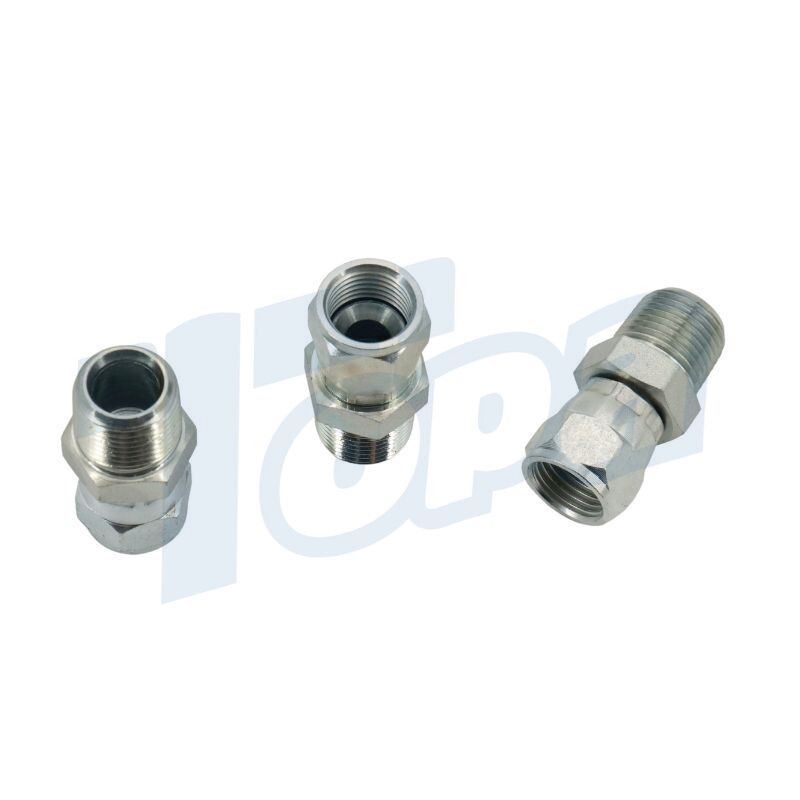

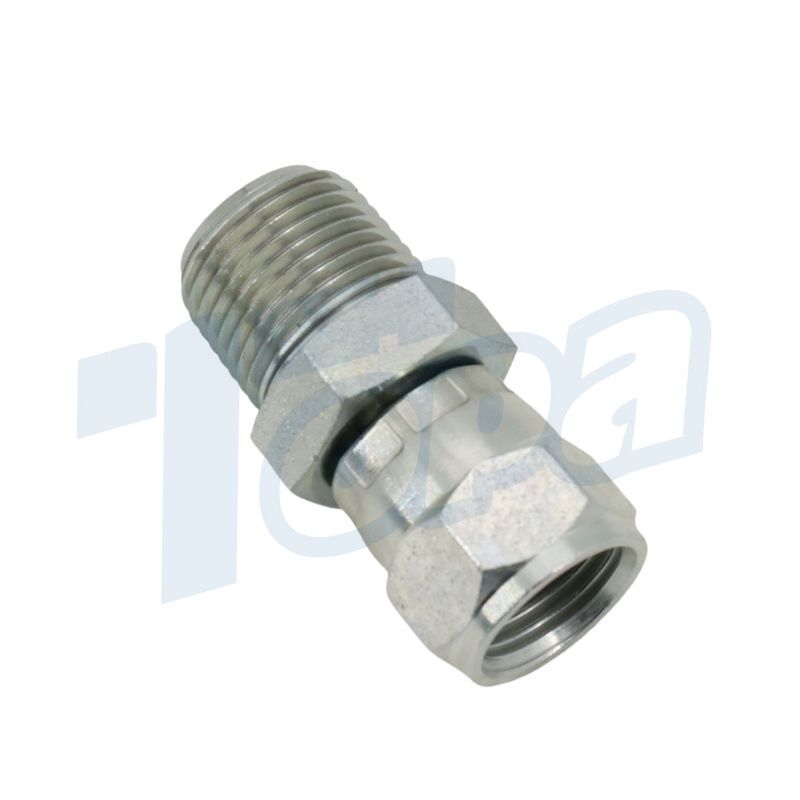

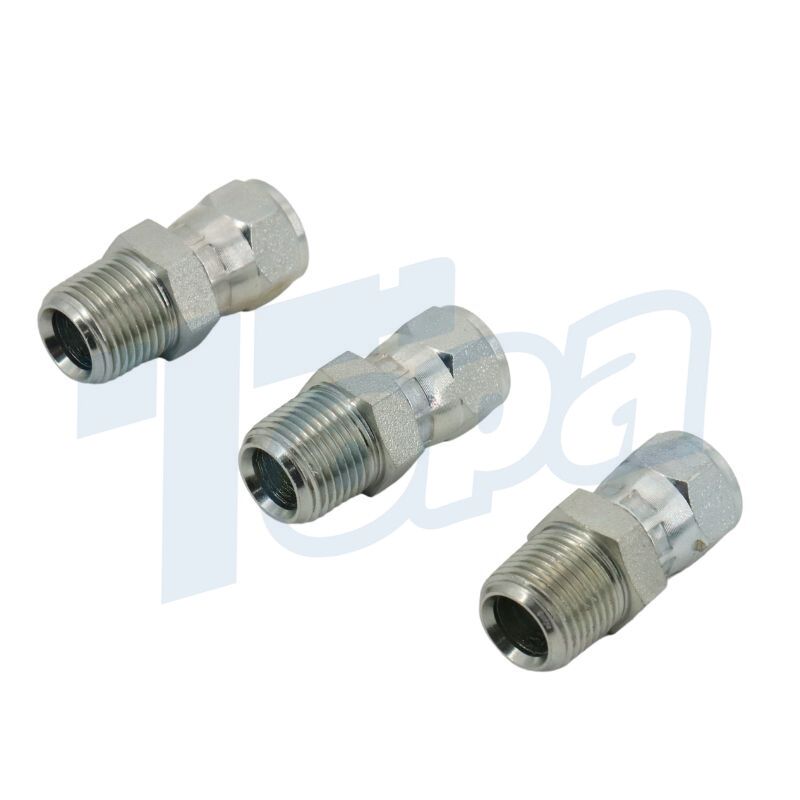

6505 male NPT to female JIC thread swivel hydraulic fittings are straight hydraulic adapters. These types of fittings are made of best-quality carbon steel, steel, and stainless steel, strength, and reliability. If you need more information about JIC adapter hydraulic fittings, please contact us!

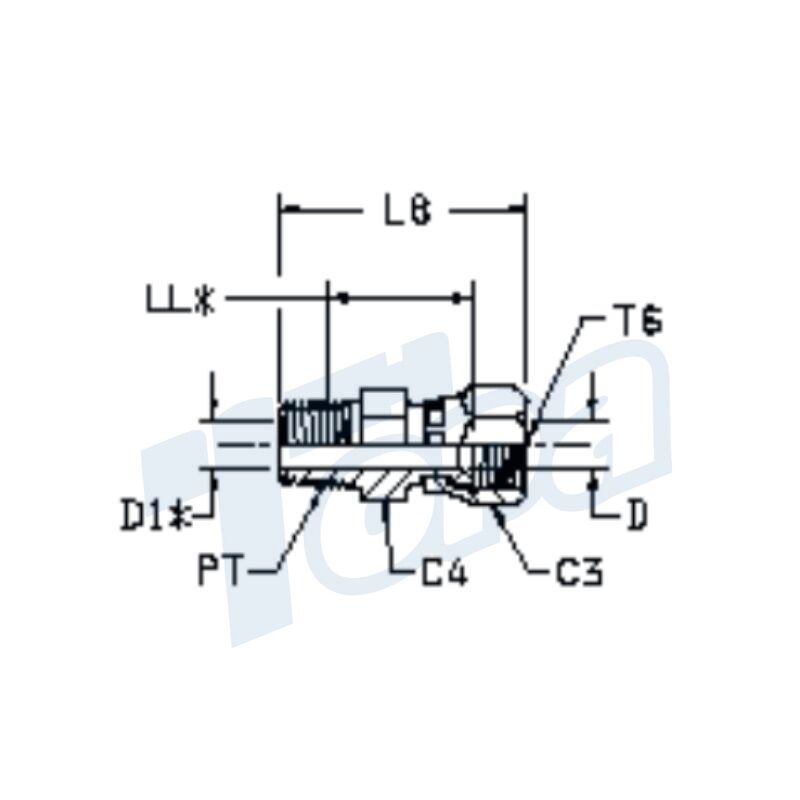

Dimensional Drawings:
TIBE PART # | TUBE O.D. (inch) | T6 Swivel UN/UNF-2B | PT PORT THD NPTF | C3 (inch) | C4 (inch) | D DRILL (inch) | D1 (inch) | L8 (inch) | LL (inch) |
6505-2-4 | 1/4 | 7/16-20 | 1/8-27 | 9/16 | 9/16 | 0.172 | 0.172 | 1.13 | 0.63 |
6505-4-4 | 1/4 | 7/16-20 | 1/4-18 | 9/16 | 9/16 | 0.172 | 0.172 | 1.46 | 0.85 |
6505-4-5 | 5/16 | 1/2-20 | 1/4-18 | 5/8 | 5/8 | 0.234 | 0.281 | 1.57 | 0.88 |
6505-4-6 | 3/8 | 9/16-18 | 1/4-18 | 11/16 | 11/16 | 0.297 | 0.297 | 1.59 | 0.94 |
6505-6-6 | 3/8 | 9/16-18 | 3/8-18 | 11/16 | 3/4 | 0.281 | 0.281 | 1.59 | 0.95 |
6505-6-8 | 1/2 | 3/4-16 | 3/8-18 | 7/8 | 7/8 | 0.391 | 0.391 | 1.69 | 0.95 |
6505-8-8 | 1/2 | 3/4-16 | 1/2-14 | 7/8 | 7/8 | 0.391 | 0.391 | 1.92 | 1.07 |
6505-8-10 | 5/8 | 7/8-14 | 1/2-14 | 1 | 1 | 0.484 | 0.484 | 2.05 | 1.07 |
6505-6-10 | 5/8 | 7/8-14 | 3/8-18 | 1 | 1 | 0.484 | 0.406 | 1.87 | 0.99 |
6505-12-12 | 3/4 | 11/16-12 | 3/4-14 | 1 1/4 | 1 1/4 | 0.609 | 0.609 | 2.15 | 1.15 |
6505-8-12 | 3/4 | 11/16-12 | 1/2-14 | 1 1/4 | 1 1/4 | 0.594 | 0.531 | 2.15 | 1.17 |
6505-16-16 | 1 | 15/16-12 | 1-11 1/2 | 1 1/2 | 1 1/2 | 0.844 | 0.844 | 2.50 | 1.90 |
6505-12-16 | 1 | 15/16-12 | 3/4-14 | 1 1/2 | 1 1/2 | 0.844 | 0.719 | 2.33 | 1.21 |
6505-20-20 | 1 1/4 | 1 5/8-12 | 1 1/4-11 1/2 | 2 | 2 | 1.078 | 1.078 | 2.76 | 1.47 |
6505-24-24 | 1 1/2 | 1 7/8-12 | 1 1/2-11 1/2 | 2 1/4 | 2 1/4 | 1.312 | 1.312 | 3.05 | 1.71 |
6505-32-32 | 2 | 2 1/2-12 | 2-11 1/2 | 2 7/8 | 2 5/8 | 1.781 | 1.781 | 3.38 | 1.98 |
6505 JIC Swivel Adapter Hydraulic Fitting Video
As a hydraulic adapters factory, Topa can supply hydraulic fittings in various sizes. Our products can be used in multiple hydraulic fluid environments, and are resistant to high pressure and temperature.
Topa’s factory has several CNC machines to produce fittings strictly according to your data. Our JIC adapter swivel fittings will undergo strict quality inspection to ensure the product meets your usage requirements.
If you want more information about hydraulic hose connections, please contact us!
