JIC Branch Hydraulic Hose Tee Fittings

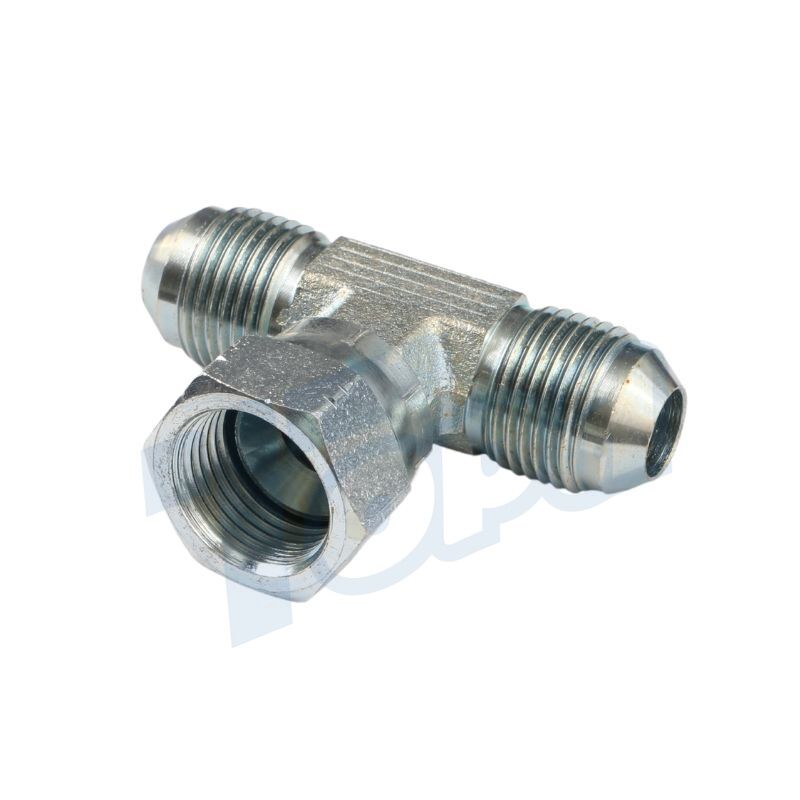

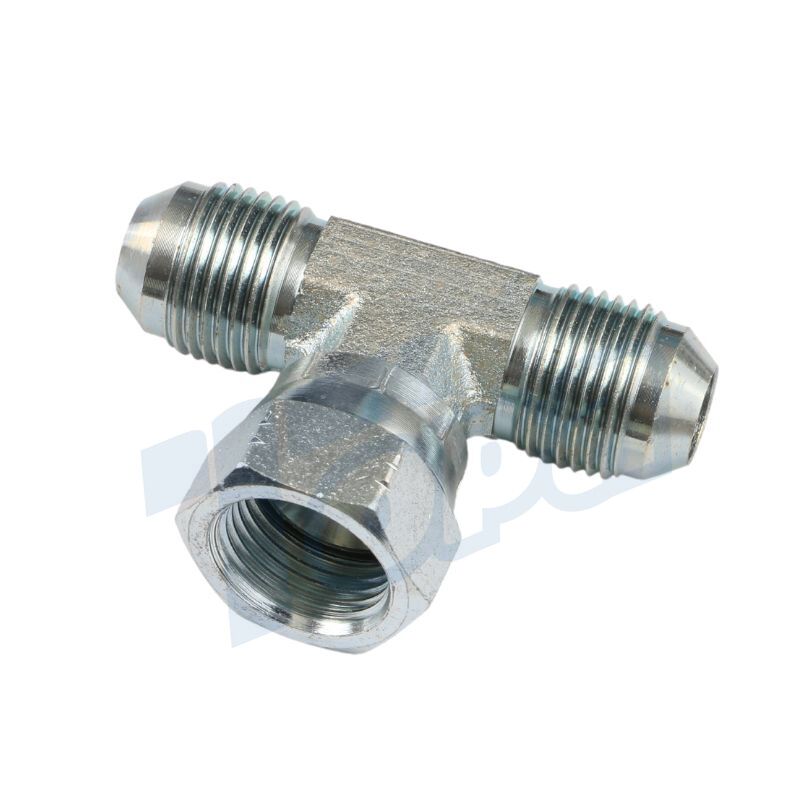

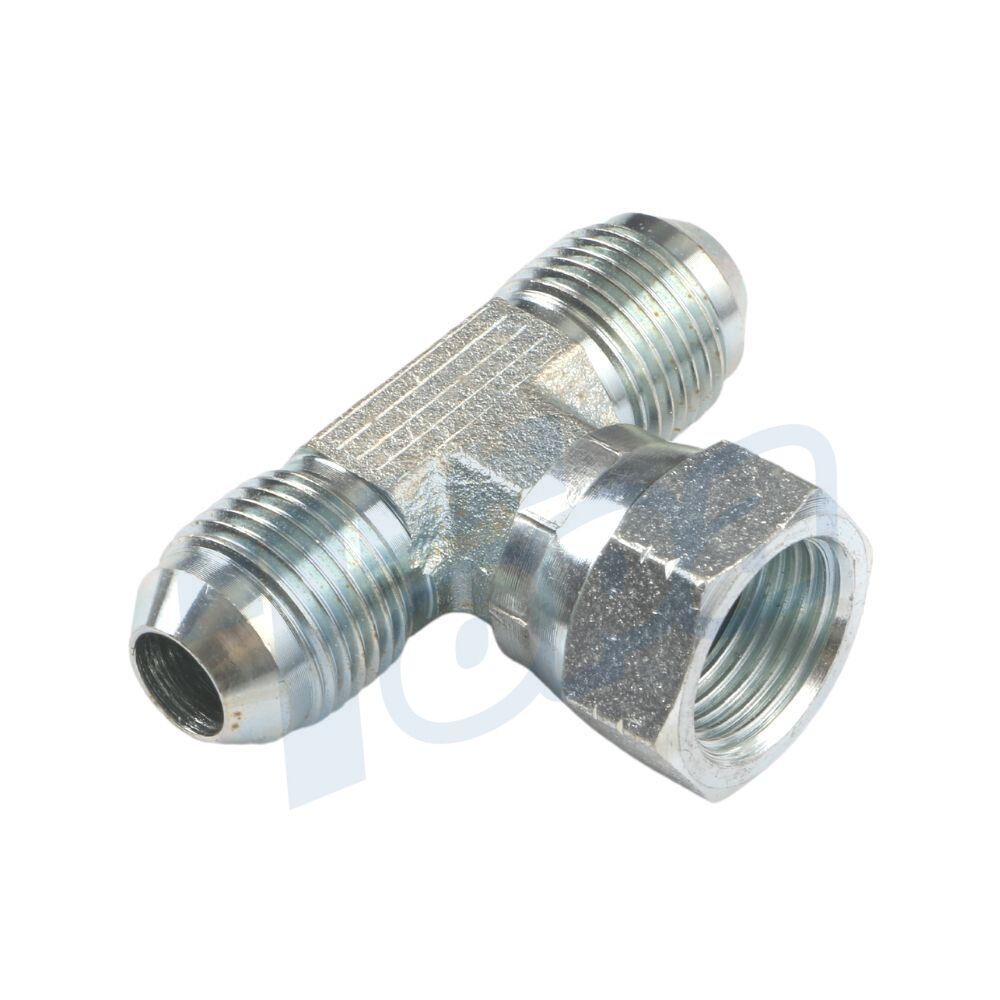

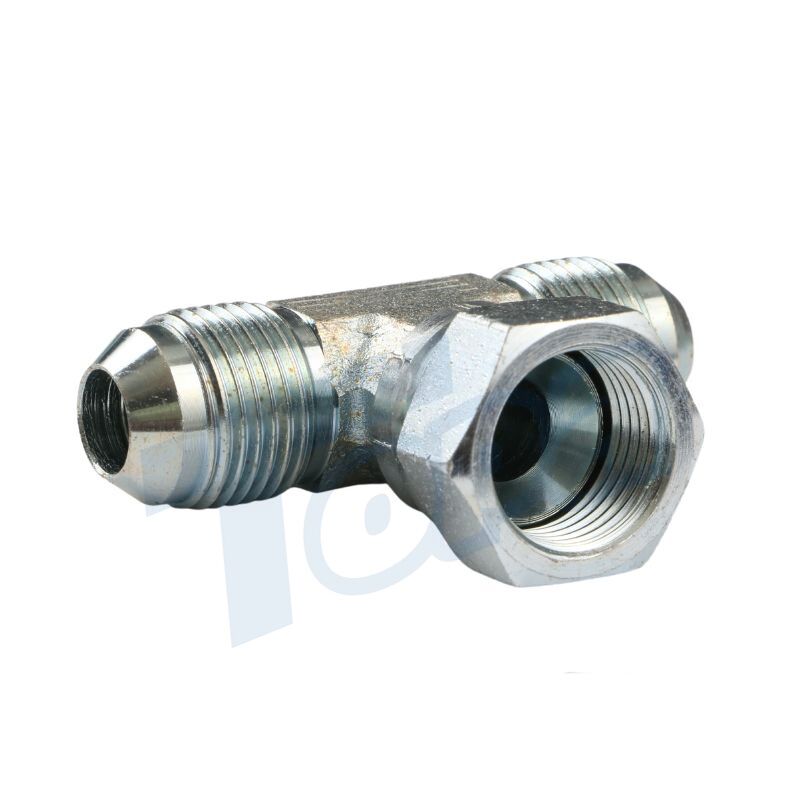

6600 JIC swivel branch tee fittings are female branch tee adapters. They are made of best-quality carbon steel, steel, and stainless steel, strength, and reliability. If you need more information about JIC hydraulic steel fittings, please contact us!

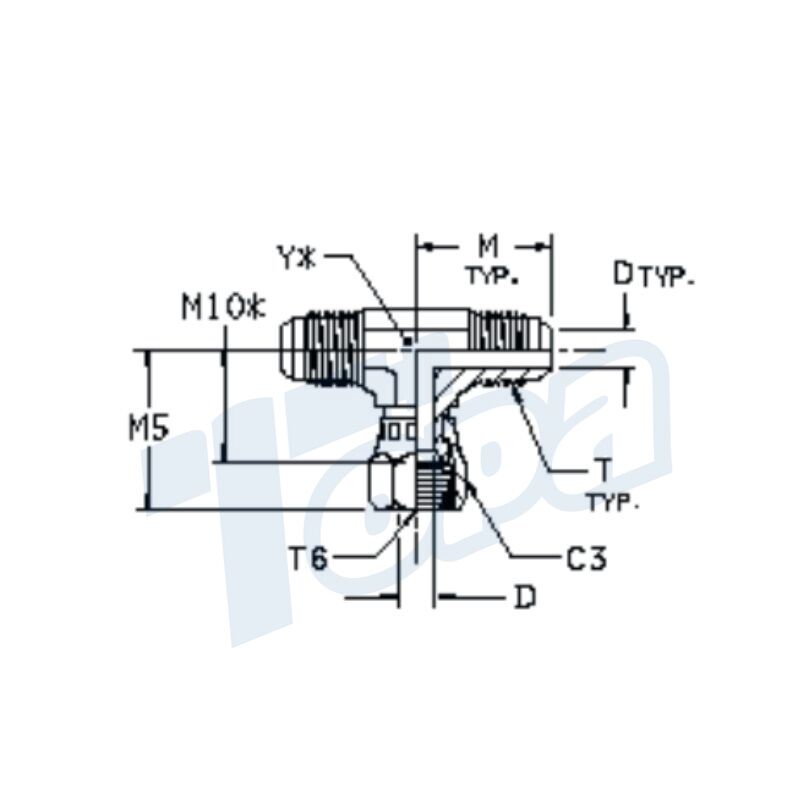

Dimensional Drawings:
TUBE FITTING PART # | TUBE O.D. (inch) | T TUBE END UN/UNF-2A | T6 SWIVEL UN/UNF-2B | C3 HEX (inch) | DRILL (inch) | M (inch) | M5 (inch) | M10 (inch) | Y (inch) |
6600-4-4-4 | 1/4 | 7/16-20 | 7/16-20 | 9/16 | 0.172 | 0.89 | 1.00 | 0.66 | 7/16 |
6600-5-5-5 | 5/16 | 1/2-20 | 1/2-20 | 5/8 | 0.234 | 0.95 | 1.16 | 0.68 | 9/16 |
6600-6-6-6 | 3/8 | 9/16-18 | 9/16-18 | 11/16 | 0.297 | 1.06 | 1.25 | 0.88 | 9/16 |
6600-8-8-8 | 1/2 | 3/4-16 | 3/4-16 | 7/8 | 0.391 | 1.25 | 1.38 | 0.95 | 3/4 |
6600-10-10-10 | 5/8 | 7/8-14 | 7/8-14 | 1 | 0.484 | 1.45 | 1.62 | 1.13 | 7/8 |
6600-12-12-12 | 3/4 | 11/16-12 | 11/16-12 | 1 1/4 | 0.609 | 1.66 | 1.75 | 1.19 | 11/16 |
6600-14-14-14 | 7/8 | 13/16-12 | 13/16-12 | 1 3/8 | 0.718 | 1.80 | 1.78 | 1.33 | 15/16 |
6600-16-16-16 | 1 | 15/16-12 | 15/16-12 | 1 1/2 | 0.844 | 1.81 | 2.00 | 1.41 | 15/16 |
6600-20-20-20 | 1 1/4 | 1 5/8-12 | 1 5/8-12 | 2 | 1.078 | 2.06 | 2.31 | 1.69 | 1 5/8 |
6600-24-24-24 | 1 1/2 | 1 7/8-12 | 1 7/8-12 | 2 1/4 | 1.312 | 2.33 | 2.67 | 1.92 | 1 7/8 |
