Female Pipe JIC Hydraulic Adapter Fitting

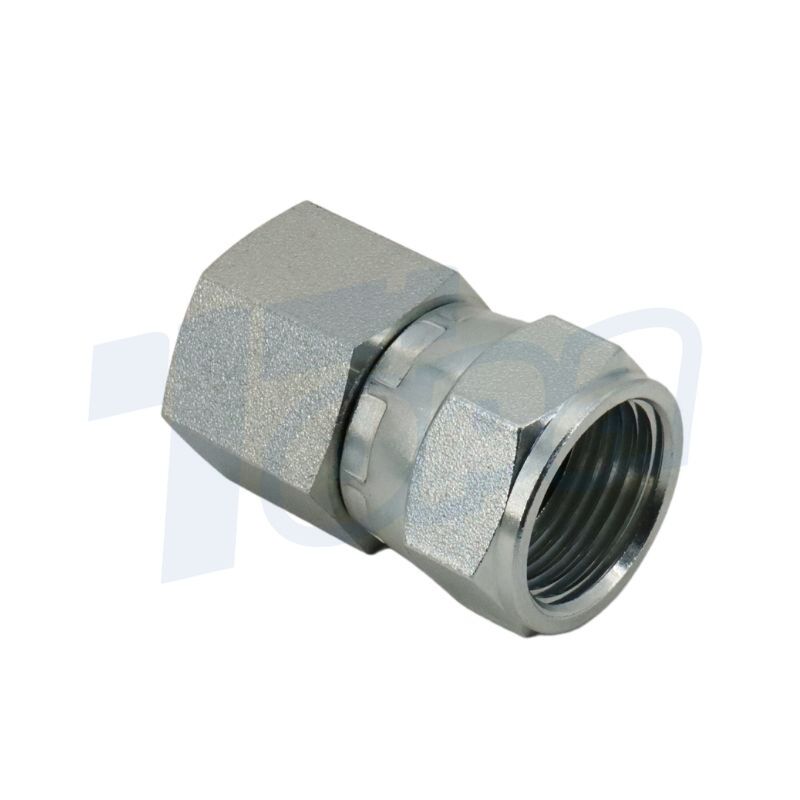

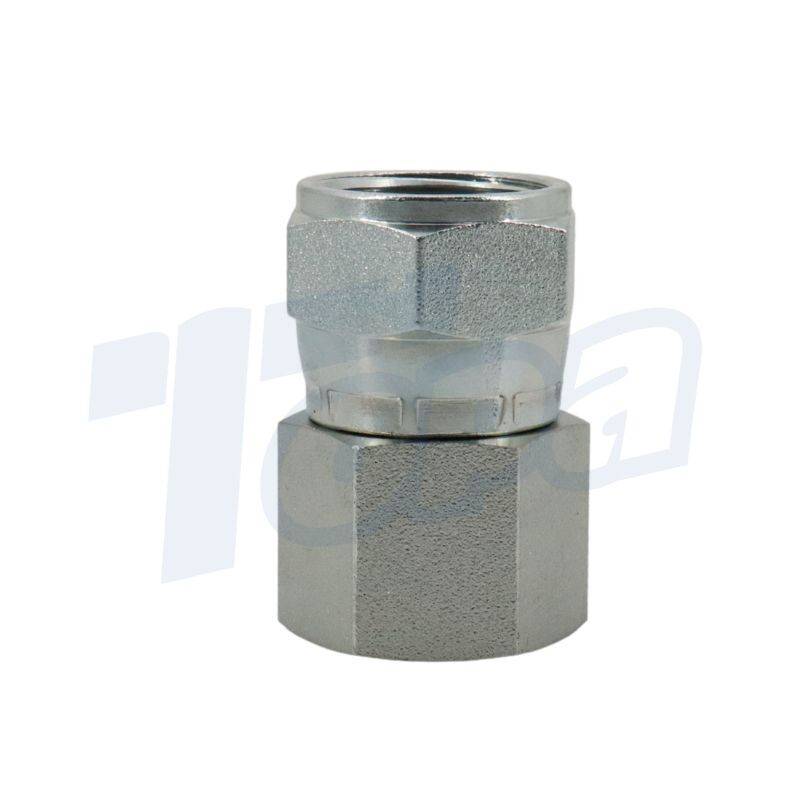

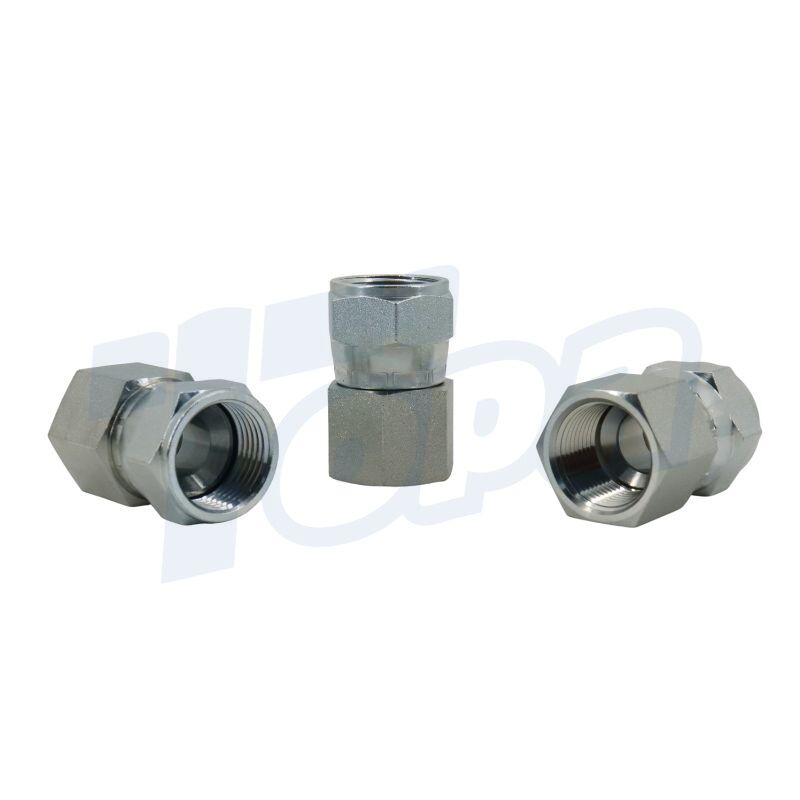

6506 female NPT to female JIC swivel thread hydraulic adapter fitting is a straight hydraulic adapter. This fitting is made of best-quality carbon steel, steel, and stainless steel, strength, and reliability. If you need more information about JIC swivel adapter fittings, please contact us!

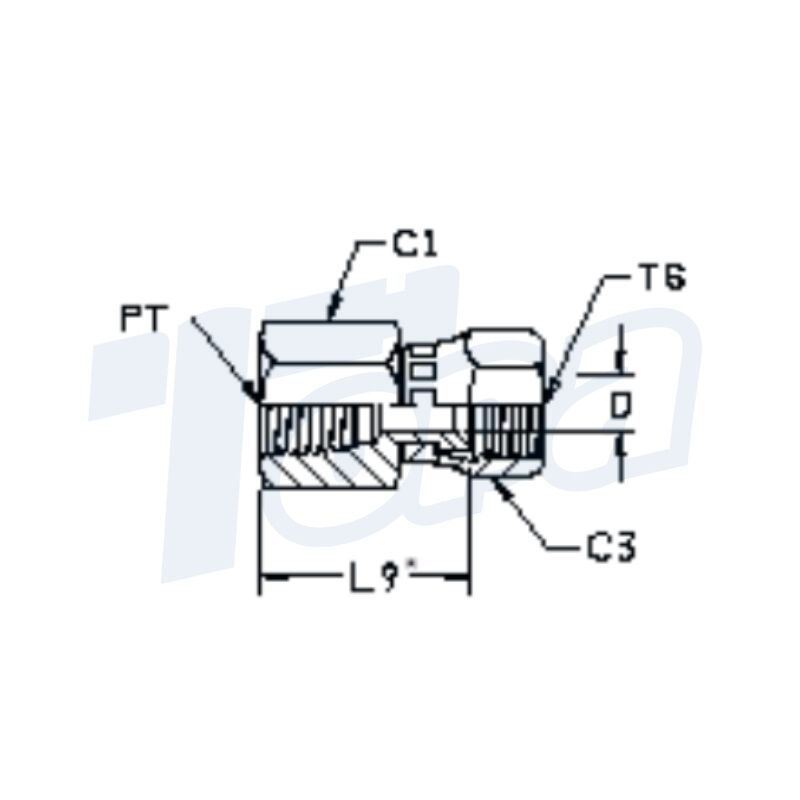

Dimensional Drawings:
TUBE FITTING PART # | TUBE O.D. (inch) | T6 SWIVEL UN/UNF-2B | PT PORT THD NPTF | C1 (inch) | C3 HEX (inch) | D (inch) | L9(inch) |
6506-2-4 | 1/4 | 7/16-20 | 1/8-27 | 9/16 | 9/16 | 0.172 | 0.92 |
6506-4-4 | 1/4 | 7/16-20 | 1/4-18 | 3/4 | 9/16 | 0.172 | 1.08 |
6506-4-6 | 3/8 | 9/16-18 | 1/4-18 | 3/4 | 11/16 | 0.297 | 1.06 |
6506-6-6 | 3/8 | 9/16-18 | 3/8-18 | 7/8 | 11/16 | 0.267 | 1.16 |
6506-8-6 | 3/8 | 9/16-18 | 1/2-14 | 11/8 | 11/16 | 0.297 | 1.42 |
6506-6-8 | 1/2 | 3/4-16 | 3/8-18 | 7/8 | 7/8 | 0.391 | 1.23 |
6506-8-8 | 1/2 | 3/4-16 | 1/2-14 | 1 1/8 | 7/8 | 0.391 | 1.48 |
6506-8-10 | 5/8 | 7/8-14 | 1/2-14 | 1 1/8 | 1 | 0.484 | 1.47 |
6506-12-12 | 3/4 | 11/16-12 | 3/4-14 | 1 3/8 | 1 1/4 | 0.609 | 1.51 |
6506-8-12 | 3/4 | 11/16-12 | 1/2-14 | 1 1/4 | 1 1/4 | 0.609 | 1.50 |
6506-16-16 | 1 | 15/16-12 | 1-11 1/2 | 5/8 | 1 1/2 | 0.844 | 1.85 |
6506-20-20 | 1 1/4 | 1 5/8-12 | 1 1/4-11 1/2 | 2 | 2 | 1.078 | 2.17 |
6506-24-24 | 1 1/2 | 1 7/8-12 | 1 1/2-11 1/2 | 2 3/8 | 2 1/4 | 1.312 | 2.26 |
6506-32-32 | 2 | 2 1/2-12 | 2-11 1/2 | 2 7/8 | 2 7/8 | 1.781 | 2.45 |
6506 JIC Swivel Hydraulic Adapter Fitting Video
As a hydraulic adapters factory, Topa can supply hydraulic fittings in various sizes. Our hydraulic products can be used in multiple hydraulic fluid applications, and are resistant to high pressure and temperature.
Topa’s factory has several CNC machines to produce fittings strictly according to your data. Our JIC hydraulic adapter fittings will undergo strict quality inspection to ensure the product meets your usage requirements.
If you want more information about hydraulic adapter hydraulic, please contact us!
